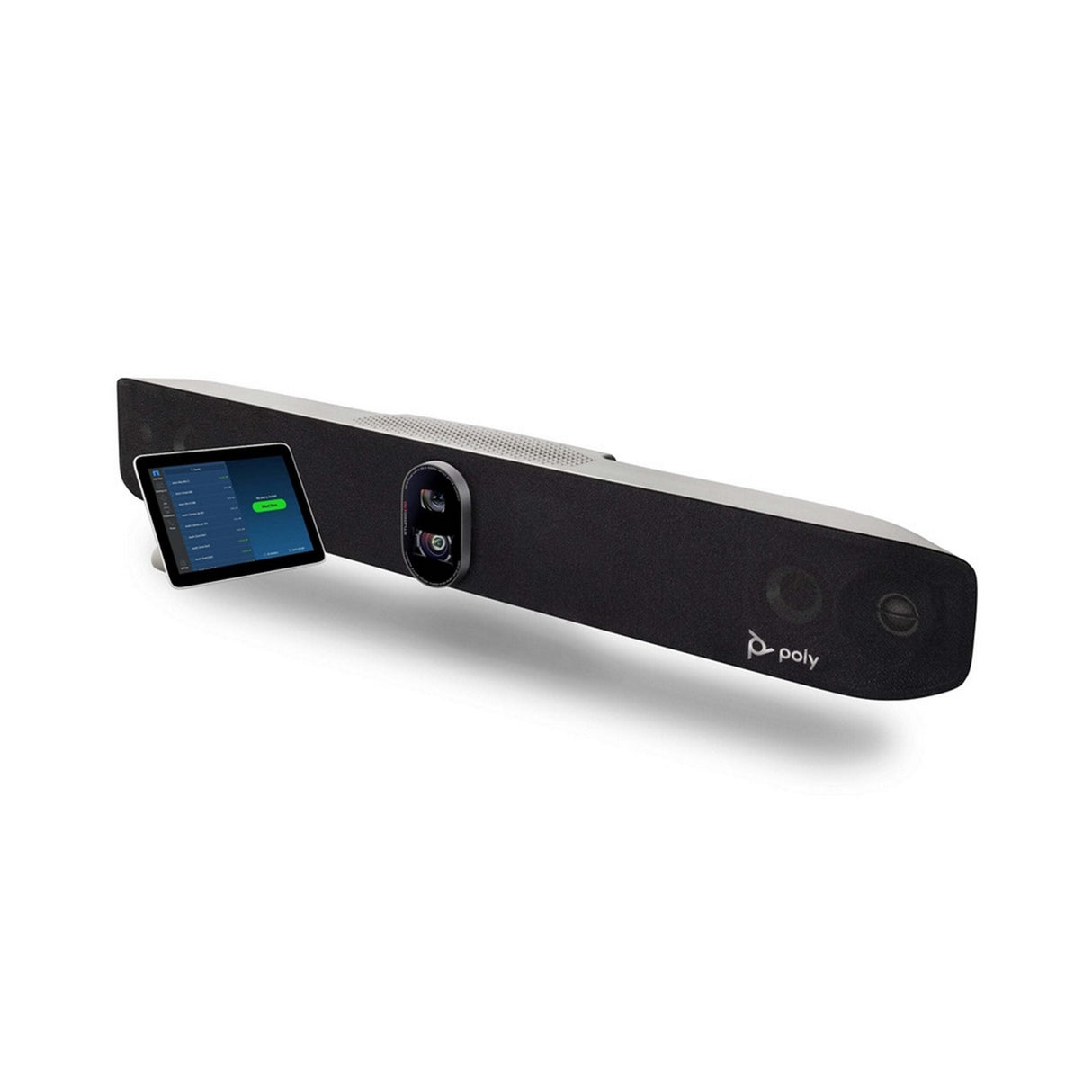

Poly Studio X70 4K Conferencing Video Bar with TC8 Controller
Description
Description
Poly Studio X70 4K Conferencing Video Bar with TC8 Controller
Ready for the best damn meeting experience available? The Poly Studio X70 video bar combines stunning design with razor-sharp 4K video and boardroom-filling stereo that brings your large meeting rooms to life. Its all-in-one construction means you can trash all those annoying cables and stop bothering your IT people for help. And with its AI-driven video and audio experiences, the Poly Studio X70 turns any large-room video call into a hassle-free delight.
CRYSTAL CLEAR VIDEO
LIFELIKE DEFINITION WITH DUAL LENSES AND 4K SENSORS
The Poly Studio X70 transitions seamlessly between wide-angle and narrow lenses, showing everyone in your medium and large meeting spaces in sharp detail. Ready for your close-up?
STELLAR PRODUCTION VALUE
PINPOINT-ACCURATE SPEAKER TRACKING AND PROFESSIONAL-QUALITY GROUP FRAMING
Poly DirectorAI technology adds automatic tracking to create unparalleled video experience. It's like having a director in the room making make sure everyone is seen clearly.
THE TOOLS YOU NEED
TOP CLOUD VIDEO APPS ARE BUILT RIGHT IN
Poly Studio X70 comes with native applications for key cloud video providers like Zoom. Native apps make it easier for users, with a consistent and familiar interface everywhere. We combine Poly MeetingAI technology with partner platform features for a next level experience.
PRO-QUALITY AUDIO
CUSTOM MICROPHONES AND STEREO SPEAKERS DELIVER RICH AUDIO
Enjoy the kind of crystal-clear, boardroom-filling audio you’d expect from Poly, thanks to two-way stereo speakers and advanced bass ports. And the Poly Studio X70 delivers advanced 2nd-order gradient microphone array, which means a next-level audio experience, no matter which side of the call you’re on.
Technical Specifications
PACKAGE INCLUDES
Poly Studio X70
Power Supply
2x HDMI cable
Ethernet Cable
Wall mount
VIDEO STANDARDS AND PROTOCOLS
H.264 AVC
H.264
High Profile
H.265
VIDEO INPUT
1x HDMI
VIDEO OUT
2x HDMI
Touch display compatible
PEOPLE VIDEO RESOLUTION
4K, 30 fps (TX and RX) from 2048 Kbps
1080p, 30 fps from 1740 Kbps
1080p, 30 fps from 1024 Kbps
720p, 30 fps from 832 Kbps
720p, 30 fps from 512 Kbps
CONTENT VIDEO RESOLUTION
UHD (3840 x 2160)
FHD (1920 x 1080p)
WSXGA+ (1680 x 1050)
UXGA (1600 x 1200)
SXGA (1280 x 1024)
WXGA (1280 x 768)
HD (1280 x 720p)
XGA (1024 x 768)
SVGA (800 x 600)
Output UHD (3840 x 2160)
WUXGA (1920 x 1200)
HD (1920 x 1080)
WSXGA+ (1680 x 1050)
SXGA+ (1400 x 1050)
SXGA (1280 x 1024)
HD (1280 x 720)
XGA (1024 x 768)
Content frame rate 5-60 fps (up to 4K resolution at 15 fps in call)
ROOM ANALYTICS
Room participant counting detection
Air quality sensor*
CO2 and Volatile Organic Compounds (VOC)
CONTENT SHARING
Poly content app
Apple Airplay
Miracast
HDMI input
Whiteboarding
CAMERA
2 lenses
120-degree HFOV, 70-degree HFOV
140-degree DFOV, 78-degree DFOV
2x 20 Megapixel sensors
7.3x digital zoom
UHD 2160p (4K) capture resolution
Automatic group framing
Automatic speaker tracking
Additional cameras can be added via USB
AUDIO INPUT
1x 3.5 mm
MICROPHONES
2x MEMS microphones, plus 2x 2nd order microphones
Microphone pickup range up to 25 ft
AUDIO OUTPUT
1x 3.5mm
Two-way Stereo Speakers with Custom tuned bass ports
Mid speakers
Power Handling (RMS) 20 Watts
Power Handling (MAX) 30 Watts
Sensitivity 83 dB
Tweeter speakers
Power Handling (RMS) 15 Watts
Power Handling (MAX) 20 Watts
Sensitivity 89 dB
Custom Tuned Bass Ports for rich sound
OTHER INTERFACES
2x USB-A (3.0)*
*Used for connected peripherals
1x USB-C*
*Used for connected PC
Bluetooth 5.0
2x RJ45*
*Designated for future use
WiFi 802.11a/b/g/n/ac (MIMO) Multi-channel Concurrency
AUDIO STANDARDS AND PROTOCOLS
22 kHz bandwidth with Polycom Siren 22 technology
20 kHz bandwidth with G.719 (M- Mode) and Polycom Siren 22 technology
14 kHz bandwidth with Polycom Siren 14 technology, G.722.1 Annex C
7 kHz bandwidth with G.722, G.722.1
3.4 kHz bandwidth with G.711, G.728, G.729A
NETWORK
IPv4
IPv6
2x 10/100/1G Ethernet (RJ45)
Auto-MDIX
H.323 and/or SIP up to 6 Mbps running Poly Video App
Polycom Lost Packet Recovery (LPR) technology
Dynamic bandwidth allocation
Reconfigurable MTU size
Web proxy support
Basic
Digest
NTLM
SECURITY
Media encryption (H.323, SIP)
AES-128
AES-256
H.235.6 support
Authenticated access to admin menus, web interface, and API
Local account password policy configuration
Security profiles
Local account and login port lockout
Secure defaults
Remote logging with support for TLS
Active directory external authentication
Electronic privacy shutter
OPTIONS
VESA mount kit
Stand
Poly TC8
Poly Bluetooth remote control
Poly Trio
Studio Extension Microphone
INTEROPERABILITY
All cloud service providers through Poly Video App Mode
USB device mode
Support for native 3rd party applications includes:
Zoom
GoToRoom
RingCentral
StarLeaf
DialPad
ELECTRICAL
Auto sensing power supply
Typical operating voltage/power
37 VA @ 120 V @ 60 Hz
37 VA @ 230 V @ 50/60 Hz
Typical BTU/h
65
ENVIRONMENTAL SPECIFICATION
Operating temperature
- 0 to 40 C
Operating humidity (non-condensing)
15 to 80%
Non-operating temperature
-40 to 70 C
Non-operating humidity (non-condensing)
5 to 95%
Maximum altitude
16,000 ft
PHYSICAL CHARACTERISTICS
840.18 mm / 33.1 in (W) x 135.38 mm / 5.3 in (H) x 117.33 mm /4.6 in (D)
7.05 lbs/3.2 kg
MANAGEABILITY
Cloud: Poly Lens service
WARRANTY
One-year return to factory parts and labor
