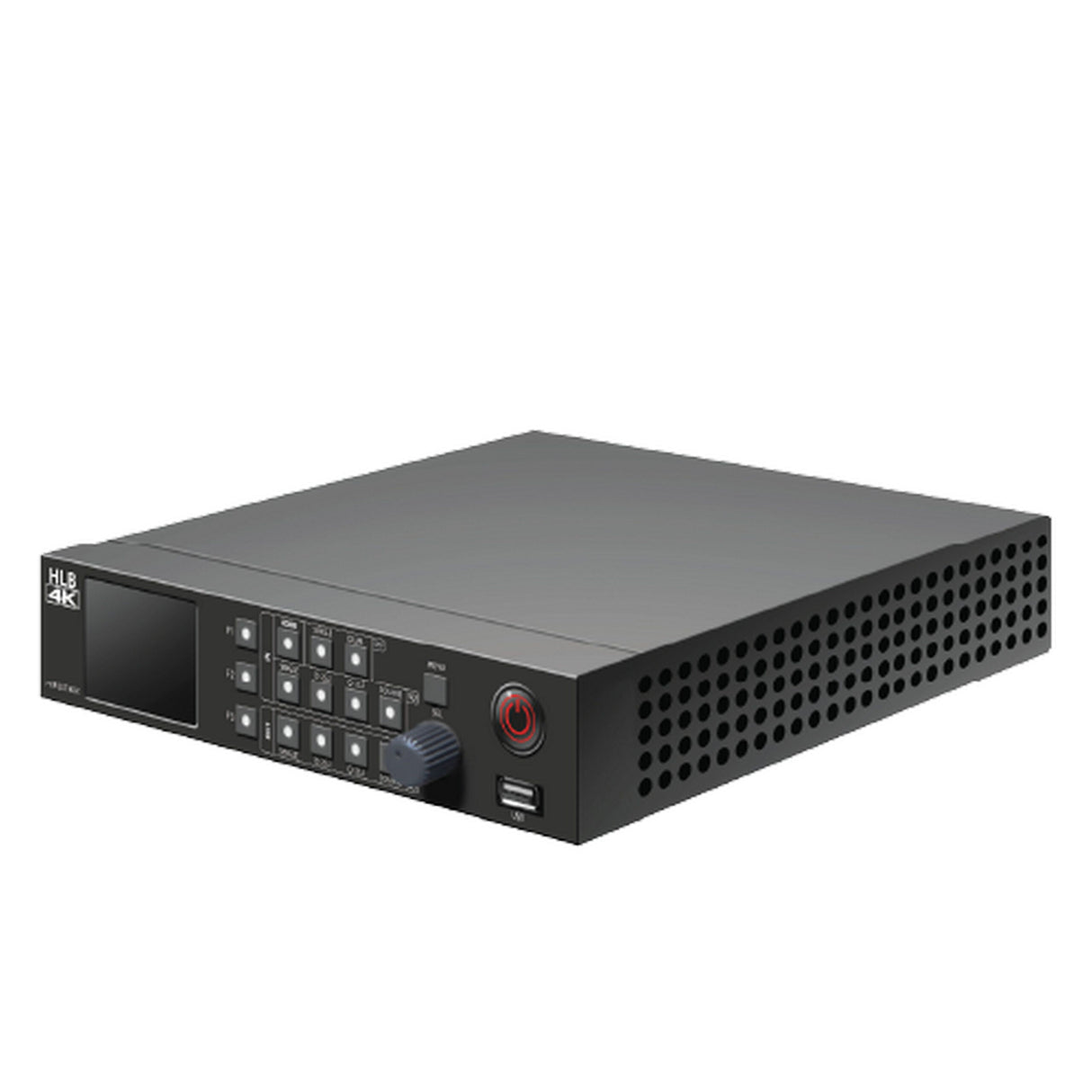

Postium HLB-4K HDR/SDR Image Processor
Postium HLB-4K HDR/SDR Image Processor
HLB-4K is a stand-alone converter which supports up-conversion and down-conversion between 4K and HD, HDR to SDR conversion and vice versa, color gamut conversion between BT.2020 and BT.709.
And, the 12G-SDI single link video input can be output to 6G-SDI dual link or 3G-SDI quad link.
Controls
GPI - Loading Presets from 1- 8 when making junction detected.
GPO - Tally / Alarm / System Alarm / Fan Alarm / Temp. Alarm / Ref. Alarm/ Input Alarm are selectable using the presets from 1 - 8.
System Control
Presets - Depending on the usages, you can save/load the setting as Presets up to 8 data.
Back-up - Exporting/Importing setting data to PC available. Allows much easier control of building the systems.
Key Features
- Color Space Conversion
- Input & Output Conversion
- HDR/SDR Conversion
- 3rd Party TV and Monitor Calibration
Technical Specifications
ITEMS
HLB-4K
Input
4 x BNC
12G SDI A, B, C, D Channel Input
1 x HDMI
2.0 HDMI Input
2 x SFP
SFP Module
Output
4 x BNC
12G SDI A, B, C, D Channel (Active Through Out) => OPTION
1 x HDMI
2.0 HDMI Output
2 x SFP
SFP Module (OPTION)
General
LAN
1 x LAN in
USB
1 X USB MEMORY STICK
Remote
1 X RJ45
Power
XLR 4 PIN (12V)
Weight
1.4kg / 3.08Ibs
Dimensions (WxHxD)
210 x 44 x 197mm / 8.26 x 1.73 x 7.75 inch
