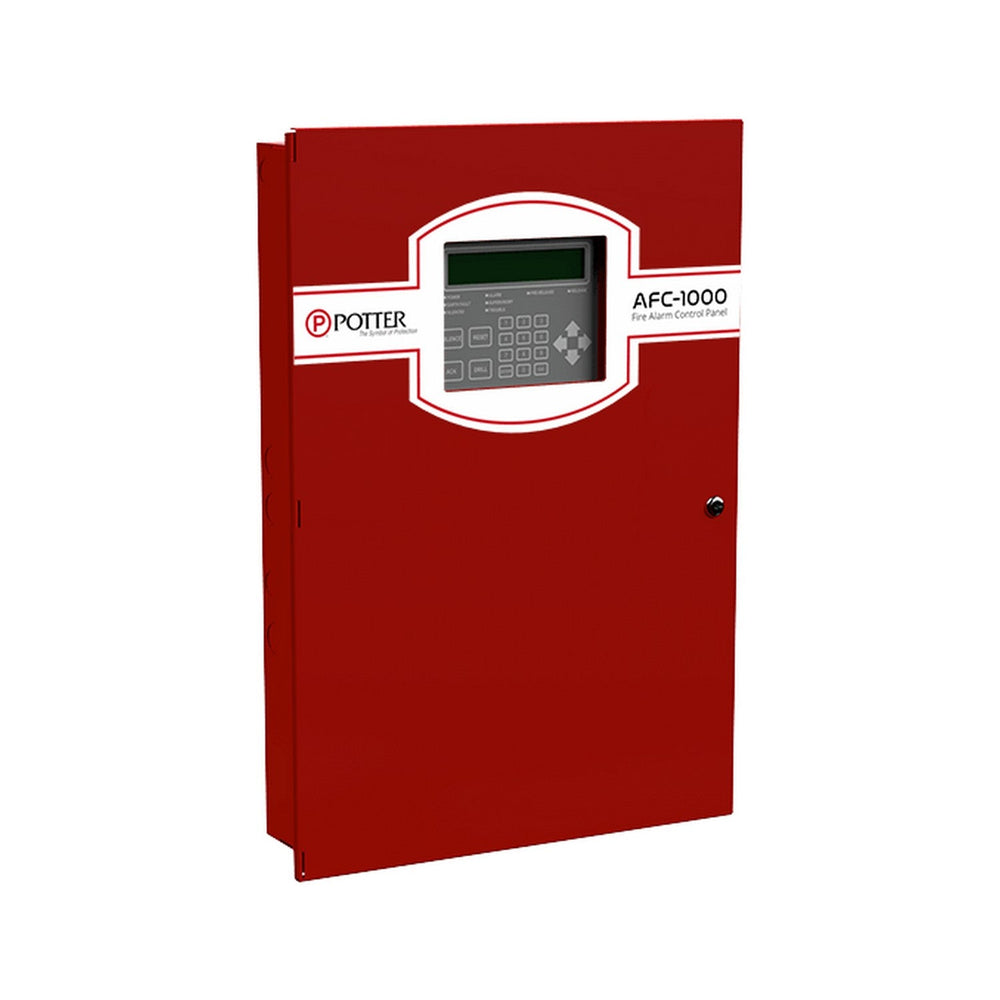

Potter AFC-1000 Expandable Analog/Addressable Fire Alarm Control Panel
Potter AFC-1000 Expandable Analog/Addressable Fire Alarm Control Panel
The AFC-1000 is an expandable analog/addressable releasing fire alarm system with a total system capacity of 1270 addresses. Additional capacity on the system is achieved using multi-point SLC modules The control panel utilizes the exclusive Potter protocol that includes a complete line of sensors and modules.
The system is expandable with a total of nine additional addressable Signaling Line Circuits (SLC) each with a maximum of 127 devices. Each SLC may be comprised of any combination of smoke sensor, heat detectors or modules and allows for a total of 50 ohms of impedance and may use any wire compliant with the National Electrical Code (NEC).
Key Features
- 1,270 addresses available on this analog addressable system
- Additional system capacity achieved via multi-point SLC modules
- 1500 software zones
- NFPA 72 Compliant Smoke Sensitivity Test Built-In
- System Operates as Class A or Class B for SLC, P-Link and NACs
- 10 Amp Power Supply, Expandable to 315 amps
- 6 NACS, Regulated, Rated at 3 Amps each, expandable to 192
- 4 Input/Output (I/O) Circuits for system flexibility rated at 1 Amp each, ideal for manual release and abort
- Strobe Synchronization and System Wide Sync for Gentex,AMSECO, Cooper Wheelock and System Sensor strobes
- Dedicated Alarm, Supervisory and Trouble Relays
Technical Specifications
Certificate Number
6256
Number of Events Log
4000
Panel Control Type
Addressable
Battery Information
Battery Built-in
Yes
Battery Voltage
27.3 V DC
Battery Voltage (V DC)
27.3
Display & Graphics
Display Type
LCD
Network & Communication
Ethernet
Yes
Sensor Connectivity
Hardwired
Physical Characteristics
Depth
4.4ā
Depth (mm)
112.014
Height
27.3ā
Height (mm)
693.928
Width
18.9ā
Width (mm)
480.314
Power Description
Input Voltage
120 V AC, 230 V AC
Input Voltage (V AC)
120, 230
Warranty
Limited Warranty
5 Year
Miscellaneous
Certifications & Standards
UL Listed S735
NYC Fire Dept. Certificate of Approval 6256
Features
Built-in Keypad
