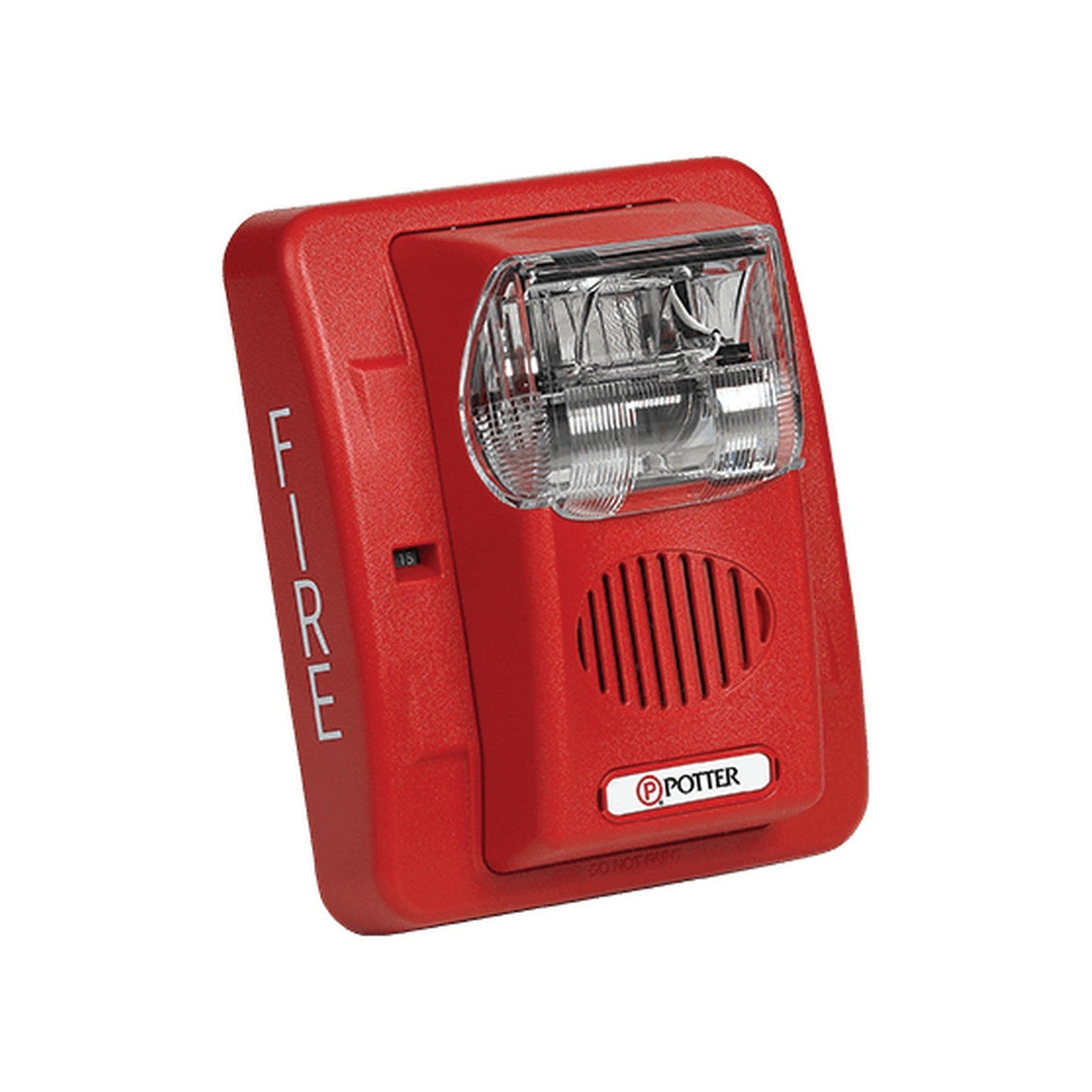

Potter HS-24WR Selectable Candela Wall Mount Horn Strobe, 24V DC, Red
Potter HS-24WR Selectable Candela Wall Mount Horn Strobe, 24V DC, Red
Potter HS-24WR Selectable Candela Wall Mount Horn Strobe, 24V DC, Red
The S-24/HS-24 Series is a low-profile strobe and horn/ strobe combination that offers dependable audible and visual alarms and the absolute lowest current available. The S-24 & HS-24 Series 24VDC offers tamperproof field selectable candela options of 15, 30, 60, 75, and 110 candela. The Strobe and Horn/Strobe offers a continuous or sync temporal three in 2400Hz and mechanical tone, a chime and whoop tone. All tones are easy for the professional to change in the field by the use of switches. The S-24 & HS-24 Series has a minimal operating current and has a minimum flash rate of 1Hz regardless of input voltage.
This Series is shipped with a standard 4ā metal mounting plate which incorporates the popular Super-Slide feature that allows the installer to easily test for supervision. The product also features a locking mechanism which secures the product to the bracket without any screws showing.
The S-24/HS-24 also features the patented Checkmate - Instant Voltage Verification feature which allows the installer to check the voltage drop draw and match it to the blueprint. The S-24 & HS-24 Series appliances are ANSI/UL 464 and ANSI/UL 1971, listed for use with fire protective systems and are warranted for three years from date of purchase.
Key Features
- 24VDC units have field selectable candela options of 15, 30, 60, 75 & 110
- Super-Slide Bracket - Ease of Supervision Testing
- Checkmate - Instant Voltage Verification
- Synchronize strobe and/or horn with AVSM Control Module
- Prewire entire system, install mounting bracket, then install signals
- Documented lower installation and operating costs
- Switch selection for high or low dBA
- Switch for chime, whoop, mechanical and 2400Hz tone
- Tamperproof re-entrant style grill
- Switch for continuous or temporal 3 tone (not available on whoop tone)
Technical Specifications
Environmental Conditions
Sound Emission
100 dB
Physical Characteristics
Application/Usage
Fire Protection System
Color
Red
Depth
2.5ā
Depth (mm)
63.5
Durability
Tamper Proof
Form Factor
Box, Wall Mount
Height
5ā
Height (mm)
127
Lens Color
Clear
Product Color
Red
Width
4.5ā
Width (mm)
114.3
Power Description
Input Voltage
24V DC
Input Voltage (V DC)
24
Power Source
DC
Product Information
Mount Type
Wall Mount
Warranty
Limited Warranty
3 Year
Miscellaneous
Package Contents
HS-24WR Horn/Strobe
Metal Mounting Plate
