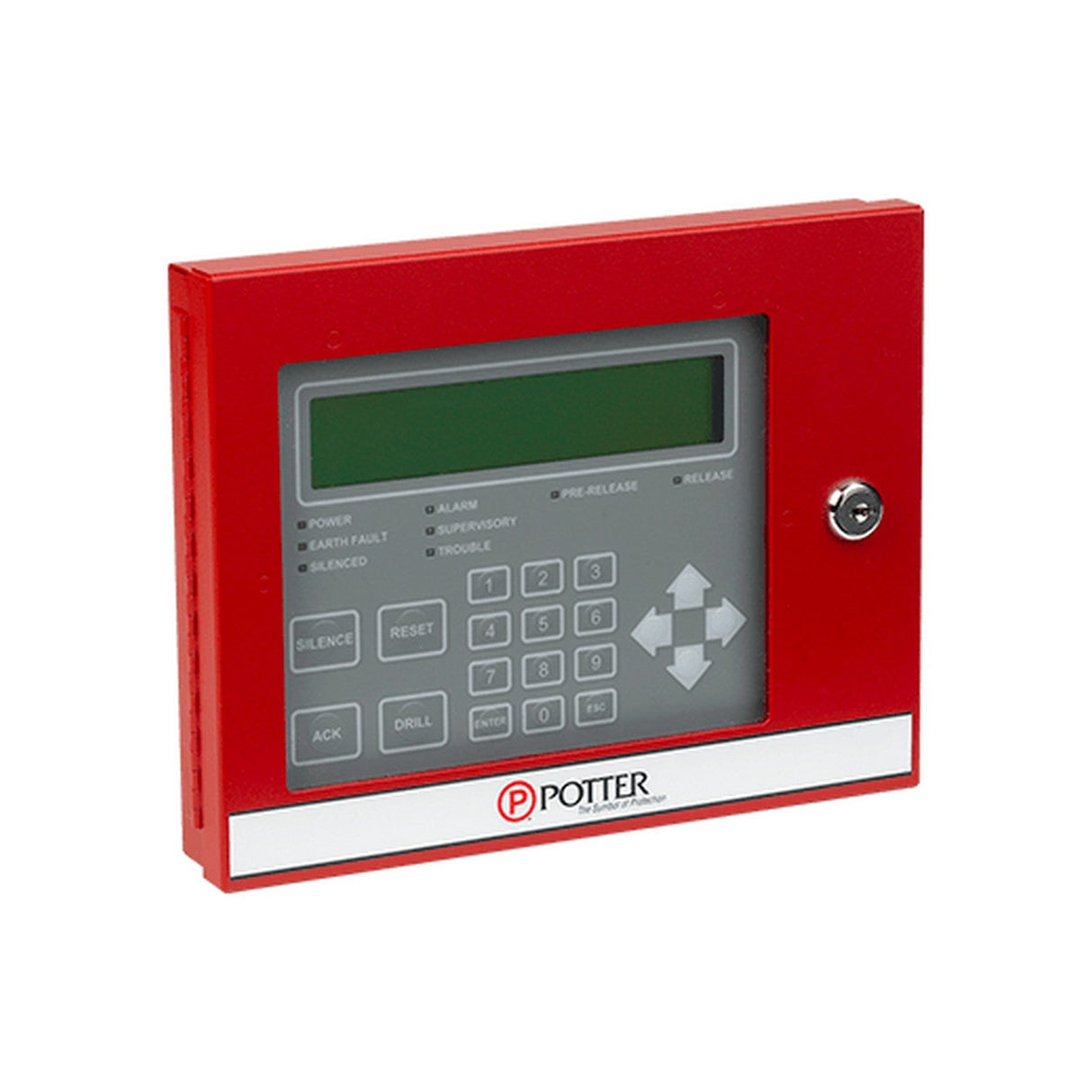

Potter RA-6500R LCD Releasing Annunciator
Potter RA-6500R LCD Releasing Annunciator
The RA-6500 is an LCD remote annunciator for the PFC-6000 Series addressable fire control panels. The RA-6500 communicates using a RS-485 connection to the main panel providing common indication of Alarms, Supervisory, Trouble and other system status and control functions.
The RA-6500 features a 4x40, 160-character LCD display with LEDs for Power, Alarm, Supervisory, Trouble, and Silenced conditions. It can be mounted on a single gang electrical box or a four-square electrical box. The annunciator is enclosed in a sheet metal enclosure and has a Potter lock securing the keypad.
Key Features
- Common buttons for navigation
- Common LEDs for status indication
- Maximum wire length of 6,500 feet
- 31 annunciator per panel
- Maximum wire length of 6,500 feet
- Available in 4 colors
- Product includes a 5-year warranty
Technical Specifications
Device Supported
Fire Alarm Control Panel
Environmental Conditions
Maximum Operating Temperature
120 Degrees F (48.9 Degrees C)
Maximum Operating Temperature (Degrees F)
120
Minimum Operating Temperature
32 Degrees F (0 Degrees C)
Minimum Operating Temperature (Degrees F)
32
Physical Characteristics
Color
Red
Depth
1.6”
Depth (mm)
41.275
Height
7.9”
Height (mm)
200.025
Width
10”
Width (mm)
254
Warranty
Limited Warranty
5 Year
Miscellaneous
Additional Information
Black Enclosure
Compatibility
IPA Series
AFC/ARC Series
PFC-4064
P-Series
PFC-6000 Series
