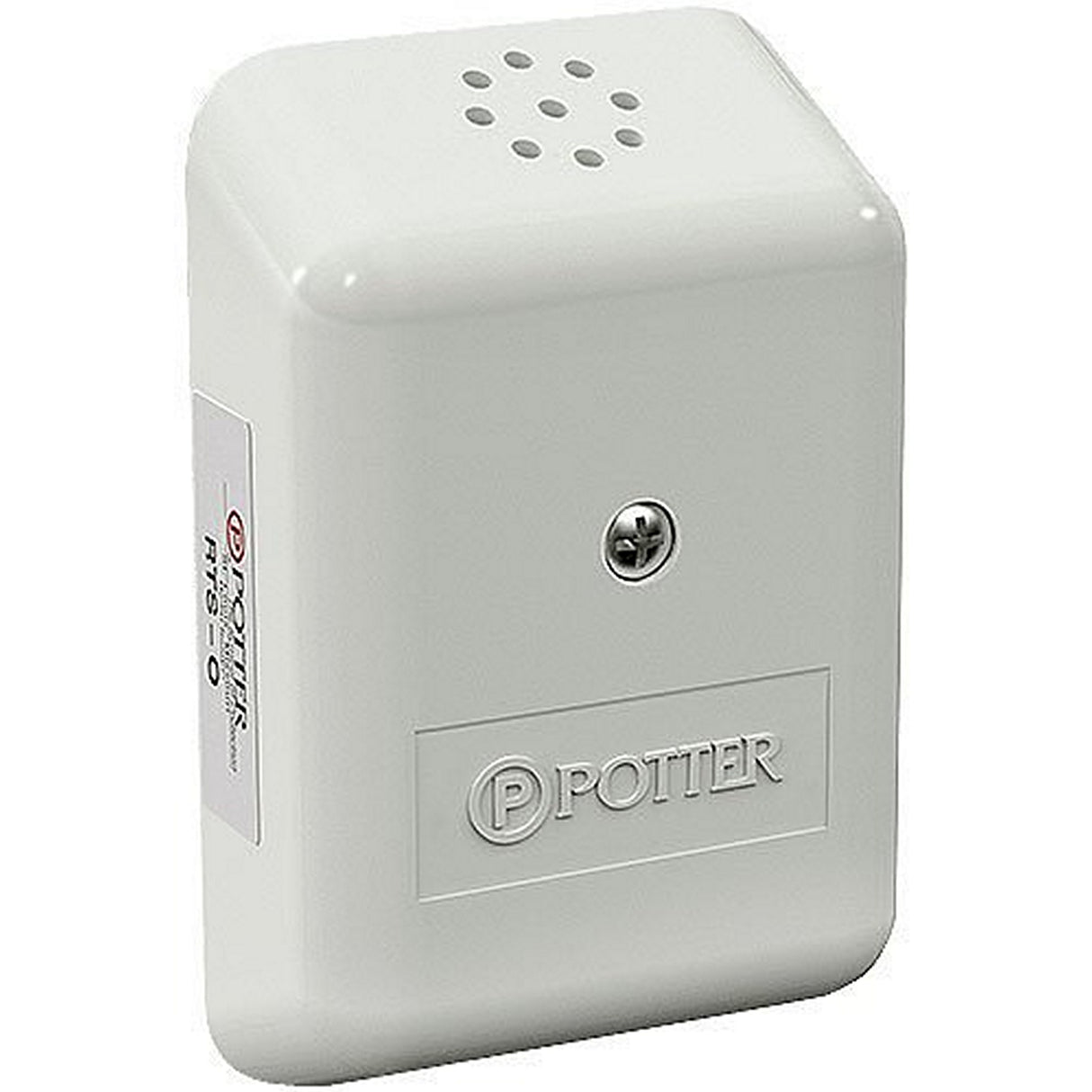

Potter RTS-O RTS Series Normally Open Room Temperature Switch
Potter RTS-O RTS Series Normally Open Room Temperature Switch
The RTS Series complies with the requirements of NFPA 13 and 72 for a room temperature switch to operate at 40 Degrees F to protect a dry pipe valve from freezing. The RTS can also be used for other temperature detection applications.
The normally open detector, RTS-O, will close the contact when the temperature drops below 40 Degrees F (4.5 Degrees C). The normally closed detector, RTS-C, will open the contact when the temperature drops below 40 Degrees F (4.5 Degrees C). The detector will automatically reset to the normal state when the temperature rises above 40 Degrees F (4.5 Degrees C). The RTS Series Room Temperature Sensors are precision engineered, designed and manufactured for commercial or residential use.
Key Features
- Easily installed
- Completely sealed sensor, moisture and vapor resistant
- Highly resistant to vibration and corrosion
- Highly sensitive to temperature changes
- No sensitivity loss due to aging
- Repetitive operation without the need to replace sensing elements
- Small compact design
- Precision and quality at low cost
Technical Specifications
Environmental Conditions
Maximum Operating Temperature
40 Degrees F (4.4 Degrees C)
Maximum Operating Temperature (Degrees F)
40
Physical Characteristics
Depth
3.4ā
Depth (mm)
87
Height
1.3ā
Height (mm)
32
Product Color
White
Width
2ā
Width (mm)
52
Power Description
Input Voltage
24V DC
Product Information
Installation Type
Commercial
Miscellaneous
Additional Information
Room Temp Switch Normal Open
Country of Origin
United States
Features
Surface Mount, Wall Mountable
