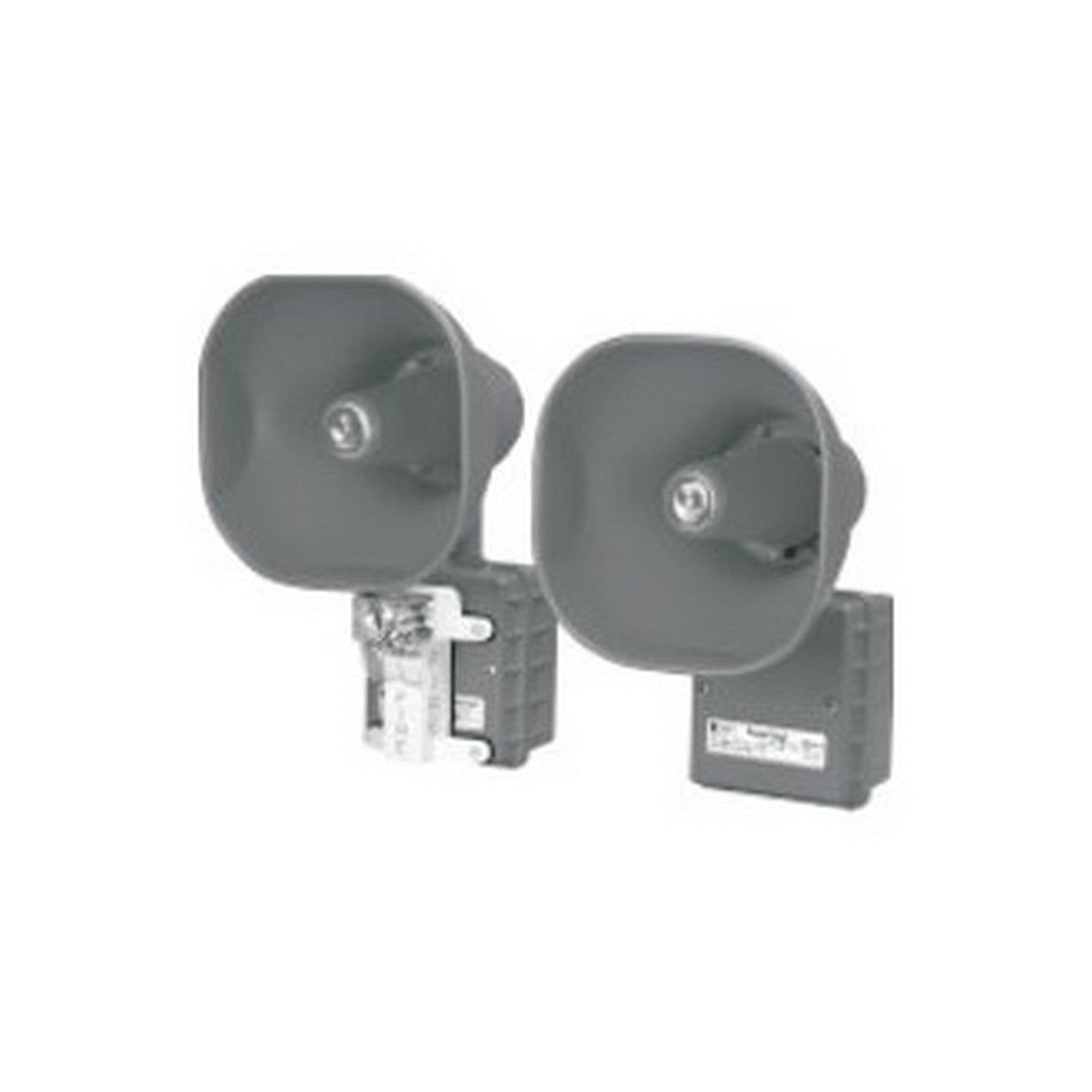

Potter SPHP-DVSMR CPG Signals High Output Surface Mount Speaker
Potter SPHP-DVSMR CPG Signals High Output Surface Mount Speaker
CPG Signals Model SPHP PowerTone High Output Speaker producers a crisp, clear, high decibel tone/voice output. Tones may be generated by the PowerTone Signaling System or any 25Vrms or 70Vrms tone/voice audio system. The speaker cone and projector are of spun aluminum. The speaker circuitry is contained in dust and moisture proof sealed housing of die-cast aluminum. The speaker has a supervisory Dc coupling capacitor and wattage taps from 0.5 to 15 watts. The speaker is NEMA 3 rated, and is finished in red enamel. The PowerTone speaker is designed for connection to system supervised alarm notification circuits.
Key Features
- Multiple power taps at 0.5, 1, 2, 7, and 15 watts
- High dB output for coverage of large areas
- UL sound pressure level 102dB(A) at 10 feet
- Built-in 15-watt high efficiency compression driver
- Wide frequency response, 400 4000Hz
- Indoor and outdoor mounting
Technical Specifications
Environmental Conditions
Sound Emission
102 dB
Physical Characteristics
Color
Red
Product Color
Red
Power Description
Input Voltage
70V DC
