Allen & Heath  |  SKU: ALHT-MIXER-AHMEU

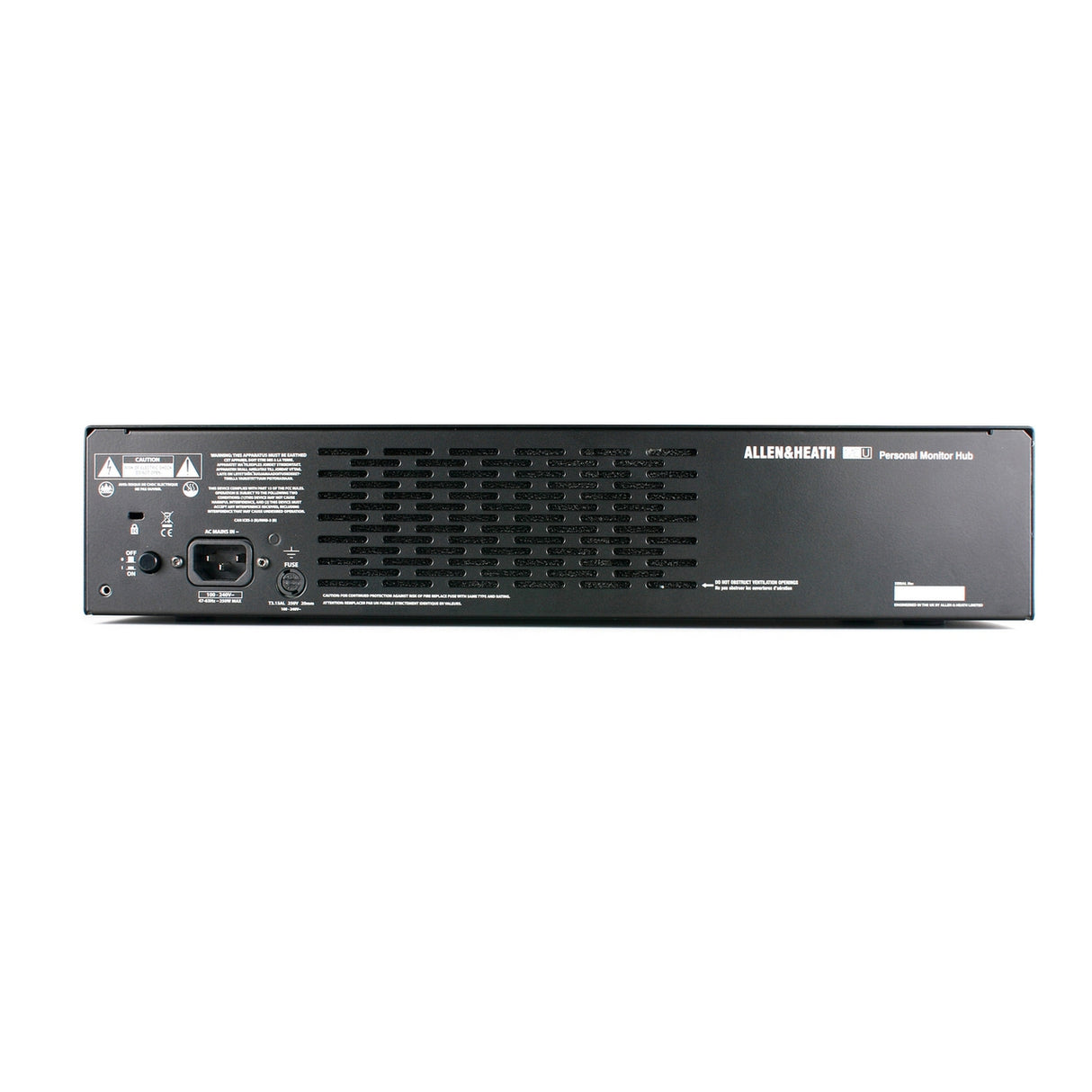

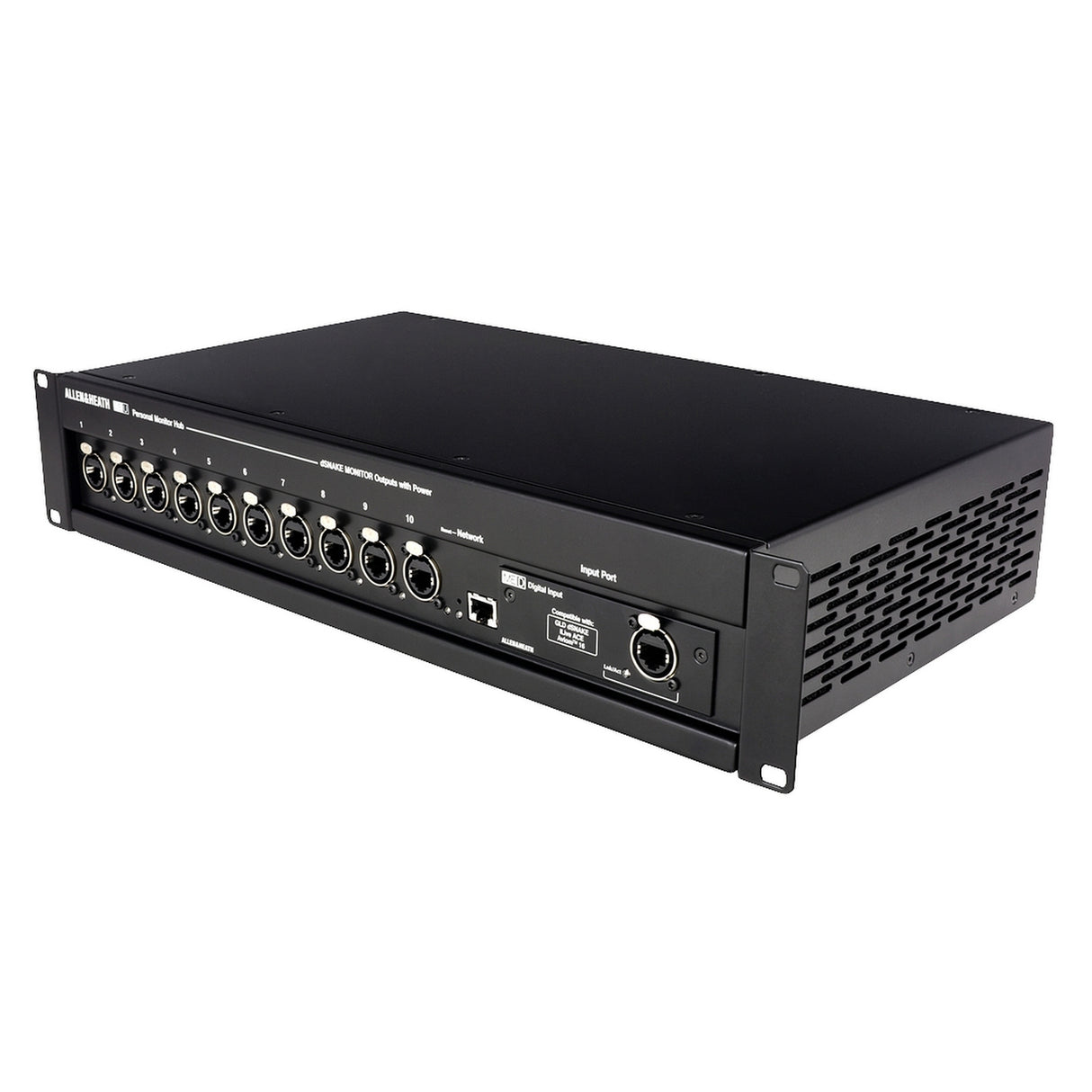

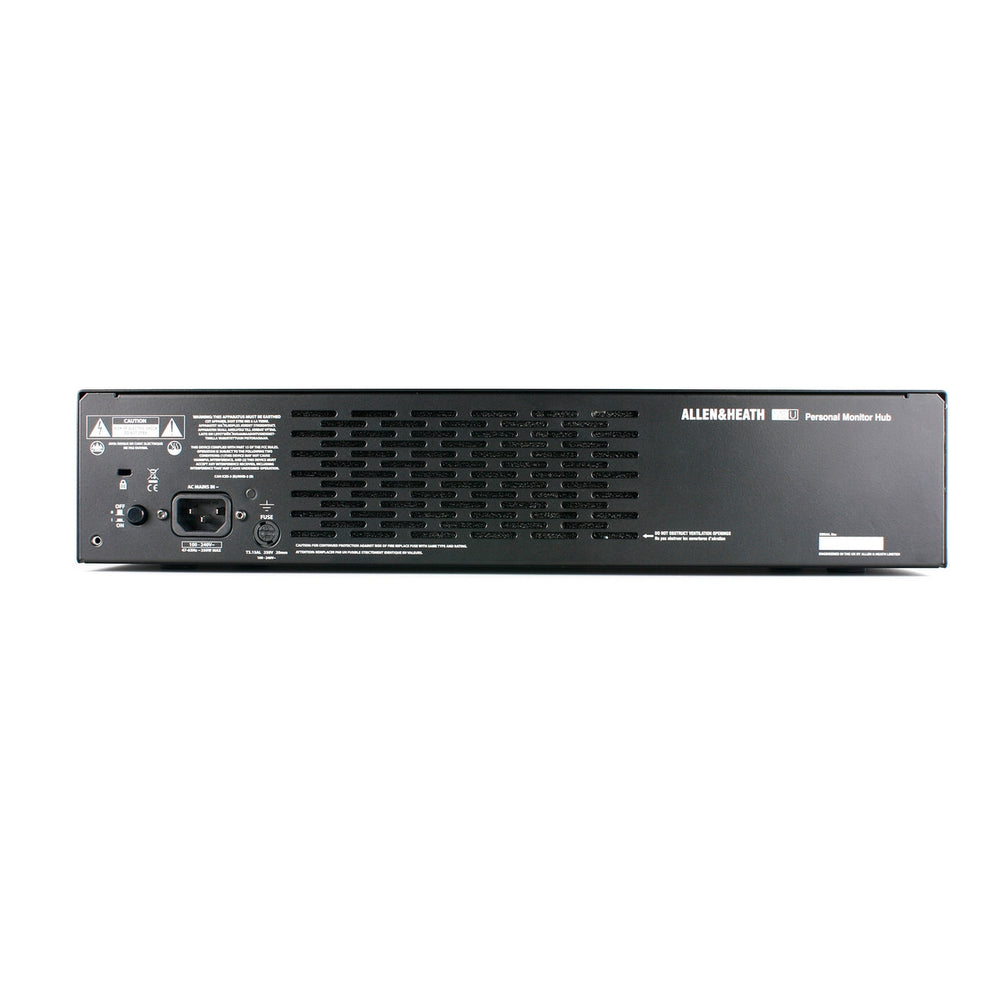

Allen & Heath AH-ME-U | 10 Port POE Monitor Hub Parallel Connection ME-1

$1,99999

Condition: New



Description

Allen & Heath AH-ME-U 10 Port POE Monitor Hub Parallel Connection ME-1

ME-U is a touring grade, 10 port PoE hub providing power and audio to connect multiple ME-1 personal mixers. It comes with a standard input card to interface with GLD and Qu dSnake, dLive, iLive ACE or Aviom A-Net. This card can be replaced with a MADI, Dante, Waves SG or EtherSound card to take a digital feed of up to 40 sources from third party systems.

Key Features

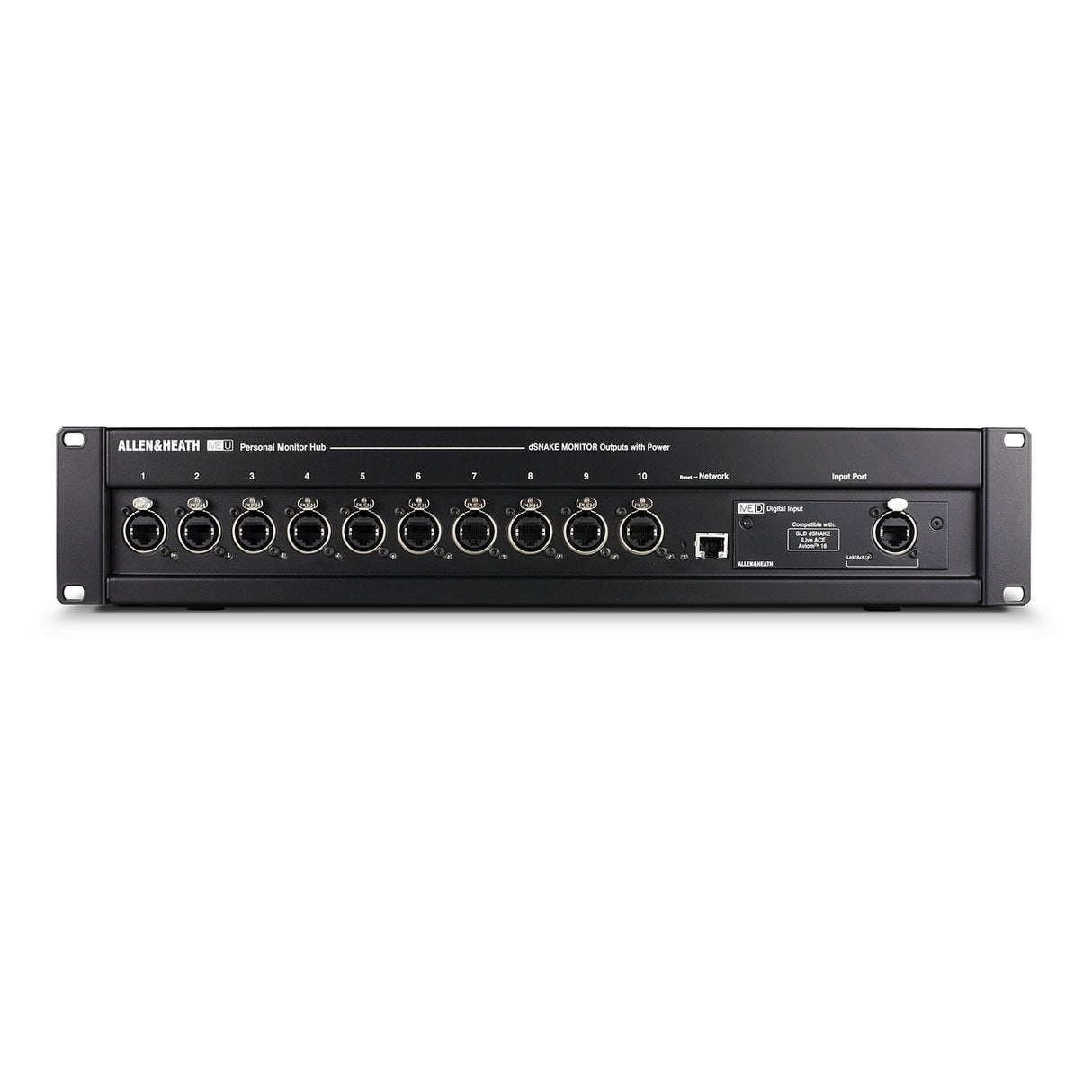

  • 10 ports with locking Ethercon connectors
  • Daisy chain for more outputs – up to 19 ME-1s with 2 hubs
  • Each port provides power + 40 audio sources to connected ME-1s
  • Touring grade build quality
  • 2U rack or desk mounting
  • Multi-purpose Network port:
    – Connect PC or Mac for ‘web page’ setup of unit name and IP address, and manual entry of channel names
    – Connect iLive AH-Net network to pick up channel names automatically from an iLive system

Technical Specifications

Input – Card option slot – 40 channels 48kHz digital audio ME-D (dSNAKE, ACE, Aviom®) card provided Aviom® A-Net16 compatible -16 channels M-Dante network card option available M-MADI card option available M-Waves V2 network card option available M-ES-V2 EtherSound card option available
Outputs – 10 ports
Compatible with ME mixers
Locking EtherCon connectors
PoE available on all output ports
Network Port – Ethernet TCP/IP
System setup + receiving iLive channel data
Setup – Uses PC or Mac web browser
Received or manual channel names
Received or manual odd/even stereo links
iLive mode for receiving iLive names/links
Default IP address = 192.168.1.40
Subnet Mask = 255.255.255.0
Default Gateway = 192.168.1.254
Mains Input – 100-240V AC 47-63Hz 250W
PoE capability – 15W at each ME-U output
Dimensions – Width x Depth x Height
2U rack - 483 x 253 x 92mm (19”x10”x3.6”)
Weight – 4.6kg (10.1lbs) unpacked
