Premier Mounts AM100 | Low Profile Ultra Slim Flat Panel Mount
Description
Description

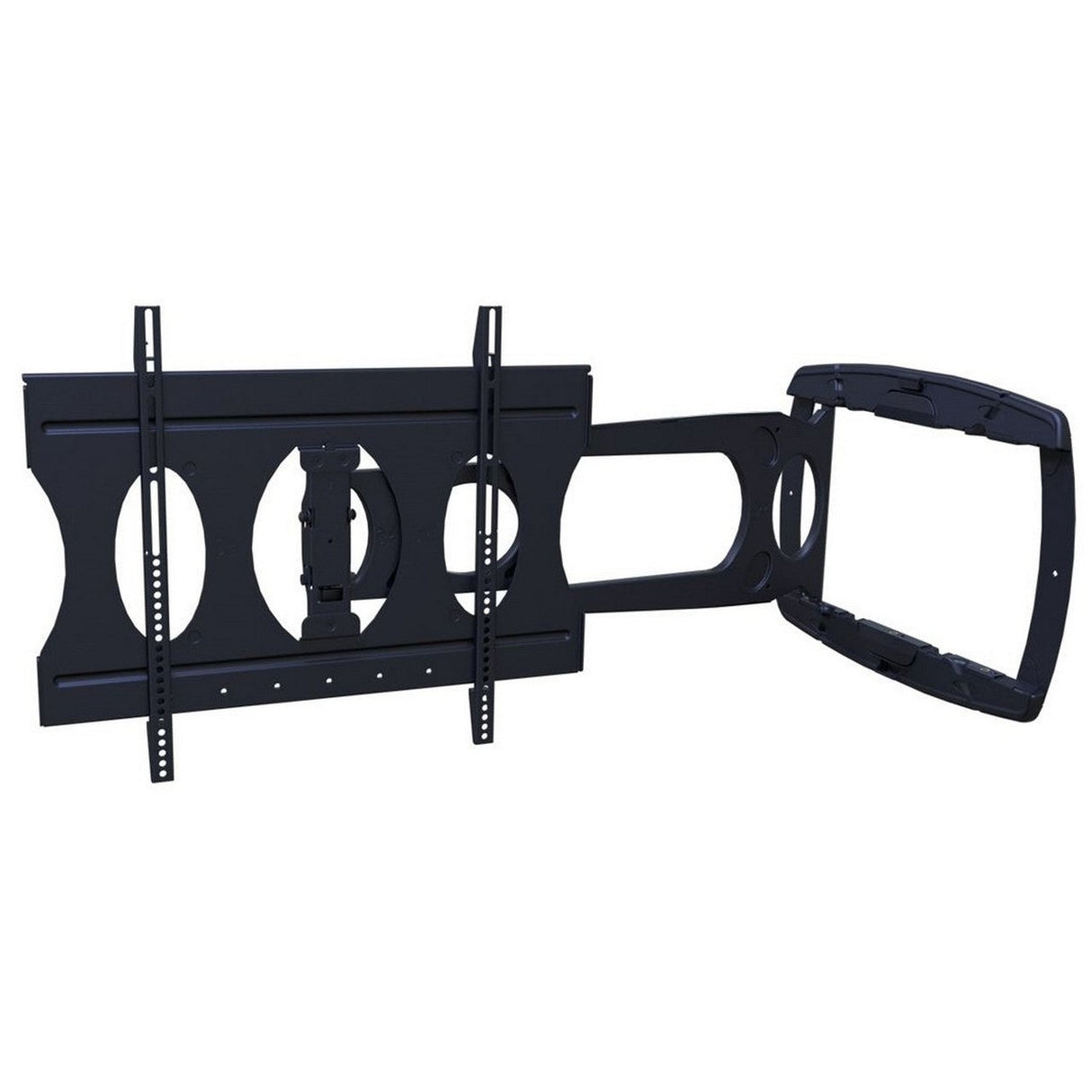

Premier Mounts AM100 Low Profile Ultra Slim Flat Panel Mount
The AM100 is an ultra-slim mounting wall plate that provides three options for the swing arm placement, allowing the mount to swing out from the left, right, or center, based on the installation requirements. The swingout arm extends 30 in. from the wall and provides 15° of downward tilt. The lightweight aluminum mount collapses to just 1.5 in. from the wall. Cable management channels are built into the arm to keep power and cables protected when pulling or pushing the display.
Key Features
- The AM100 is an ultra-slim mounting wall plate that provides three options for the swing arm placement, allowing the mount to swing out from the left, right, or center, based on the installation requirements
- The swingout arm extends 30 in. from the wall and provides 15° of downward tilt
- The lightweight aluminum mount collapses to just 1.5 in. from the wall. Cable management channels are built into the arm to keep power and cables protected when pulling or pushing the display
- Total Weight Capacity: 100 lbs
- Mounting Pattern: 100 x 100 (Min) , 630 x 526 (Max) mm
Technical Specifications
Shipping Weight
29.1 lb. | 13.20 kg
Weight Capacity per Mount
100 lb. | 45.36 kg
Number of Mounts
1
Total Weight Capacity
100 lb. | 45.36 kg
Width
26.33 in. | 668.78 mm
Height
21.38 in. | 543.05 mm
Depth
1.5 in. | 38.10 mm
Mounting Pattern Type
Range
Mounting Pattern
100 x 100 (Min) , 630 x 526 (Max) mm
Typical Display Sizes
42.00 in. & up
Tilt
+15.00°
Extension
30 in. | 762.00 mm
Swivel
180°
DIM Sizes
19.5 in. (wide) x 4.5 in. (high) x 30.8 in. (deep) | 495.3 mm x 114.3 mm x 782.32 mm
UPC
829973086480
