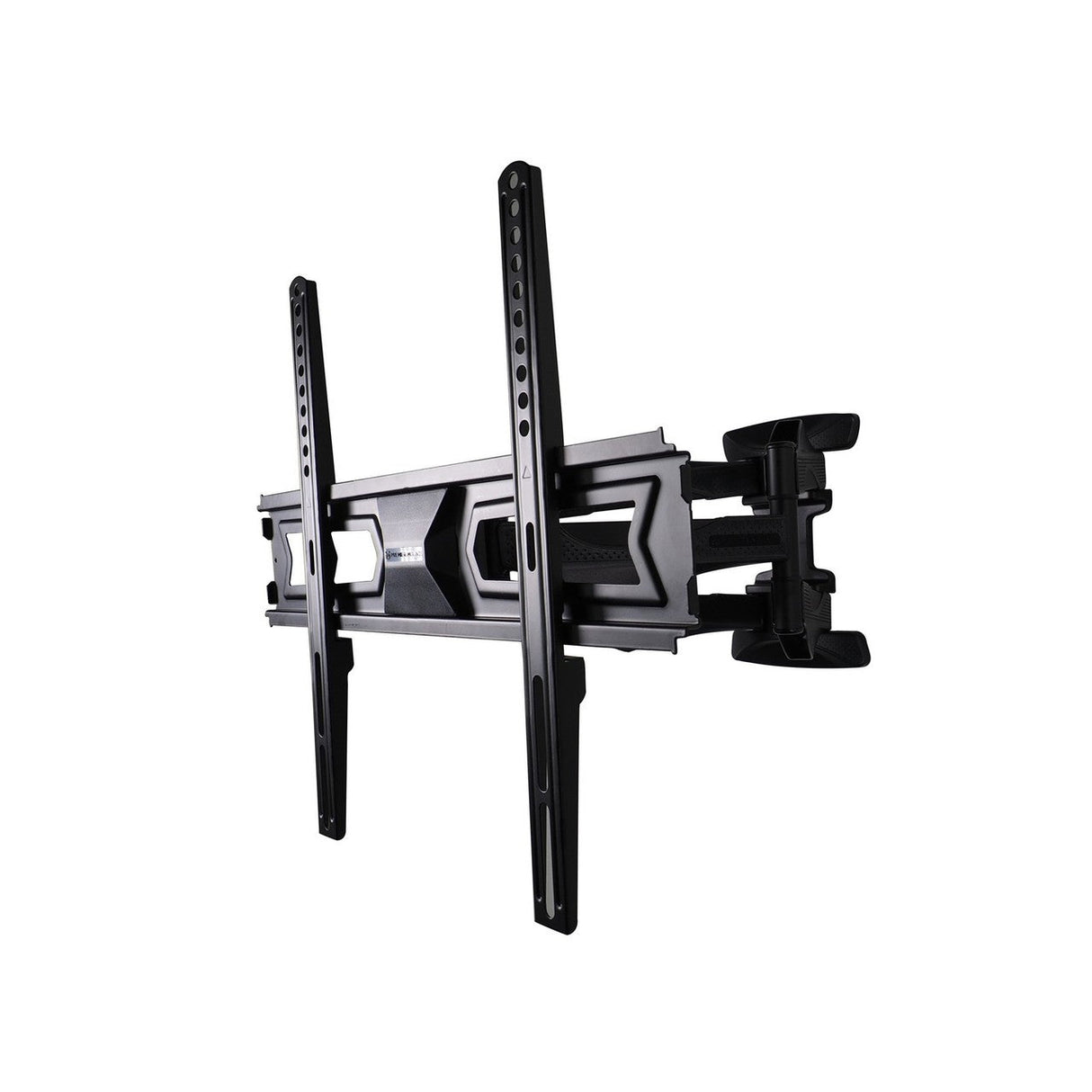

Premier Mounts AM65 Articulating Flat Panel Mount
The AM65 is an ultra slim, commercial grade articulating mount that has 18.3 inches of extension, 12 degrees of tilt and allows for lateral shifting. This means that you will be able to view your display at almost any angle you chose! With unmatched movement versatility from a single stud mounting solution, the AM65 can also hold up to 65lbs, which is more than the weight of most standard 55 inch displays.
Key Features
- Commercial grade articulating mount that has 18.3 inches of extension, 12 degrees of tilt and allows for lateral shifting
- With unmatched movement versatility from a single stud mounting solution, the AM65 can also hold up to 65lbs, which is more than the weight of most standard 55 inch displays
- Cable management channels are also built into the arm to keep power cables protected when pulling or pushing the display to your desired angle
- 100 x 100 mm (min) x 430 x 400 mm (Max) Mounting Pattern
- 65 lb | 29 kg Weight Capacity
Technical Specifications
Shipping Weight
9.8 lb | 4.5 kg
Weight Capacity per Mount
65 lb | 29 kg
Width
19.6 in | 498 mm
Height
16.6 in | 422 mm
Depth
2.2 in | 56 mm
Mounting Pattern Type
Range
Mounting Pattern
100 x 100 mm (min) x 430 x 400 mm (Max)
Tilt
+12 degrees
Extension
18 in | 457 mm
Swivel
45 degress
Shipping Box DIM Sizes
21.5 x 10.75 x 2.75 in. | 546 x 273 x 69.8 mm
Number of Mounts
1
