Premier Mounts AM95 | Flat Panel Articulating Mount
Description
Description

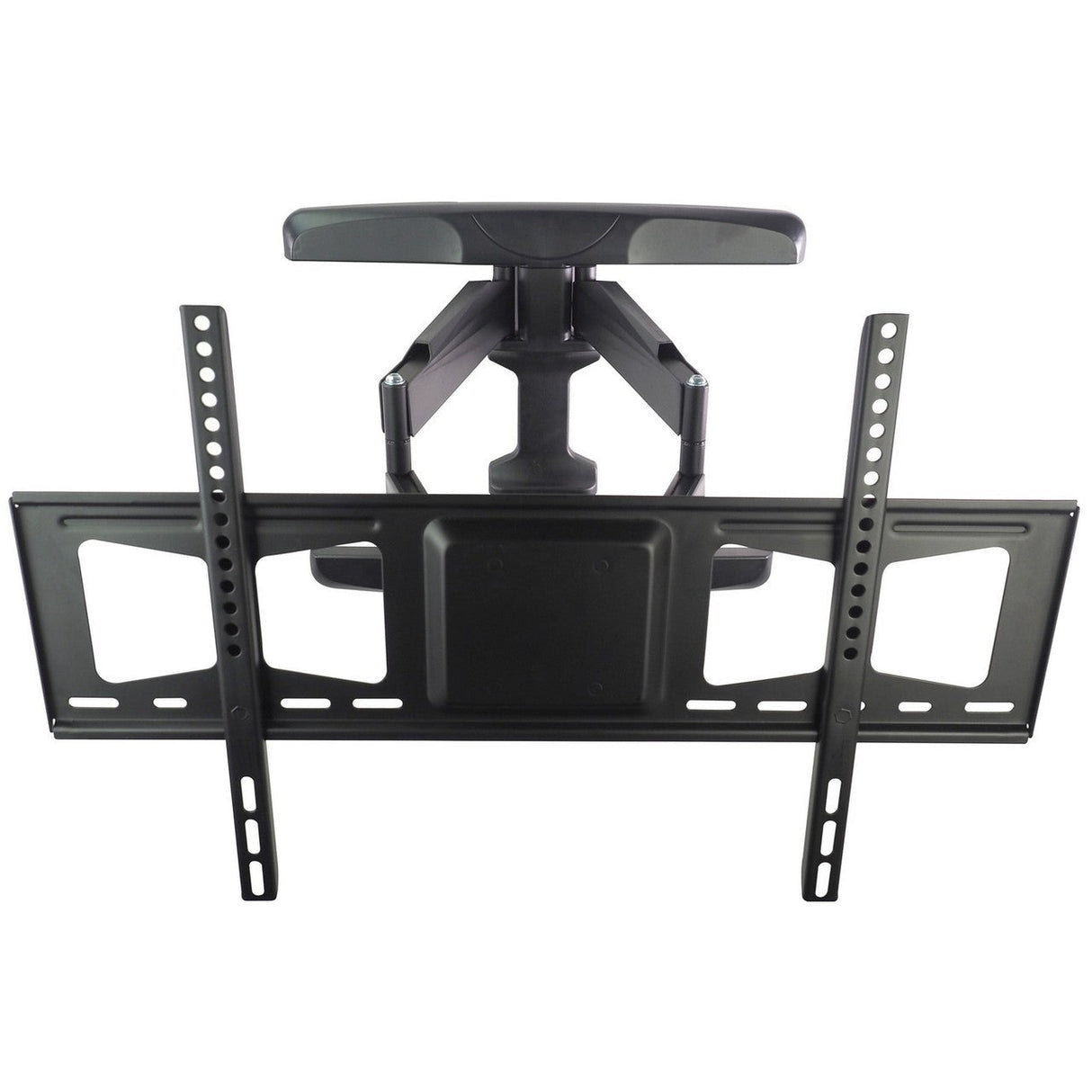

Premier Mounts AM95 Flat Panel Articulating Mount
The AM95 is a top quality articulating mount has 18 inches of extension, 12 degrees of tilt and allows for lateral shifting. Made to be mounted into double studded walls for extra rigidity, the AM95 holds up to 95 lbs. With unrivaled versatility as a key feature in it's design, it was created to be ADA compliant with a flat depth of only 2 inches. Add a slim display to this mount and you will have a very sleek, against the wall design making it very aesthetically pleasing.
Key Features
- The AM95 is a top quality articulating mount has 18 inches of extension, 12 degrees of tilt and allows for lateral shifting
- Made to be mounted into double studded walls for extra rigidity, the AM95 holds up to 95 lbs
- With unrivaled versatility as a key feature in it's design, it was created to be ADA compliant with a flat depth of only 2 inches
- Add a slim display to this mount and you will have a very sleek, against the wall design making it very aesthetically pleasing
Technical Specifications
Shipping Weight
19 lb | 8.6 kg
Weight Capacity per Mount
95 lb | 43 kg
Width
26 in | 660 mm
Height
17.5 in | 395 mm
Depth
1.96 in | 50 mm
Mounting Pattern Type
Range
Mounting Pattern
100 x 100mm (Min) x 650 x 400mm (Max)
Tilt
12 degrees
Extension
18 in
Swivel
45 degrees
DIM Sizes
28.25 x 17.5 x 2.75 in | 717.5 x 445 x 70 mm
Number of Mounts
1
