Premier Mounts LMV | 160 Pound Press and Release Pop Out Display Mount

Premier Mounts LMV 160 Pound Press and Release Pop Out Display Mount

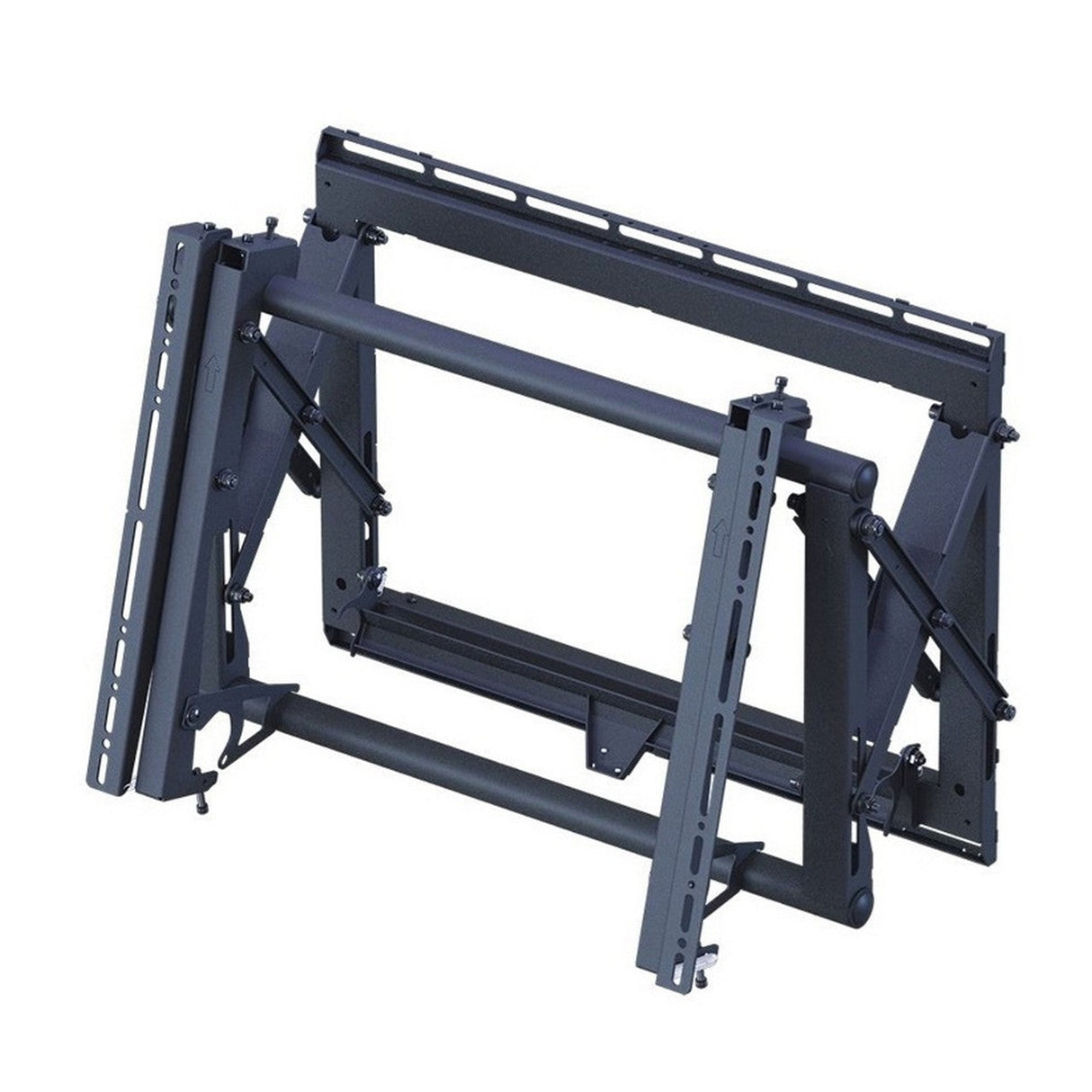

The LMV Press & Release Pop Out Mount is a customizable video wall extending flat panel mount for service access in under 5 seconds. It features Premier Mounts’ formulated Press & Release access design allows for accessibility anywhere on a video wall, featuring a depression clasp that automatically latches closed and springs open with a gentle push on the display. Other LMV features includes convenient fine-tune (x,y,z) adjustments, a service-position kickstand for 16° of clear access to the rear of the display, multi-monitor stacking, model-specific spacers, spring-loaded release, open design, top adjustable mounting brackets and scissor design for smooth extension.

Key Features

• Press & Release Design for easy service access in under 5 seconds
• Scissor-design with compact mounting arms allow for extension in one smooth motion with a slight press to the display edge
• Top-adjustable fine-tune mounting brackets ensure post-installation alignment
• Universal spacer kit included
• “Click-It” locking feature confirms display is secure through an audible noise

Technical Specifications

Shipping Weight
44.4 lb. | 20.14 kg
Weight Capacity per Mount
160 lb. | 72.57 kg
Number of Mounts
1
Total Weight Capacity
160 lb. | 72.57 kg
Width
28.9 in. | 734.06 mm
Height
19.5 in. | 495.30 mm
Depth
5.1 in. | 129.54 mm
Mounting Pattern Type
Range
Mounting Pattern
200 x 200 (Min) , 600 x 400 (Max) mm
Typical Display Sizes
37.00 in. & up
Extension
7.99 in. | 202.95 mm
DIM Sizes
23.5 in. (wide) x 5.5 in. (high) x 35 in. (deep) | 596.9 mm x 139.7 mm x 889 mm
UPC
829973101848
