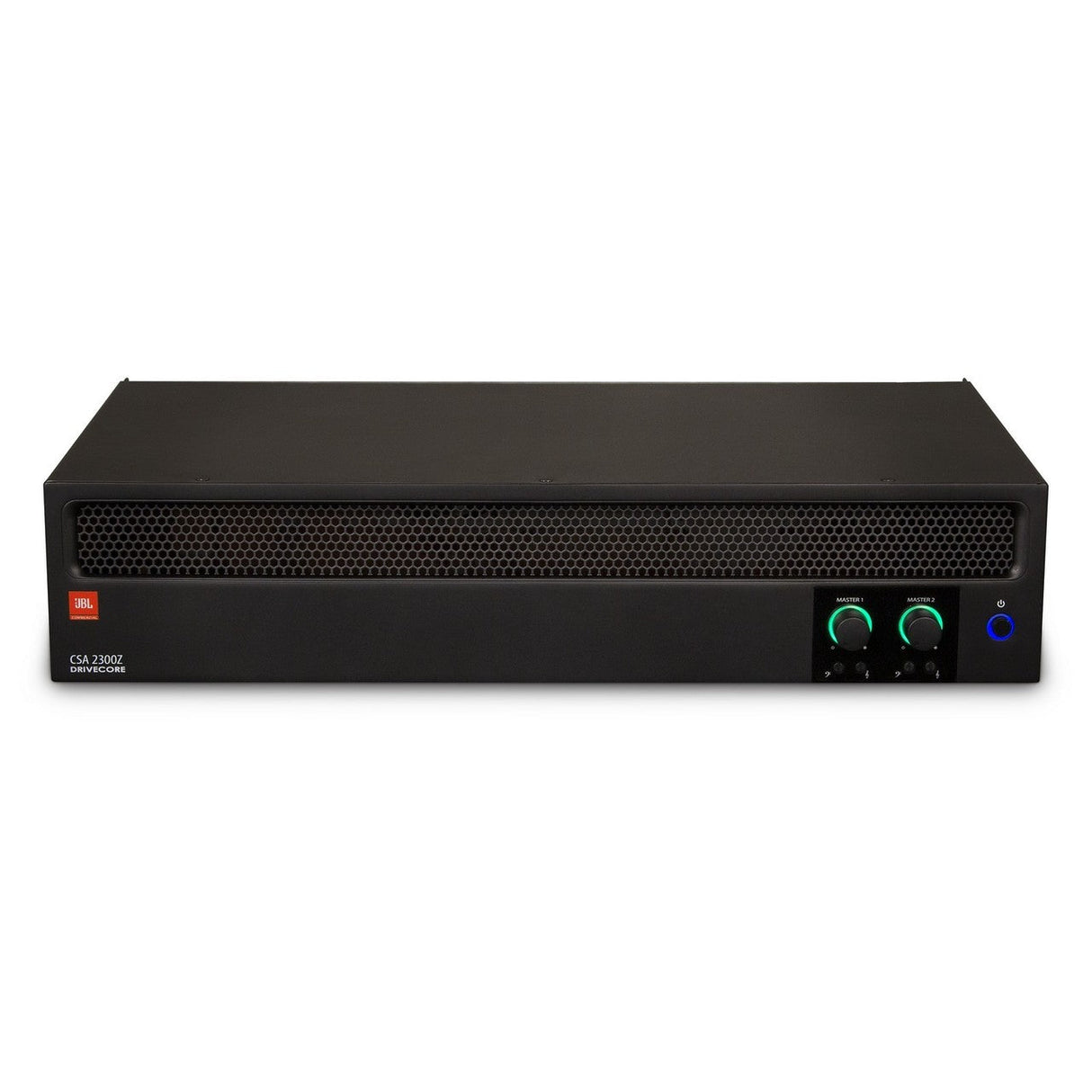

JBL CSA2300Z Dual-Channel 300-Watt Amplifier

JBL Professional | SKU: JBL-AMP-CSA2300Z
$87100

Free Shipping

Estimated Shipping Widget will be displayed here!

Last 3

Condition: New


JBL CSA2300Z | Dual-Channel 300-Watt Amplifier

The JBL CSA2300Z Dual-Channel 300-Watt Amplifier, is an epitome of cutting-edge audio technology. Crafted by the renowned brand JBL Professional under the aegis of HARMAN, this amplifier exemplifies years of innovation, invention, and insight. Designed to deliver an unparalleled auditory experience, the CSA2300Z power amplifier is a game-changer in commercial audio solutions.

With the revolutionary Crown’s DriveCore Technology, the JBL CSA2300Z sets a new benchmark in amplifier efficiency and performance. Substituting up to 500 components with a single chip, the DriveCore-based sound solution offers remarkable reliability and stellar sound quality. Whether you're running a 70V or 100V installation, this amplifier is versatile enough to support both, directly out of the box. The modern industrial design, complete with illuminated rings on the knobs, adds a sleek aesthetic appeal, while making it incredibly easy to use even in dimly lit environments.

JBL’s commitment to sustainability is evident through the HARMAN’s GreenEdge initiative incorporated in this amplifier. This energy-efficient device is not only designed to provide superior sound quality but also ensures lower power consumption, thereby paying for itself through energy savings over time.

Key Features

  • 2 channel X 300W output
  • Built-in 70V and 100V support
  • Space-saving 2 RU design
  • Sleep mode disable function
  • Energy-efficient amplifier
  • Sleek industrial look with illuminated rings
  • Supports JBL CSR-V wall controller via CAT5 cable with RJ45 connectors

Specifications

  • Rated Power: 300 W at 4 or 8 Ohms (1 kHz, 0.5% THD)
  • Output Channels: 2
  • Insertion Loss: 1 dB maximum (70 V & 100 V outputs)
  • Input Sensitivity: Balanced line Input: 775 mV RMS (8 Ohms load), RCA Mono Sum Input: 300 mV (8 Ohms load)
  • Frequency Response: 20 Hz to 20 kHz: +/-1.0 dB (8 Ohms, tone controls set to flat response)
  • Input Sensitivity: Mic Input: 5.5mV RMS, Line Input: 1.3V RMS, RCA Input (stereo in): 130mV RMS
  • Frequency Response: 4/8 Ohm Output: 20Hz - 20kHz +/-2dB; 70V/100V Outputs: 80Hz - 15kHz +/-3dB
  • Total Harmonic Distortion: less than 0.5% (at full rated power, 20 Hz to 20 kHz)
  • Signal to Noise Ratio: more than 97 dB (Ref. rated output, 22 kHz BW, A-weighted)
  • Input Impedance: Euroblock: 20 kOhms (balanced), RCA: 10 kOhms
  • Maximum Input Level: +22 dBu (nominal)
  • Crosstalk: less than -70 dB (Ref. rated power, A-weighted, 1 kHz)
  • Tone Controls: Bass +/-12 dB at 100 Hz, Treble +/-12 dB at 10 kHz
  • AC Power Requirements: Nominal: 100, 120, 220, 230 to 240 VAC, 50/60 Hz
  • Minimum Load Impedance: Low-Z Output: 4 Ohms, 70 V Output: 12 Ohms, 100 V Output: 24 Ohms
  • Operating Temperature: 0 C to 35 C at 95% R.H. (non-condensing)
  • Storage Temperature: -20 C to 85 C

Package Contents

  • JBL CSA2300Z Amplifier unit
  • Power cable
  • RJ45 connectors
  • Instruction manual
  • Warranty card
