Logitech Group HD Video Conferencing System with 10x Zoom

Logitech Group HD Video Conferencing System with 10x Zoom

GROUP, our video conferencing solution for rooms that seat 14-20 people, delivers high quality HD video and crystal clear audio, allowing any meeting place to be a video collaboration space. With advanced features like acoustic echo cancellation, noise reduction technology, and intuitive controls, it’s easier than ever to include everyone in the conversation.

Key Features

• See every detail with HD video and 10x zoom
• Works with your meeting and video conferencing applications
• Crystal-clear audio for up to 20 participants

Technical Specifications

DIMENSIONS
Camera:
Height x Width x Depth: 5.12 in (130 mm) x 7.0 in (170 mm) x 5.40 in (138 mm)
Weight: 1.31lb (585 g)
Speakerphone:
Height x Width x Depth: 9.5 in (240 mm ) x 2.5 in (65 mm ) x 9.5 in (240 mm )
Weight: 2.68 lb (1223 g)
Hub:
Height x Width x Depth: 3.75 in (94 mm) x 1.3 in (34 mm) x 2.9 in (74 mm)
Weight: 3.0 oz (83 g)
Remote:
Height x Width x Depth: 2.0 in (50 mm) x 5.0 in(120 mm) x 0.5 in (12 mm)
Weight: 2.0 oz (51 g)
Wall/Table Mount:
Height x Width x Depth: 8.27 in (210 mm) x 4.72 in (120 mm) x 3.9 in (99 mm)
Weight: 8.99 oz (255 g)
Expansion Mics (Optional):
Height x Width x Depth: 3.30 in (83 mm) x 3.30 in (83 mm) x 0.83 in (21 mm)
Weight: 8.0 oz 230 g)
SYSTEM REQUIREMENTS
Windows® 7, 8.1 or 10
macOS® 10.10 or higher

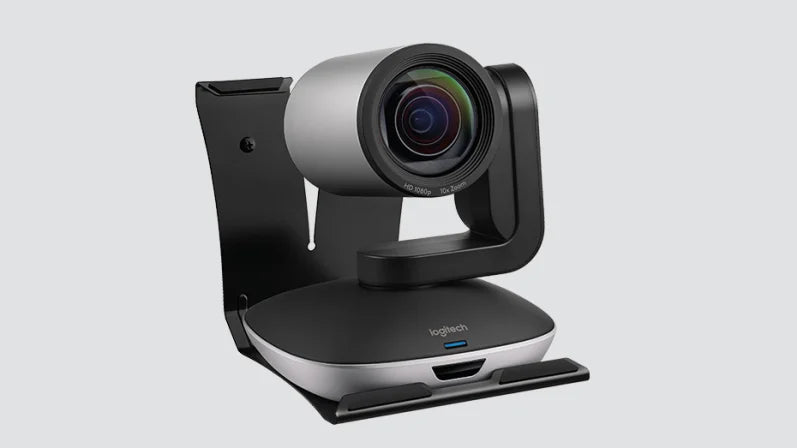

CAMERA
Smooth motorized pan, tilt and zoom controlled from remote or console
260° pan
130° tilt
10x lossless HD zoom
90° field of view
Full HD 1080p 30fps
H.264 UVC 1.5 with Scalable Video Coding (SVC)
Autofocus
5 camera presets
Far-end control (PTZ) of ConferenceCam product (with supported services)
Kensington security slot
Video mute/unmute LED indicator
Standard tripod thread
REMOTE CONTROL
Camera, speakerphone, and call control
5 camera presets
Docks on speakerphone
IR 8.5 m/28-foot range
CR2032 battery (included)

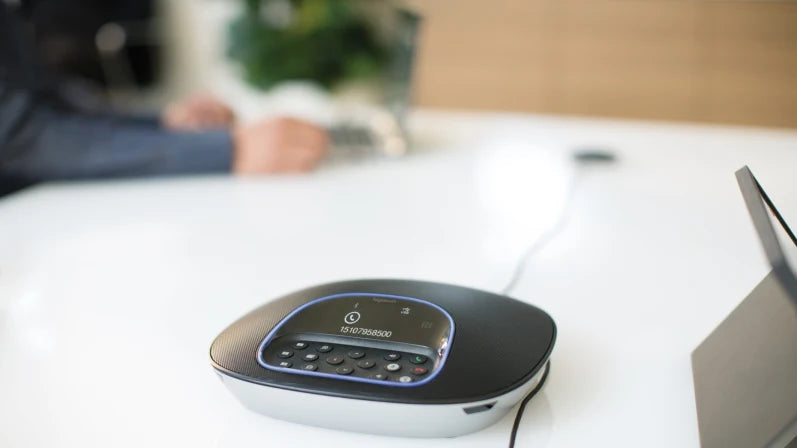

SPEAKERPHONE
Full-duplex performance
Acoustic echo cancellation
Noise reduction technology
Ultra-wideband audio
Pairs with mobile devices via Bluetooth and NFC
LCD for caller ID, call duration and other functional response
LEDs for speakerphone streaming, mute, hold, and Bluetooth
Tactile buttons for call answer/end, volume and mute, Bluetooth, and camera controls
5 camera presets for pan, tilt, and zoom settings
Kensington security slot
MICROPHONES
Pickup range: 6m / 20 ft
Pickup range with expansion mics: 8.5 m / 28 ft
Four omnidirectional, beamforming microphones
Frequency response: 100Hz - 11KHz
Sensitivity: -28dB +/-3dB
Distortion: <5% from 200Hz
HUB / CABLES / POWER
Central Hub connects and powers all components
Under-table mounting adhesive included
One cable to camera: 5 m / 16 ft
One cable to speakerphone: 5 m /16 ft
Extended cables available (10 m and 15 m)
One USB cable for connection to PC/Mac (2 m / 6.6 ft)
AC Power adapter with regional plugs
Power cable (3 m / 9.8 ft)
MOUNT
Dual-purpose bracket works for both wall mounting and tabletop elevation
COMPATIBILITY AND INTEGRATIONS
Plug-and-play USB connectivity
Works with most any video conferencing application or meetings service
Skype for Business certified
Microsoft Cortana® certified
Cisco Jabber® and WebEx compatible
Enhanced integration with Logitech Collaboration Program (LCP) members, including BlueJeans, Broadsoft, LifeSize Cloud, Vidyo, and Zoom
PACKAGE CONTENTS
Camera
Speakerphone
Remote control
Two 5m / 16.4 ft cables for connection between speakerphone and hub and camera and hub
One 2m / 6.6 ft meter cable between hub and PC
Velcro for cable management
Velcro for hub to table securing
Powered hub
Power adapter with regional plugs and 3m / 9.8 ft cable
Mount
Documentation
Warranty card
WARRANTY INFORMATION
2-Year Limited Hardware Warranty
PART NUMBER
GROUP
PN: 960-001054

Installation / Use Cases

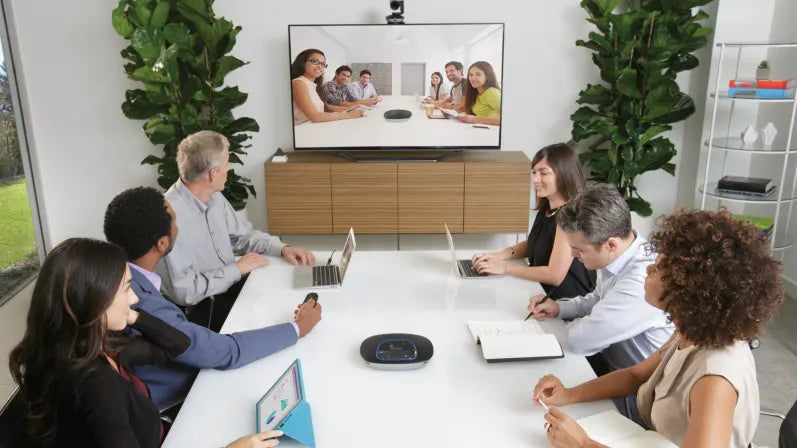

• Use as an HD video conferencing system for meeting rooms that seat 14 to 20 people.
• Suitable for turning meeting spaces into video collaboration rooms with HD video and clear audio.
• Use the 10x lossless HD zoom, 90-degree field of view, autofocus, and motorized pan/tilt for room coverage.
• Use the full-duplex speakerphone with acoustic echo cancellation, noise reduction, and ultra-wideband audio for group conversations.
• Use the four omnidirectional beamforming microphones for voice pickup up to 20 feet.
• Use optional expansion microphones to extend pickup range up to 28 feet.
• Use plug-and-play USB connectivity with compatible video conferencing applications and meeting services.
• Use the dual-purpose bracket for wall mounting or tabletop elevation.
• Use Bluetooth or NFC pairing to connect compatible mobile devices to the speakerphone.
