Description

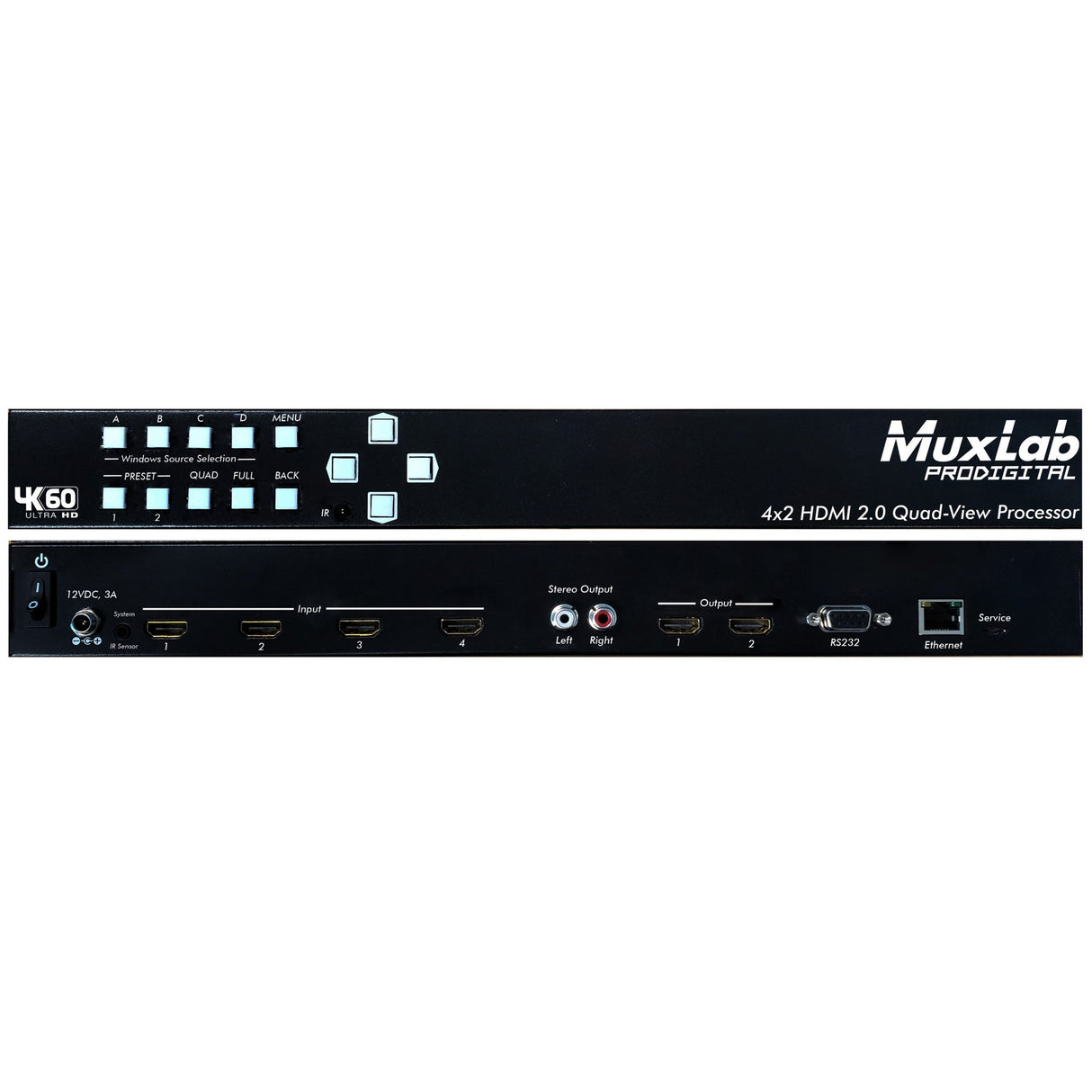

MuxLab 500446 4x2 HDMI 2.0 Quad-View Processor
The MuxLab 4x2 HDMI 2.0 Quad-View Processor allows up to four HDMI 4K/60 sources to be simultaneously presented on one or two displays. It is designed for professional AV environments requiring flexible multi-view video presentation. This processor supports advanced layout control for demanding commercial and institutional applications.
The unit supports resolutions up to 4K/60 with 4:4:4 chroma sampling and offers multiple default and custom multi-view layout presets. It supports seamless transitions including fade-in and fade-out, wipe, and dissolve when switching views. Audio pass-through and extraction are supported for flexible system integration.

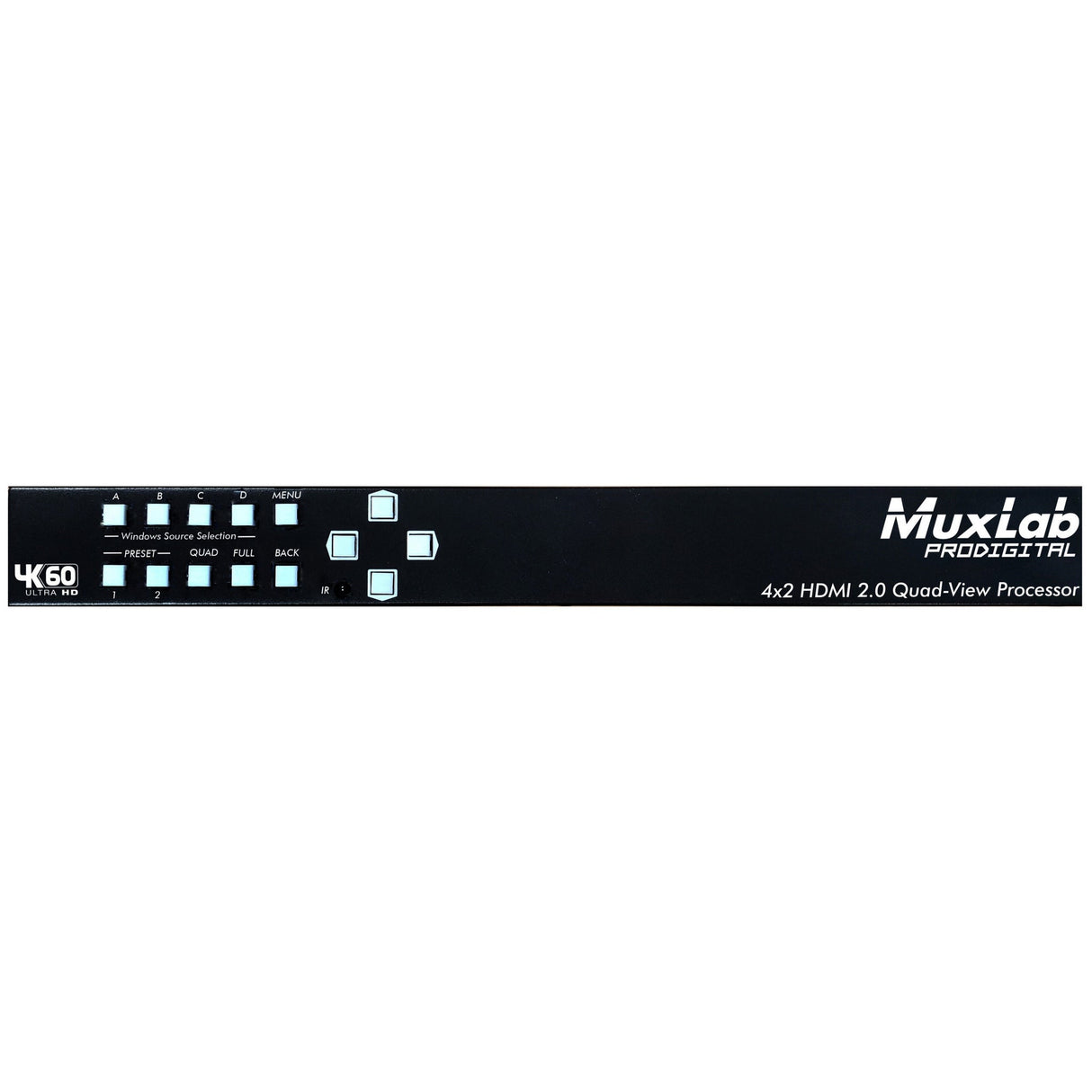

The processor can be managed locally via front panel push buttons or remotely using IR, RS232, and Ethernet control. It includes rackmount brackets for standard 19 inch rack installation and supports reliable operation in professional AV systems. This makes it ideal for digital signage, security, education, and presentation environments.
Key Features
- Multi-View Video Processing: Displays up to four HDMI sources simultaneously on one or two outputs
- High Resolution Support: Supports HDMI 2.0 resolutions up to 4K/60 with 4:4:4
- Flexible Layout Presets: Provides default and custom multi-view layouts with PIP support
- Advanced Control Options: Managed via front panel, IR, RS232, and Ethernet
- Professional Installation Ready: Includes rackmount brackets for 19 inch racks
Technical Specifications
EnvironmentHDMI 2.0 (4K/60 4:4:4 8bit)
HDMI Devices
DVD Blu-Ray Media Players, Cameras, PCs Laptops, projectors monitors TVs
Transmission
Transparent to the user
Frequency
Up to 594 MHz
Video Signal
HDMI 2.0 protocol and HDCP 1.4 and 2.2

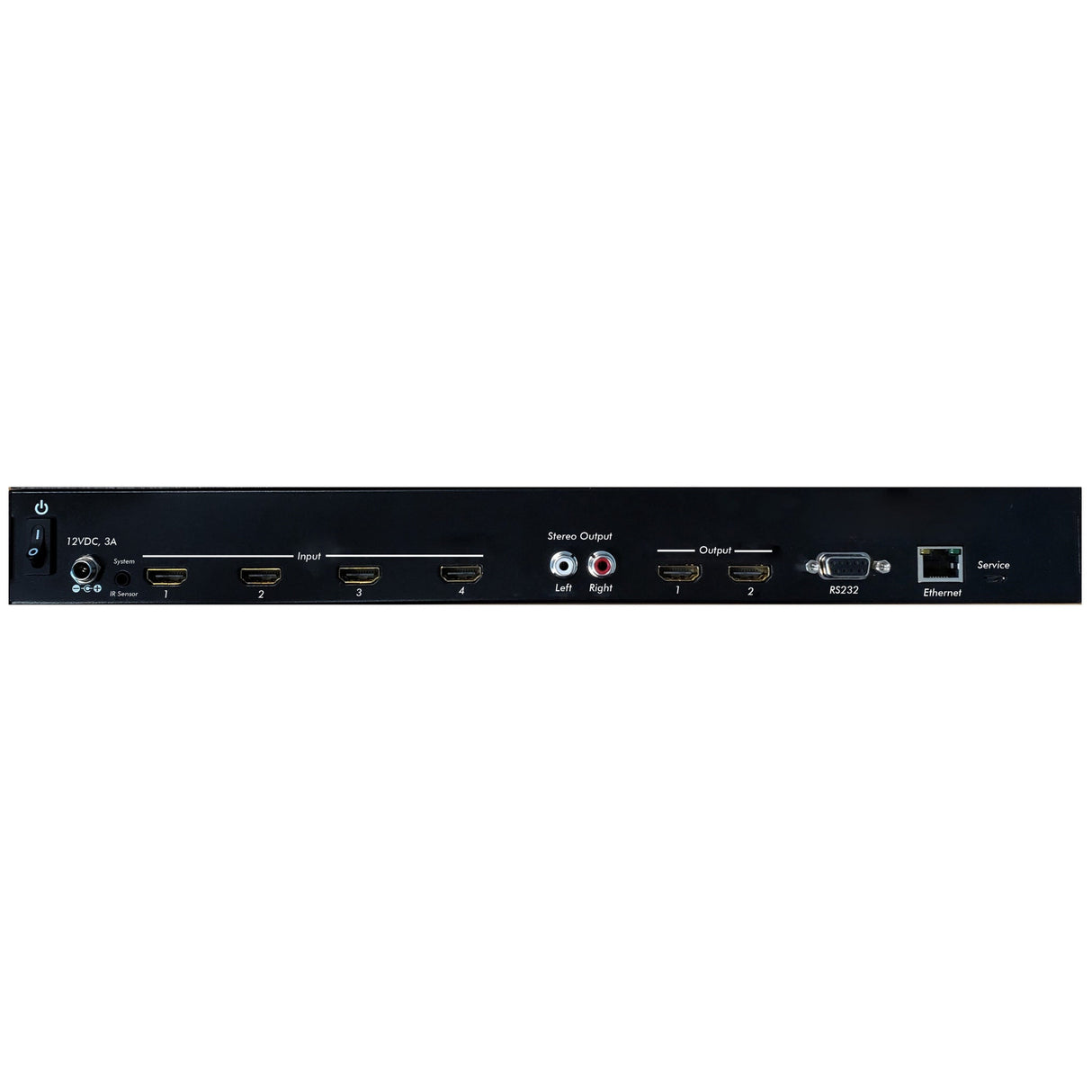

Connectors
Four (4) HDMI connectors for video (four inputs and two outputs)
Two (2) RCA jacks for audio extraction
One RJ45 connector for Ethernet Management
One (1) DB9 connector for RS232 Management
One (1) 3.5mm jack for IR Management
One (1) Micro USB connector for firmware updates
One (1) 2.1mm jack for power supply
Management
Locally via front panel push buttons and remotely via IR, RS232 and Ethernet
IR Handheld Remote Control
Included for remote unit management and 28 keys
Audio Extraction
From 2CH Digital PCM to 2CH Analog Audio
Power Supply
12VDC 5A
Power Consumption
22W (Max)
Temperature
Operating: 0°C to 40°C Storage: -20° to 60°C
Enclosure
Metal enclosure
Unit Dimensions
15.35 x 9.29 x 1.73
(390mm x 236mm x 44mm)
Shipping Weight
7.8 lbs (3.5 Kg)
Compliance
Regulatory: FCC, CE, RoHS
Warranty
2 years
What’s in the Box
(1) 4x2 HDMI 2.0 Quad-View Processor(1) IR Remote Control
