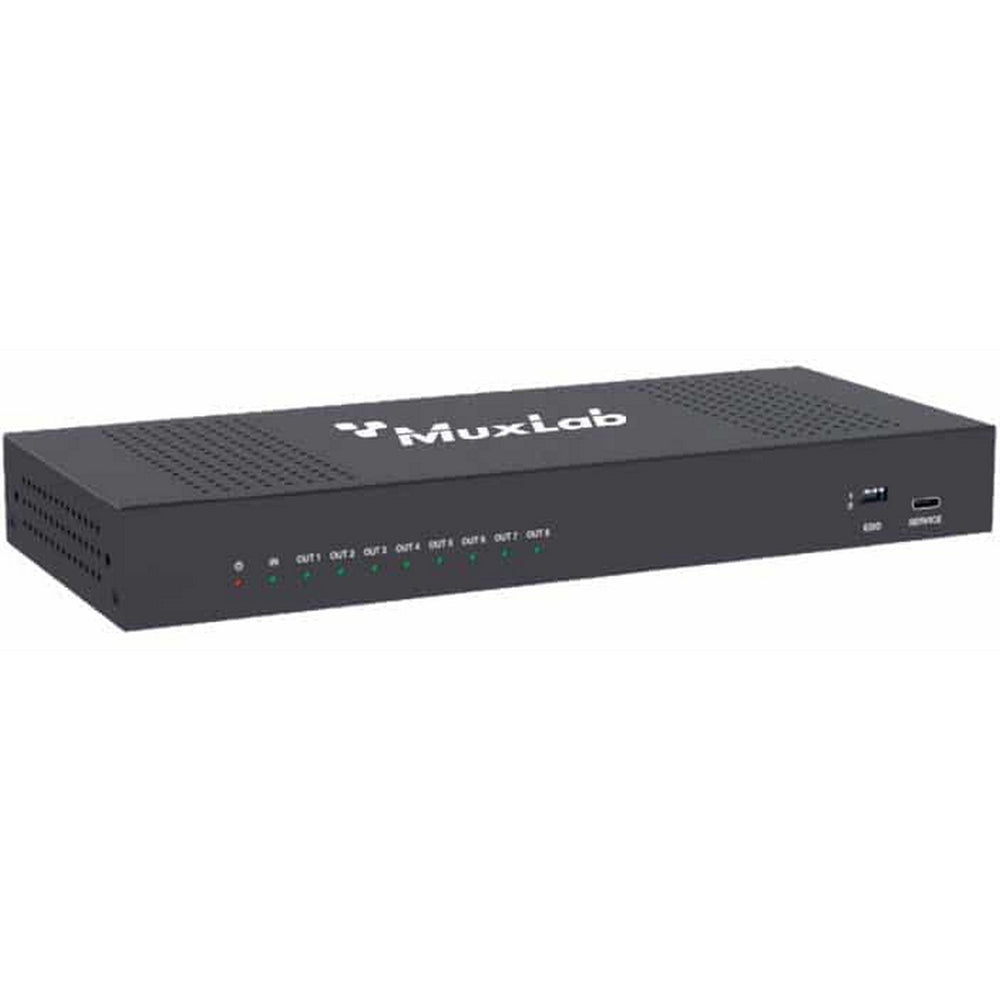

MuxLab 500512 HDMI 2.1 48Gbps 1x8 Splitter
The MuxLab HDMI 2.1 48Gbps 1x8 Splitter is designed to distribute a single HDMI source to eight displays while maintaining ultra high bandwidth performance. It supports advanced HDMI 2.1 features for professional AV, residential, and commercial environments. This splitter enables reliable signal distribution for demanding high resolution video applications.
Supporting video bandwidth up to 48Gbps, the splitter handles resolutions up to 8K/60Hz and 4K/120Hz with advanced color formats. It provides EDID management, cable equalization, and automatic scaling for flexible system integration. The device supports HDMI 2.1 compliance with HDCP 2.3 and HDCP 1.4 support.
With a metal enclosure and robust signal handling, the splitter delivers stable and dependable performance across multiple outputs. It is ideal for digital signage, gaming setups, broadcasting, medical imaging, and professional AV installations. The design ensures compatibility with high performance HDMI sources and large multi-display systems.
Key Features
- High Bandwidth HDMI Distribution: Supports HDMI 2.1 with video bandwidth up to 48Gbps FRL and 18Gbps TMDS
- Eight Display Outputs: Distributes one HDMI source to eight HDMI displays simultaneously
- 8K and 4K Video Support: Supports video resolution up to 8K/60Hz 4:2:0 12bit and 4K/120Hz 4:4:4 12bit
- Advanced HDR Support: Supports HDR, HDR10, HDR10+, Dolby Vision, and HLG
- EDID Management: Provides advanced EDID management for reliable system integration
Technical Specifications
HDMI ComplianceHDMI 2.1
HDCP Compliance
HDCP 2.3
HDCP 1.4
Video Bandwidth
48Gbps FRL and 18Gbps TMDS
Video Resolution
Up to 8K/60Hz 4:2:0 12bit
4K/120Hz 4:4:4 12bit
Color Depth
8/10/12 bit
Color Space
RGB
YCbCr_4:4:4
YCbCr_4:2:2
YCbCr_4:2:0
HDR
HDR
HDR10
HDR10+
Dolby Vision
HLG
Audio formats
HDMI INPUT/OUTPUT LPCM
Dolby Digital Plus/EX
Dolby True HD
Dolby Atmos
DTS
DTS-EX
DTS-96/24
DTS High Res
DTS-HD Master Audio
DSD
ESD Protection
IEC 61000-4-2: ±8kV (Air-gap discharge) and ±4kV (Contact discharge)
Input
1 x HDMI IN (Type A, 19-pin female)
Output
8 x HDMI OUT (Type A, 19-pin female)
Control
1 x SERVICE (USB Type C, Update port)
Housing
Metal Enclosure
Color
Black
Dimensions
250mm (W) x 104mm (D) x 30mm (H)
Weight
743g
Power Supply
12VDC/2.5A
Power Consumption
12.2W (Max)
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Relative Humidity
20 to 90 percent RH (non-condensing)
Warranty
2 years
