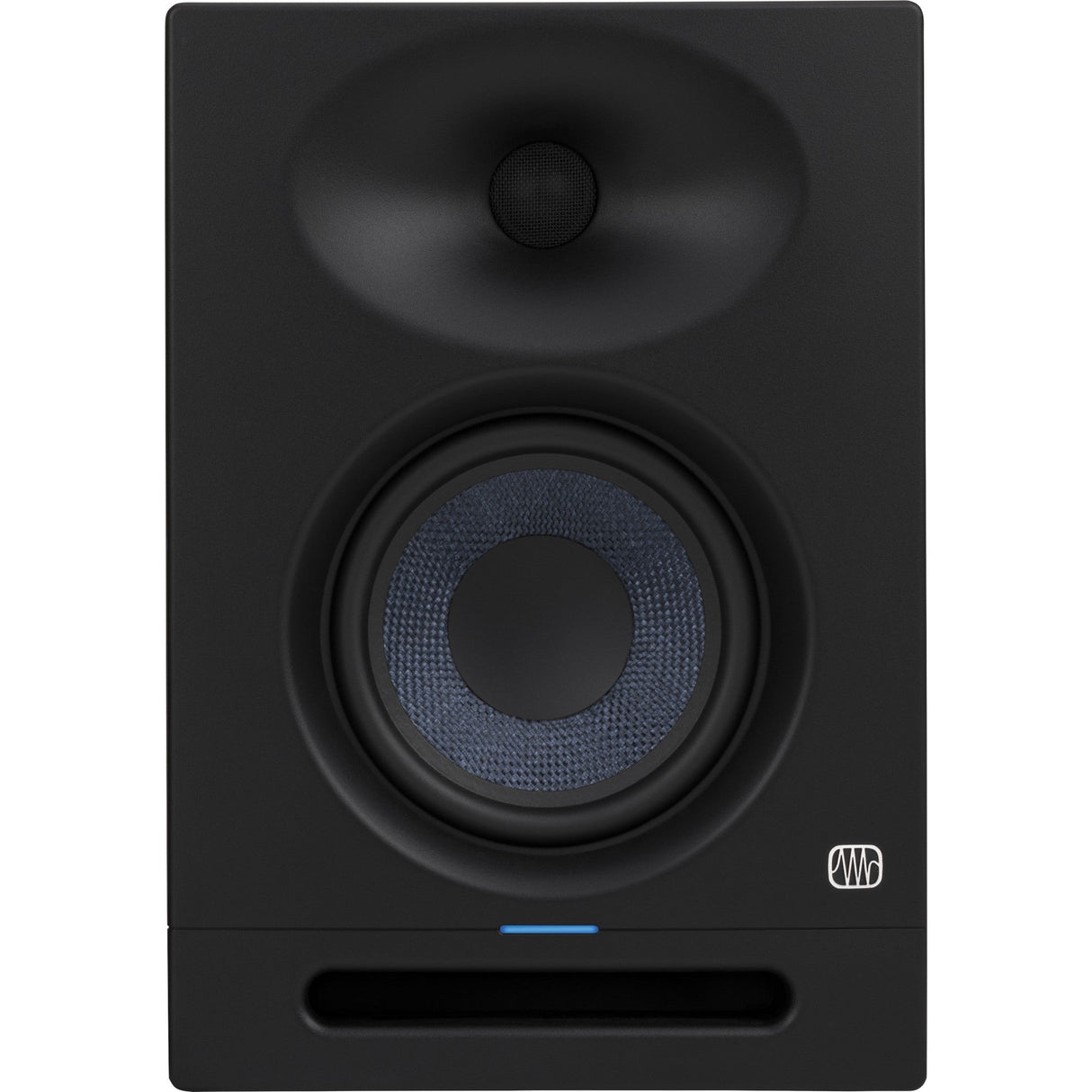

PreSonus ERIS STUDIO 5 5.25-Inch 2-Way Active Studio Monitor, Single (Used)

Like New: Open box product with no signs of use.

Building on the reputation of its award-winning predecessors, the Eris® Studio 5 is a substantial update that delivers richer low-end and more controlled high-frequency response that reproduces every detail in your recordings with a natural sound unparalleled in its class. Designed for superior performance in both home studio and small professional mix rooms, the Eris Studio 5 combines flexible connectivity with sonic accuracy that puts it a class all its own.

The custom-designed EBM (Elliptical Boundary Modeled) waveguide provides superior high-frequency response and wide 120-degree horizontal dispersion to create a broader sweet spot. Narrow vertical dispersion reduces reflections from your desk, and a silk-dome tweeter ensures snappy, accurate transient reproduction. An elegant new enclosure design improves the waveguide performance so you'll hear the finest details in your mix.

The woven-composite low-frequency driver offers Eris' signature tight, clear bass with plenty of punch. Its 80W of biamped power make the Eris Studio 5 more efficient than previous designs. The ported enclosure maximizes bass response and allows the Eris Studio 5 to reach down to an astonishing 48 Hz - without a subwoofer!

Flexible input options let you connect almost any line-level source, from mixers to audio interfaces and more. You'll have no problem hooking your Eris speakers up to virtually anything.

Set Up Your Studio Monitors For Your Room.
Eris® Studio 5 active monitors are equipped with Acoustic Tuning controls to ensure the flattest response in your mix environment. You get Low Cut, Mid, and High controls, as well as three-way Acoustic Space tuning that makes it easy to compensate for the boundary bass boost that occurs when a speaker is placed too close to a wall.

Honest. Expressive. Powerful.
Like all PreSonus® studio monitors, the Eris® Studio 5 offers consistent, accurate listening. Their stylish design makes them a welcome addition to any mix space and their smooth, incredibly even frequency response ensures that your mixes will sound great everywhere.

Key Features

• 5.25-inch woven composite low-frequency driver
• inch, ultra-low mass, silk-dome, high frequency driver
• Crossover Frequency, 3.5 kHz
• 120° x 60° EBM waveguide provides a sweet spot
• Front-firing acoustic port for superior bass-frequency reproduction and optimized, resonance-suppressing internal bracing
• 80W, Class AB dual amplification
• 48 Hz to 20 kHz frequency response
• 102 dB Peak SPL (@ 1 meter)

Technical Specifications

Voltage
100-120V
Wattage
80 Watts
Cabinet Material
Vinyl-Laminated, Medium-Density Fiberboard
Connection Type
IEC
Protections
RF interference
Output-current limiting
Over-temperature
Turn-on/off transient
Subsonic filter
Audio Switches
Acoustic Space (Flat, -2 dB, -4 dB)Low Cut (Flat, 80 Hz, 100 Hz @ -12 dB / octave)
Audio Controls
VolumeHigh Frequency (±6 dB, center 10 kHz, continuously variable)Mid Frequency (±6 dB, center 1 kHz, continuously variable)
Peak SPL
102 dB (@ 1 meter)
Crossover Frequency
3.5 kHz
Monitor Inputs
1- Balanced XLR, 1- Balanced 1/4” TRS, 1- Unbalanced RCA
HF Transducers
1” Ultra Low Mass, Silk Dome Tweeter
LF Transducers
5.25" Woven Glass Fiber Composite
Frequency Response
48 Hz - 20 kHz
Input Impedance
10 kΩ
Coverage Pattern
100 degree (H) x 60 degree (V)
Monitor Amplifier Power
LF Amplifier - 45W, HF Amplifier - 35W
Input Impedance
10 kΩ
