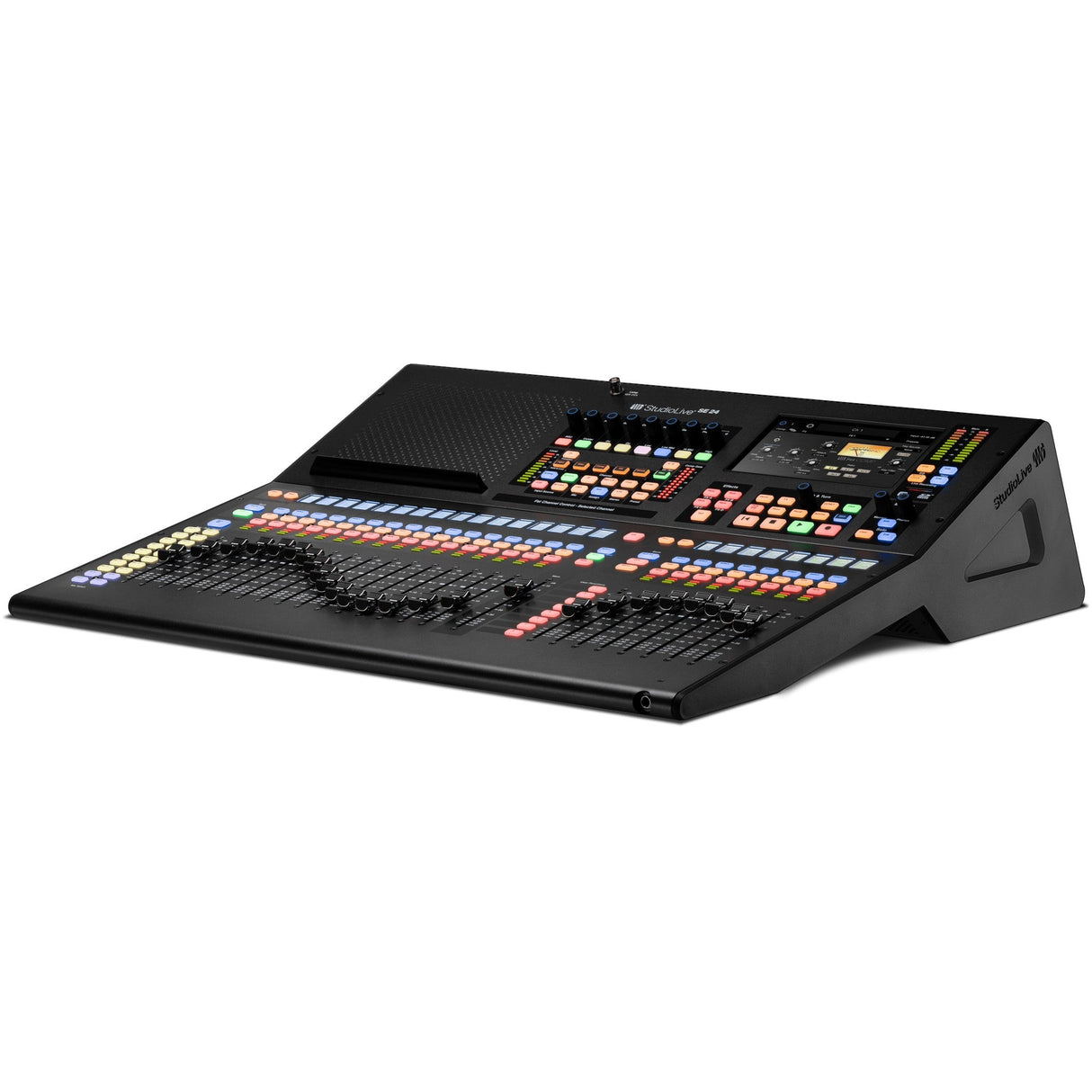

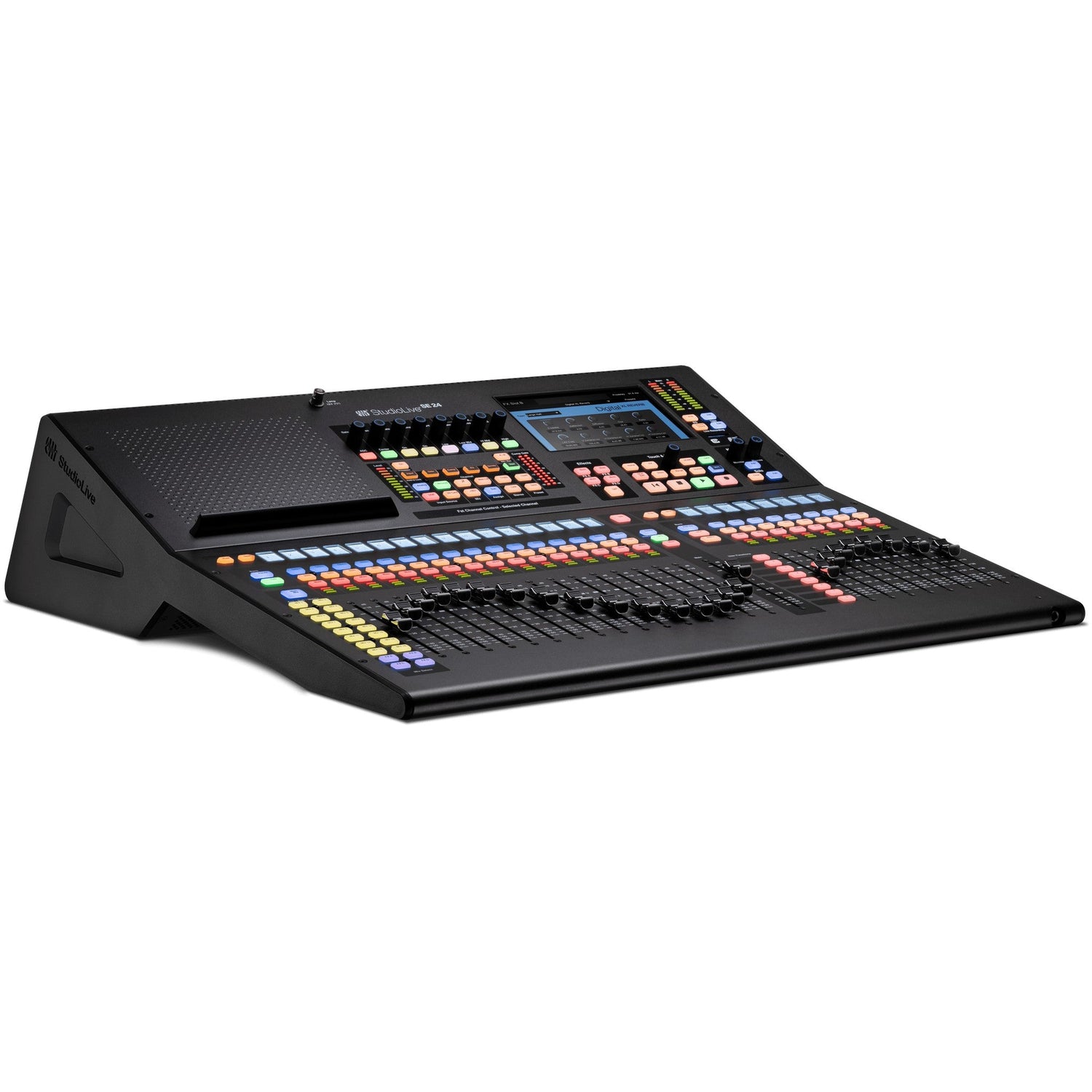

PreSonus StudioLive Series III SE 24 Digital Console Mixer, Recorder, Interface
The PreSonus StudioLive Series III SE 24 Digital Console Mixer is designed for professional live sound engineers, recording studios, and houses of worship that demand precision, flexibility, and pristine audio quality. Featuring a sleek black finish and a rugged build, this mixer delivers cutting-edge digital mixing technology while maintaining intuitive hands-on control. With powerful onboard processing, flexible connectivity options, and studio-grade preamps, the StudioLive SE 24 ensures that every performance or recording is captured with remarkable clarity and depth.
This digital console mixer is engineered to offer seamless integration with digital audio workflows. Its 32-bit floating-point internal processing guarantees high-resolution audio with a wide dynamic range, ensuring every subtle nuance is preserved. With AVB networking, USB multitrack recording, and onboard SD recording, you have multiple ways to capture and distribute your audio. Whether you’re mixing live, recording in the studio, or streaming, the StudioLive SE 24 adapts to any production environment with ease.
Equipped with top-tier XMAX microphone preamps, professional-grade converters, and comprehensive input/output options, this console mixer provides unmatched versatility. From balanced line and mic inputs to RCA tape connections and powerful XLR outputs, it’s built to handle a wide variety of setups. With advanced processing, ultra-low latency, and durable construction, the PreSonus StudioLive Series III SE 24 is the ideal solution for professionals who need reliability, precision, and performance in every mix.
Key Features
- 24-channel digital console mixer with 32-bit floating-point processing
- High-quality XMAX preamps with 0 dB to 60 dB gain range
- AVB networking and USB 2.0 recording interface
- Onboard SD card recorder with up to 32 GB storage capacity

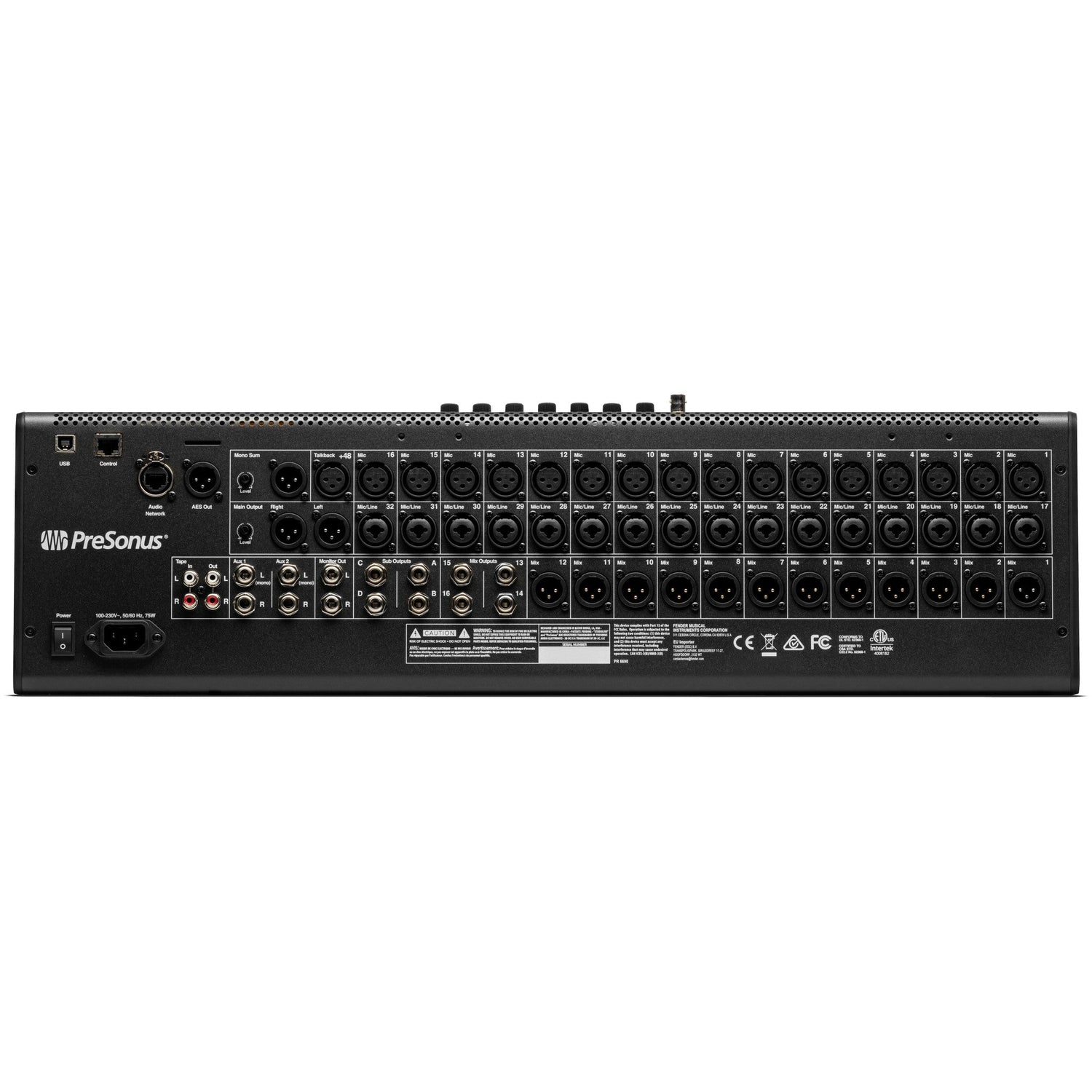

- Extensive I/O including XLR, TRS, RCA, and headphone outputs
- Wide frequency response (20 Hz – 20 kHz) with ultra-low distortion
- Supports 44.1 kHz and 48 kHz sample rates with 24-bit resolution
- Compact, lightweight design with a professional black finish
Technical Specifications
Product Name: StudioLive Series III SE 24 Digital Console Mixer
Series: StudioLive
Color: Black
Electronics
Headphone Jack: 1/4" TRS Active Stereo
Phantom Power: +48 VDC (±2 VDC)
Power Consumption: 85W (Continuous)
Voltage Requirements: 100-230 VAC, 50-60 Hz
Hardware
Digital Audio AES EBU Output: XLR Male
Digital Audio AVB Audio Network Ports: Neutrik etherCONN
Digital Audio Network Control Port: RJ-45
Digital Audio USB Recording Port: USB 2.0, Type-B
Tape Connection Type: RCA Female, Unbalanced (Stereo Pair)
Inputs
Line Input Connection Type: 1/4" TRS Female, Balanced
Line Inputs Frequency Response: 20 Hz – 20 kHz (±0.5 dBu at Unity Gain)
Line Inputs Impedance: 10 kΩ
Line Inputs Maximum Level: +18 dBu
Line Inputs Signal to Noise Ratio: 94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)
Line Inputs Total Harmonic Distortion: <0.005%, +4 dBu, 20 Hz – 20 kHz, Unity Gain, Unweighted
Microphone Input Connection Type: XLR Female, Balanced
Microphone Preamp Common Mode Rejection Ratio: 65 dB (1 kHz at Unity Gain)
Microphone Preamp Frequency Response: 20 Hz – 20 kHz (±0.5 dBu at Unity Gain)
Microphone Preamp Gain Control Range: 0 dB to 60 dB (±1 dB)
Microphone Preamp Input Impedance: 1 kΩ
Microphone Preamp Maximum Input Level: +12 dBu (Unity Gain)
Microphone Preamp Signal to Noise Ratio: 94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)
Microphone Preamp Total Harmonic Distortion: <0.005%, +4 dBu, 20 Hz – 20 kHz, Unity Gain, Unweighted
Tape Maximum Input Level: +12 dBu, ±0.5 dBu
Measurements
Media Storage Capacity: SD Card: 2 GB; SDHC Card: 32 GB
Product Depth: 22.97”
Product Height: 6.51”
Product Width: 25.98”
Product Weight: 30 lbs.
Refinement Weight: 26-50
Miscellaneous
Digital Audio Internal Processing: 32-Bit, Floating Point
Power Cable: IEC
Recommended Ambient Operating Temperature: 32˚F to 104˚F (0˚C to 40˚C)
Recording File Format: WAV
Supported Media Format: FAT16 SD™ Card, FAT32 SDHC™ Card
Supported Sample Rates: 44.1 kHz, 48 kHz
Output
Headphone Outputs Frequency Response: 20 Hz – 20 kHz, ±0.5 dB
Headphone Outputs Maximum Output: 100 mW/ch. @ 60Ω load
Headphone Outputs Signal To Noise Ratio: 96 dB, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
Headphone Outputs Total Harmonic Distortion: 0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
Line Outputs Connection Type: 1/4" TRS Female, Balanced
Line Outputs Maximum Output Level: +18 dBu, ±0.5 dBu
Line Outputs Output Impedance: 100 Ohms
Tape Maximum Output Level: +18 dBu, ±0.5 dBu
Tape Output Impedance: 100 Ohms
XLR Outputs Maximum Output Level: +24 dBu, ±0.5 dBu
XLR Outputs Output Impedance: 100 Ohms
Performance
Crosstalk (Adjacent Channels): -87 dB (Reference = +4 dBu, 20 Hz–20 kHz, Unweighted)
Digital Audio Bit Depth: 24
Digital Audio Dynamic Range: ADC 115 dB, DAC 115 dB (A-Weighted, 48 kHz)
Digital Audio Reference Level For Zero dBFS: +18 dBu
Digital Audio Total System Latency: 1.9 ms (local routing, analog in-analog out, all processing active)
SD Recorder Bit Depth: Recording: 24 Bit, Playback: 16 or 24 Bit
SD Recorder Sampling Rate: 44.1 or 48 kHz
