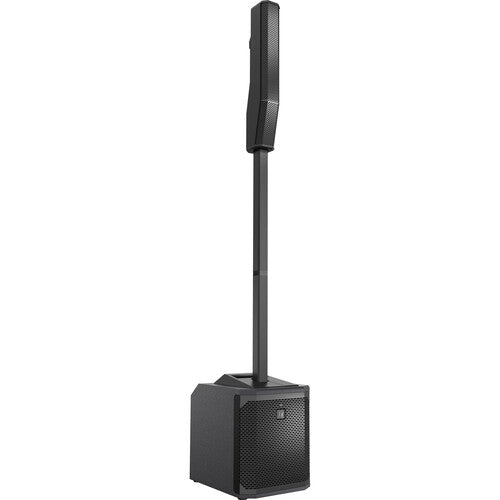

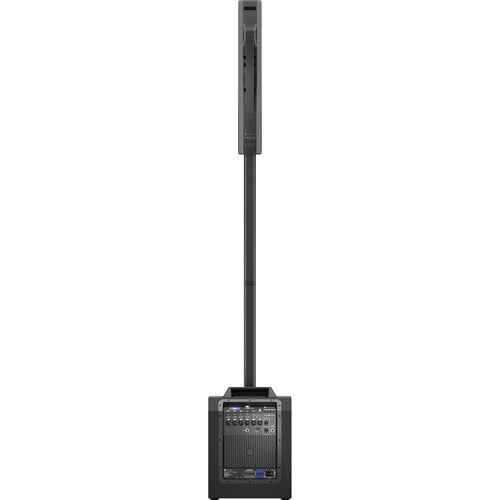

Electro-Voice EVOLVE 30M G2 1500W Powered Column PA System - Black

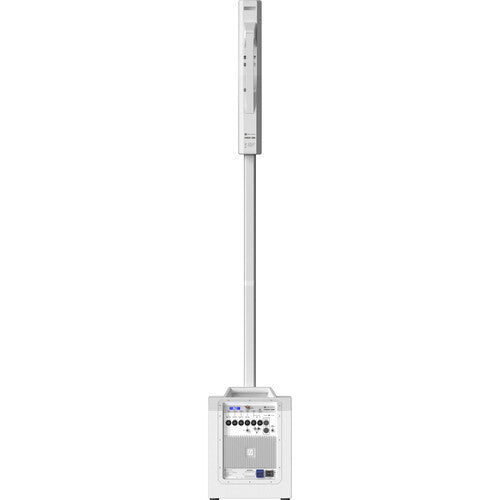

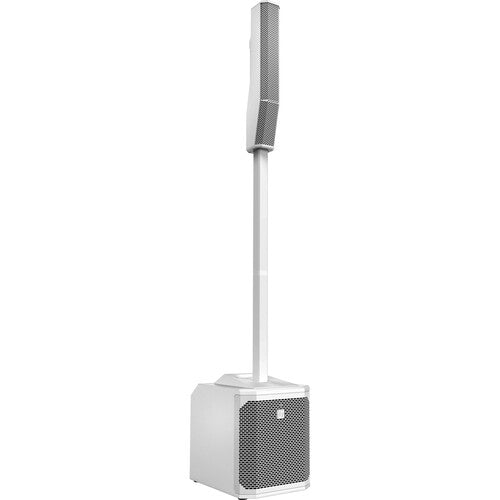

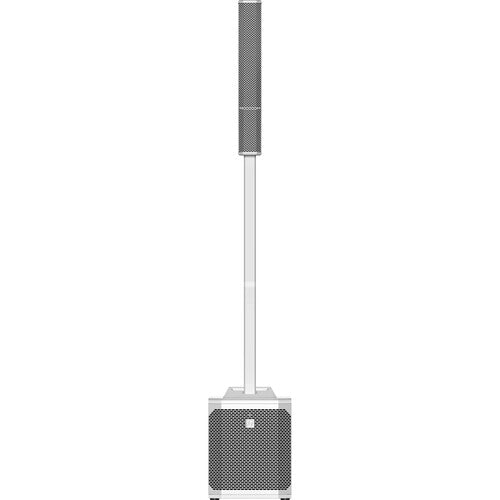

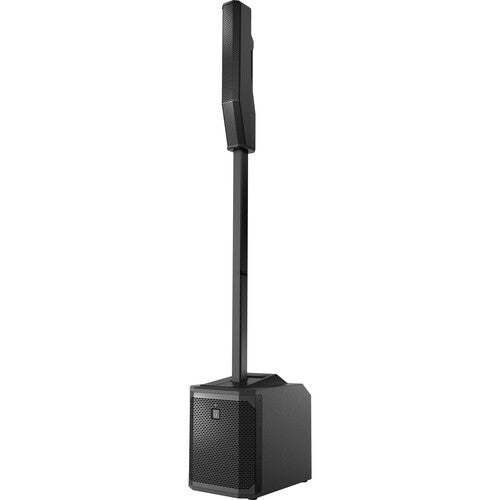

Electro-Voice EVOLVE 30M G2 1500W Powered Column PA System

The Electro-Voice EVOLVE 30M G2 powered column PA system combines a 1,500W amplifier, 10-inch subwoofer, six 2.8-inch neodymium drivers, and integrated 8-channel digital mixer in one portable sound system. Available in Black and White, it delivers up to 125 dB maximum SPL, Bluetooth audio streaming, wireless app control, and wide 120° x 40° coverage.

Designed for mobile DJs, live musicians, event production companies, houses of worship, and professional presenters, the EVOLVE 30M G2 provides full-range sound reinforcement without the complexity of a conventional multi-speaker setup. Its 10-inch powered subwoofer produces low-frequency output, while the six-driver column array distributes sound across a broad listening area. The 120-degree horizontal dispersion and 40-degree vertical coverage help deliver consistent audio to seated and standing audiences. With a frequency response of 51 Hz to 20 kHz and a maximum output of 125 dB SPL, this portable column loudspeaker system supports events with audiences of up to 150 people.

The integrated Dynacord-powered digital mixer provides professional microphone, instrument, and line-level connectivity alongside Bluetooth True Wireless Stereo (TWS) streaming. QuickSmartDSP processing includes automatic feedback suppression, music ducking, digital effects, and switchable 48V phantom power for compatible condenser microphones. Operators can manage system settings through the 2.8-inch color LCD or the Electro-Voice QuickSmart App for iOS and Android. QuickSmart Link enables two compatible EVOLVE 30M G2 systems to share digital audio and control through an RJ45 connection. The modular design features magnetically assisted assembly, integrated cable connections, and an included carrying bag for convenient transportation.

Key Features

• 1,500W Powered Column PA System: Combines integrated amplification, a 10-inch powered subwoofer, and six 2.8-inch neodymium column drivers for portable professional sound reinforcement.
• 125 dB Maximum SPL: Provides substantial output for live music, mobile entertainment, corporate presentations, and events accommodating up to 150 attendees.
• Integrated 8-Channel Digital Mixer: Offers microphone, instrument, and stereo audio connections with digital mixing and effects processing developed with Dynacord.
• Wide 120° x 40° Coverage: Distributes audio horizontally across broad audience areas while directing vertical coverage toward seated and standing listeners.
• Advanced QuickSmartDSP: Includes automatic feedback suppression, music ducking, switchable 48V phantom power, customizable equalization, and expanded digital effects.
• Bluetooth and QuickSmart App Control: Supports wireless audio playback, True Wireless Stereo streaming, and remote adjustment through compatible iOS and Android devices.
• QuickSmart Link Connectivity: Connects two compatible EVOLVE 30M G2 systems using a standard Ethernet cable to share audio, mixer inputs, and control functions.
• Portable Modular Construction: Features an ergonomic subwoofer handle, magnetically assisted connections, a two-piece aluminum distance pole, and an included carrying bag.

Technical Specifications

• Brand: Electro-Voice
• Series: EVOLVE G2
• Model: EVOLVE 30M G2
• Product Type: Powered Portable Column PA System
• Available Colors: Black, White
• Black Manufacturer Part Number: Z.01X.004.792
• White Manufacturer Part Number: Z.01X.004.793
• Speaker Configuration: Powered Subwoofer with Full-Range Column Array
• Amplifier Power Rating: 1,500W
• Low-Frequency Amplifier Rating: 750W
• High-Frequency Amplifier Rating: 750W
• Subwoofer Driver: 1 x 10" Woofer

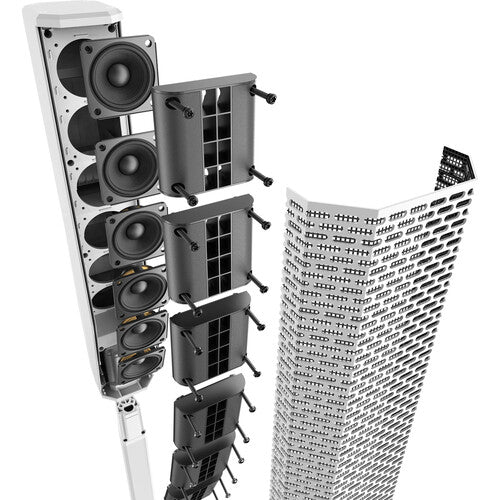

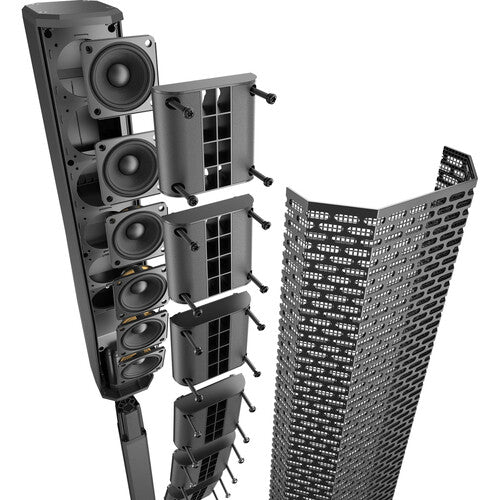

• Column Drivers: 6 x 2.8" Neodymium Drivers
• Frequency Response (-3 dB): 51 Hz - 20 kHz
• Frequency Range (-10 dB): 45 Hz - 20 kHz
• Maximum Sound Pressure Level: 125 dB at 1 Meter
• Horizontal Coverage: 120 Degrees
• Vertical Coverage: 40 Degrees
• Crossover Frequency: 200 Hz
• Speaker Enclosure Design: Bass-Reflex Subwoofer with Column Array
• Subwoofer Vent Design: Laminar Flow
• Digital Mixer: Integrated 8-Channel Mixer
• Digital Signal Processing: QuickSmartDSP
• Automatic Feedback Suppression: Supported
• Music Ducking: Supported
• Digital Effects: Dual Effects Processing Channels
• Effects Presets: 30
• Effects Types: Reverb, Delay, Chorus, Flanger, and Additional Effects
• Factory DSP Presets: Music, Live, Speech, Club
• Equalization: 3-Band EQ
• User Presets: 5
• Phantom Power: Switchable 48V
• Microphone/Line Inputs: 4 x XLR/1/4" TRS Combo Jacks
• Additional Stereo Line Inputs: 2 x XLR/1/4" TRS Combo Jacks
• Instrument Input: 1 x 1/4" Hi-Z
• RCA Input: 1 x Stereo RCA Pair
• Auxiliary Stereo Input: 1 x 3.5 mm
• Bluetooth Audio Input: Supported
• Bluetooth True Wireless Stereo: Supported
• Mix Output: 1 x Balanced XLR
• Auxiliary Output: 1 x Balanced XLR
• Footswitch Input: 1 x 1/4"
• QuickSmart Link Connection: RJ45
• QuickSmart Link Function: Digital Audio and Control Sharing Between Two Compatible Systems
• Wireless Connectivity: Bluetooth
• Mobile Application: Electro-Voice QuickSmart App
• Mobile App Compatibility: iOS and Android
• Onboard Display: 2.8" Full-Color LCD
• Power Input: IEC AC Connection
• AC Operating Voltage: 100-240V AC
• Power Frequency: 50/60 Hz
• Rated Current Consumption: 1.0-0.5 A at 1/8 Power
• Subwoofer Enclosure Material: Plywood with Polyurea Coating
• Column Enclosure Material: Composite
• Distance Pole Material: Aluminum
• Distance Pole Configuration: 2 Sections
• Grille Material: Powder-Coated Steel
• Assembly Mechanism: Magnetically Assisted Pole Connection and Gravity-Held Column
• Transport Handle: Integrated Top-Mounted Subwoofer Handle
• Assembled System Dimensions (L x W x H): 17" x 13.1" x 78.5"
• Subwoofer Dimensions (L x W x H): 17" x 13.1" x 16.7"
• Column Dimensions (L x W x H): 6.2" x 3.7" x 24.4"
• Individual Pole Section Dimensions (L x W x H): 2.2" x 1.9" x 23.6"
• Assembled System Weight: 43.5 lb
• Subwoofer Weight: 34.6 lb
• Column Weight: 5.6 lb

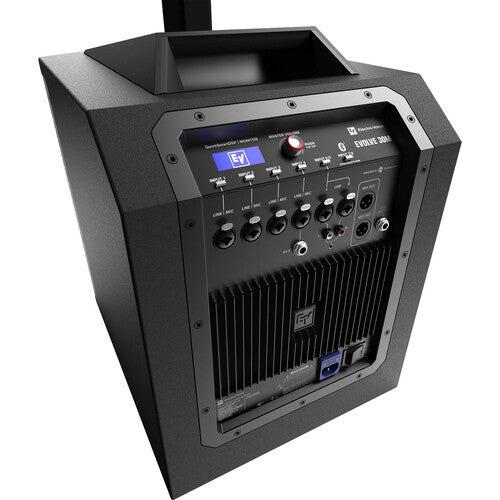

Integrated 8-Channel Digital Mixer with Dynacord Processing

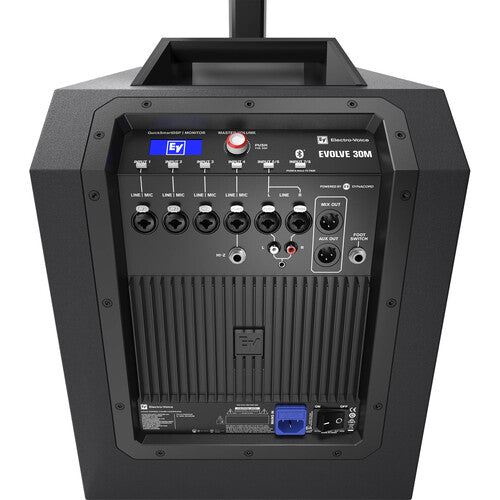

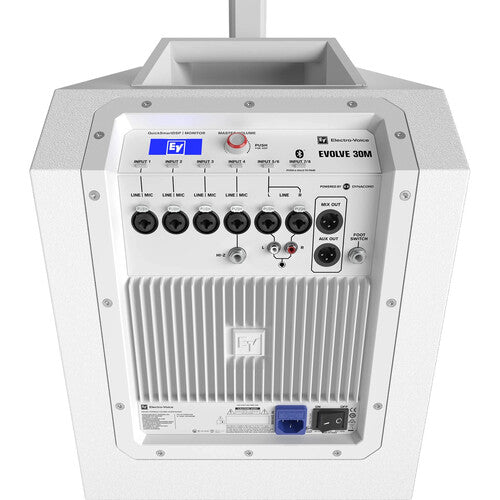

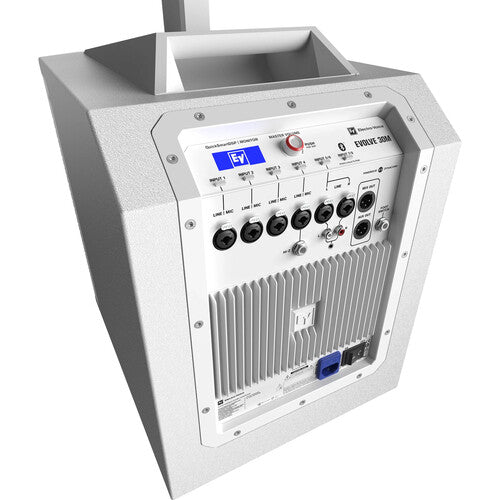

The built-in mixer allows performers and production teams to connect multiple audio sources without requiring a separate mixing console for many applications. Four combination XLR/TRS microphone and line inputs accommodate compatible wired microphones, wireless microphone receivers, and line-level equipment. Additional stereo inputs support keyboards, media players, and other audio sources, while the dedicated Hi-Z instrument input accepts compatible electric guitars and basses.

Independent channel controls and auxiliary sends provide flexibility for live performances and presentations. Two digital effects channels support processing options including reverb, chorus, delay, and flanging. Switchable 48V phantom power accommodates compatible condenser microphones, while automatic feedback suppression helps manage unwanted microphone feedback during live operation.

QuickSmartDSP and Wireless App Control

The EVOLVE 30M G2 includes onboard digital signal processing designed to simplify sound system configuration. Factory presets for Music, Live, Speech, and Club applications provide convenient starting points for different performance environments. Three-band equalization and five user memory locations allow operators to customize system behavior and recall preferred settings.

A 2.8-inch full-color LCD provides direct access to mixer functions, effects, and system settings. The Electro-Voice QuickSmart App extends these controls to compatible smartphones and tablets through Bluetooth connectivity. Users can manage supported audio settings remotely, group compatible speakers, and configure wireless stereo playback without returning to the loudspeaker.

QuickSmart Link for Expanded Sound Systems

QuickSmart Link allows two compatible EVOLVE 30M G2 loudspeaker systems to connect through an RJ45 Ethernet cable. This digital connection supports audio and control sharing between both systems, making it possible to expand the available mixer inputs and coordinate sound system operation.

The connection provides an efficient solution for bands requiring additional microphone inputs, mobile DJs operating stereo systems, and event production teams managing multiple loudspeakers. Bluetooth True Wireless Stereo offers another playback option for compatible configurations without requiring a wired stereo audio connection.

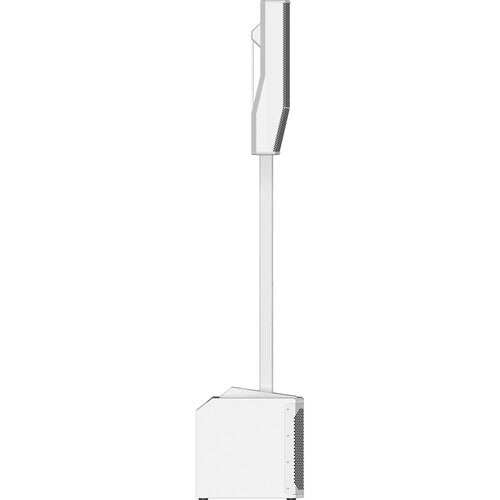

Portable Column Design for Professional Events

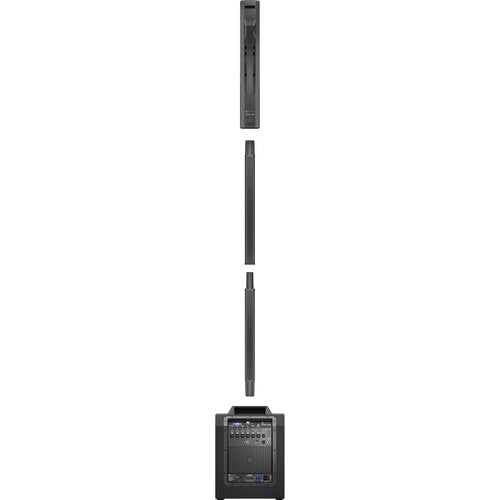

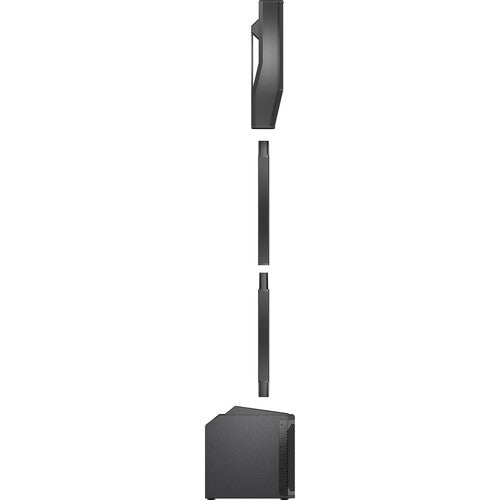

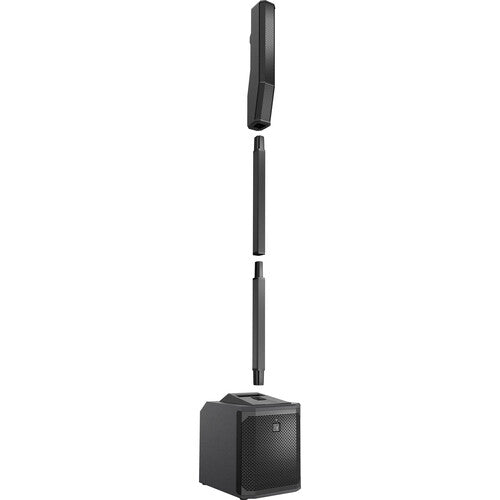

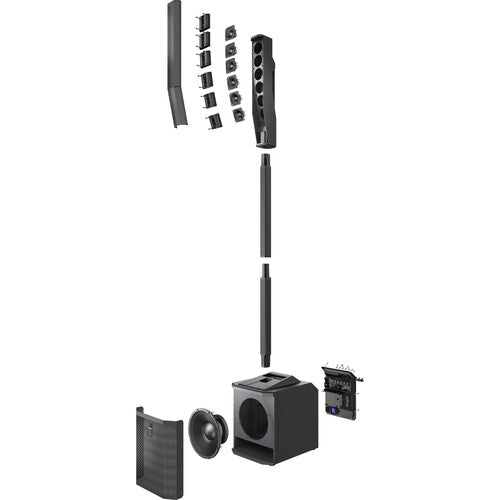

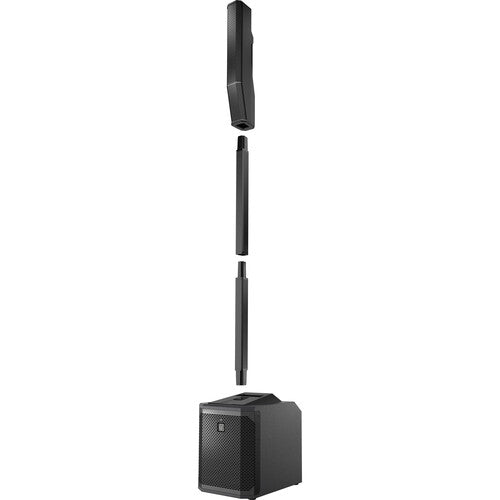

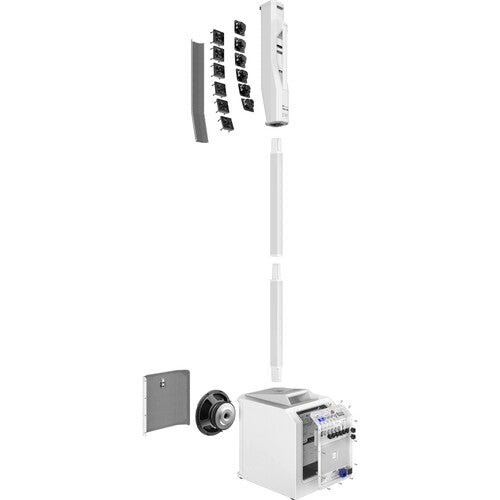

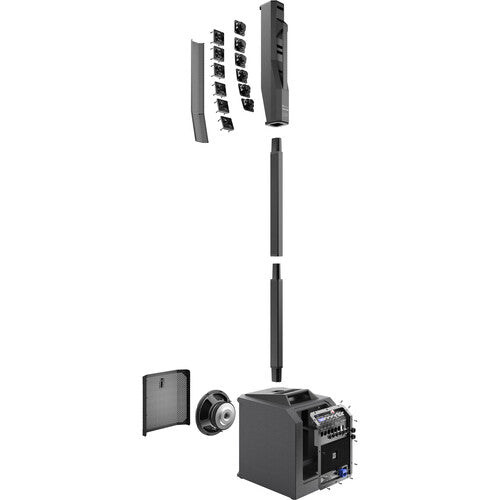

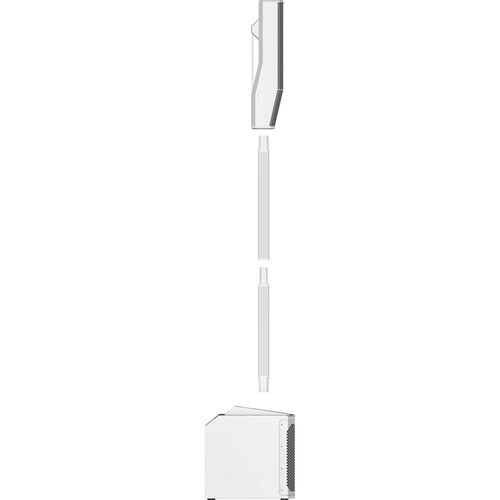

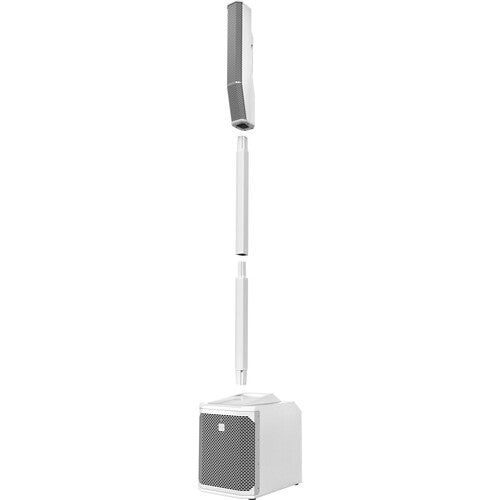

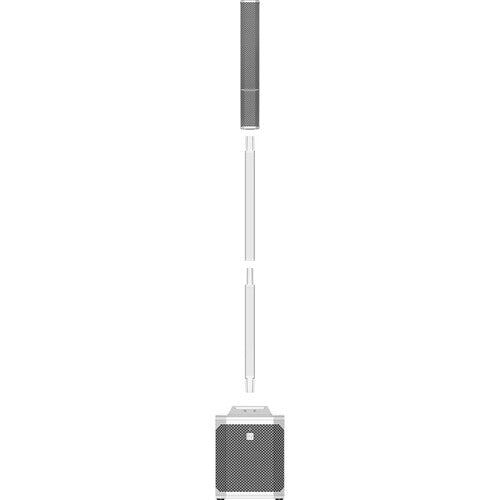

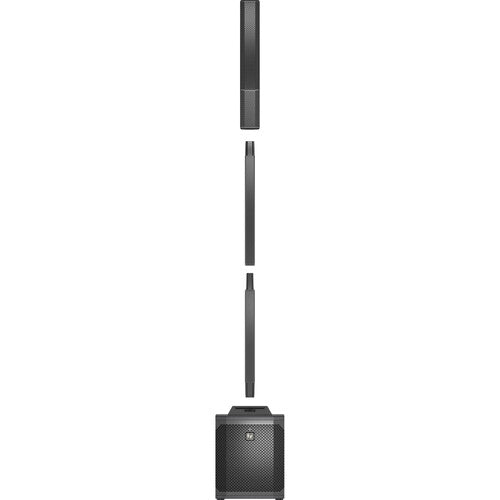

The EVOLVE 30M G2 uses a modular speaker configuration consisting of a powered subwoofer, two aluminum distance pole sections, and a compact column array. Magnetically assisted connections simplify assembly, while integrated wiring eliminates the need for a separate speaker cable between the column and subwoofer.

The subwoofer features a plywood enclosure with a protective polyurea coating and an integrated top handle for transportation. Its laminar-flow vent supports efficient low-frequency operation. The composite column enclosure and powder-coated steel grille provide protection during professional use. Both Black and White versions include a carrying bag for transporting the column array and pole sections.

Available Color Variants

• Black - Z.01X.004.792: Electro-Voice EVOLVE 30M G2 powered column PA system with black enclosure and matching powder-coated grille.

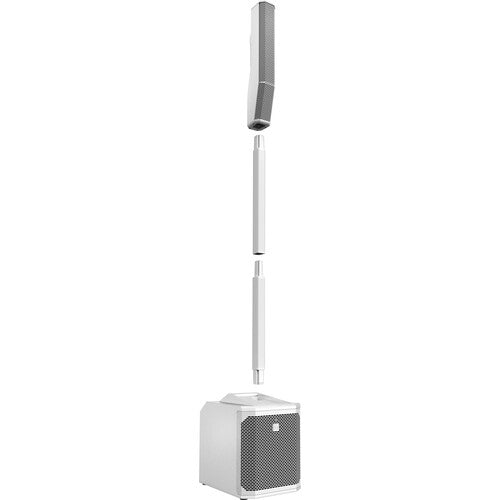

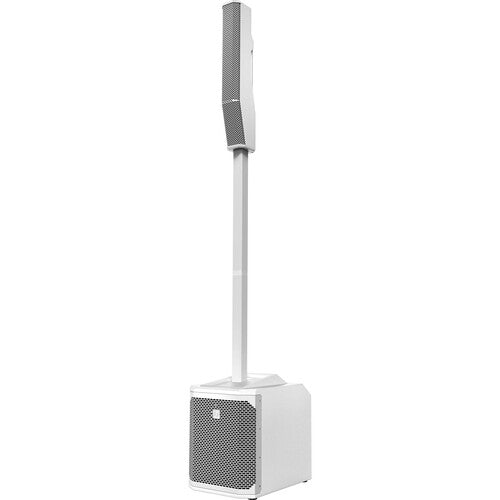

• White - Z.01X.004.793: Electro-Voice EVOLVE 30M G2 powered column PA system with white enclosure and matching powder-coated grille.

What's in the Box

• 1 x Electro-Voice EVOLVE 30M G2 Powered Subwoofer with Integrated Mixer (Selected Color)
• 1 x Matching EVOLVE 30M G2 Column Speaker Array
• 2 x Aluminum Distance Pole Sections
• 1 x Carrying Bag for Column Array and Pole Sections
• 1 x AC Power Cord
