Description
Yamaha Rio3224-D2 32 Analog Inputs / 16 Outputs / 8 Digital Outputs I/O Rack

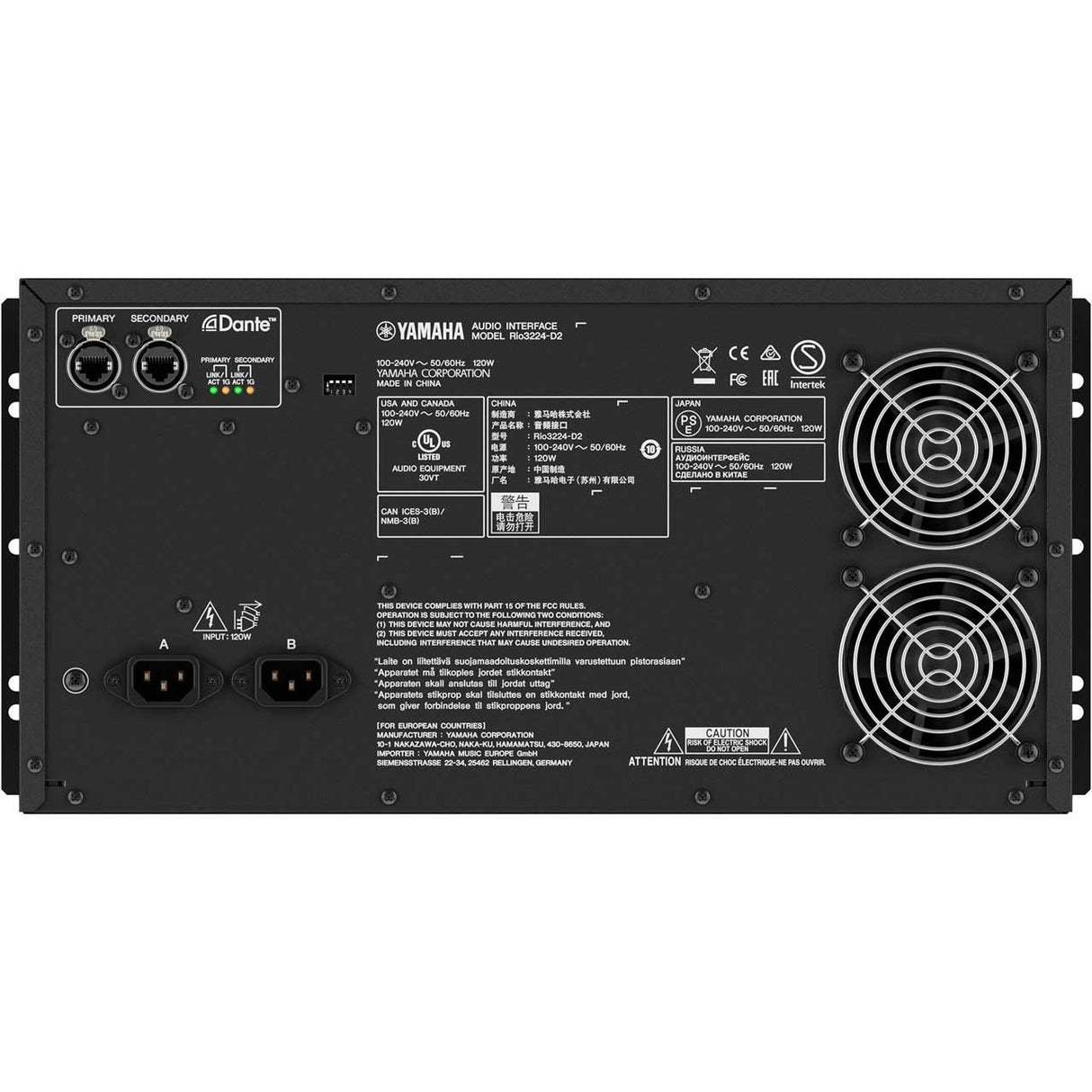

This high-capacity, high-performance I/O rack is compatible with Yamaha CL and QL series consoles as well as the RIVAGE PM series. It features 32 analog inputs, 16 analog outputs, and eight digital AES/EBU outputs. The Rio3224-D2 connects directly to Dante digital audio networks, allowing flexible system configuration. Dual power supply units are built in for high reliability, and a character/graphic display offers easy visual confirmation.
Key Features
- 32 analog inputs and 16 outputs, and 8 digital outputs.
- Redundant connections are supported with primary and secondary connectors. Daisy chain connections are also supported.
- Comprehensive display and local control of gain and other parameters.
- Power consumption: 120W
- Dimensions (WxHxD): 480 x 220 x 368mm (18.9" x 8.7" x 14.5")
- Net Weight: 13.5 kg (29.8 lbs)
Technical Specifications
Sampling frequency rate, External
44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, +4.1667%, +0.1%, -0.1%, -4.0% (+/-200 ppm)
Signal delay
Less than 1.7 ms, Rio INPUT to Rio OUTPUT connect with PM10 using Dante, Fs= 96 kHz, Dante Receive Latency set to 0.25 msec
Total harmonic distortion
Less than 0.05% 20 Hz-20 kHz@+4 dBu into 600 OHM, Fs= 48 kHz, Less than 0.05% 20 Hz-40 kHz@+4 dBu into 600 OHM, Fs= 96 kHz, INPUT to OUTPUT, Input Gain= Min.
Frequency response
+0.5, -1.5 dB 20 Hz-20 kHz, refer to +4 dBu output @1 kHz, INPUT to OUTPUT, Fs= 48 kHz / +0.5, -1.5 dB 20 Hz-40 kHz, refer to +4 dBu output @1 kHz, INPUT to OUTPUT, Fs= 96 kHz
Dynamic range
112 dB typ., DA Converter, 108 dB typ., INPUT to OUTPUT, Input Gain= Min.
Equivalent input noise
-128 dBu typ., Input Gain= Max.
Residual output noise
-88 dBu, ST master off
Crosstalk
-100dB, adjacent INPUT/OUTPUT channels, Input Gain = -6dB, @1 kHz *Measured with a 30dB/octave filter @22kHz
Power requirements
100-240V, 50/60Hz
Power consumption
120W
Dimensions
W: 480 mm (18.9")
H: 220 mm (8.7")
D: 368 mm (14.5")
Net weight
13.5 kg (29.8 lbs)
Others
NC Value: FAN MODE LOW: NC=20 / HIGH: NC=30 (Measurement position: 1 m from the front of the unit), Operating temperature range: 0 - 40°C, Storage temperature range: -20 - 60°C
Installation / Use Cases
- High-capacity digital audio systems using a Dante network I/O rack
- Professional live sound systems requiring 32 analog inputs, 16 analog outputs, and 8 AES/EBU digital outputs
- Yamaha CL, QL, and RIVAGE PM series workflows requiring compatible stage I/O expansion
- Dante audio network setups requiring primary and secondary redundant connections
- Flexible audio system design using redundant or daisy-chain Dante connections
- Rack installations requiring local gain control and visual confirmation through character/graphic display
- Reliable live production setups using built-in dual power supply units
Package Contents
- Yamaha Rio3224-D2 I/O Rack
- Owner’s Manual
- AC Power Cord 250cm
- Dante Virtual Soundcard Token Leaflet
Frequently Asked Questions
What is the Yamaha Rio3224-D2 used for?
The Yamaha Rio3224-D2 is used as a high-capacity Dante I/O rack for professional live sound systems, Yamaha CL and QL consoles, and RIVAGE PM series workflows.
How many inputs and outputs does the Rio3224-D2 provide?
The Rio3224-D2 provides 32 analog inputs, 16 analog outputs, and 8 digital AES/EBU outputs.
Does the Yamaha Rio3224-D2 support Dante networking?
Yes. The Rio3224-D2 connects directly to Dante digital audio networks.
Does the Rio3224-D2 support redundant connections?
Yes. The product page states that redundant connections are supported with primary and secondary connectors, and daisy chain connections are also supported.
What are the dimensions and weight of the Rio3224-D2?
The listed dimensions are 480 x 220 x 368 mm, or 18.9 x 8.7 x 14.5 inches, and the listed net weight is 13.5 kg, or 29.8 lbs.
What comes with the Yamaha Rio3224-D2?
The package includes the Yamaha Rio3224-D2 I/O rack, Owner’s Manual, 250cm AC power cord, and Dante Virtual Soundcard Token leaflet.
