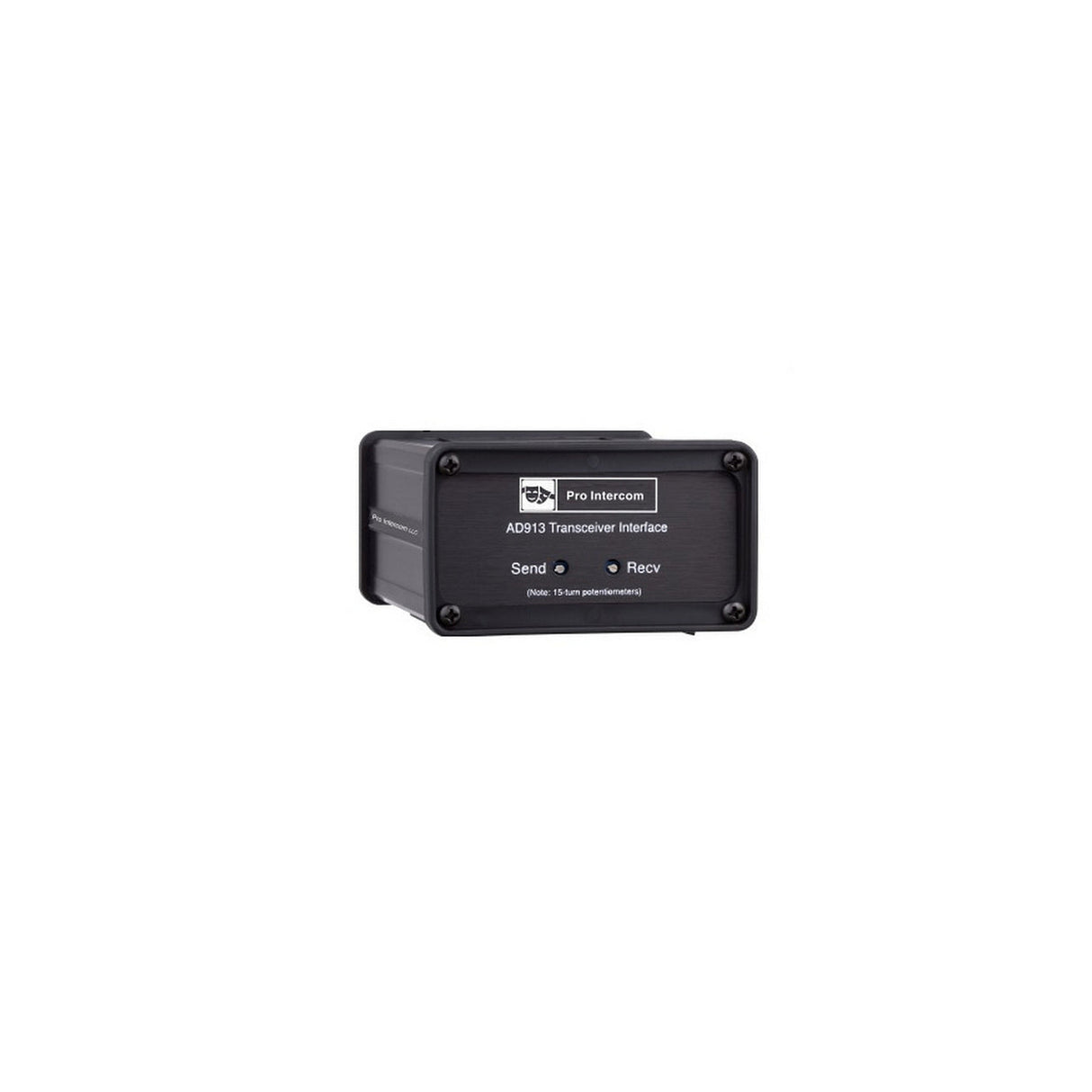

Pro Intercom AD913 Transceiver Walkie Talkie Adapter
The AD913 permits communications between a cabled intercom system and any number of standard, simplex, (press-to-talk) transceivers. One of your transceivers is dedicated as base, and connected via its accessory mic/spkr jacks to the AD913. Transmissions from other transceivers (on the same frequency) are then heard at all intercom stations on the same circuit as the AD913. Stations may then transmit to the remote transceivers by simply pressing and holding their signal light button.
Key Features
- Connected to the intercom as a belt pack via female 3-pin XLR
- Powered by the intercom power supply
- Frequency response has been carefully shaped to optimize both intelligibility and long-term listening comfort
- Ribbed, extruded aluminum case
Technical Specifications
Power requirement
24 - 30 VDC, 15 - 25mA
Input
10K Ohm nominal, balanced and floating.
Output
200 Ohm nominal, balanced and floating.
P.T.T
Single pole contact, closed in transmit mode, rated
0.25A @ 28VDC.
Size
3.70 x 4.30 x 2.50 in. (93.98 x 109.22 x 63.5 mm)
Weight
15 oz.(0.425 Kg)
