Condition: New

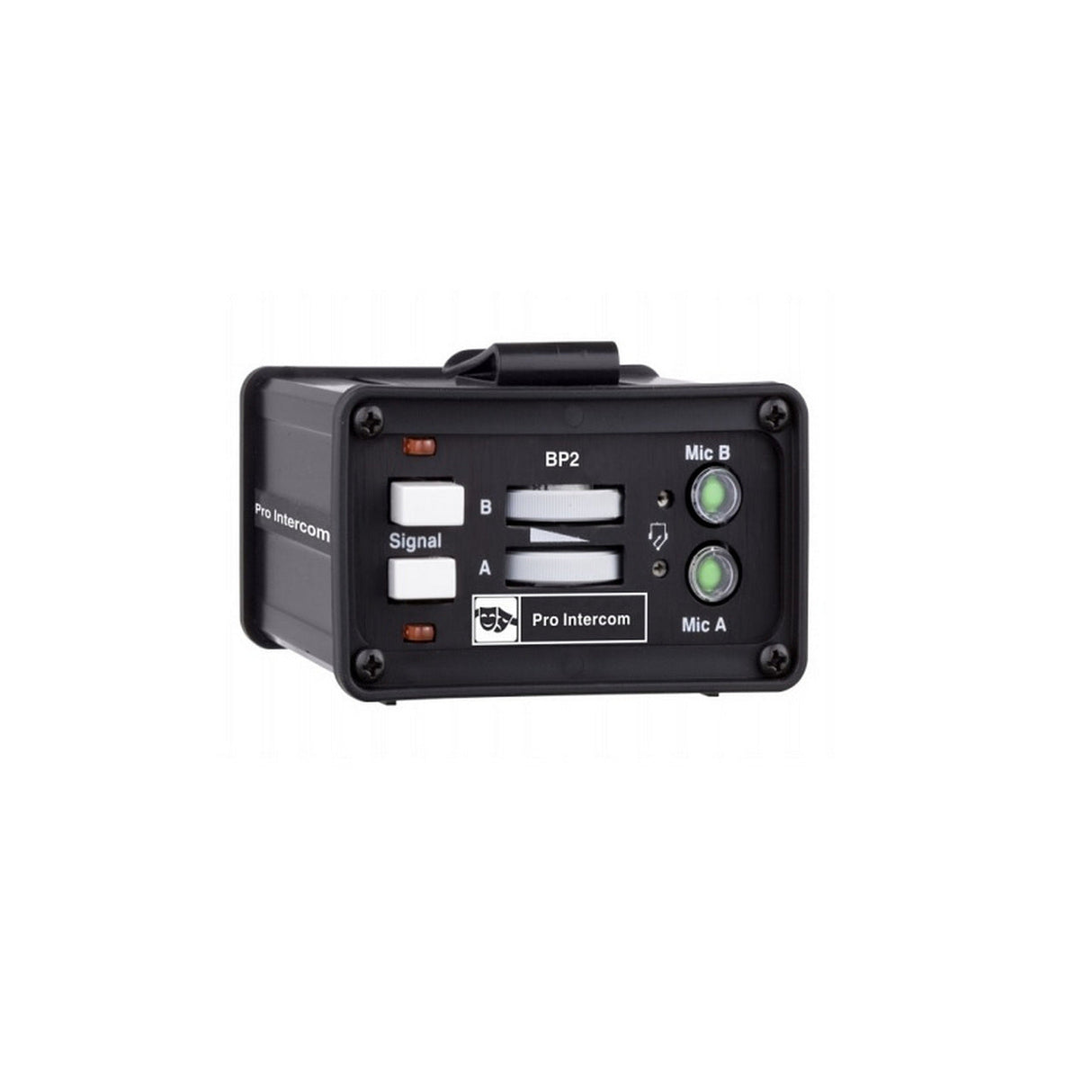

Pro Intercom BP2 Two Circuit Monoaural Portable Headset Station Beltpack
The BP2 is actually 2 BP1s in the same enclosure. The A and B circuits operate independently of one another and may be used simultaneously. Only the headset amplifier is shared so both circuits can be monitored on a single-muff headset. Each circuit has its own volume control, signal button, signal lamp, mic on/off switch and sidetone control. The 2 circuits are connected to the rear panel XLRs so a Y-cable or SB1 Splitter Box is necessary for each circuit if you wish to loop through to the next station in that circuit.
Key Features
- May be worn on the belt or hung on the wall by its sturdy belt-clip
- Permits user to talk and/or listen to either or both circuits simultaneously
- Mixes incoming audio from both circuits to one earphone
- Ribbed, extruded aluminum case
- Plug-in compatible with Clear-Com and other popular 200 Ohm unbalanced headset intercom systems
Technical Specifications
Power requirement
24 ~ 30VDC, 10 mA quiescent, 30mA max. (with signal lamp lit)
Headphone output
8 ~ 4KW acceptable, 200W ideal
Microphone input
200 ~ 600W Dynamic
Sidetone rejection
>50dB
Audio bridging impedance
200W unbalanced
Size
3.70 x 4.30 x 2.50 in. (93.98 x 109.22 x 63.5 mm.)
Weight
13.5 oz. (0.383 Kg.)
