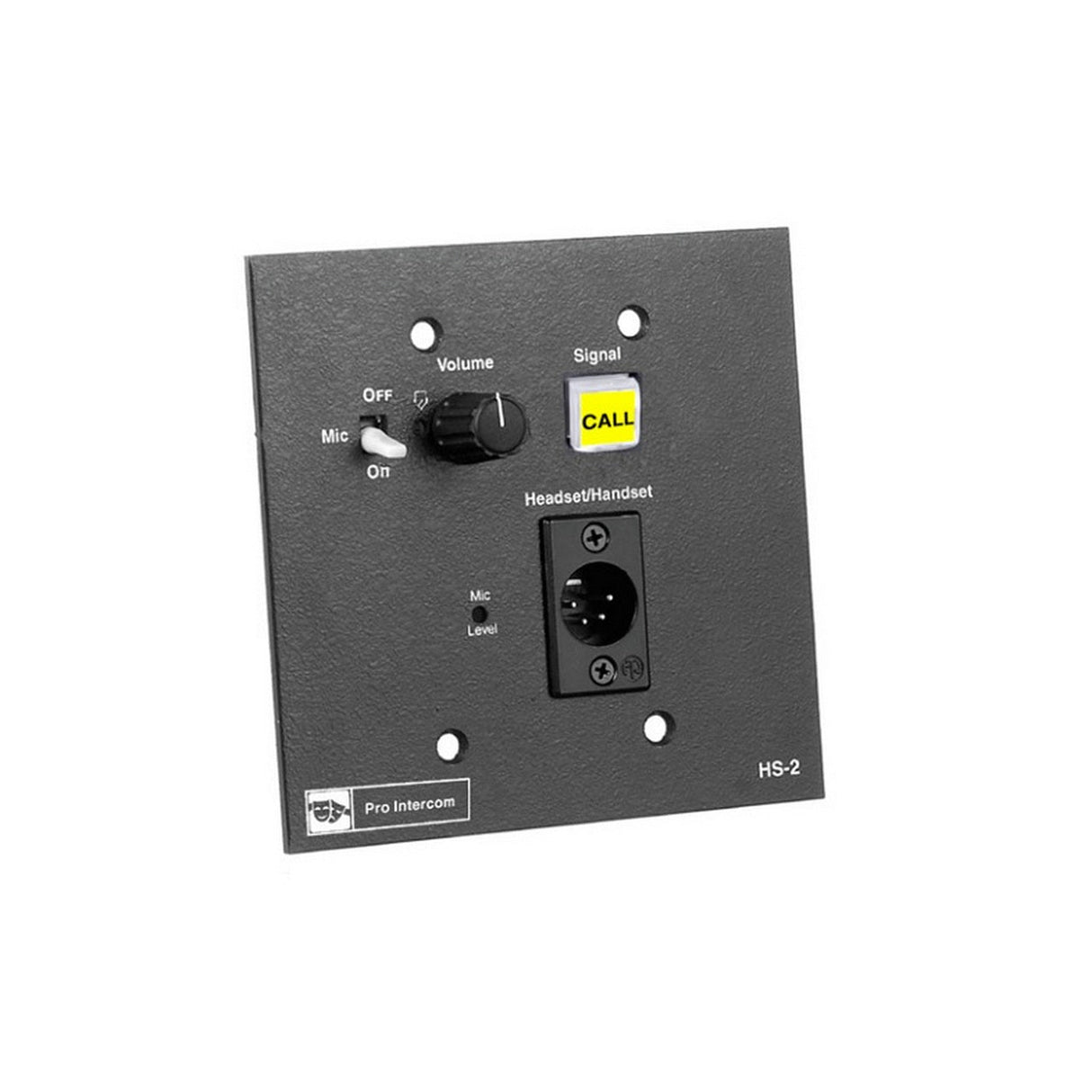

Pro Intercom HS2 Flush Mount Headset Station
The HS2 performs the same functions as as BP1 beltpack but is designed to be mounted in a U.S. standard 2-gang electrical box. In addition to the BP1's front panel controls for Mic On/Off, Volume, Sidetone and Signal, it has a recessed screwdriver adjust microphone sensitivity control to adjust to a headset with either a dynamic or electret microphone. A version is also available (HS2M) which includes a rotary switch to connect the station to up to 4 different circuits, one-at-a-time.
Key Features
- HS2 connections are via a rear panel plug-in terminal strip
- The mating connector is included
- The headset or handset connects to the station via a front-panel 4-pin XLR connector
- The Call button on the front panel lights whenever anyone on the same circuit presses their signal light button
- Component board of the HS2s are mounted to a thick metal mounting plate
Technical Specifications
Power requirement
24~30 VDC, 10mA quiescent, 40mA max. (with signal lamp lit)
Headphone output
8~4KW acceptable, 200~400W ideal.
Microphone input
200~600W dynamic or 1.2K~1.8KW electret
Sidetone rejection
50dB
Audio bridging impedance
200W unbalanced
Size
3.95 x 6.1 x 1.45 in. (100.33 x 154.94 x 36.83 mm)
Weight
8.5 oz. (2.41 Kg)
