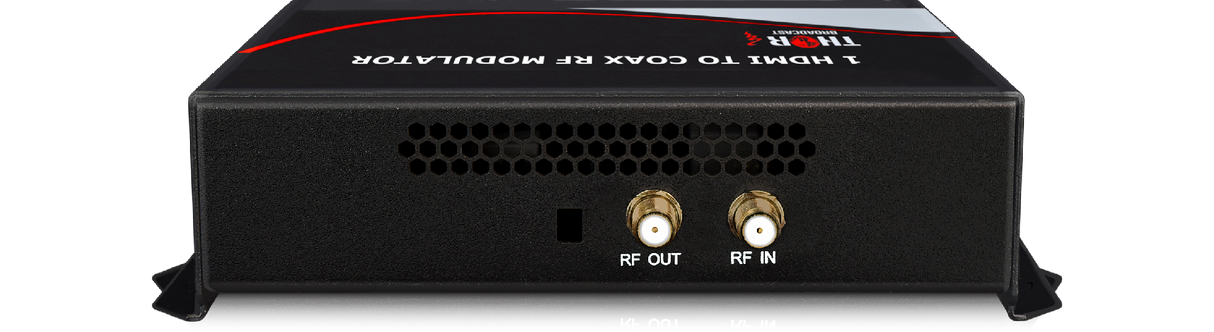

Thor Fiber H-HDMI-CC-RF Networked HDMI HD Video to Coax Digital RF Modulator with Closed Captioning
The Thor Fiber H-HDMI-CC-RF is the most unique and cost effective Networked Digital HDMI RF modulator with CC ( closed captioning ) designed to allow any HDMI source like an STB, satellite receiver, HDMI camera , DVD player, Computer, ROKU device and convert to any RF TV channel of your choice. This Thor Modulator is an all-in-one device integrating HD MPEG2 encoding with AC3 Dolby Audio and CC input with internal digital modulator. Converts HD audio / video signals from any device into DVB-C/T/ATSC/ISDB-T RF output.
Key Features
- HDMI Input - HDCP compliant ( works with any HDMI device )
- 10/100 Ethernet NMS port for control, setup and monitoring
- Supports CC (Closed Captioning)
- RF ouput could be set to any CATV format as QAM, ATSC, DVB-T, or ISDB-T
- RF output power is +24dbmv; enough for distributing HDTV video to 100's TV over existing Coax cable
- RF power could be controlled over the network via NMS Gui (Proprietary)
- MPEG2 video encoding
- AC3 Audio encoding
- Video bit rate 1-19.5Mbps can be controled over the network
- Supports any CATV RF agile channels form 57-1000Mhz, channels 2 -135
Technical Specifications
HDMI Encoding Section
Video
Encoding MPEG2
Interface
HDMI input
Input Resolution
480@59.94/60i; 576@50i; 720@50/59.94/60p; 1080@50i; 1080@59.94/60i; 1080@50p; 1080@59.94/60p
Output Resolution
480@30p; 576@25p; 720@25/30p; 1080@25p; 1080@30p; 1080@25p; 1080@30p
Aspect Ratio
16:9
Bit rate 1.000~20.000 Mbps
Audio Encoding Sample rate
48KHz - MPEGI layer 2, AAC, AC3
Sample rate
48KHz
Bit rate
MPEGI layer 2: 192kbps; MPEGI layer 2 AAC: 18~297kbps; AC3: 128kbps
DVB-C Modulator Section
Standard
J.83A (DVB-C), J.83B
MER
35dB
RF frequency
100-1000MHz, 1KHz step
RF output level
0~ 47dbm (44~90 dbV), 1db step
Symbol rate
3.000~7.000Msps adjustable
Constellation
J.83A - 16/32/64/128/ 256 QAM; J.83B - 64/ 256 QAM
Bandwidth
J.83A - 8M; J.83B - 6M
DVB-T Modulator Section
Standard
DVB-T COFDM
Bandwidth
2M, 3M, 4M, 5M, 6M, 7M, 8M
Constellation
QPSK, 16QAM, 64QAM
Code rate
1/2, 2/3, 3/4, 5/6, 7/8
Guard Interval
64 kbps, 96 kbps, 128 kbps, 192 kbps, 256 kbps, 320 kbps
Transmission Mode
2K, 8K
MER
35dB
RF frequency
100-1000MHz, 1KHz step
RF output level
0~ 47dBm, 1db step
ISDB-T Modulator Section
Standard
ARIB STD-B31
Constellation
QPSK, 16QAM, 64QAM
Guard Interval
1/32, 1/16, 1/8, 1/4
Transmission Mode
2K, 4K, 8K
Code rate
1/2, 2/3, 3/4, 5/6, 7/8
RF frequency
100~1000MHz, 1KHz step
ATSC Modulator Section
Standard
ATSC A/53
Constellation
8 VSB
RF output level
0~47dbm (44~90 dbV), 1db step
MER
35dB
RF frequency
100~1000MHz, 1KHz step
System
Management
Web Proprietary Thor NMS GUI
Language
English
Upgrade
Serial port
General
Power supply
12V
Dimensions
7.9 inch x 5.6 inch x 2 inch (203 x 144 x 52mm)
Weight
2.2 lbs (1kg)

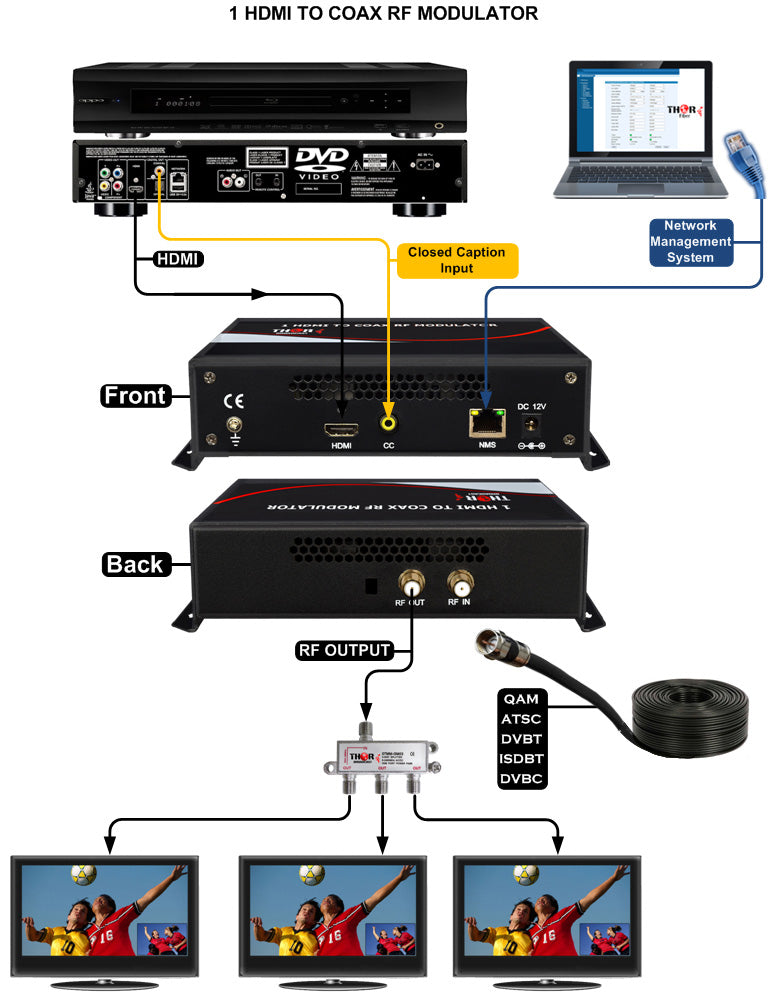

Installation / Use Cases
- Converting HDMI sources to digital RF TV channels over coax
- Distributing video from STB, satellite receiver, HDMI camera, DVD player, computer, or ROKU device
- RF distribution workflows requiring closed captioning support
- CATV systems needing output formats including QAM, ATSC, DVB-T, or ISDB-T
- Network-controlled installations using a 10/100 Ethernet NMS port for setup and monitoring
- HD video distribution using MPEG2 video encoding and AC3 audio encoding
Package Contents
- Thor Fiber H-HDMI-CC-RF Networked HDMI HD Video to Coax Digital RF Modulator with Closed Captioning
Frequently Asked Questions
What is the Thor Fiber H-HDMI-CC-RF used for?
The Thor Fiber H-HDMI-CC-RF is used to convert HDMI audio and video sources into digital RF TV channels over coax.
What HDMI sources can be used with the H-HDMI-CC-RF?
The product page lists sources such as STB, satellite receiver, HDMI camera, DVD player, computer, and ROKU device.
Does the H-HDMI-CC-RF support closed captioning?
Yes. The product page lists CC, or closed captioning, support.
What RF output formats are supported?
The RF output can be set to CATV formats including QAM, ATSC, DVB-T, or ISDB-T.
What control port is listed for the H-HDMI-CC-RF?
The unit includes a 10/100 Ethernet NMS port for control, setup, and monitoring.
What comes with the Thor Fiber H-HDMI-CC-RF?
The package contents section can list the Thor Fiber H-HDMI-CC-RF Networked HDMI HD Video to Coax Digital RF Modulator with Closed Captioning.
