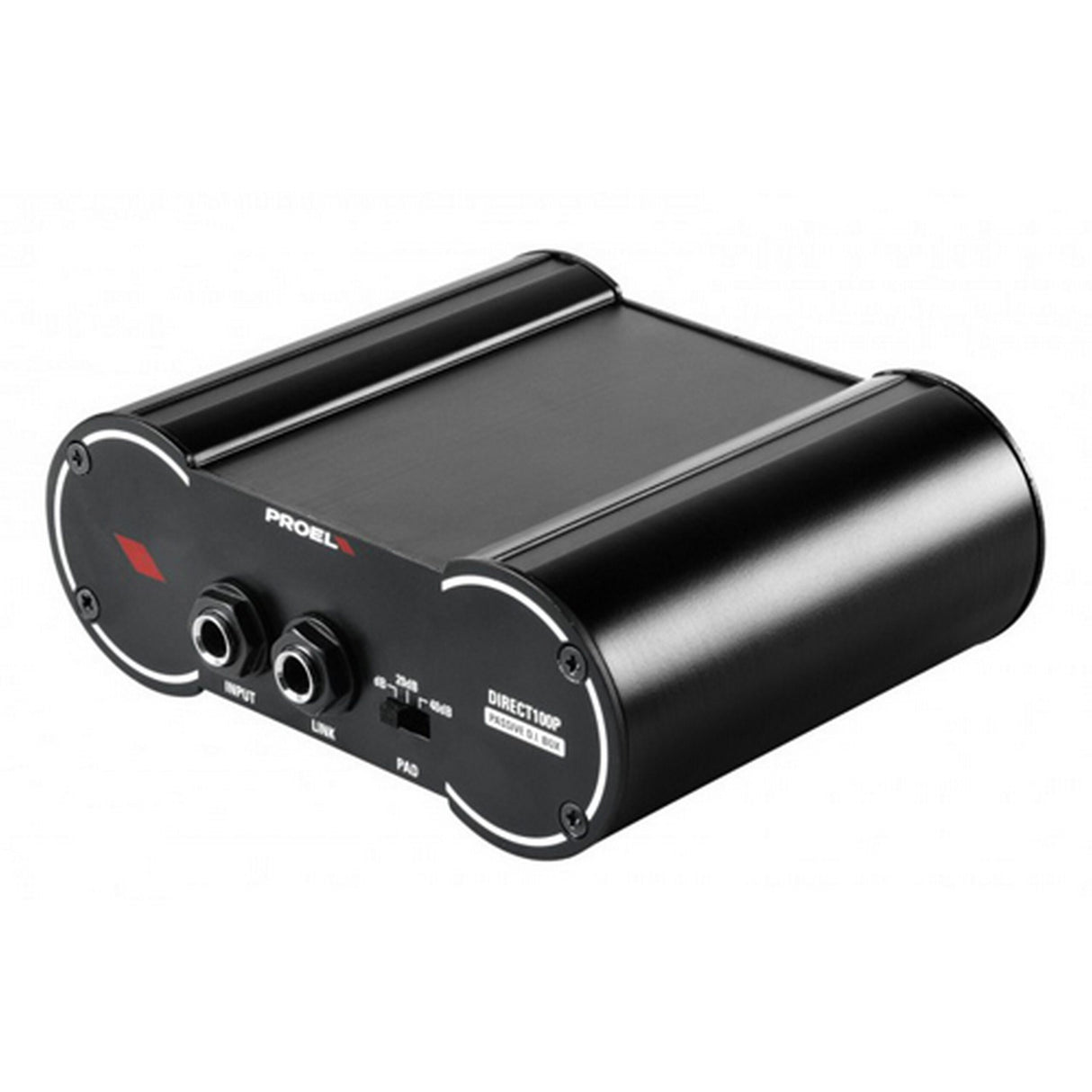

PROEL DIRECT100P Passive Direct Injection Box
PROEL DIRECT100P Passive Direct Injection Box
PROEL DIRECT100P Passive Direct Injection Box
PROEL introduces in the STAGE GEAR family a Series of 8 new exciting models. The 100 Series includes a range of accessories and useful tools, ranging from D.I. Boxes and Headphone Amps to Signal Splitters, Tube Preamps and Power Supply Units, designed to complement audio systems in stage applications, recording studios and fixed installations. Hosted in a stylish extruded and stackable aluminum shells or in sturdy metal chassis, the 100 Series products are meant to deliver sound quality, versatility and stage-proof reliability in a very affordable package.
Key Features
- High quality isolation transformer for ultra-flat frequency response
- High quality electronic components
- ¼” JACK input and link connectors
- XLR-M balanced output
- 20dB & 40dB PAD and GND lift switch
- Stackable aluminum shell
Technical Specifications
Input Section
Input Impedance
>250 Kohm
Max Input Level
+10 (PAD at 0) / +30 (PAD at 20) / +50 (PAD at 40) dBu
Connectors
1 x 1/4” jack unbalanced
Link
1 x 1/4” jack unbalanced
Output Section
Output Transformer
Balanced (isolated with shielding)
Insertion
Loss 26 dB
Load Impedance
600 Ohms or greater
Connector
XLR male
System Performance
Distortion
THD 50÷20k Hz 0dBu < 0.007 %
Frequency Response
40 Hz to 20 kHz (-3 dB)
General
Controls
PAD 0 / -20 / -40, GND LIFT
Dimensions (W x H x D)
134 x 50 x 105 mm
Weight (excluding batteries)
0.55 Kg
