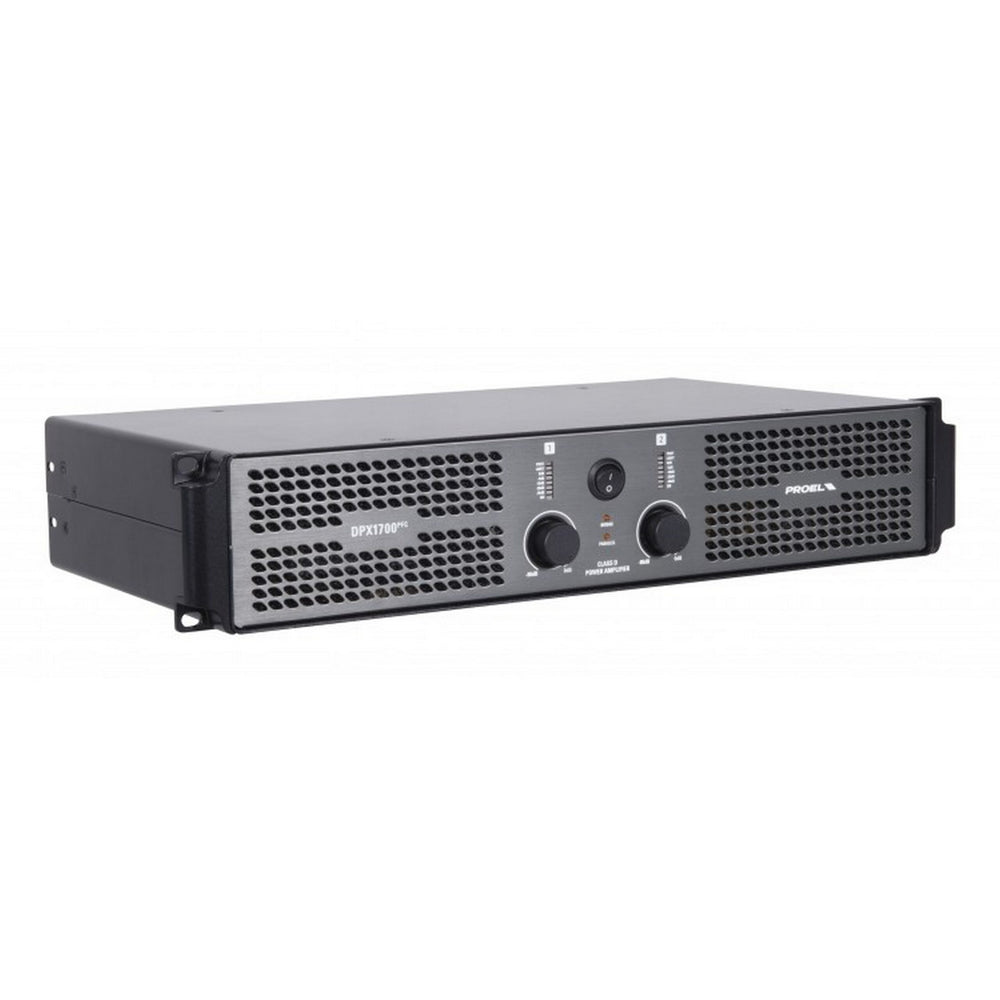

PROEL DPX1700PFC 500W Class-D Power Amplifier

DPX PFC is a series of ultra-lightweight power amplifiers able to provide, for professional mobile and fixed PA systems, a huge amount of power and the maximum performance and portability in a very affordable package.

Thanks to the high-density Class D technology employed in the output stages, we've been able to build very powerful amplifiers in an ultra-compact and lightweight package. The extremely efficient Switch Mode Power Supply (SMPS) with Power Factor Correction technology (PFC) helps to reduce further the weight and provides universal mains operation, delivering constant energy to the loudspeakers regardless of the AC line voltage fluctuations and eliminating the need for market specific power supplies and related reliability issues.

All models feature a built-in 24dB/octave stereo crossover with BI-AMP and HIGH-PASS options, for easily filtering a 2-way system without the need of additional outboard. Fast-attack precise CLIP LIMITERS guarantee maximum output without distortion, while a comprehensive protection system safeguards both the speakers and the amplifier.

The electronics is hosted in a feather-light all-aluminum case, able to provide an efficient cooling and, at the same time, protection and durability over the years.

DPX PFC are power amplifiers offering extraordinary value to professional entertainers, DJ and sound engineers looking for massive output, excellent performance and absolute portability.

Key Features

• High-density Class D technology
• Very efficient Switch Mode Power Supply (SMPS) with PFC
• Built-in 24dB/octave stereo crossover
• Extensive protection system for maximum reliability
• Integrated fast-attack CLIP LIMITERS
• STEREO / BRIDGE / PARALLEL mode
• XLR input and link connectors
• SPEAKON output connectors
• AC, DC, thermal, short-circuit and VHF protection
• Precise 8-segment LED ladders
• FRONT-TO-BACK cooling system with variable speed fan
• Ultra-lightweight all-aluminum chassis
• TOTAL WEIGHT less than 5kg

Technical Specifications

Power
8 ohm * 500 W
Power
4 ohm * 850 W
Power BRIDGE
8 ohm ** 1700 W
Output
Stage Class D
Frequency response (+0.5/-0.5 dB)
20 Hz - 20 KHz
Input Sensitivity
+2.3 dBu / 1.0 Vrms
GAIN (nominal/fixed)
38.2 dB
Input Connectors / Impedance
XLR-F (INPUT), XLR-M (LINK) / 20 Kohm (balanced), 10 Kohm (unbalanced)
Output Connectors
SPEAKON and Binding Post
Damping Factor
> 500
S/N Ratio (unweighted)
> 100 dB
THD+N
< 0.15%
Controls
INPUT LEVEL, STEREO/BRIDGE-PARALLEL, FLAT/BI-AMP/HPF
LED Indicators
7-LED BAR (ON, LIMIT, PROTECTION, -5dB / -10dB / -20dB / -40dB SIGNAL)
Cooling
Variable speed DC fan, air flow from front to rear
Protections
AC low power, DC, thermal, short circuit, VHF, CLIP limiter
Mains Supply Voltage
100-240 VAC 50/60 Hz (±10%)
Dimensions (W x H x D)
483 x 89 x 255 mm (19” x 3.5” x 10”)
Weight
3.8 Kg (8.4 lb)
* Power per channel tested under EIA standard
** Power tested under the condition of 40ms burst, 1KHz sine wave and 1% THD.
