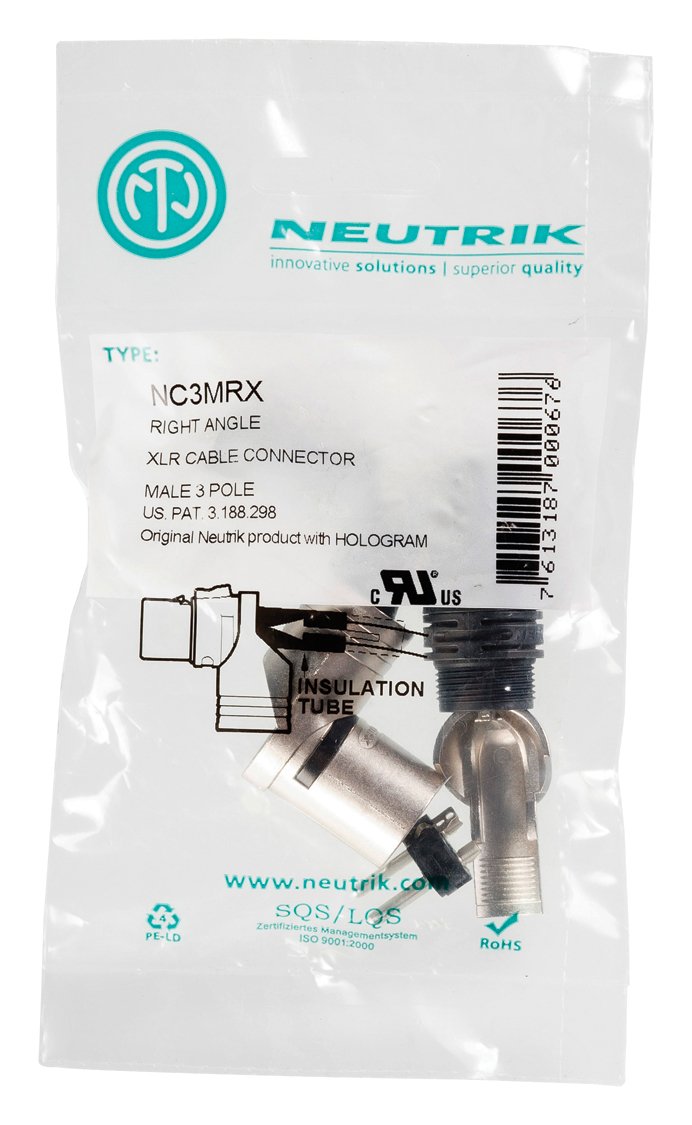

Neutrik NC3MRX Right Angle Male XLR Cable Connector 3 Pole Silver
Buy Over 9 units in Bulk and Big Save!!

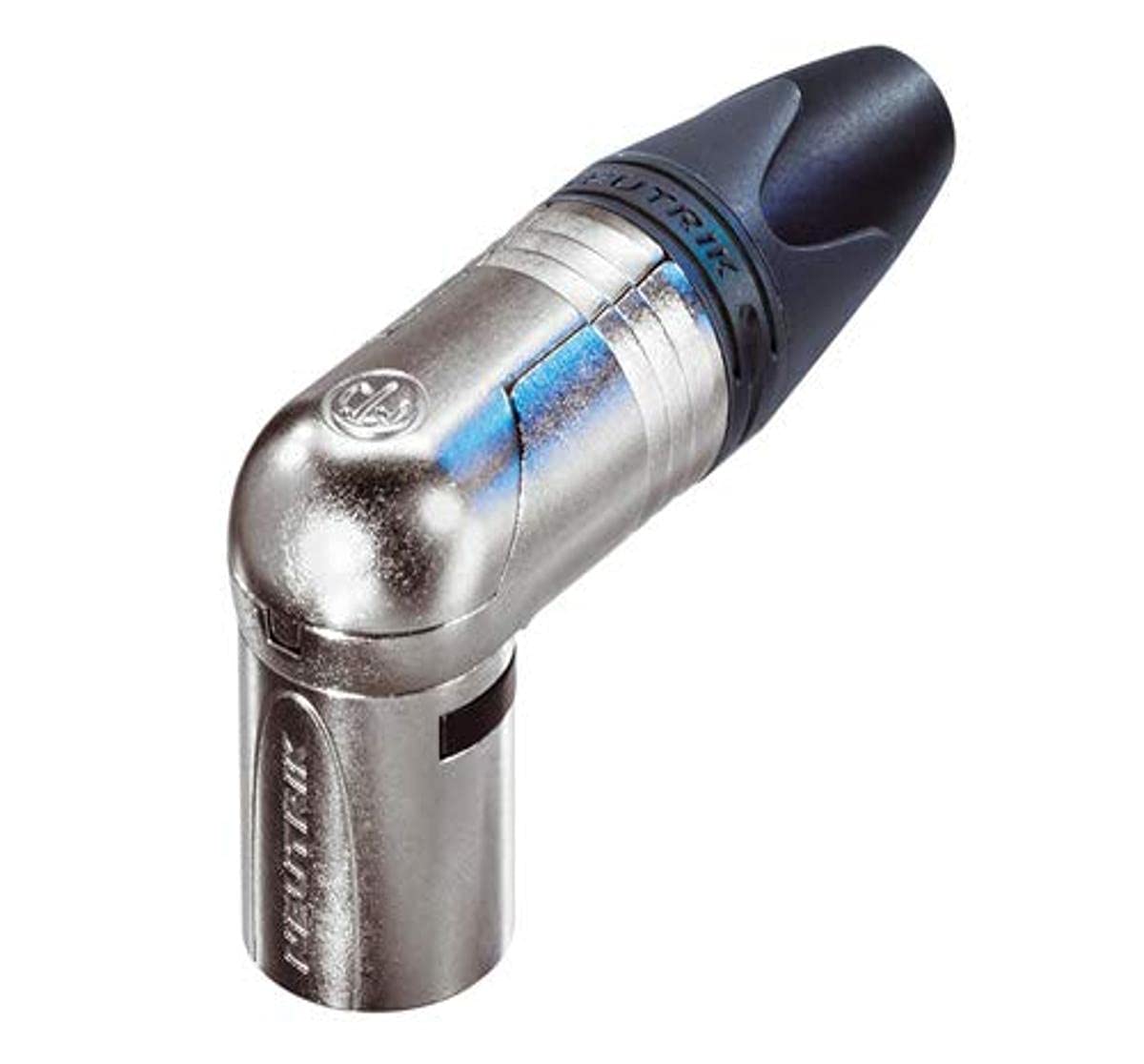

Neutrik NC3MRX Right Angle Male XLR Connector, The compact, low profile Neutrik NC3MRX is a right-angle connector with Neutrik's chuck-principle cable clamp. The NC3MRX is more reliable, easier to assemble and has improved contact integrity as well cable strain relief over previous models. The NC3MRX is a 3 pole right angle male cable connector with nickel housing and silver contacts. 7 x 45 degrees indexing.
Key Features
- Extra slim right-angle connector
- 5 selectable cable outlet positions
- Male connector with improved locking recess without window, more stringent housing increases durability
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection to cable bending stresses
- Coloured rings and boots available for coding or identification
- Sleek and ergonomic design - valuable and handy
Technical Specs
Electrical
- Number of Contacts: 3
- Contact Resistance: ≤ 3 m Ohms
- Insulation Resistance:
- Initial: > 2 G Ohms
- After Damp Heat Test: > 1 G Ohms
- Dielectric Strength: 1500 V dc
- Rated Current: 16 A
AWG:3 pole: 2.5 mm²/14 AWG
Capacitance Between Contacts
- 3 pole: ≤ 4 pF
Mechanical
- Lifetime: >1000 cycles
- Insertion / Withdrawal Force: ≤ 20 N
- Cable O.D. Range: 4.0 mm - 8.0 mm
Materials
- Shell: ZnAl4Cu1, gal Ni or black Cr over Cu plating
- Insert: PA 6.6 30% GR (glass reinforced)
- Contacts: CuSn6
- Contact Surface: gal 2 µm Ag or gal 0.2 µm Au hard alloy over 2 µm Ni
- Latch Lock (female): St3K32
- Strain-relief Clamp: POM
- Antikink Bushing: PUR
Environmental
- Temperature Range: -30° C to + 80° C
- Flammability: UL 94HB
- Solderability: Complies with IEC 68-2-20
Compatibility / Remarks
- Compatibility: IEC tentative standard & Switchcraft® QG (except 6 pole) & Cannon XLR
