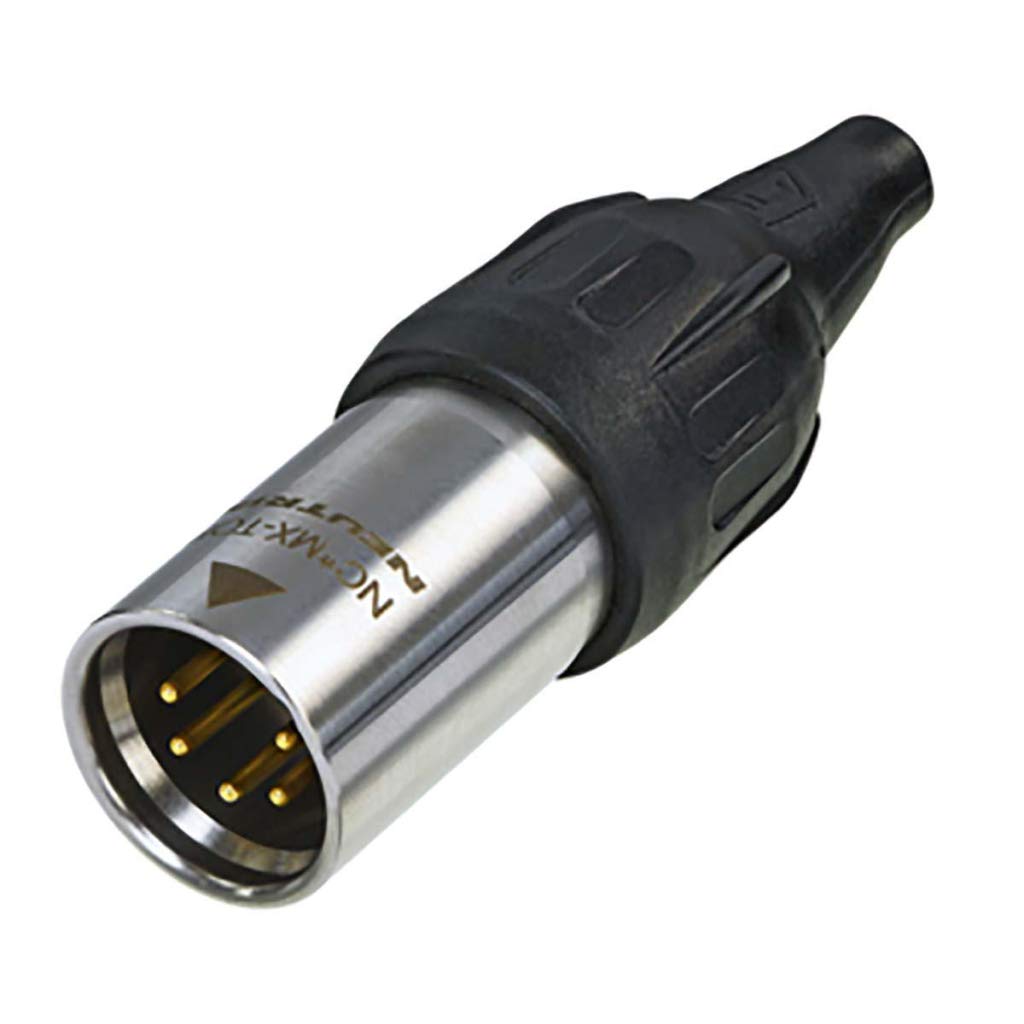

Neutrik NC5MX-TOP True Outdoor Protected 5 Pole Male Cable Connector
The Neutrik NC5MX-TOP (True Outdoor Protected) 5 pole male cable connector is a heavy-duty sealed XLR connector made specifically for harsh and demanding environments. It's gold contacts and use of high impact UV-resistant materials gives you complete outdoor protection according to IP65 and UL50E (in combination with a TOP range counterpart).
Technical Specifications
Connection Type
XLR
Gender
Male
Capacitance between contacts
4 pF
Contact resistance
3 m?
Dielectric strength
1,5 kVdc
Insulation resistance
> 10 G? (initial)
Rated current per contact
7.5 A
Rated voltage
< 50 V
Cable O.D.
5.0 - 8.0 mm
Insertion force
20 N
Withdrawal force
20 N
Lifetime
> 1000 mating cycles
Wiresize
max. 1.5 mm
Wiresize
max. 16 AWG
Wiring
Solder contacts
Locking device
Latch lock
Bushing
UV-resistant rubber
Contact plating
0.2 m Au hard alloy over 2 m Ni
Contacts
Brass (CuZn39Pb3)
Insert
Polyamide (PA 6.6 30 % GR)
Locking element
Stainless steel
Shell
Stainless steel
Strain relief
Polyacetal (POM)
Approvals
UL
Flammability
UL 94 HB
Standard compliance
IEC 61076-2-103
Protection class
IP65, UL50E (mated)
Solderability
Complies with IEC 68-2-20
Temperature range
-30 C to +80 C
