Allen & Heath ZED-10 Compact Portable 4 Mic Line Input Neutrik Mic XLR 1/4 Inch Amp Mixer

Allen & Heath ZED-10 | Compact Portable 4 Mic Line Input Neutrik Mic XLR 1/4 Inch Amp Mixer

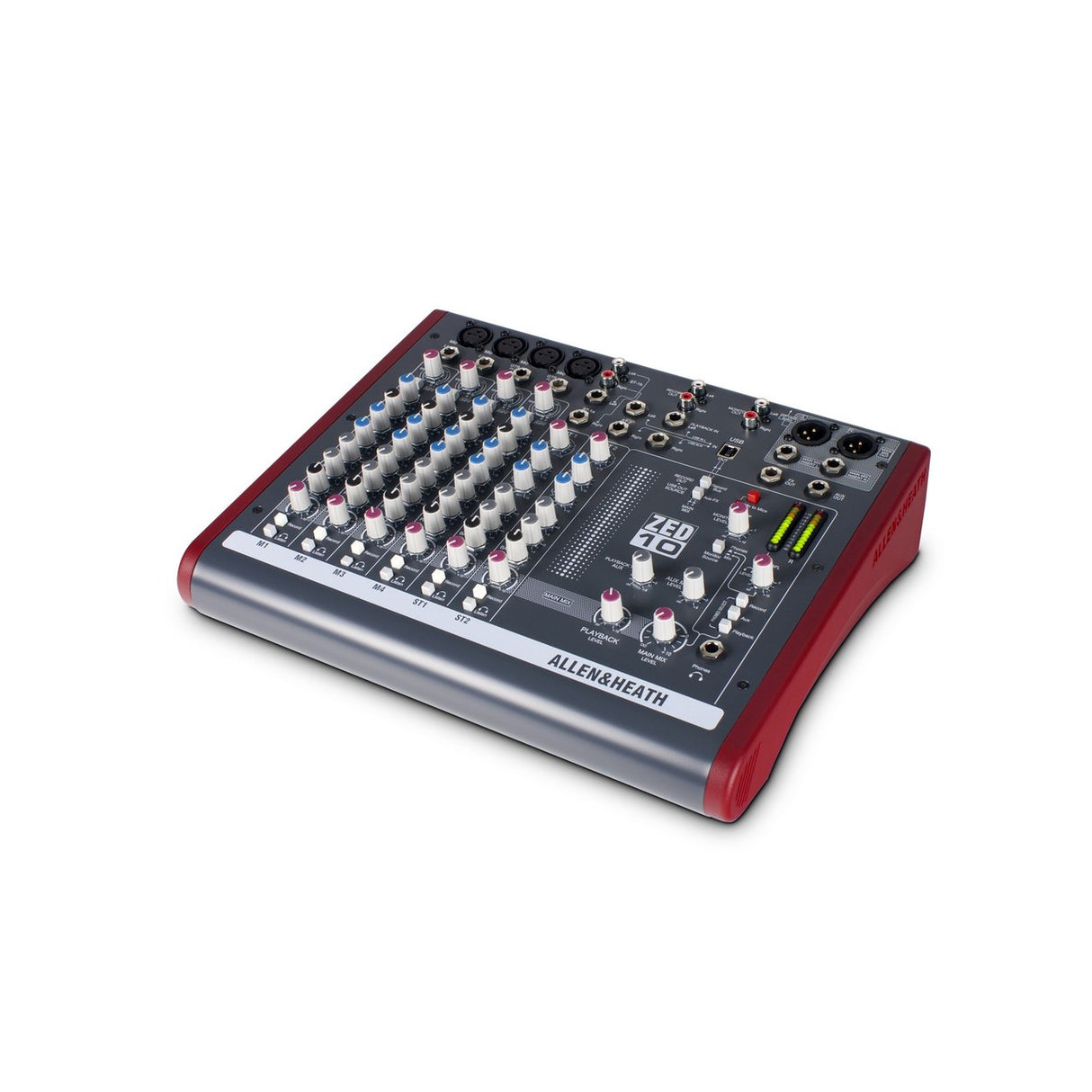

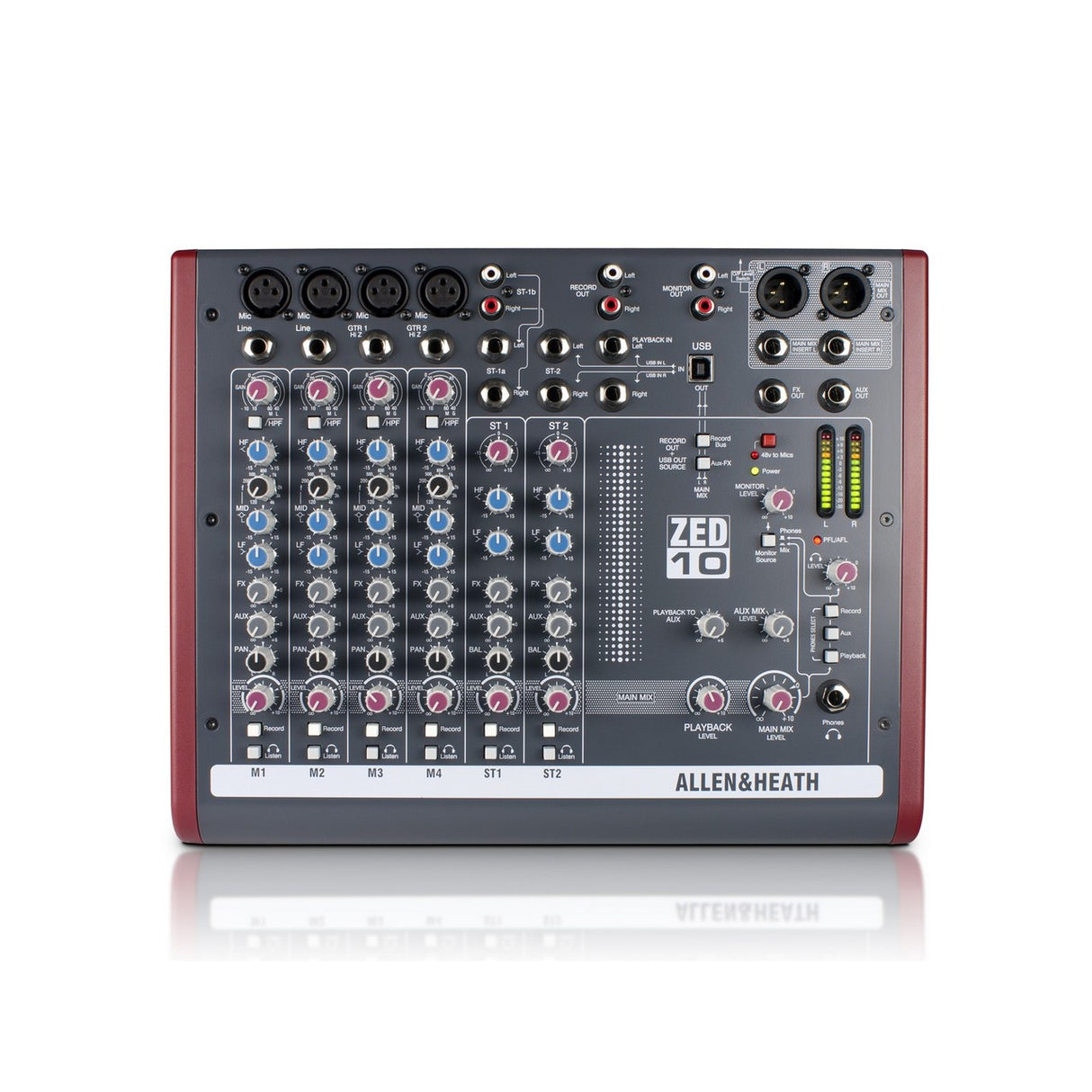

The Allen & Heath ZED-10 Compact Portable Mixer is an exceptional audio device designed for small band mixing, live recordings, and studio sessions. This ultra-portable mixer boasts a range of sophisticated features tailored for both amateurs and professionals alike. Whether you're recording guitars directly via its high-impedance inputs or connecting your MP3/CD players and keyboards through its stereo inputs, the ZED-10 provides a versatile and high-quality audio experience. With its professional XLR stereo outputs and flexible monitoring section, including headphone and speaker feed outputs, you can ensure superior sound quality and meticulous control over your audio mix.

Equipped with configurable USB audio in/out, the ZED-10 allows you to effortlessly capture stereo recordings, making it a perfect tool for modern music production. Its sturdy construction, coupled with user-friendly controls, ensures that even the most complex audio tasks can be handled with ease. The mixer features Neutrik mic XLR and 1/4 inch jacks, a 3-band EQ with MusiQ, and multiple auxiliary options, making it a comprehensive solution for various audio needs. The illuminated PFL indicator, stereo returns and playback, and 12-bar meters further enhance its usability, ensuring that you achieve the best possible sound output every time.

Key Features

• 4 mic/line inputs, 2 with Class A FET high impedance inputs
• Neutrik mic XLR
• Neutrik 1/4 inch jacks
• 3 band EQ with MusiQ
• 2 auxes
• Sound image pan
• Illuminated PFL indicator
• Stereo returns & playback
• All inputs with level control
• 12 bar meters
• Responsive 3-band, swept mid EQ with MusiQ
• 2 stereo sources with MP3 player compatibility
• Separate 2-track record outputs
• Stereo playback input for 2-track replay
• XLR main stereo outputs with inserts
• Comprehensive monitoring
• Configurable USB stereo audio in/out
• Stereo monitor outs
• 48V microphone phantom power
• DI level switching for sub mixing

Specifications

• Operating Levels Input: Mono channel (XLR) Input: -10 to -60dBu for nominal (+11dBu in max)
• Mono channel Line Input (Jack socket): +10 to -40dBu (+31dBu maximum)
• Stereo Input (Jack or phono sockets): 0dBu nominal (control = Off to +15dB)
• Output: L/R Outputs (XLR) Normal/DI out: 0dBu/-30dBu +21dBu/-9dBu maximum
• Aux & FX Outputs (Jack sockets): 0dBu nominal. +21dBu maximum
• Record & Monitor Outputs (phono sockets): 0dBu nominal. +21dBu maximum
• Frequency Response: Mic in to Mix L/R Out, 30dB gain: +0.5/-1dB 10Hz to 30kHz
• Line in to Mix L/R out 0dB gain: +0.5/-1dB 10Hz to 25kHz
• Stereo in to Mix L/R out: +0.5/-1dB 10Hz to 30kHz
• THD+n: Mic in to Mix L/R Out, 10dB gain 1kHz +10dBu out: 0.002%
• Mic in to Mix L/R Out, 30dB gain 1kHz: 0.01%
• Line in to Mix L/R out 0dB gain 0dBu 1kHz: 0.003%
• Stereo in to Mix L/R out 0dB gain +10dBu 1kHz: 0.002%
• Gtr Input to Mix L/R Out, 0dBu, Boost OUT: 0.015%
• Gtr Input to Mix L/R Out, 0dBu, Boost IN: 2% Second Harmonic
• Headroom: Analogue Headroom from nominal (0Vu): 21dB
• USB in & out headroom from nominal (0Vu): 14dB
• Noise: Mic Pre EIN @ max gain 150R input Z 22-22kHz: -127dBu
• Mix L/R out, L/R faders = 0, Levels min, 22-22kHz: 96dBu
• Mix L/R out, L/R faders = 0, Levels min, 22-22kHz: -96dBu
• USB Audio CODEC (Coder/Decoder): USB Audio In/Out: USB 1.1 compliant 16bit
• Sample Rate: 32, 44.1, or 48kHz
• Width: 13.2 Inches
• Height: 3.7 Inches
• Length: 10.8 Inches
• Unpacked Weight: 7 lbs
• Packed Weight: 9.7 lbs

Package Contents

• ZED-10 Mixer
• Power Adapter
• User Manual
