Allen & Heath ZED-10FX Compact Portable 4 Mic Line Input Neutrik Mic XLR 1/4 Inch Amp FX Mixer

Allen & Heath ZED-10FX | Compact Portable 4 Mic Line Input Neutrik Mic XLR 1/4 Inch Amp FX Mixer

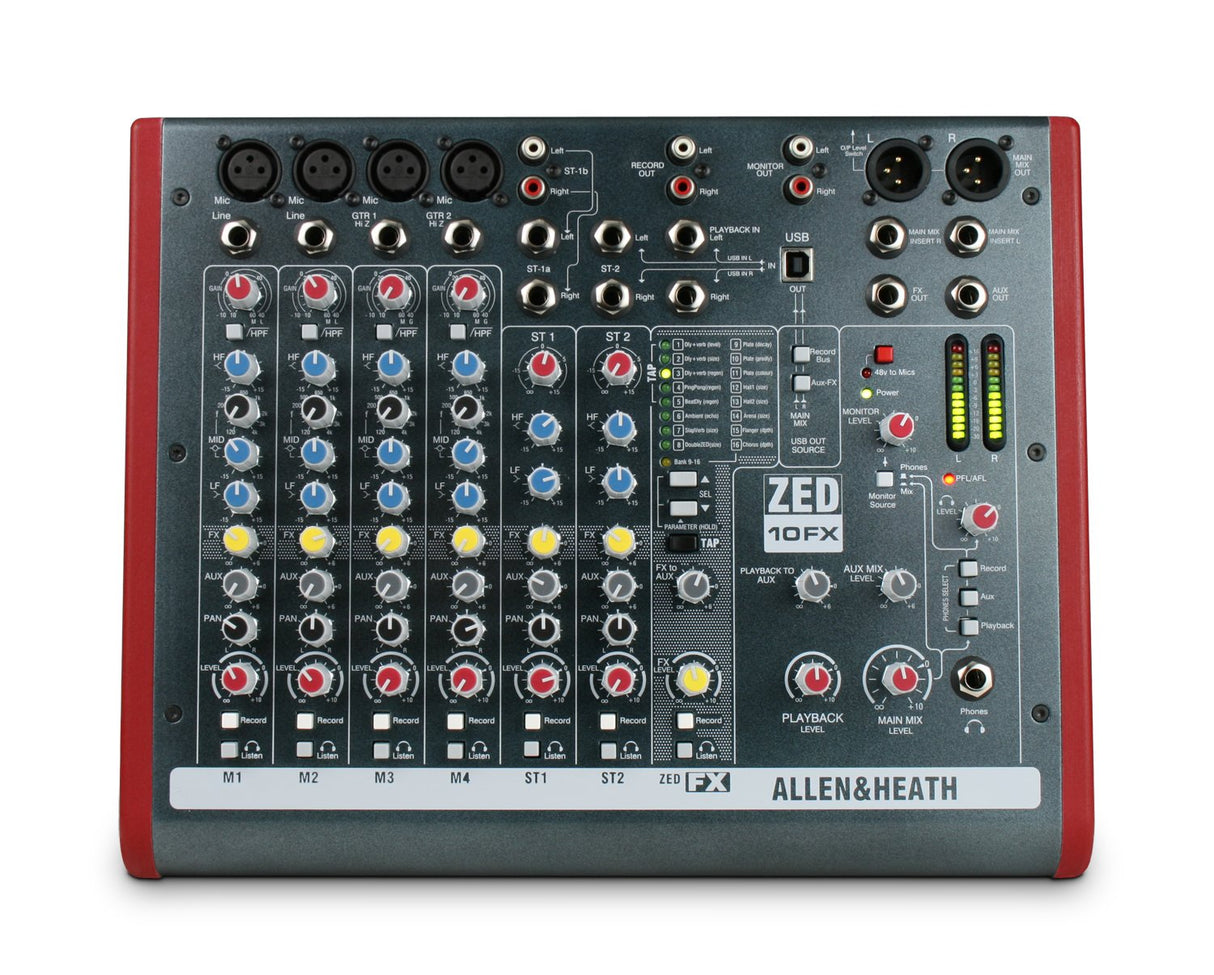

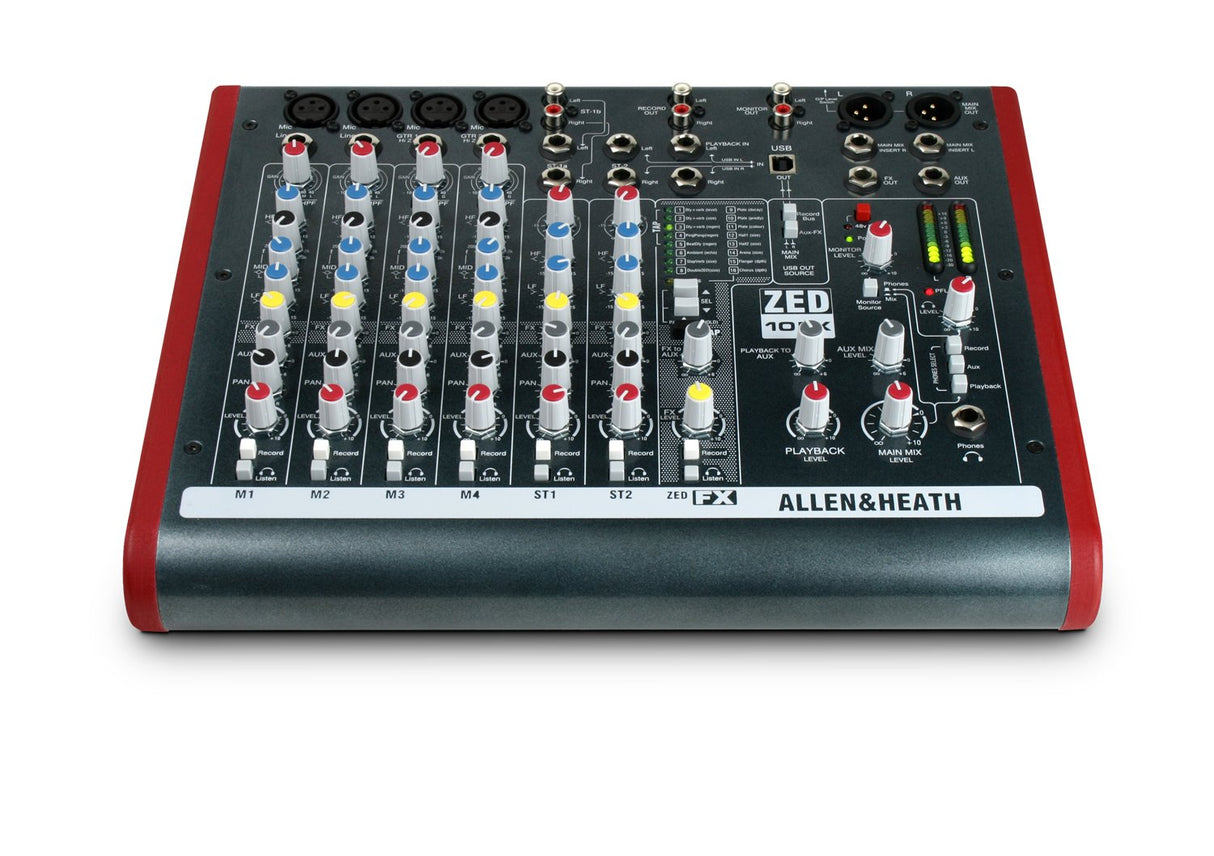

The Allen & Heath ZED-10FX is a versatile and compact audio mixer designed for small bands, home studios, and live recording scenarios. Designed with portability and functionality in mind, this mixer is perfect for musicians on the go. Whether you need to fine-tune your band's mix at a gig or capture high-quality recordings in the studio, the ZED-10FX has you covered. Equipped with a host of professional-grade features, it ensures superior sound quality and flexibility.

The ZED-10FX is equipped with four mic/line inputs, making it ideal for various instruments and vocals. The Neutrik mic XLRs and high-impedance inputs allow for direct guitar connections, ensuring that every note is captured with clarity. This mixer also boasts two stereo inputs for MP3/CD players or keyboards, making it a comprehensive tool for any musician. Moreover, the built-in USB audio interface allows for easy stereo recording directly to your computer, providing a seamless workflow for recording and mixing. The suite of onboard effects, including shimmering reverbs, adds an extra layer of polish to your sound, ensuring your performances always shine.

Engineered with a robust monitoring section, including headphone and speaker feed outputs, the ZED-10FX ensures you can always keep track of your mix. The intuitive layout and illuminated PFL indicators make it straightforward to use, even in low-light settings. With features like a responsive three-band EQ with MusiQ, stereo returns, and comprehensive monitoring options, this mixer is designed to meet the needs of both novice and experienced audio engineers.

Key Features

• 4 mic/line inputs, 2 with Class A FET high-impedance inputs
• Neutrik mic XLR
• Neutrik 1/4 inch jacks
• 3-band EQ with MusiQ
• 1 pre-fade Aux send
• 1 FX send
• Sound image pan
• Illuminated PFL indicator
• Stereo returns & playback
• All inputs with level control
• 12 bar meters
• Responsive 3-band, swept mid EQ with MusiQ
• 2 stereo sources with MP3 player compatibility
• Separate 2-track record outputs
• Stereo playback input for 2-track replay
• XLR main stereo outputs with inserts
• Comprehensive monitoring
• Configurable USB stereo audio in/out
• Stereo monitor outs
• 48V microphone phantom power
• DI level switching for sub mixing

Specifications

• Operating Levels: InputMono channel (XLR) Input:-10 to -60dBu for nominal (+11dBu in max)
• Mono channel Line Input (Jack socket):+10 to -40dBu (+31dBu maximum)
• Stereo Input (Jack or phono sockets):0dBu nominal (control = Off to +15dB)
• OutputL/R Outputs ( XLR) Normal/DI out:0dBu/-30dBu +21dBu/-9dBu maximum.
• Aux & FX Outputs (Jack sockets):0dBu nominal. +21dBu maximum.
• Record & Monitor Outputs (phono sockets):0dBu nominal. +21dBu maximum.
• Frequency Response: Mic in to Mix L/R Out, 30dB gain:+0.5/-1dB 10Hz to 30kHz
• Line in to Mix L/R out 0dB gain:+0.5/-1dB 10Hz to 25kHz, Stereo in to Mix L/R out:+0.5/-1dB 10Hz to 30kHz
• THD+n: Mic in to Mix L/R Out, 10dB gain 1kHz +10dBu out:0.002%
• Mic in to Mix L/R Out, 30dB gain 1kHz:0.01% Line in to Mix L/R out 0dB gain 0dBu 1kHz:0.003%
• Stereo in to Mix L/R out 0dB gain +10dBu 1kHz:0.002%
• Gtr Input to Mix L/R Out, 0dBu, Boost OUT:0.015%
• Gtr Input to Mix L/R Out, 0dBu, Boost IN:2% Second Harmonic
• Headroom: Analogue Headroom from nominal (0Vu):21dB
• USB in & out headroom from nominal (0Vu):14dB
• Noise: Mic Pre EIN @ max gain 150R input Z 22-22kHz:-127dBu
• Mix L/R out, L/R faders = 0, Levels min, 22-22kHz:-96dBu
• Mix L/R out, L/R faders = 0, Levels min, 22-22kHz:-96dBu
• USB Audio CODEC (Coder/Decoder): USB Audio In/Out: USB 1.1 compliant 16bit
• Sample Rate:32, 44.1, or 48kHz
• Dimensions: Width: 13.2 Inches; Height: 3.7 Inches; Length: 10.8 Inches; Unpacked Weight: 7.3 lbs; Packed Weight: 10 lbs

Package Contents

• Allen & Heath ZED-10FX Mixer
• Power Adapter
• User Manual
