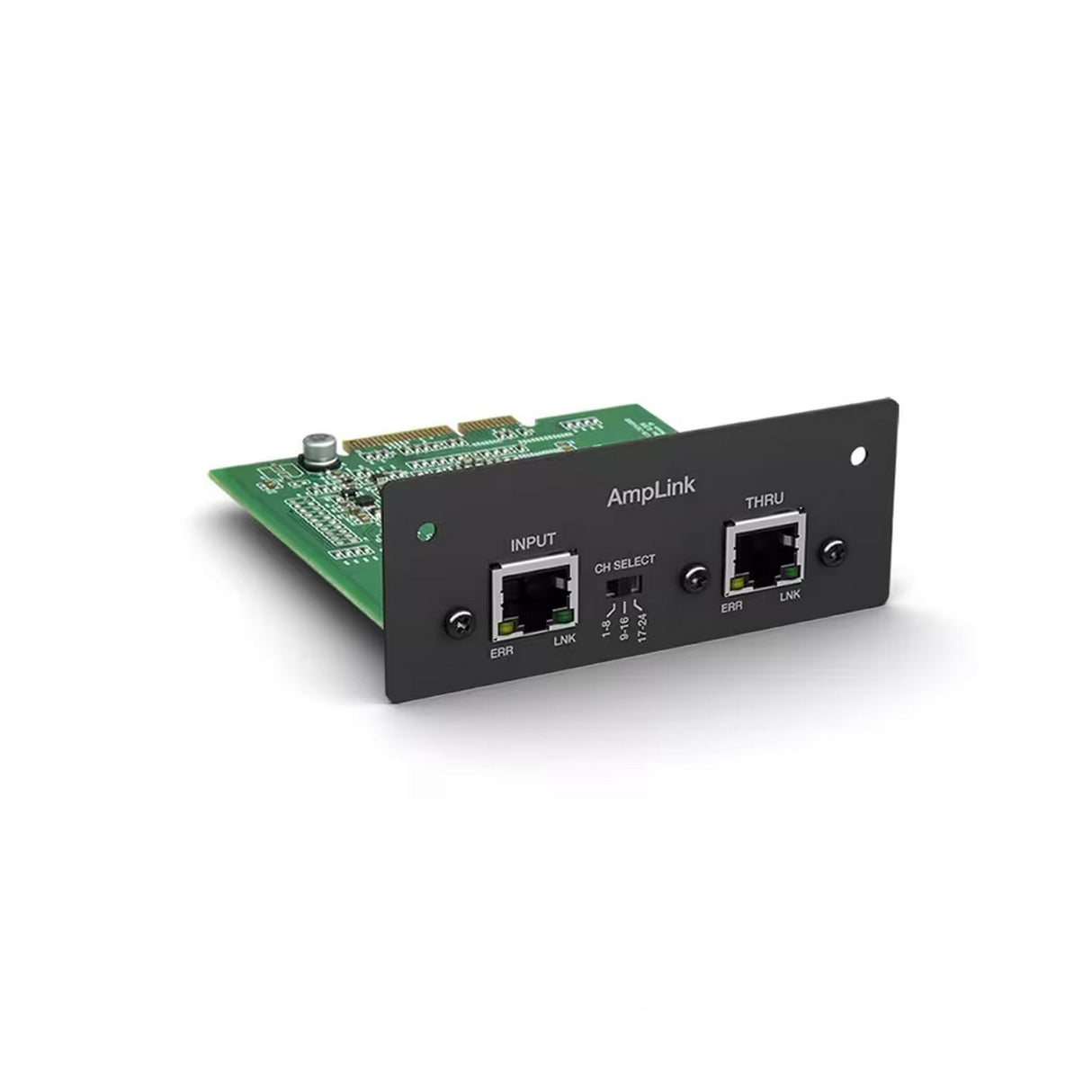

Bose Professional PowerMatch AmpLink 24-Channel Input Card
The Bose Professional PowerMatch AmpLink 24-channel input card is a digital audio expansion module designed for PowerMatch configurable professional power amplifiers. It installs directly into the amplifier’s digital expansion slot and enables reception of up to 24 channels of digital audio from a Bose Professional DSP using the AmpLink protocol.
This input card uses shielded Cat 5 cabling with quick-connect RJ-45 connectors for reliable, low-latency digital audio transport. A built-in thru connection allows multiple PowerMatch amplifiers to be daisy-chained, simplifying wiring in large-scale distributed audio systems.
A 3-position bank select switch allows each amplifier to amplify a selectable group of eight consecutive AmpLink channels. This flexible architecture supports scalable multi-amplifier installations while maintaining synchronized digital audio performance.
Key Features
- 24-Channel AmpLink Transport: Receives up to 24 channels of digital audio
- RJ-45 Connectivity: Quick-connect AmpLink input and thru ports
- Daisy-Chain Support: Connect up to 8 PowerMatch amplifiers
- Channel Bank Selection: 3-position switch selects 8-channel groups
- Low-Latency Digital Audio: Optimized for synchronized system performance
Technical Specifications
Product TypeDigital input expansion card for PowerMatch amplifiers
Digital Audio Channels
24 AmpLink input channels
Connectors
(1) RJ-45 AmpLink input
(1) RJ-45 AmpLink thru
Cable Requirements
Shielded Cat 5 cable, TIA/EIA 568B straight-through or equivalent
Maximum Cable Length
32 ft (10 m)
Audio Latency
24 ns (thru)
Sample Rate / Bit Depth
48 kHz / 24-bit
Status Indicators
(2) network speed LEDs
(2) Link/Activity LEDs
Available Colors
Black
What's in the Box
(1) PowerMatch AmpLink 24-Channel Input Card(1) Installation Guide
