Apogee Symphony IO Mk II 16x16S2 SoundGrid Chassis with 16x16 Analog I/O
The Symphony IO Mk II SoundGrid chassis with 16x16 analog input and output delivers flexible channel count with professional grade AD/DA conversion. It provides Ethernet-enabled SoundGrid connectivity for integration with DSP servers and ensures ultra-low latency performance for demanding audio workflows.

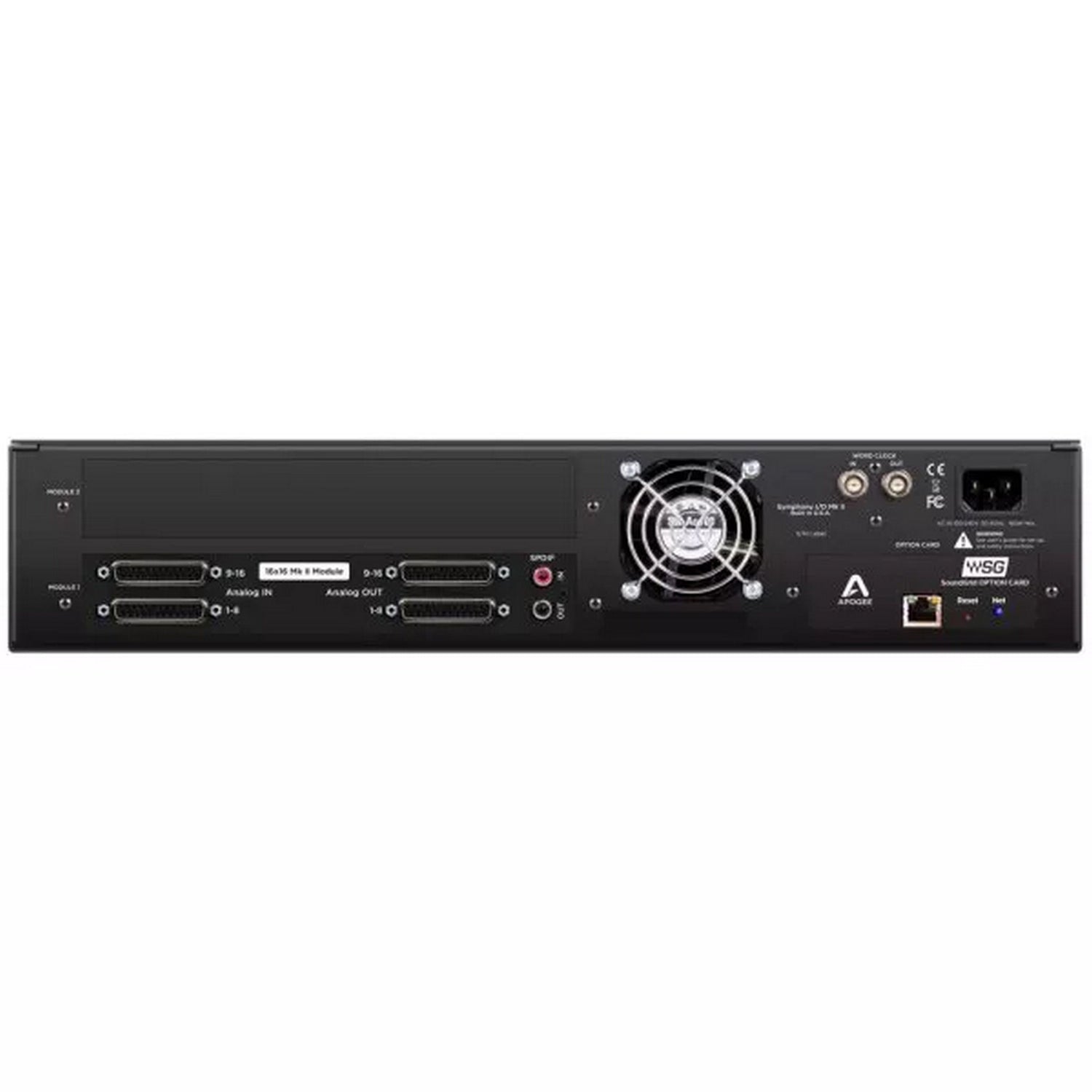

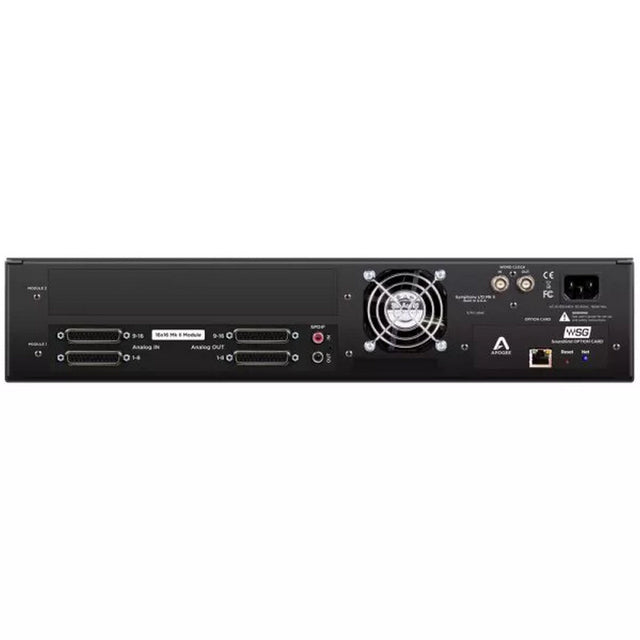

Featuring sixteen balanced analog inputs and outputs via DB-25 connectors, along with stereo S/PDIF I/O and word clock connectivity, the Symphony IO Mk II offers the flexibility and precision required in studio, broadcast, and live production environments.
Its 2U rackmount design, high dynamic range conversion, and intuitive front panel touchscreen with a large rotary knob make it an essential centerpiece for professional audio setups.
Key Features
- 16 analog inputs and 16 analog outputs via DB-25
- Stereo S/PDIF input and output
- SoundGrid Ethernet network connectivity
- BNC word clock input and output
- Front-panel touchscreen and rotary control
- High dynamic range and low distortion performance
- 2U rackmount design for professional studios
Technical Specifications
- Analog I/O: 16x16 balanced
- Digital I/O: 2x2 S/PDIF
- Sample rates supported: 44.1 to 192 kHz
- Dynamic Range: ~121 dBA (headphone output)
- THD+N: approx -115 dB A/D, -119 dB D/A
- Maximum input level: +24 dBu at +4 dB mode
- Power: 90-240 V AC, 50-60 Hz, ~150 W
