AtlasIED MVX‑193 19-Inch Rack‑Mount Monitor Panel with 3-Inch Speaker and VU Meter

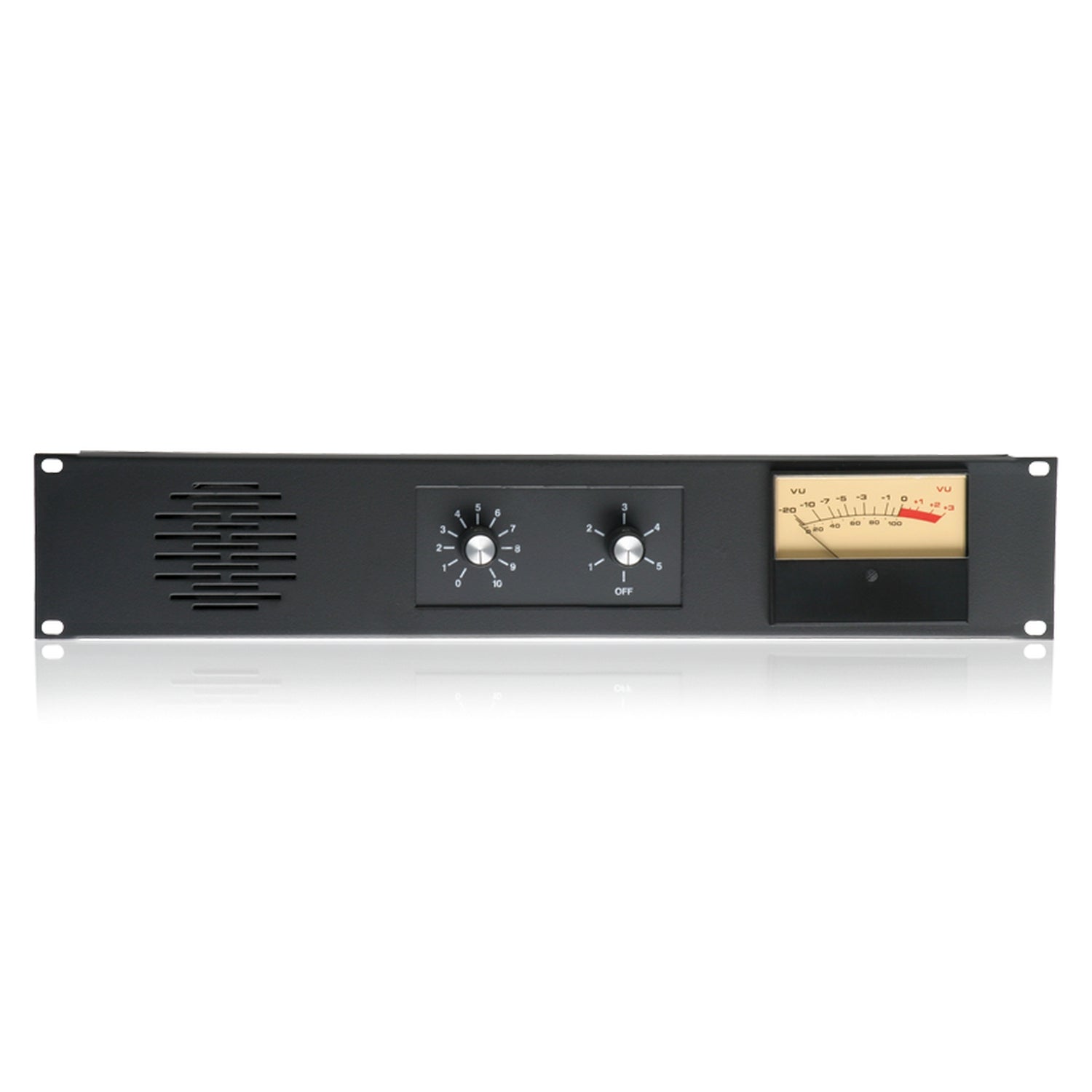

The AtlasIED MVX‑193 is a professional-grade 2RU rack-mounted monitor panel featuring a 3″ loudspeaker and an “A‑scale” moving-coil VU meter. It supports monitoring of up to five speaker line programs via a 6-position rotary switch, each with a positive "off" position, and includes front-panel volume control plus rear-mounted screw terminals.
Constructed with rugged 16-gauge CRS and a stamped grille, the MVX‑193 is factory-configured for 25 V speaker lines and can be converted to 70.7 V. The textured black enamel finish provides a sleek, durable aesthetic for control centers and broadcast racks.
Key Features
- Channels: 5 monitored lines via 6-position switch with “off” position
- Speaker: 3″ integrated loudspeaker for 25 V/70.7 V lines
- VU Meter: Type “A” moving-coil with rear adjustment knob
- Construction: 16‑gauge CRS front panel with stamped grille
- Finish: Textured black enamel
- Volume Control: Front-panel rotary knob
Technical Specifications
- Rack Units: 2RU (3½″)
- Dimensions: 19″ W × 3½″ H × 4″ D (48.26 × 8.89 × 10.16 cm)
- Weight: 5 lbs (2.27 kg)
- Speaker Diameter: 3″ (76 mm)
- Line Voltages: 25 V standard, field-convertible to 70.7 V
- Switching: Double-pole 6-position rotary
- Warranty: 12 months from date of purchase
What’s Included
- One MVX‑193 monitor panel with built-in speaker, VU meter, switch, and volume control
- Mounting hardware included
