Focusrite ISA ADN2 2-Channel A-D Card for ISA One, Dante Enabled

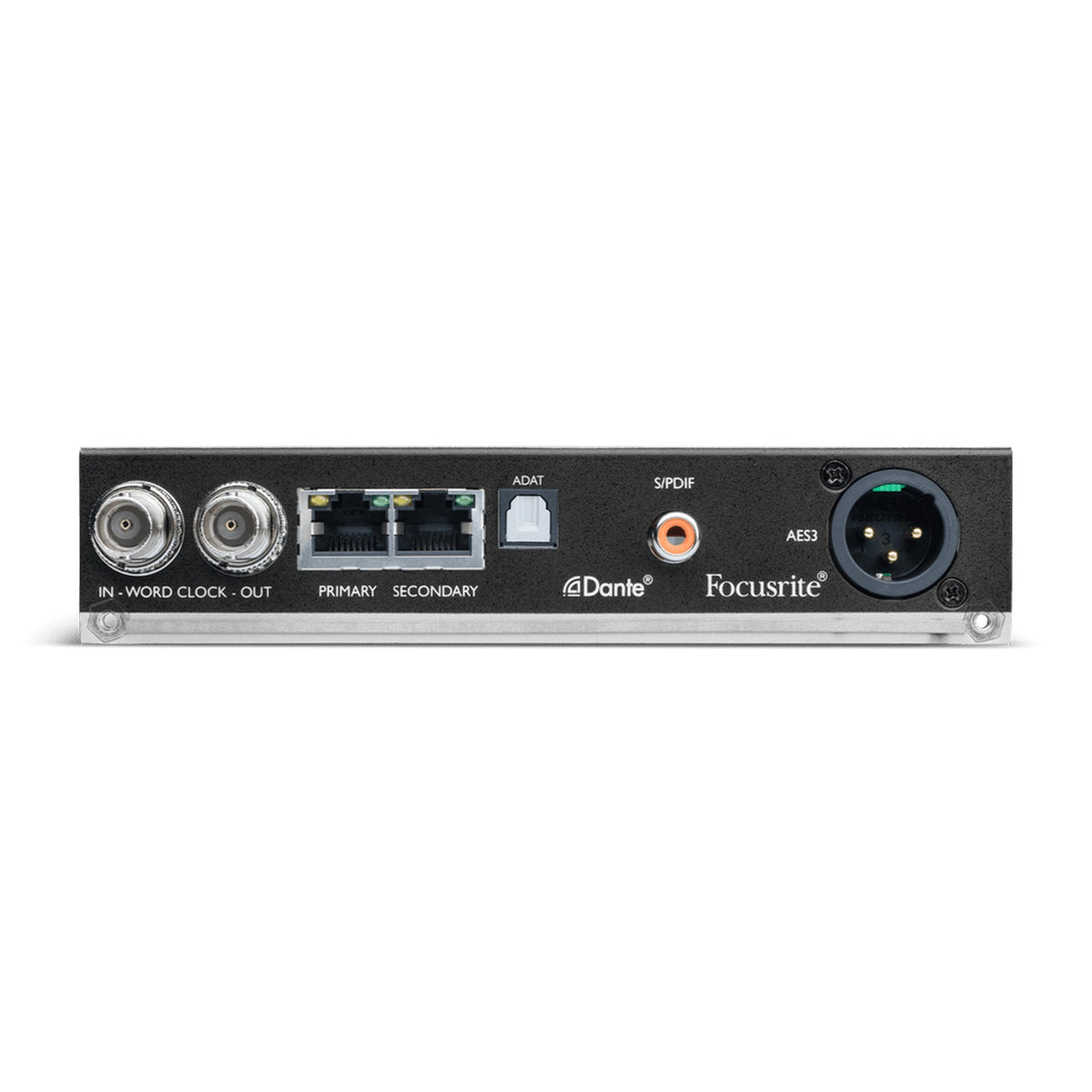

The Focusrite ISA ADN2 is an optional 2-channel analog-to-digital (A-D) conversion card for the ISA One mic preamp and DI, enabling high-quality digital networking and outputs. It brings Dante, AES3, ADAT, and S/PDIF connectivity, functioning as a bridge from classic analog circuitry to modern digital audio workflows.
This card supports sample rates up to 24-bit/192 kHz and offers redundant Dante networking with primary and secondary RJ-45 ports, plus word clock synchronization. With professional digital outputs and control via RedNet Control and Dante Controller, it integrates the ISA One seamlessly into networked or digital audio setups.
Key Features
- Channels: 2-channel analog-to-digital conversion for ISA One
- Sample Rate: Up to 24-bit / 192 kHz
- Networking: Dual Dante RJ-45 Ethernet ports with auto-failover redundancy
- AES3 Output: 2-channel XLR output
- ADAT Output: 2-channel TOSLINK connector
- S/PDIF Output: 2-channel RCA connector
- Word Clock I/O: BNC connectors for synchronization to external clock or house systems
Technical Specifications
- Supported Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (24-bit)
- Audio Performance: Dynamic Range: ~121 dB A-weighted; THD+N: ā105 dB
- Frequency Response: 20 Hz ā 20 kHz Ā± 0.1 dB
- Latency / Clocking: Internal clock or Word Clock sync via BNC I/O
What's Included
- 1x ISA ADN2 A-D card
- Software: RedNet Control and Dante Controller
- 3-year warranty
