Description

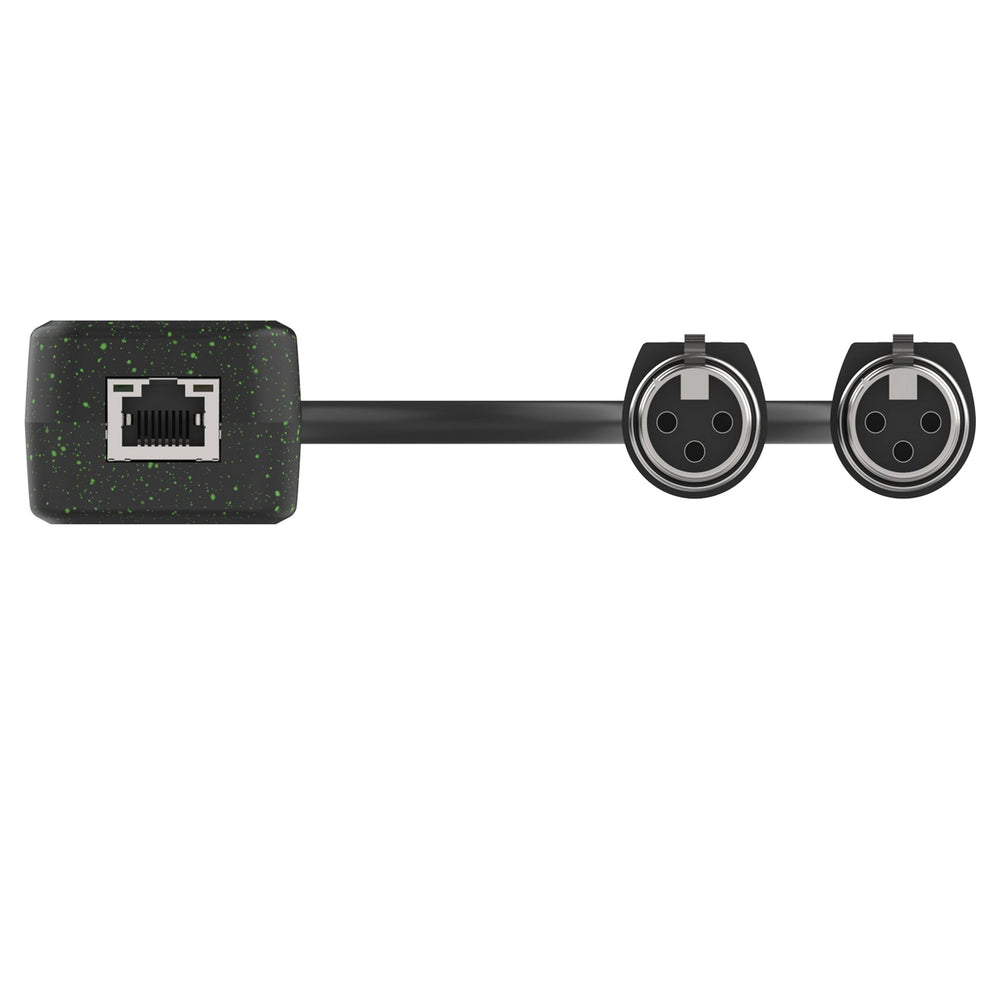

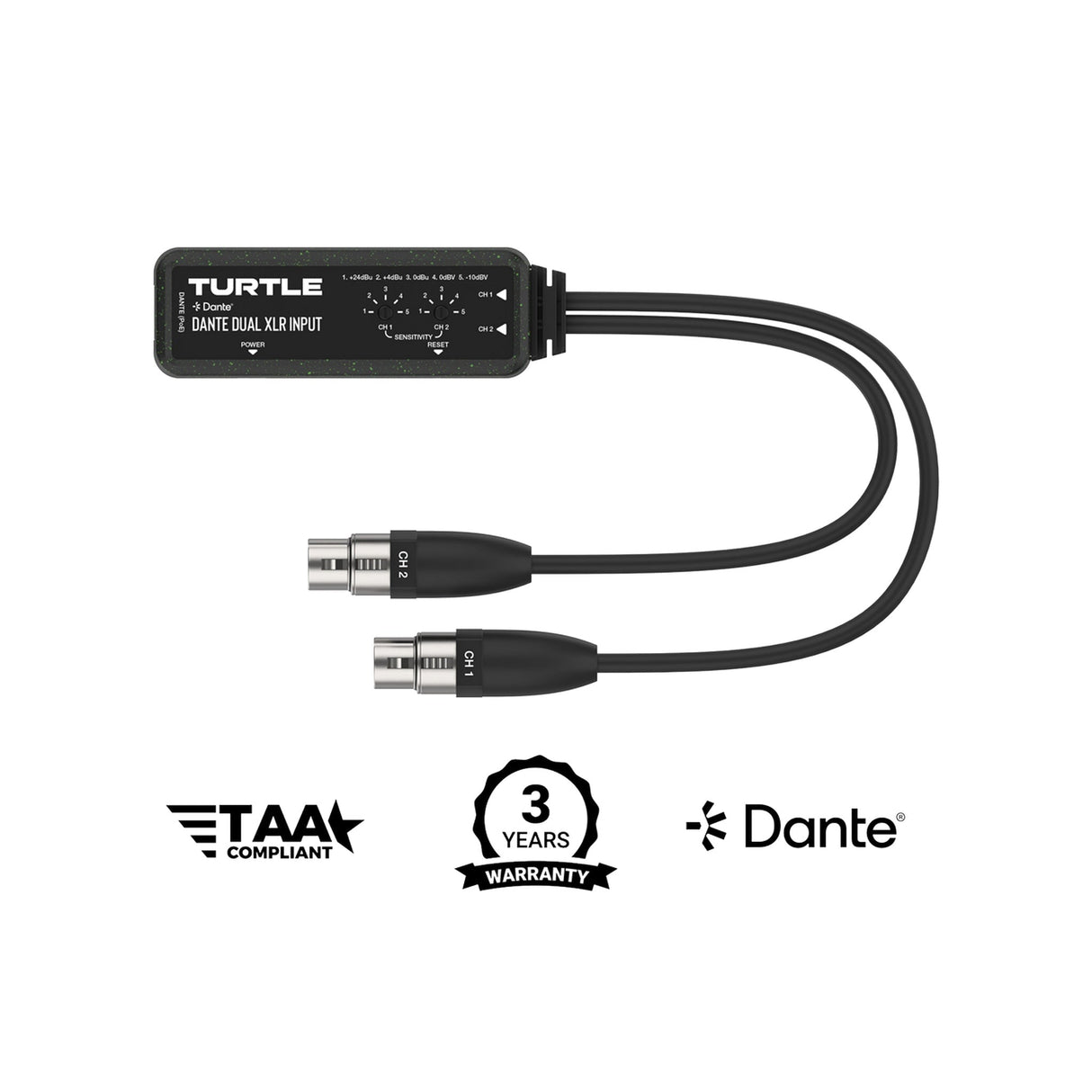

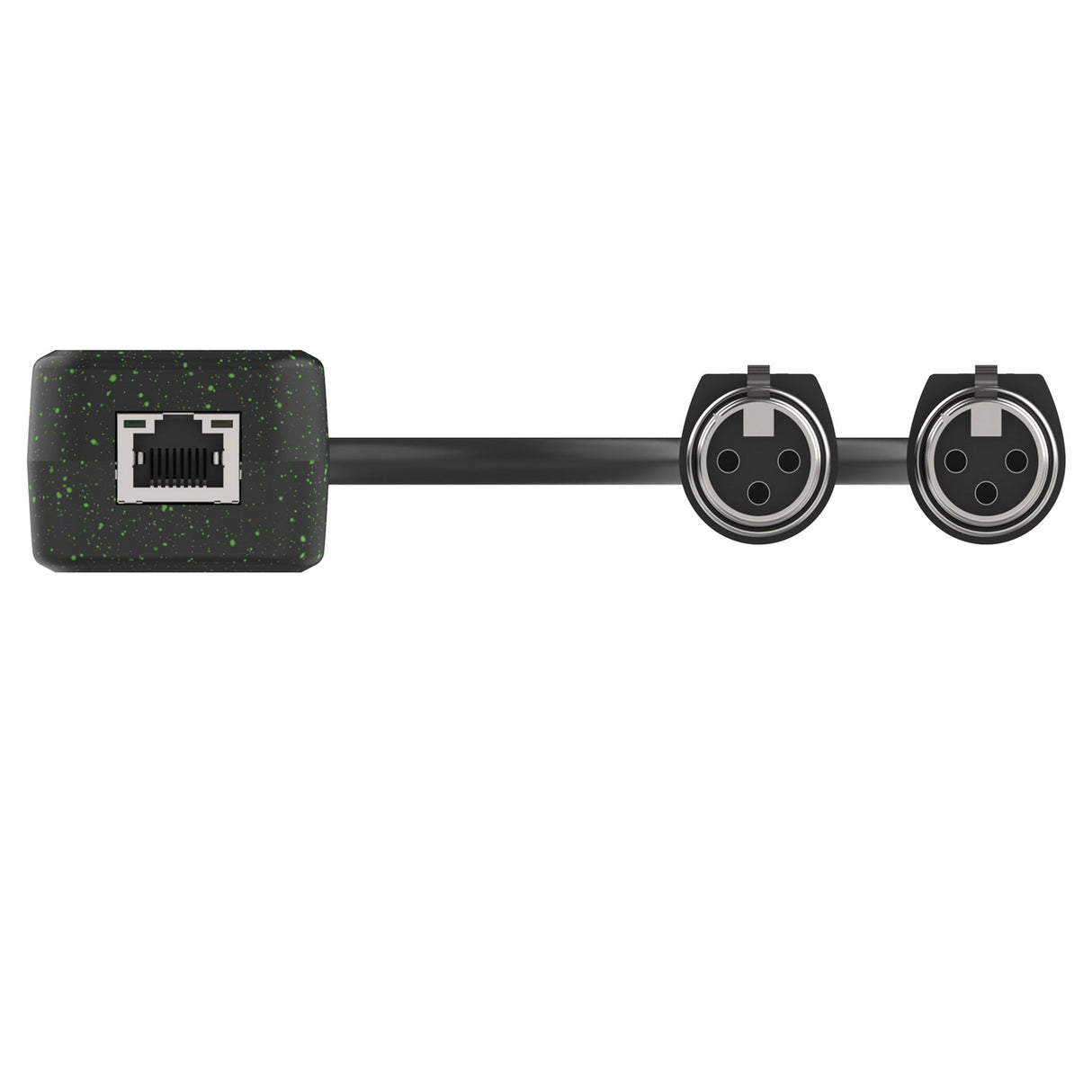

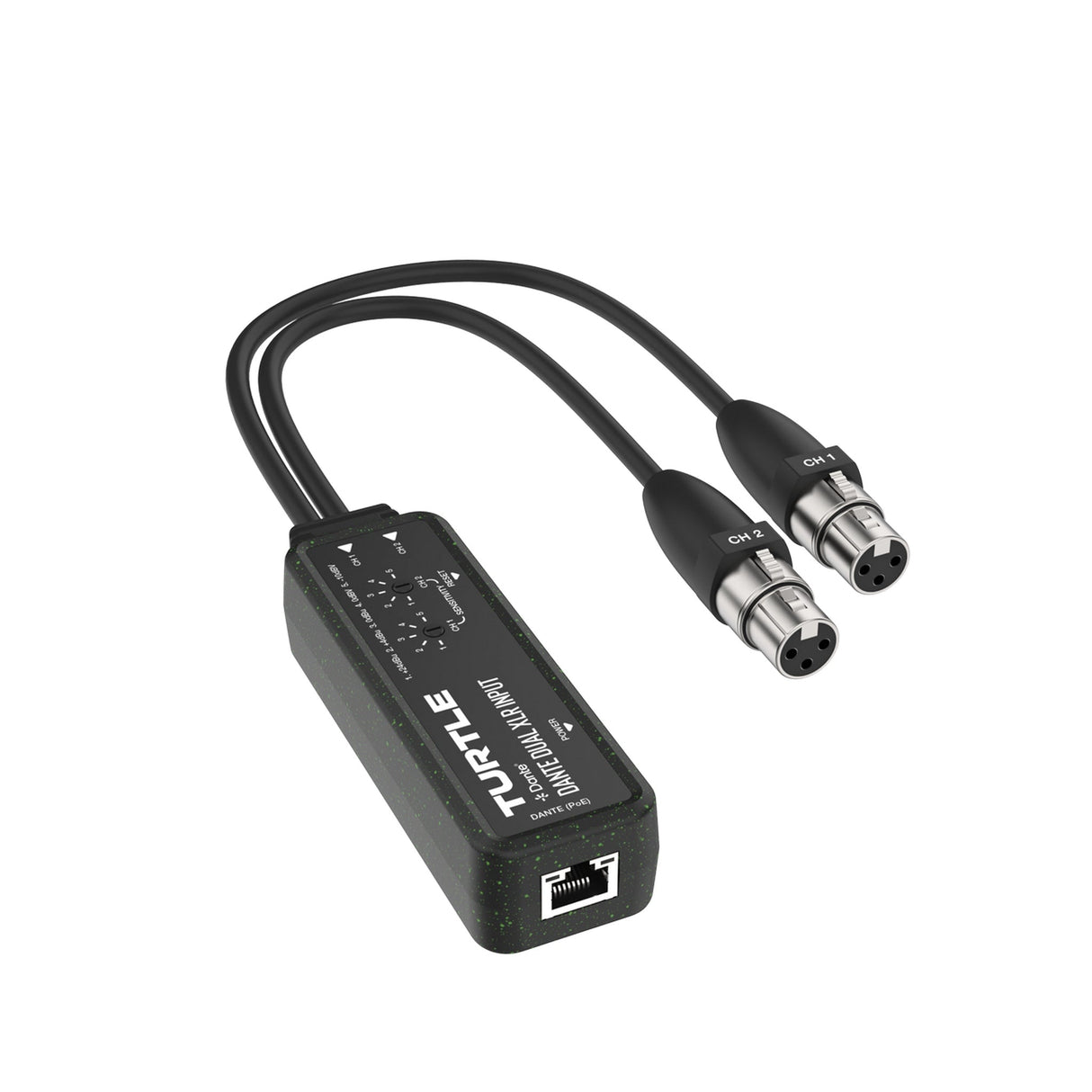

Turtle AV Dante Dual Channel XLR Input Adapter
The Turtle AV Dante Dual Channel XLR Input Adapter converts two channel balanced or unbalanced XLR analog audio into Dante digital audio for use on networked audio systems. This compact and professional interface allows mixers, consoles, microphones with line output adapters, or other analog sources to be integrated into Dante based infrastructures with high audio quality and low latency.
Supporting up to 24 bit audio at sample rates from 44.1 to 96 kHz, the unit provides clean analog to digital conversion with adjustable input gain to match different source signal levels. Dante latency can be configured to 1, 2, or 5 ms for precise timing in live sound, broadcast, corporate AV, and distributed audio applications. Power can be supplied over Ethernet via PoE or through the USB C port, allowing flexible installation in racks, podiums, or remote equipment locations.
Rugged and compact, this adapter is built for professional environments requiring reliable analog to Dante conversion. It integrates fully with Dante Controller and other Dante management tools, ensuring seamless routing and control across a modern network audio system.
Key Features
- Analog to Dante Conversion: Converts two channel XLR analog signals into Dante digital audio.
- Balanced or Unbalanced Input: Accepts standard XLR audio sources for maximum compatibility.
- High Quality Digital Audio: Supports 24 bit audio at 44.1, 48, 88.2, and 96 kHz.
- Input Gain Adjustment: Five level sensitivity control to match various source levels.
- Configurable Dante Latency: Set delay to 1, 2, or 5 ms for accurate synchronization.
- Flexible Power Options: Powered via PoE or USB C 5 VDC.
- Compact and Durable: Small form factor suitable for racks, AV furniture, or stage boxes.
Technical Specifications
- Analog Input: Two channel XLR, balanced or unbalanced
- Max Input Level: Up to +24 dBu balanced, +18 dBu unbalanced
- Dante Output: Two channel PCM, 16 or 24 bit, 44.1 to 96 kHz
- Input Impedance: 20 kohm balanced, 10 kohm unbalanced
- Frequency Response: 20 Hz to 20 kHz (plus or minus 0.5 dB)
- Dynamic Range: Greater than 100 dB A weighted
- THD plus N: Less than 0.01 percent at +4 dBu, 1 kHz
- Latency Settings: 1 ms, 2 ms, or 5 ms
- Connections: Two XLR analog inputs, RJ45 Dante output (PoE capable), USB C power
- Power Requirements: PoE (IEEE 802.3af) or USB C 5 V 500 mA
- Housing: Compact plastic and composite enclosure
- Dimensions: 4.5 in x 1.6 in x 1.1 in
- Weight: 0.38 lbs (173 g)
