Turtle AV Dante Pro Dual Channel Analog Line Output Adapter
The Turtle AV Dante Pro 2CH Analog Line Output Adapter converts Dante digital audio into professional-grade two-channel analog output, making it an ideal bridge between networked audio systems and traditional analog equipment. Compact and rugged, this adapter fits easily into AV racks, under desks, or behind equipment and enables balanced or unbalanced analog output with selectable gain levels.
Built on the Dante Ultimo chipset, the adapter supports Dante 2CH digital input — including AES67 — at sample rates up to 96 kHz with 24-bit depth. It features configurable network latency (1, 2, or 5 ms), and delivers analog line-level outputs with a maximum level of +18 dBu balanced (or +12 dBu unbalanced). With support for both balanced and unbalanced analog output, this unit is well suited for mixers, amplifiers, or other analog-input devices in professional audio deployments.
This adapter offers flexible power options — PoE over Dante RJ45 or 12 V DC via phoenix connector — and is built in a metal chassis for reliability and long-term use. Whether integrating digital audio systems with legacy analog gear, working in broadcast, live sound, or corporate AV, the Dante Pro Line Output Adapter ensures high fidelity, stable performance, and convenient connectivity.
Key Features
- Dante to Analog Conversion: Converts Dante 2CH digital audio into two-channel analog output (balanced or unbalanced).
- High-Quality Audio Support: Supports 24-bit Dante input at 44.1, 48, 88.2, 96 kHz sample rates.
- Balanced or Unbalanced Output: Flexible output modes for studio, rack, or amplifier use.
- Adjustable Output Level: Output gain selectable for +18 dBu (balanced) or +12 dBu (unbalanced) operation.
- Low Latency: Dante latency adjustable to 1, 2, or 5 ms for precise sync in networked audio environments.
- Flexible Power Options: Accepts PoE over RJ45 or 12 V DC via phoenix connector.
- Rugged Metal Housing: Durable all-metal chassis suitable for professional installations.
Technical Specifications
- Digital Input: Dante 2CH (AES67 compatible), 44.1 – 96 kHz, 16/24-bit

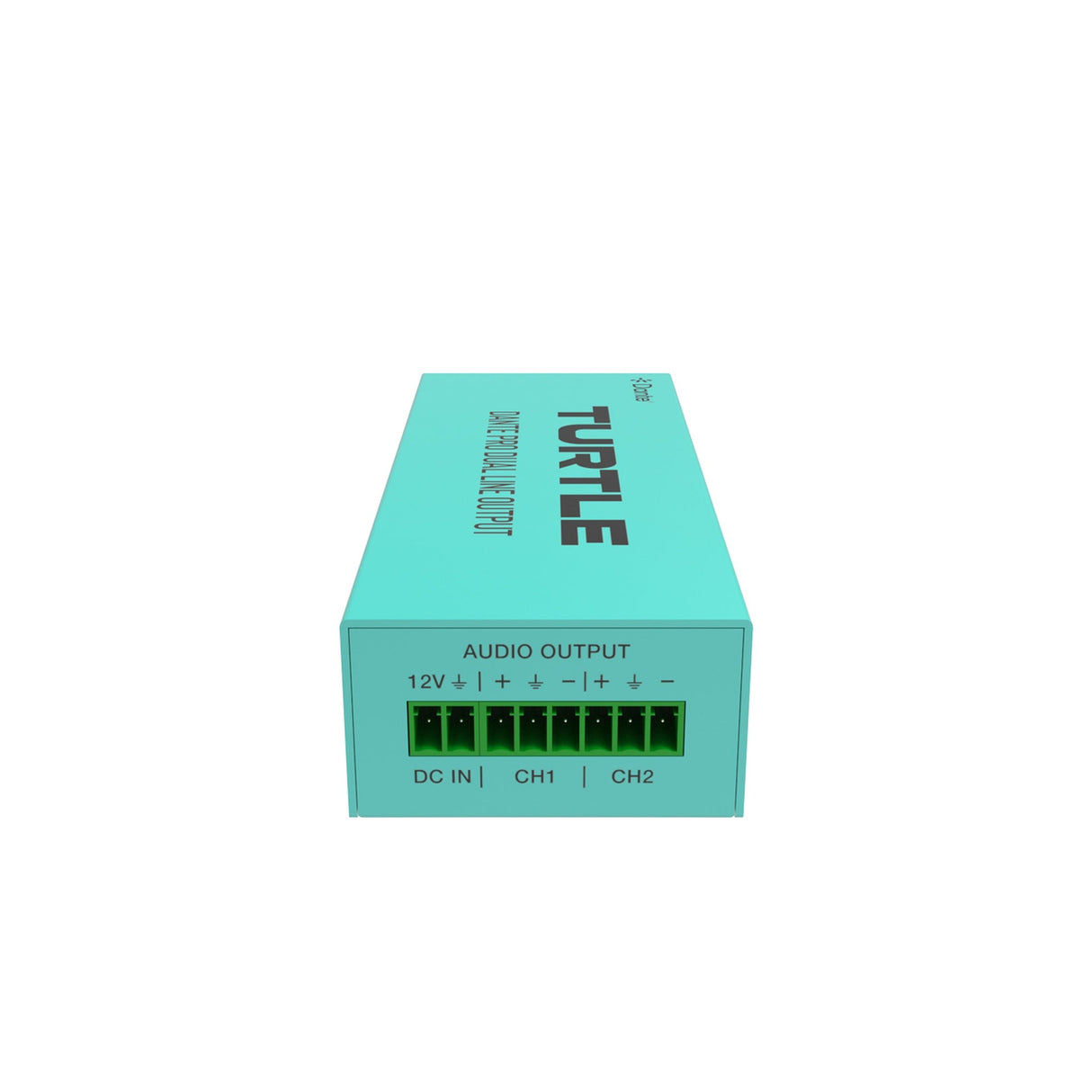

- Analog Output: 2-channel balanced/unbalanced line output
- Output Level Max: +18 dBu balanced / +12 dBu unbalanced
- Output Impedance: 600 Ω balanced / 300 Ω unbalanced
- Frequency Response: 20 Hz – 20 kHz (±0.5 dB)
- Dynamic Range / SNR: > 100 dB A-weighted
- THD + N: < 0.01% at +4 dBu, 1 kHz
- Latency: Configurable 1, 2, or 5 ms via software

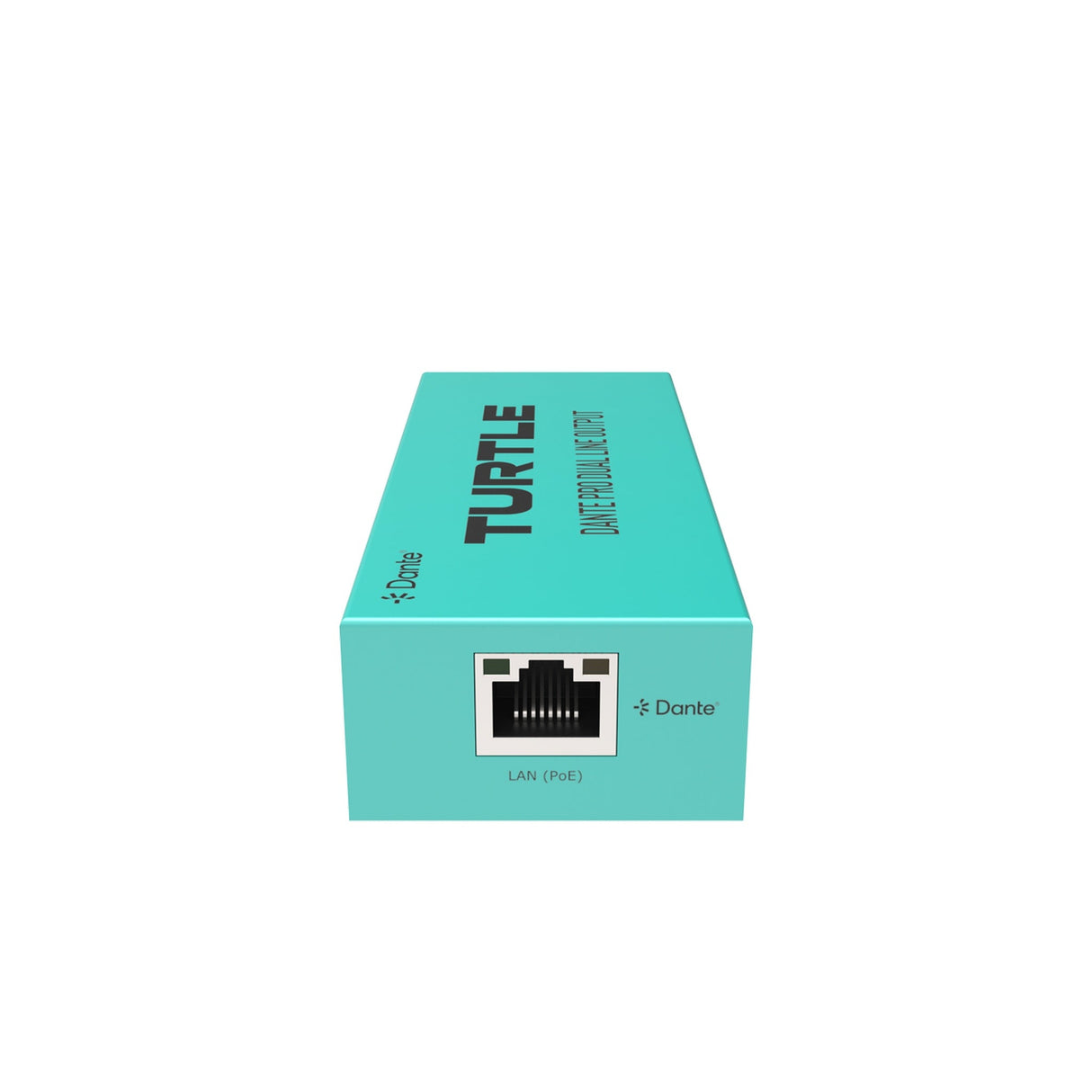

- Network: RJ45 Dante input (supports PoE), 100 Mbit/s
- Power Options: PoE (IEEE 802.3af) or 12 V DC via phoenix connector
- Housing: Metal chassis
- Dimensions (W × D × H): 4.5 in × 1.5 in × 1.1 in
- Weight: 3.3 oz (≈ 94 g)
