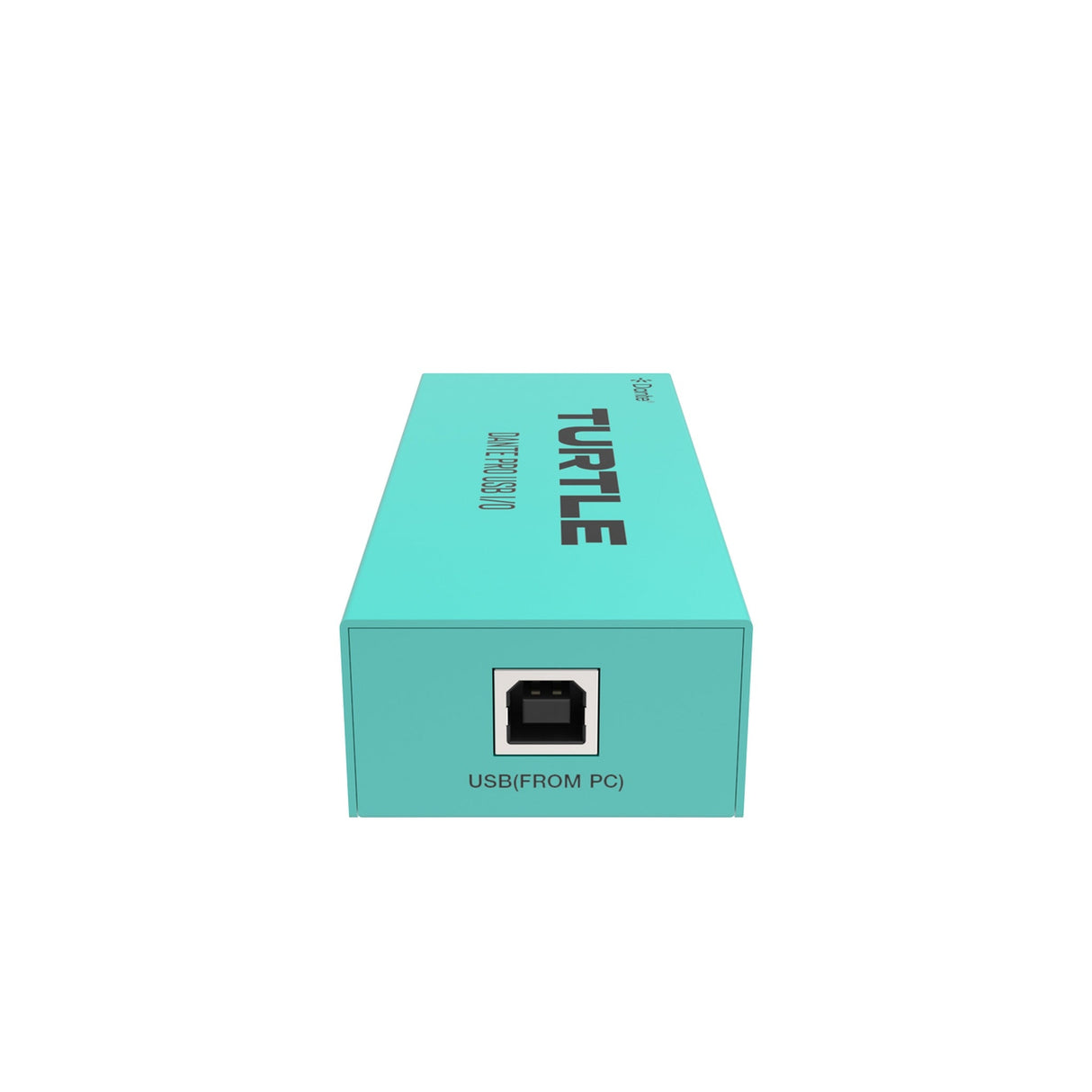

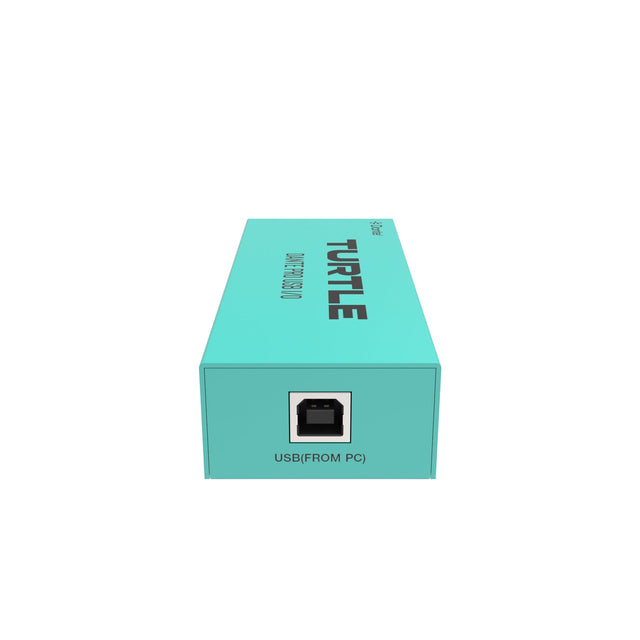

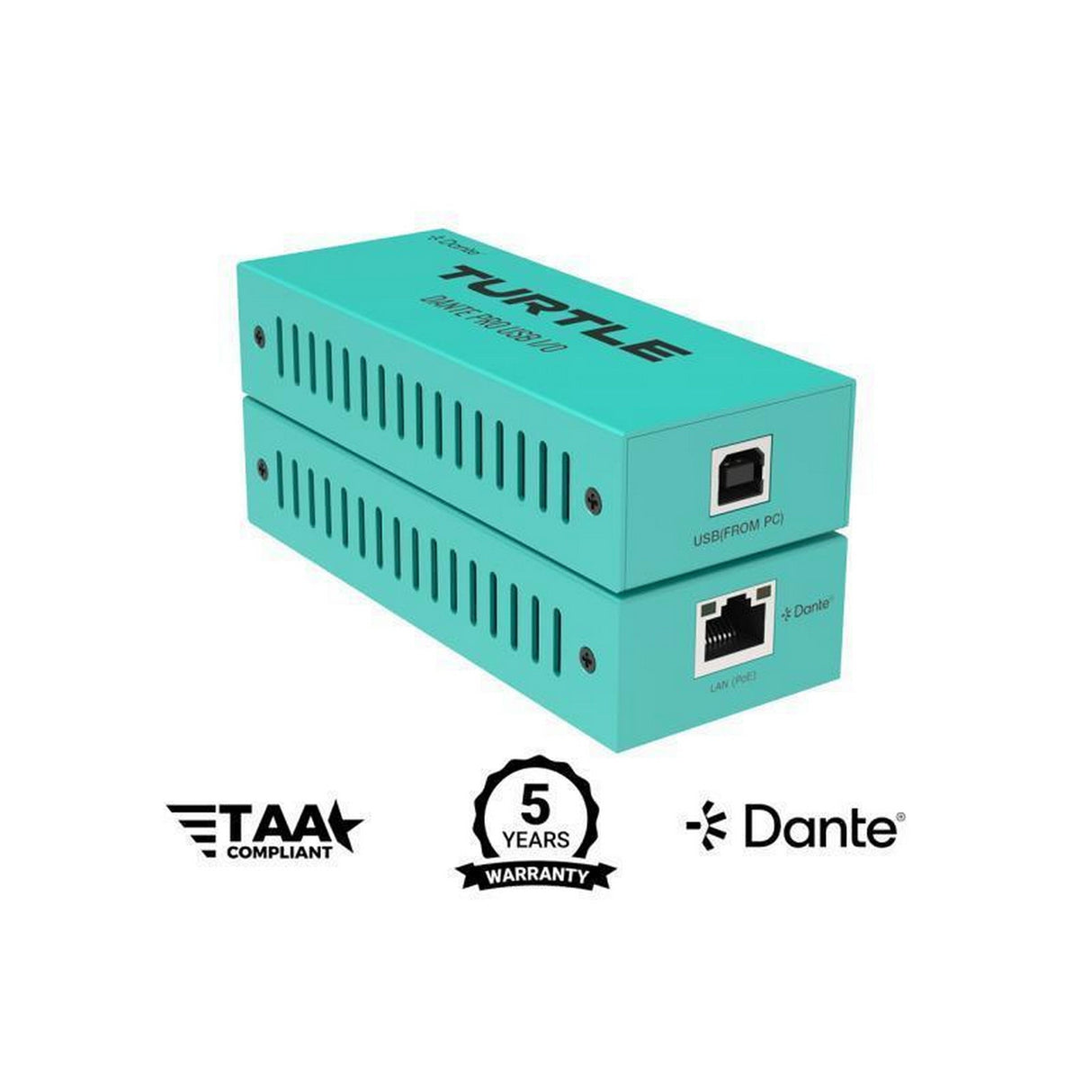

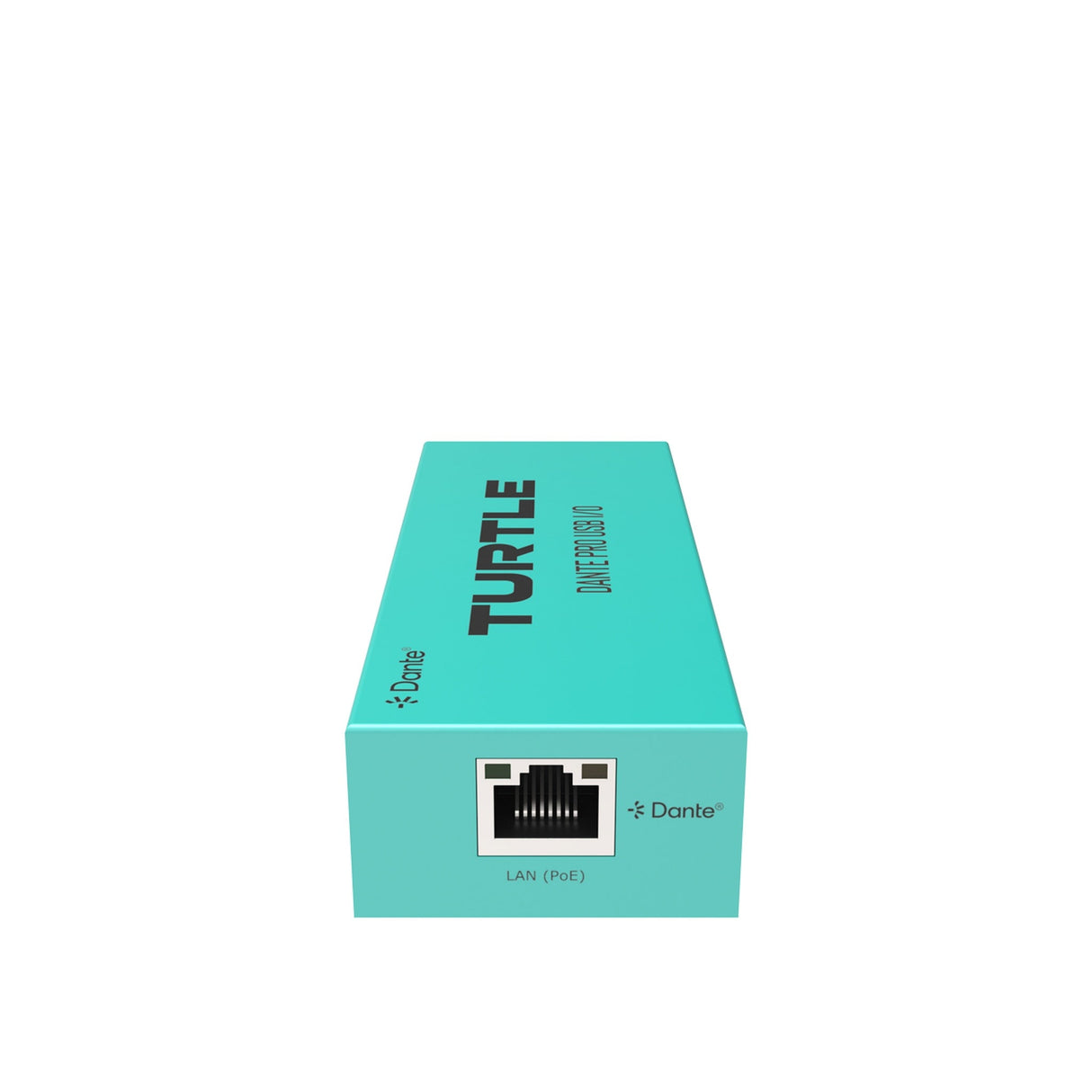

Turtle AV Dante Pro Dual Channel USB-C I/O Adapter
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description
Turtle AV Dante Pro Dual Channel USB-C I/O Adapter
The Turtle AV Dante Pro Dual Channel USB-C I/O Adapter provides bi directional audio conversion between two channel USB C audio and Dante two channel networked audio. It is designed for professional environments where computers, media players, or USB C enabled devices need to send or receive audio through Dante systems with minimal setup and maximum reliability.
The adapter supports high resolution audio with USB output up to 24 bit and 192 kHz, USB input up to 24 bit and 96 kHz, and Dante streaming at 24 bit with selectable sample rates from 44.1 to 96 kHz. Configurable Dante latency settings (1, 2, or 5 ms) ensure precise audio synchronization in live sound, broadcast, corporate AV, or distributed audio networks. Power can be supplied either through PoE on the RJ45 Dante port or through the USB C connection, allowing flexible installation and mobile use.
Compact, lightweight, and simple to deploy, this adapter integrates seamlessly with standard Dante software tools and works with any Dante enabled device. Its small footprint and driverless USB configuration make it ideal for portable rigs, studio racks, on site production setups, or permanent AV installations requiring stable USB to Dante or Dante to USB audio routing.
Key Features
- Bi directional Audio Conversion: Converts two channel USB C audio to Dante and Dante audio back to USB C.
- High Resolution Audio: USB output up to 24 bit 192 kHz; USB input up to 24 bit 96 kHz.
- Dante Digital Audio: 24 bit PCM, 44.1 to 96 kHz.
- Configurable Latency: Dante delay settings of 1, 2, or 5 ms.
- Flexible Powering: Powered via PoE or USB C.
- Driverless USB Operation: USB Audio Class compliant for easy plug and play.
- Compact and Portable: Small footprint ideal for studio, rack, or mobile AV applications.
Technical Specifications
- USB Audio Output: Up to 24 bit 192 kHz
- USB Audio Input: Up to 24 bit 96 kHz
- Dante Audio: Two channel, 24 bit PCM, 44.1 / 48 / 88.2 / 96 kHz
- Latency Options: 1 ms, 2 ms, or 5 ms
- Connections: USB C port, RJ45 Dante port (PoE capable)
- Power Requirements: PoE or USB C 5 VDC
- Frequency Response: 20 Hz to 20 kHz (plus or minus 0.5 dB)
- Signal to Noise Ratio: Greater than 100 dB A weighted
- THD plus N: Less than 0.01 percent at +4 dBu, 1 kHz
- Enclosure: Compact plastic housing
- Dimensions: 4.5 in x 1.5 in x 1.1 in
- Weight: 0.21 lbs (94 g)
