Description
Turtle AV Mineola Dante Audio Bridge Series
The Turtle AV Mineola Dante Audio Bridge Series provides scalable analog to Dante and Dante to analog audio conversion for professional audio environments. Available in four channel configurations, these bridges allow seamless integration of traditional XLR and TRS audio equipment with Dante networked audio systems across venues, broadcast facilities, corporate AV, and live sound installations.
All models feature balanced analog inputs and outputs using locking combo connectors, selectable 48 V phantom power for microphones, and dual Dante network ports for Primary and Secondary redundancy. Each variant supports full Dante and AES67 compatibility, making it easy to route, manage, and distribute audio across modern IP based systems with low latency and high reliability.
Whether using the compact 2x2 for small rooms, the 4x4 or 8x8 for mid sized systems, or the high density 16x16 for large installations, the Mineola family offers flexible deployment options with rugged metal chassis, rack mount compatibility, PoE or DC power support, and secure connector design suitable for both portable and fixed installations.
Available Variants

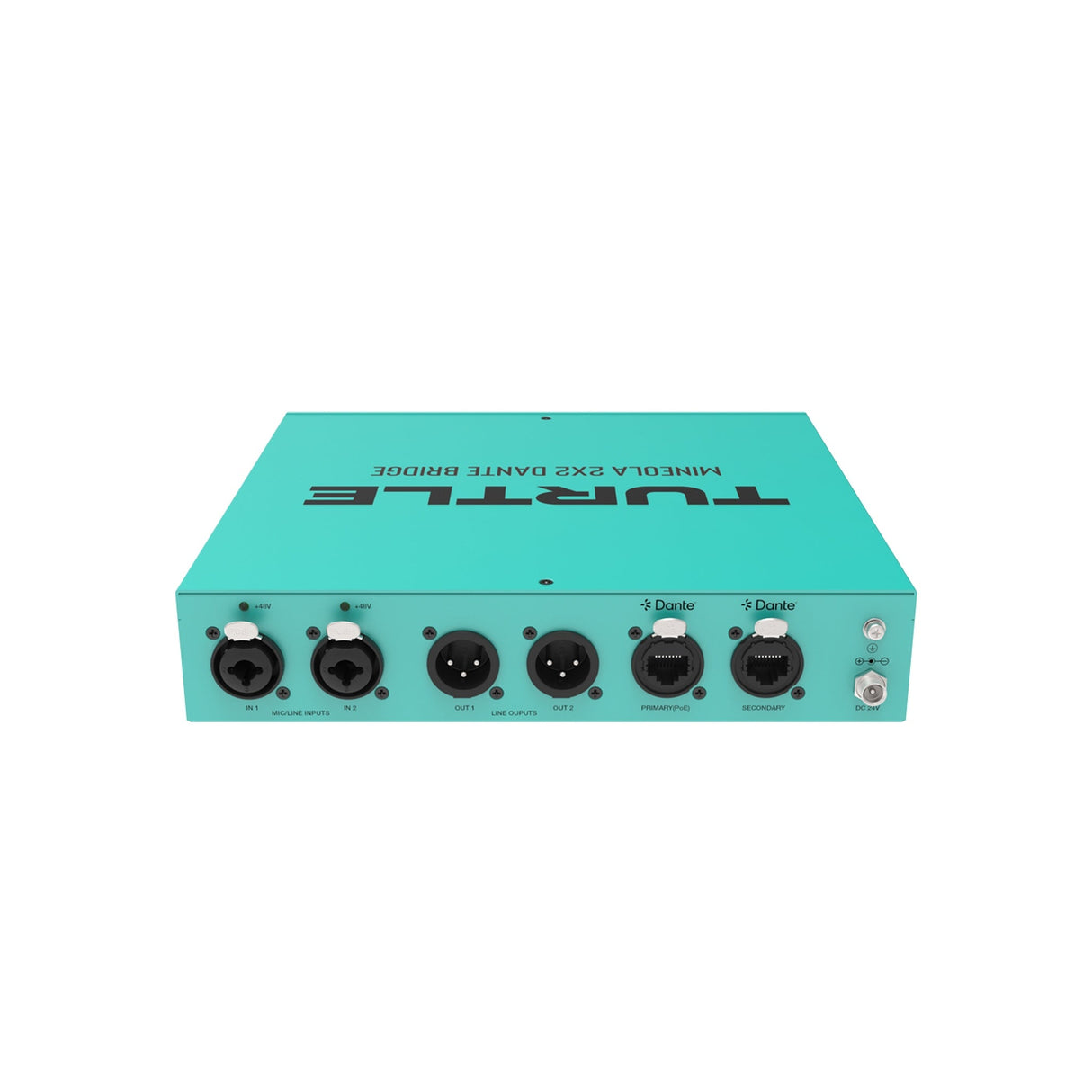

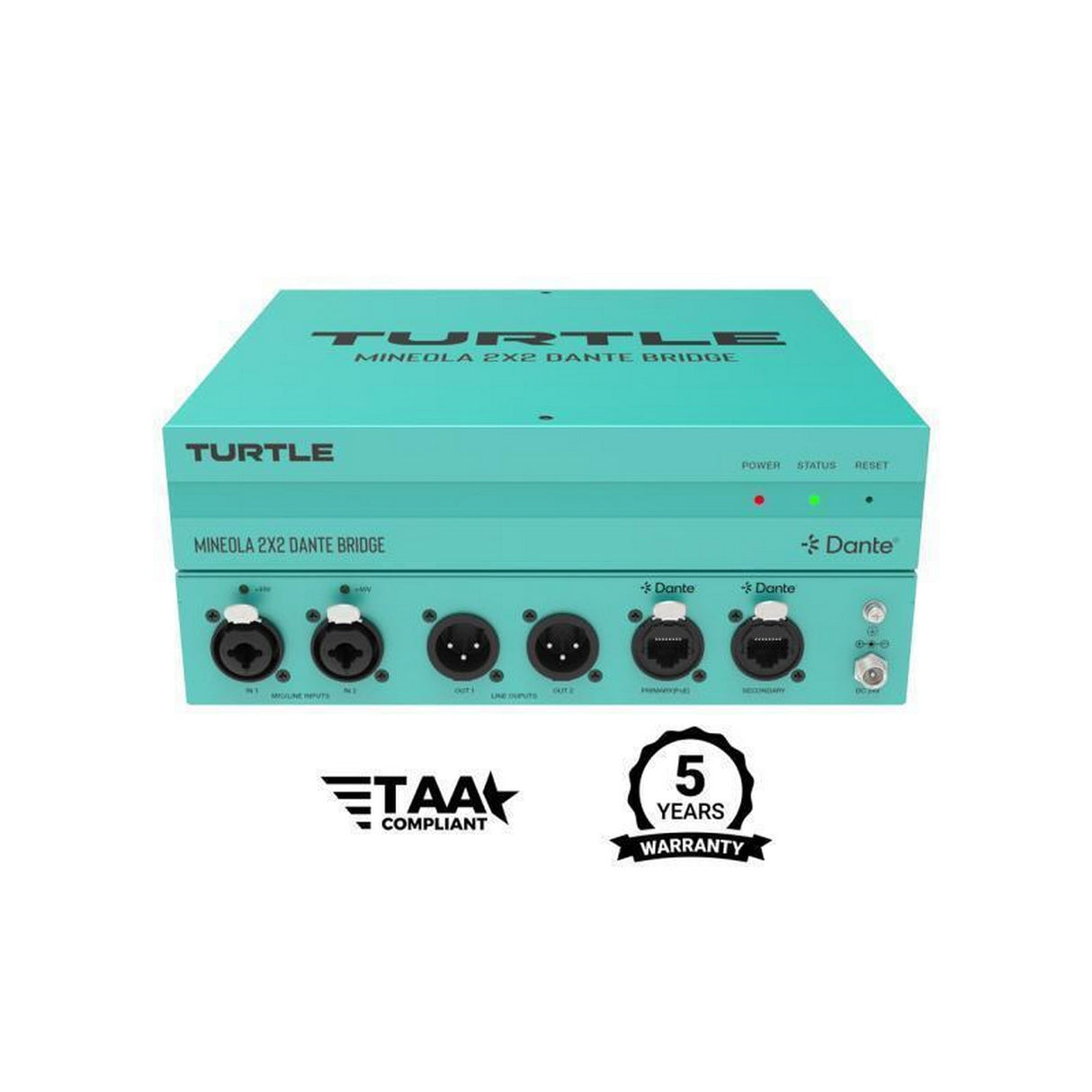

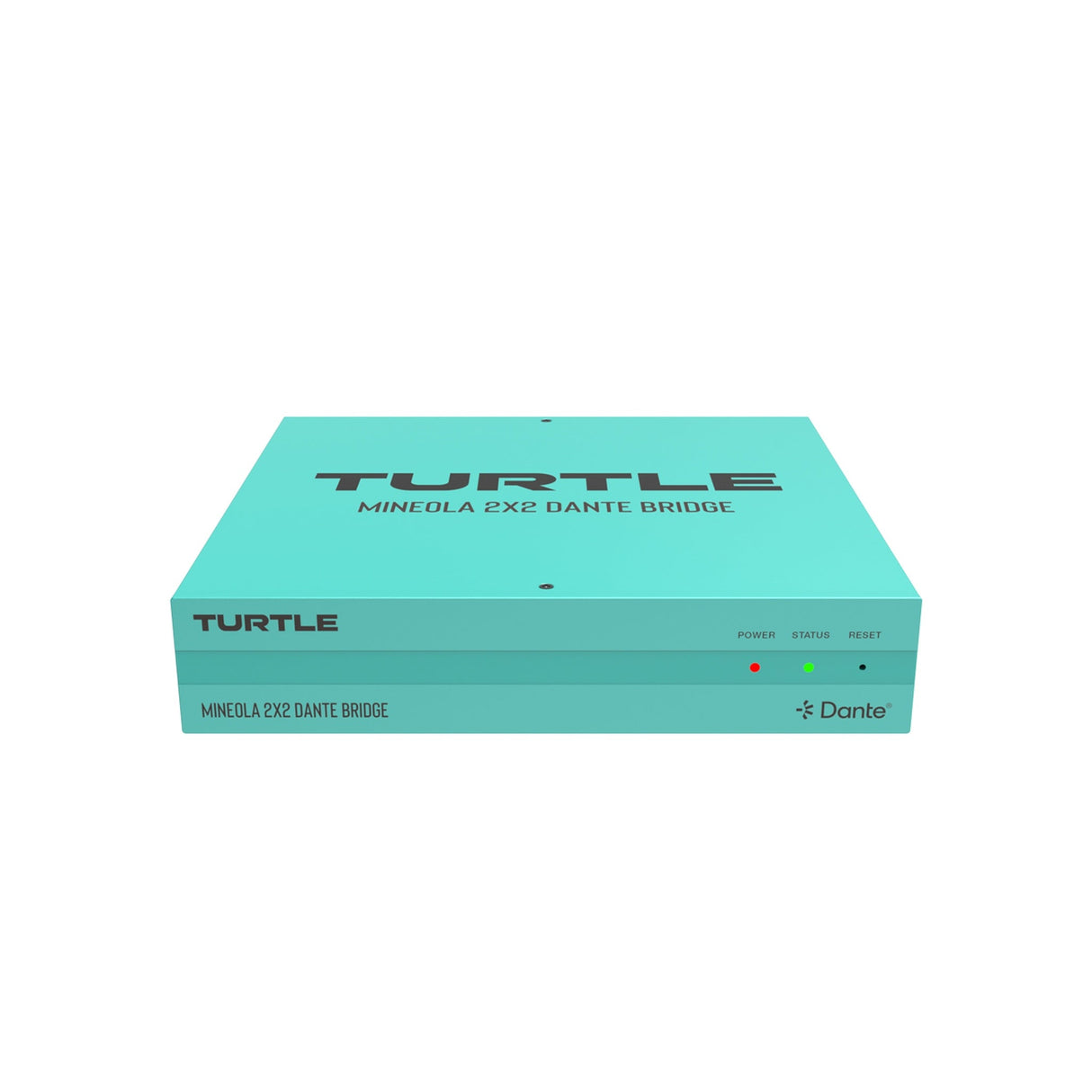

- Mineola 2x2: 2 analog inputs, 2 analog outputs

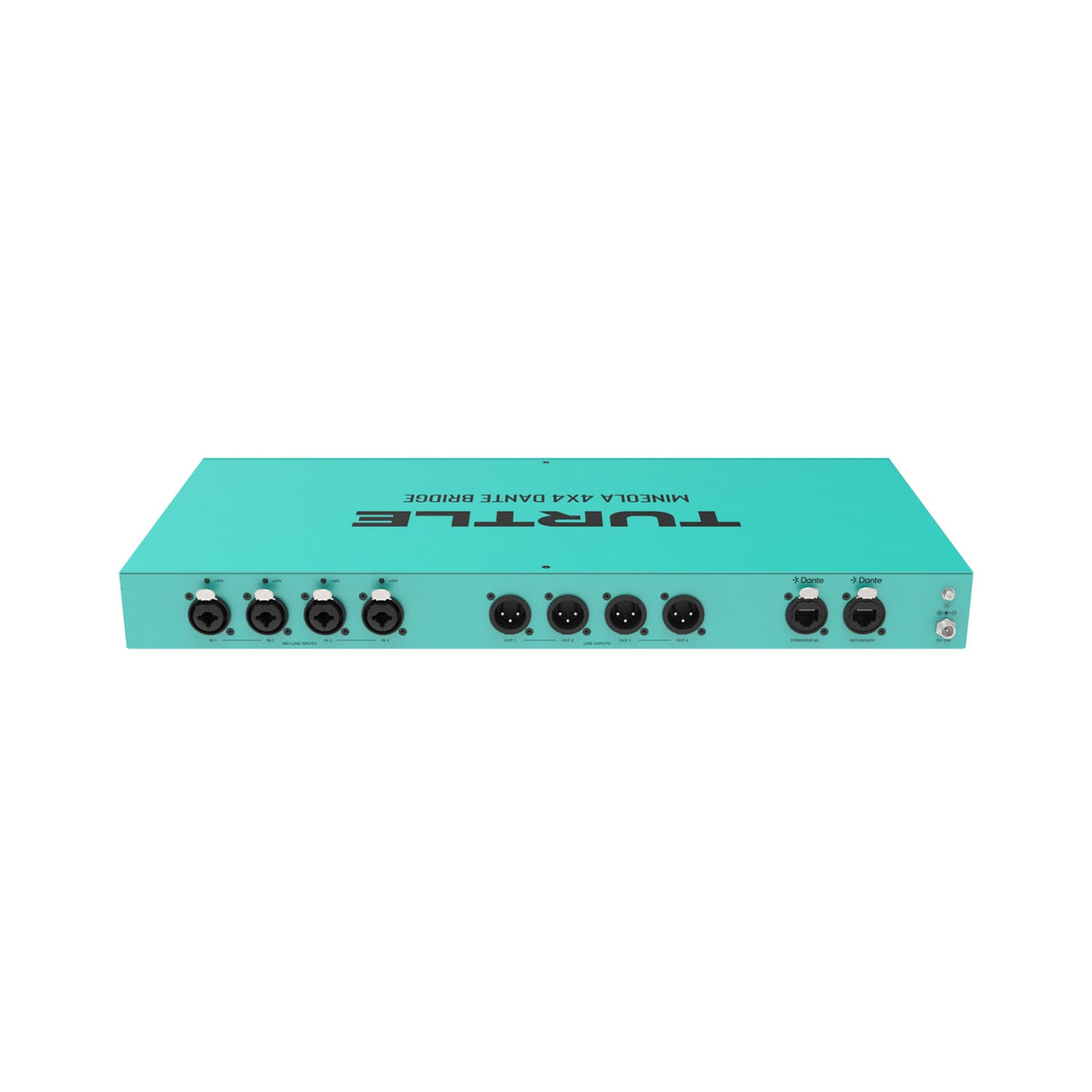

- Mineola 4x4: 4 analog inputs, 4 analog outputs

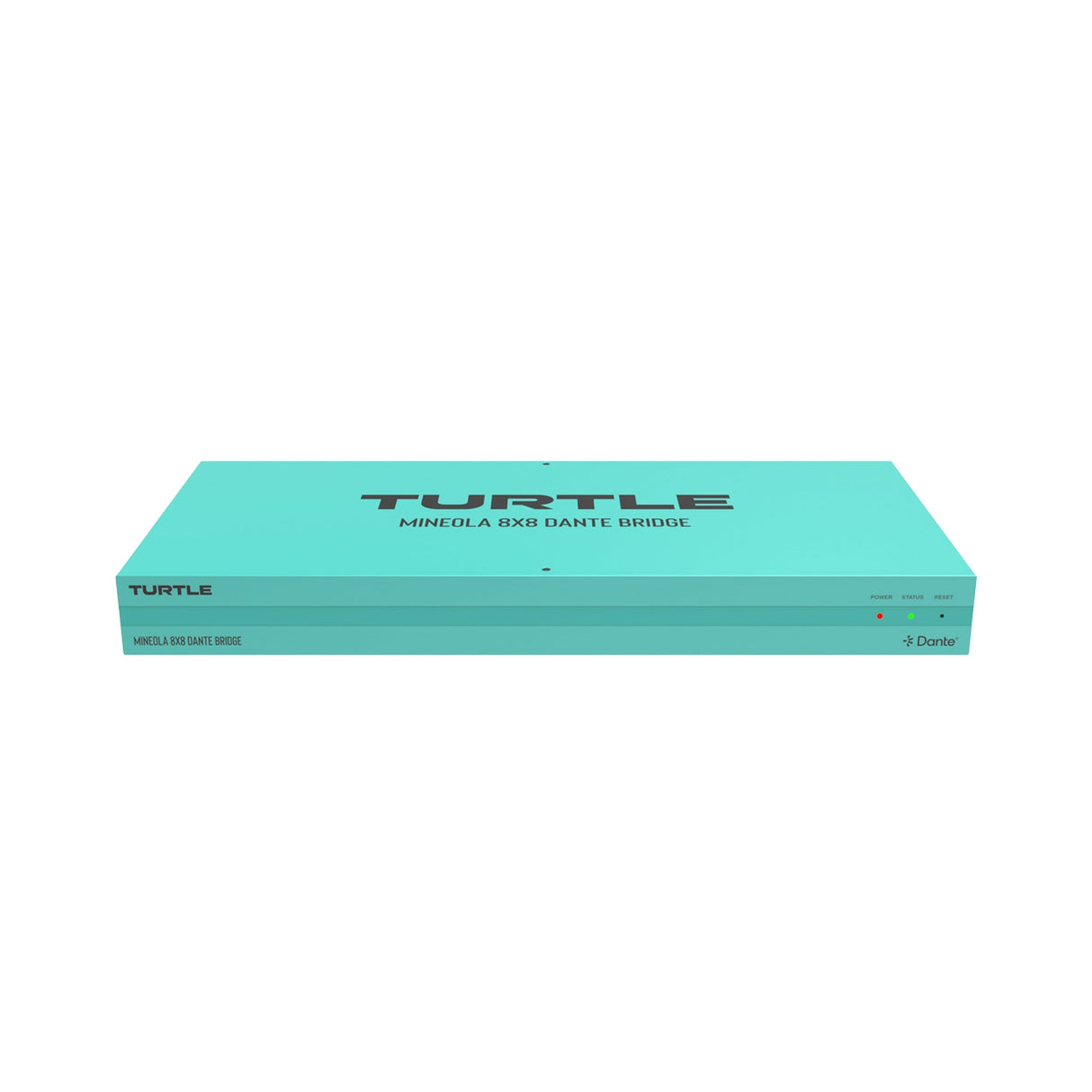

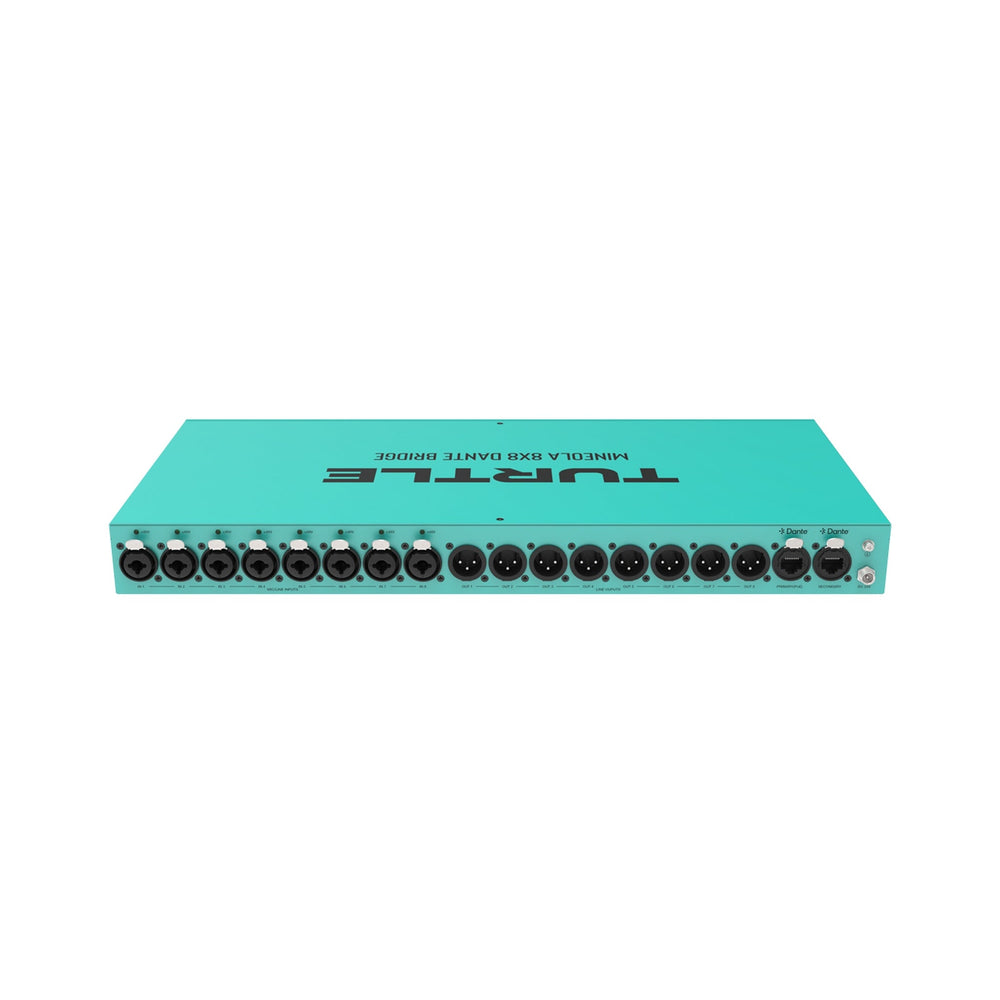

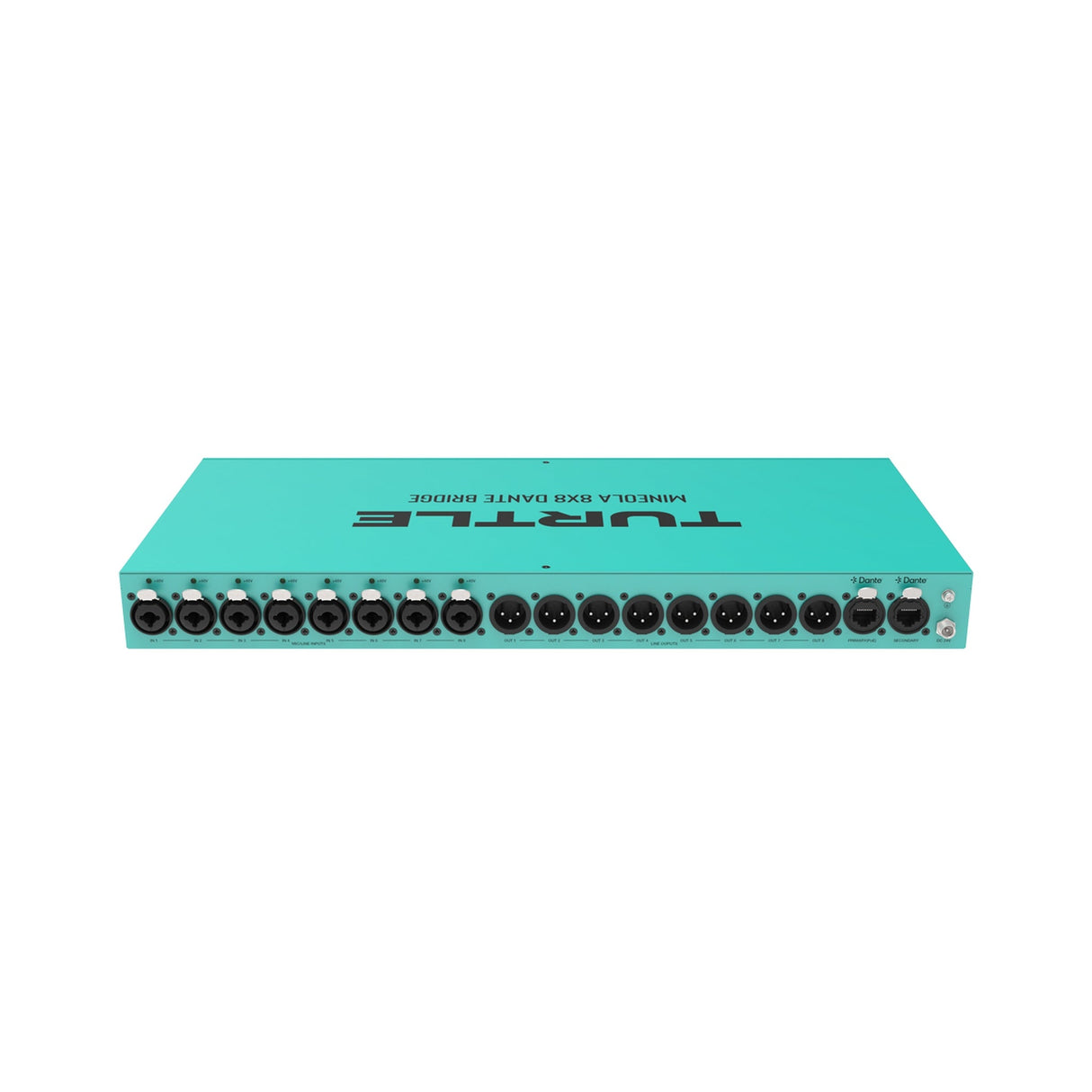

- Mineola 8x8: 8 analog inputs, 8 analog outputs

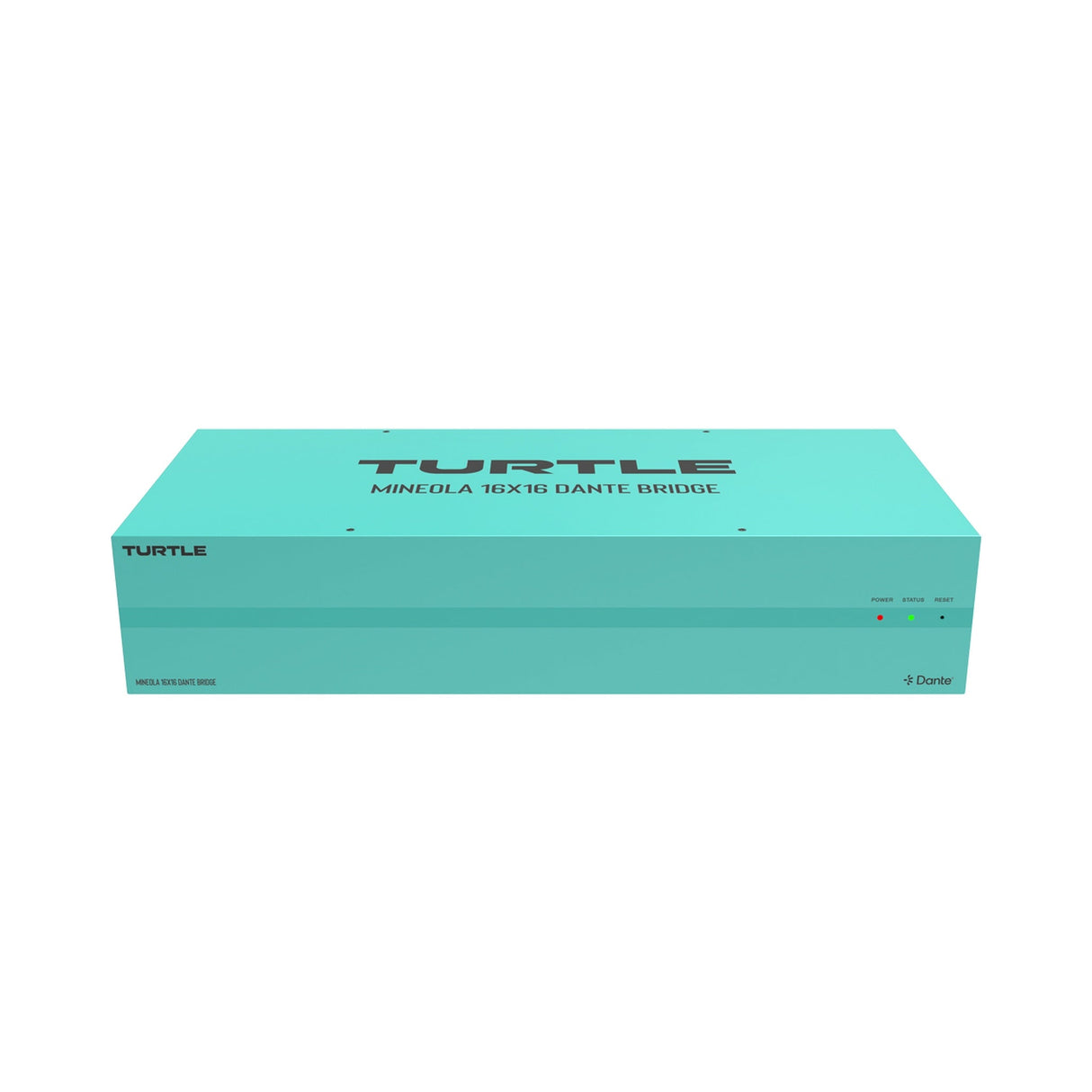

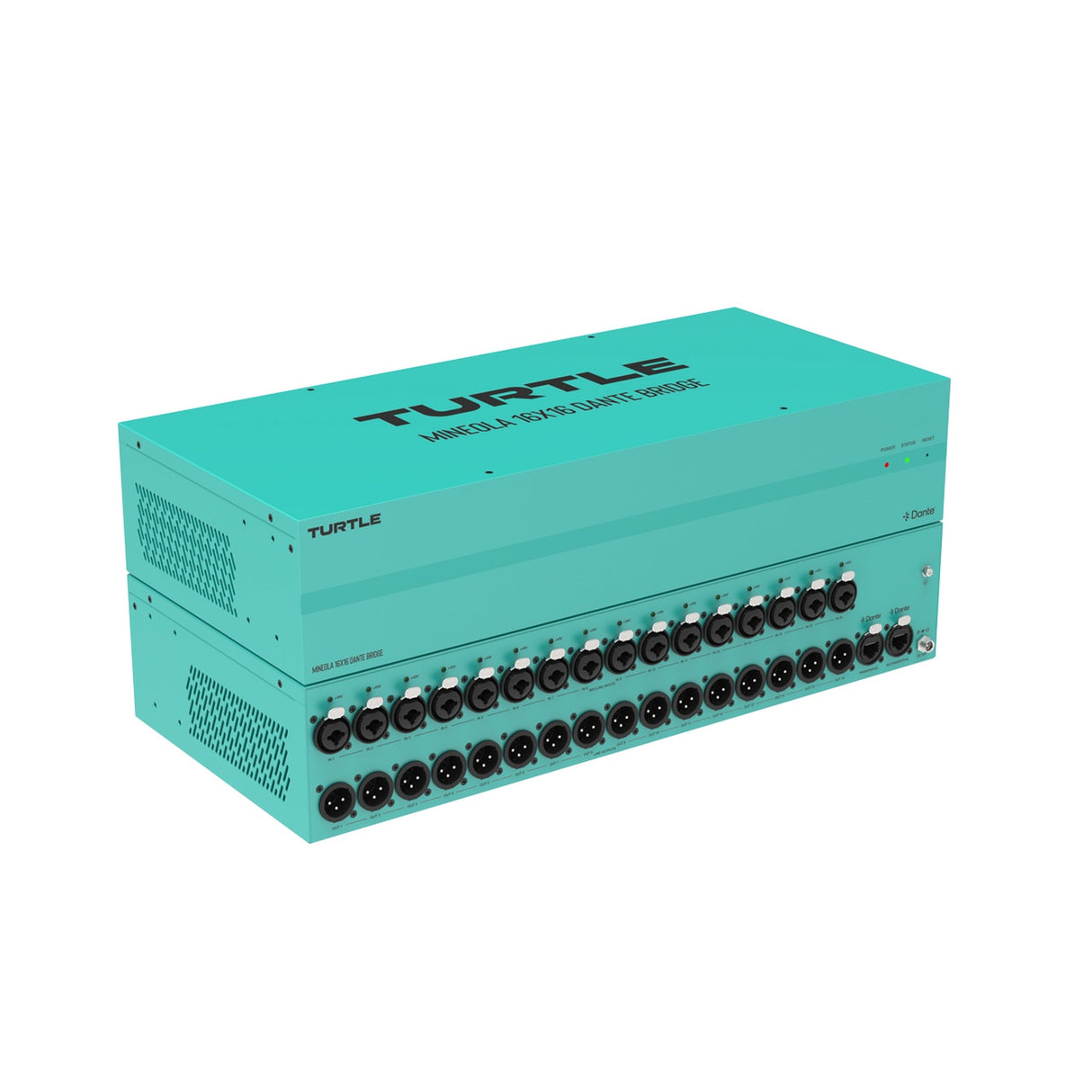

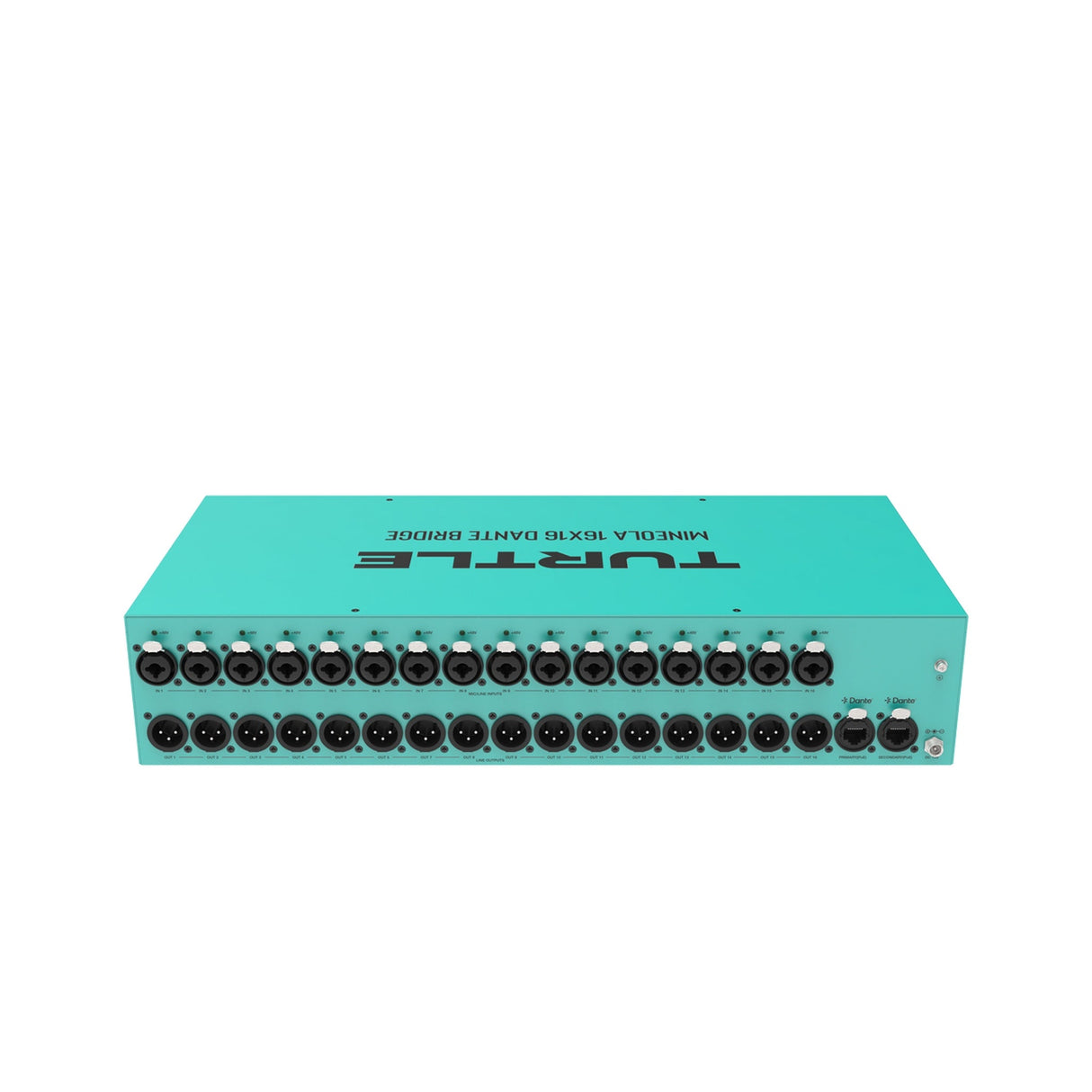

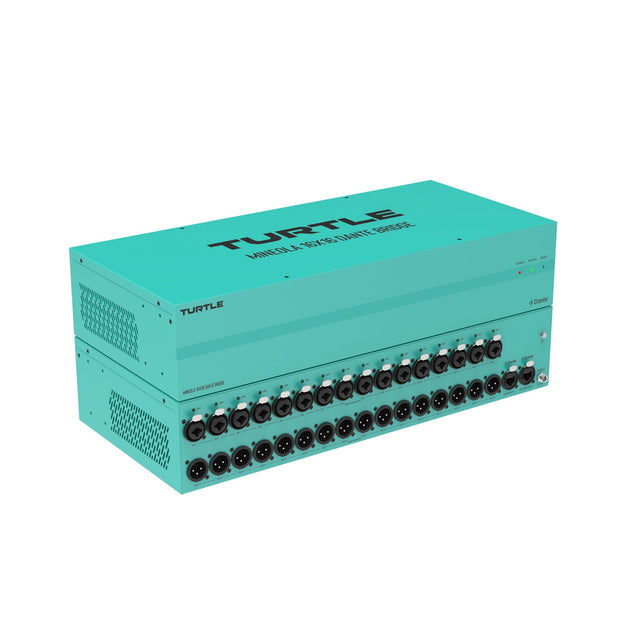

- Mineola 16x16: 16 analog inputs, 16 analog outputs
Key Features
- Bidirectional Analog Dante Conversion: Converts analog XLR TRS audio to Dante and Dante audio back to analog outputs.
- Dual Network Ports: Primary and Secondary Dante ports for redundant streaming paths.
- 48 V Phantom Power: Selectable phantom power available on all analog inputs.
- Locking Connectors: Secure XLR TRS combo jacks and robust network connectors for professional reliability.
- PoE or DC Powered: Supports standard PoE for simplified installs and DC input for alternate power.
- Rack Mountable: Metal chassis with rack ears for integration in equipment racks.
- Dante and AES67 Compatible: Works with Dante Controller and integrates with AES67 networks.
Technical Specifications
- Audio I O: Balanced or unbalanced XLR TRS combo inputs and outputs
- Phantom Power: 48 V phantom power on all inputs
- Network Protocols: Dante and AES67
- Network Ports: Dual RJ45 Primary and Secondary
- Power Options: PoE (IEEE 802.3af) or external DC input
- Chassis: Metal enclosure, rack mountable (1U or 2U depending on model)
- Channel Counts: 2x2, 4x4, 8x8, 16x16 models
