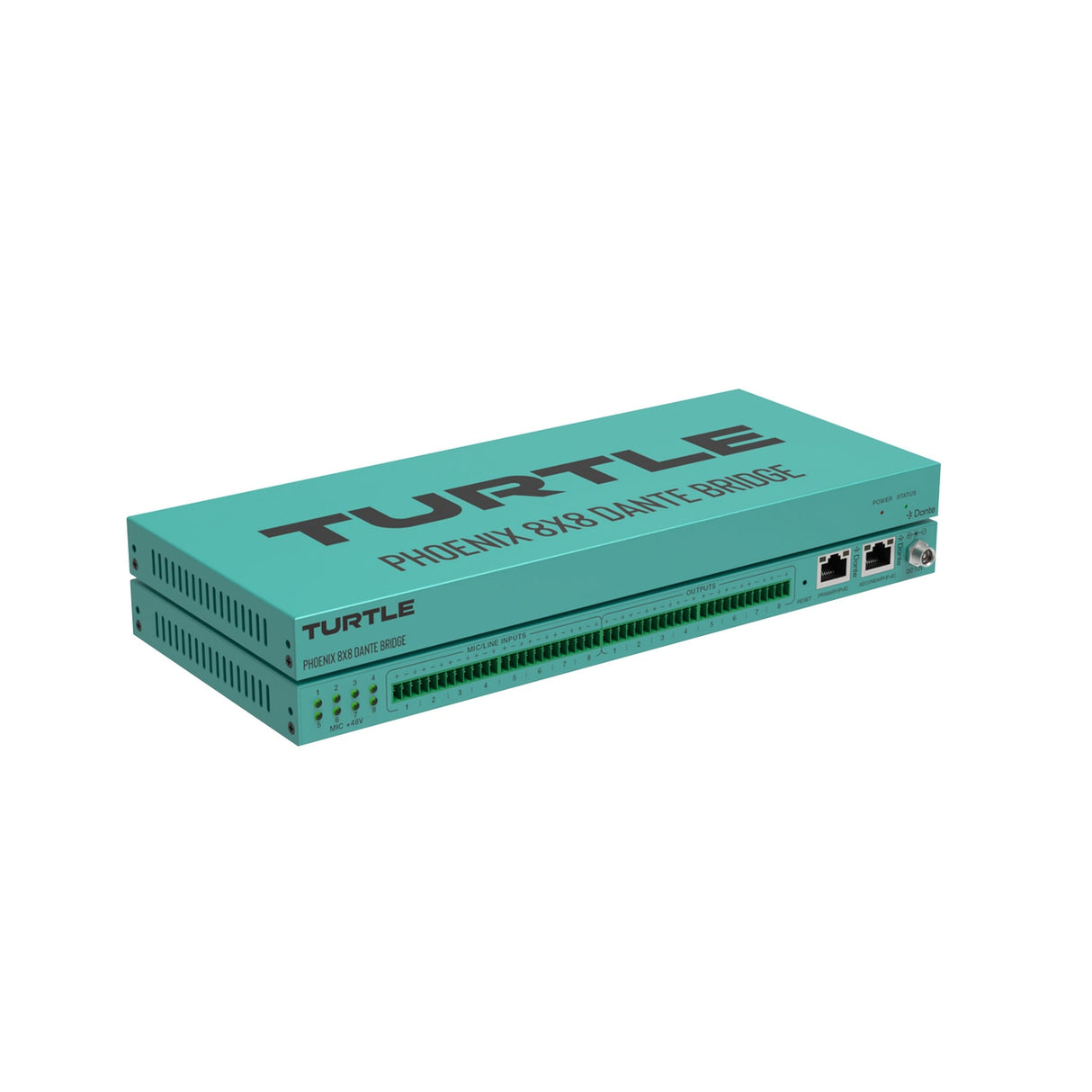

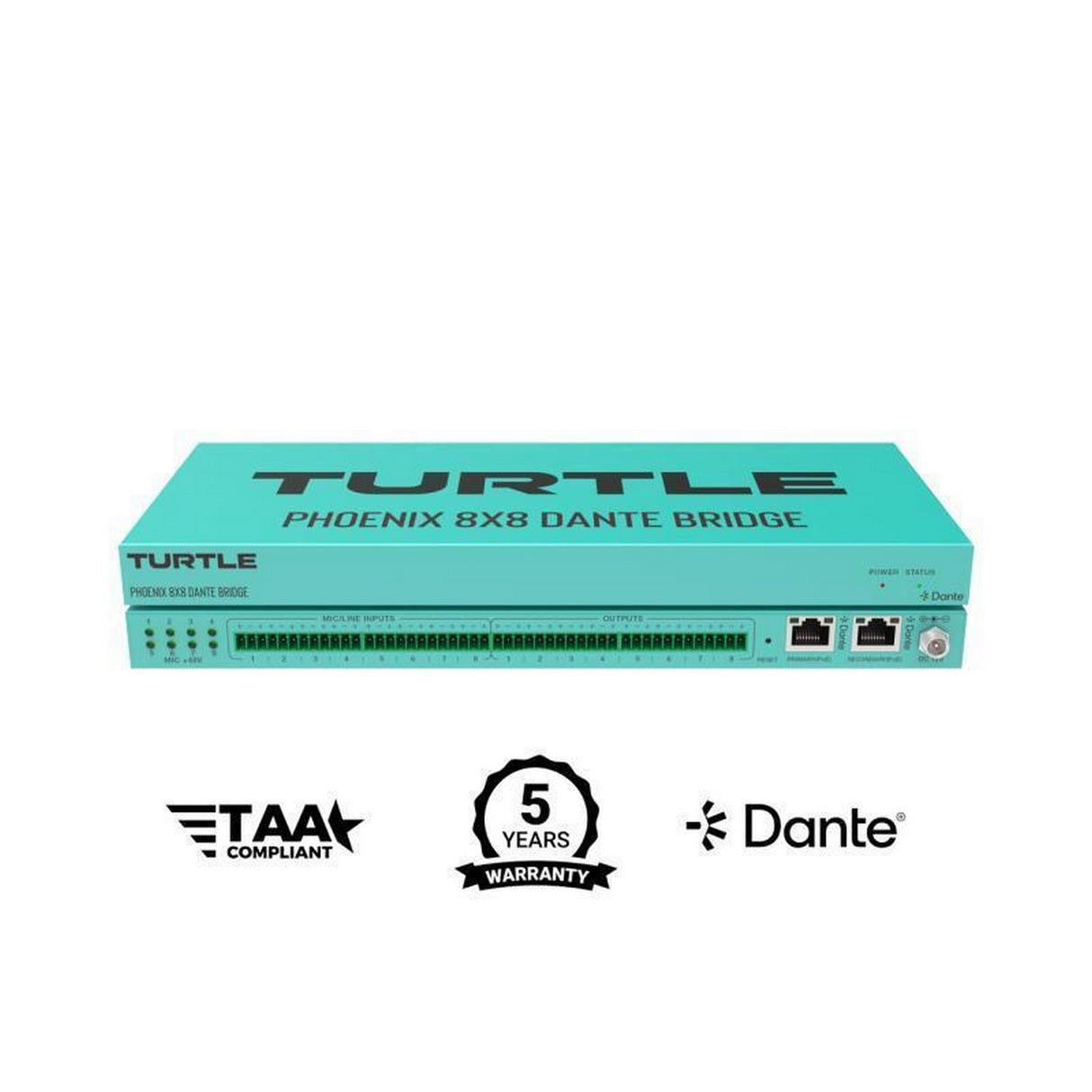

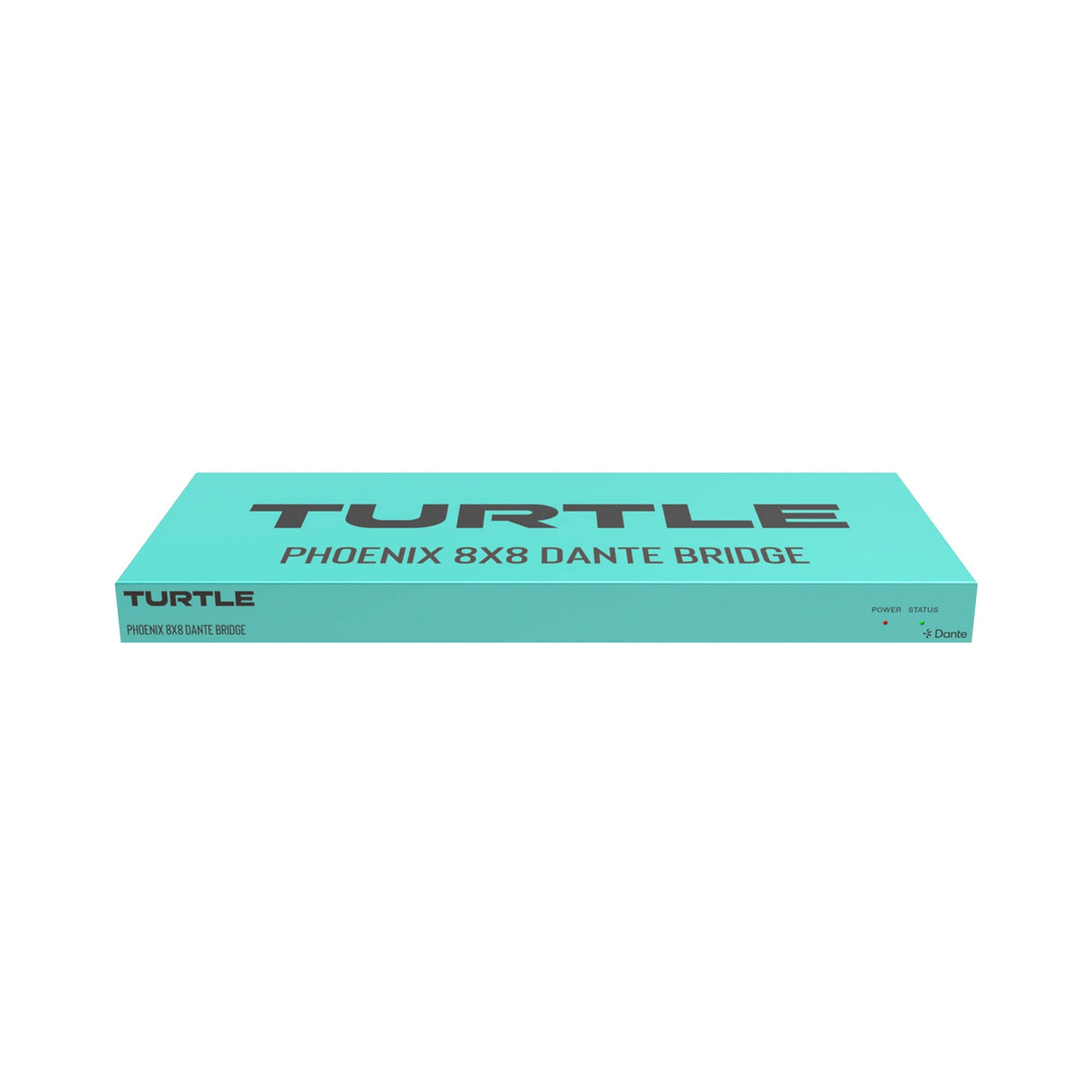

Turtle AV Phoenix 8x8 Dante Audio Bridge
The Turtle AV Phoenix 8x8 Dante Audio Bridge is a professional-grade analog-to-Dante and Dante-to-analog interface designed for demanding audio systems, live events, broadcast, and installation use. With eight balanced/unbalanced analog inputs and eight analog outputs, each on secure Euroblock connectors and supporting 48 V phantom power, this unit offers flexible connectivity for microphones, mixers, playback devices, and networked audio systems.
Featuring dual redundant Dante network ports (Primary and Secondary), PoE power on both network ports, and a locking DC backup option for triple-redundant power, the Phoenix 8x8 ensures continuous, stable performance. Integrated DSP with Web GUI control allows input gain, EQ, delay, output gain, and preset management — enabling precise audio tuning and configuration. Despite its power and flexibility, the unit remains compact and rack-mountable (1RU), ideal for rack rooms, mobile production racks, or permanent AV installations.
Whether bridging legacy analog gear into a Dante network, converting Dante streams to analog outputs, or routing multiple analog sources across a network, the Phoenix 8x8 delivers versatility, reliability, and top-tier audio performance for professional AV projects.
Key Features
- 8-in / 8-out Analog-Dante Bridge: Eight balanced/unbalanced analog inputs and eight analog outputs via Euroblock connectors with 48 V phantom power on inputs.
- Dante Network Audio I/O: Full Dante compatibility for network distribution of multi-channel audio.
- Dual Network Ports with Redundancy: Primary and Secondary Dante RJ45 ports with PoE on both for redundant streaming and power.
- Triple Power Redundancy: Dual PoE plus optional locking DC input ensures backup power for critical systems.
- Built-in DSP with Web GUI: Input gain, 8-band parametric EQ, delay control, output gain, and preset recall for flexible audio management.
- Adjustable Level & Gain Settings: Configurable line-up level and adjustable sensitivities to match various signal sources.
- Compact Rack-Mount Design: 1RU metal chassis with included rack ears — suitable for installation racks or portable setups.
- Full Dante & AES67 Compatibility: Works with Dante Controller and all major Dante-based software and hardware ecosystems.
Technical Specifications
- Analog Inputs: 8 channels, balanced or unbalanced, with 48 V phantom power
- Analog Outputs: 8 channels, balanced or unbalanced
- Dante Output/Input: 8 channels digital audio via RJ45 Dante network ports
- Network Bandwidth: 100 Mbps Ethernet
- Dante Latency (Configurable): 1 ms / 2 ms / 5 ms via Dante Controller
- Audio Processing: Input gain, 8-band parametric EQ, delay control
- Level Adjustments: Global lineup level and per-channel sensitivity / output gain settings
- Power Supply: PoE (IEEE 802.3af) via either network port, or external 12 V DC locking input for redundancy
- Power Consumption: ~4 W
- Enclosure: Metal chassis, 1 RU rackmount
- Operating Range: 32–104 °F; 20–90% relative humidity (non-condensing)
- ESD Protection: IEC 61000-4-2 air discharge ±8 kV / contact discharge ±4 kV
