AtlasIED AA200PHD‑CE 200W Mixer Amplifier with PHD Diagnostics
The AtlasIED AA200PHD‑CE is a robust 200 W mixer amplifier tailored for business paging, background music (BGM), speech privacy, and music-on-hold applications. Equipped with four balanced mic/line inputs (with phantom power) and two summing stereo line channels, it handles multiple audio sources—microphones, media players, and VOIP systems—simultaneously. Its unique Push Here Diagnostic (PHD) function automatically checks speaker wiring and impedance on 100 V distributed systems with a simple front-panel button.

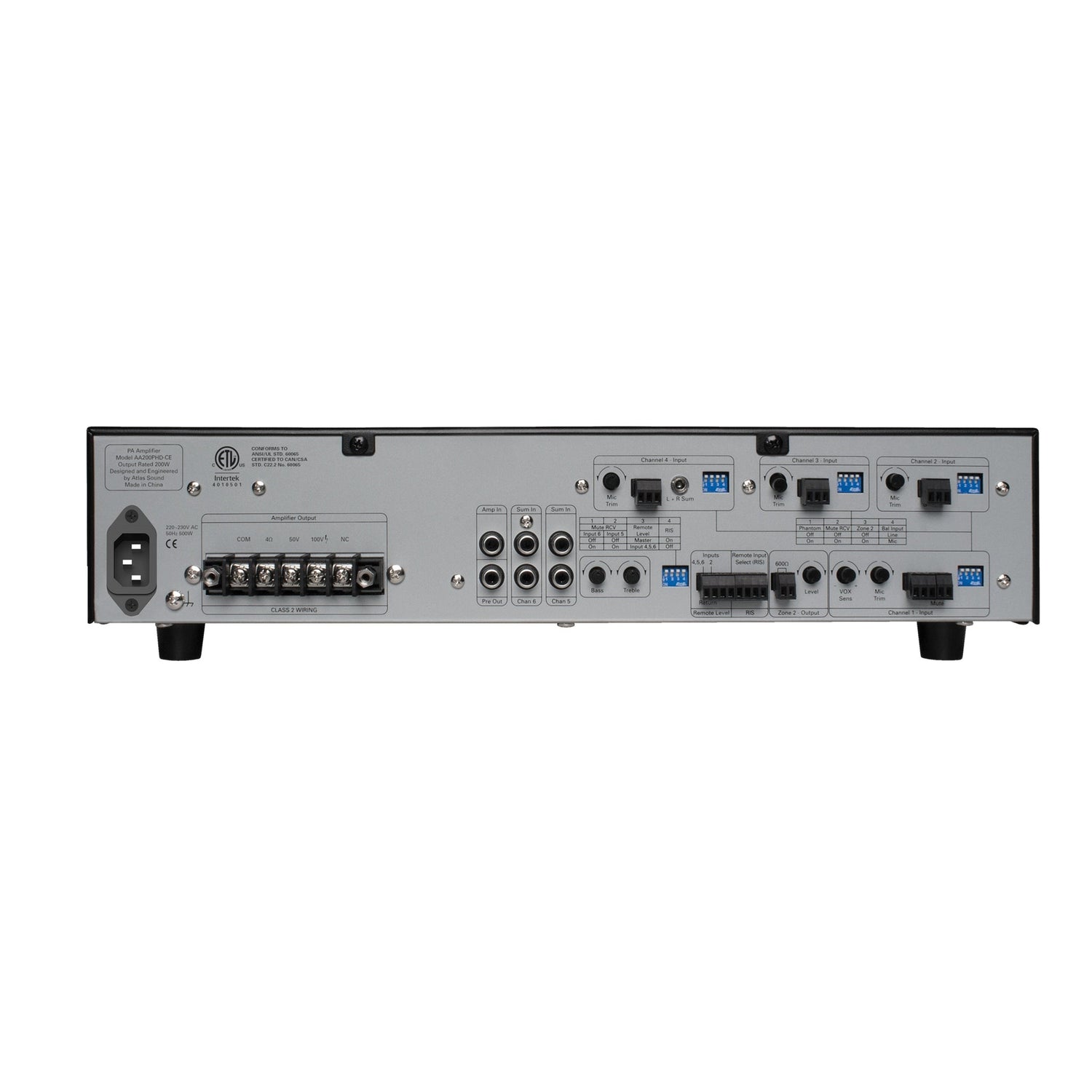

With outputs suitable for 4 Ω, 50 V, and 100 V speaker systems, the AA200PHD‑CE provides flexibility for varied installation needs. Remote input selection and level control are supported via an optional wall plate (WPD‑RISRL). Additional features include VOX paging, contact-closure mute, a dedicated Zone 2 output, and preamp in/amp out capability for external signal processing. Housed in a compact 1U chassis with full front-panel bass/treble controls, this amplifier delivers professional-grade audio control in commercial environments.
Key Features
- 200 W Multi-Load Output: Supports 4 Ω, 50 V, and 100 V speaker configurations
- PHD Auto‑Test Diagnostics: Verifies speaker line wiring and impedance at the press of a button
- Six Input Channels: 4 mic/line (with phantom power), 2 unbalanced stereo inputs
- Remote Control Capable: Input select and level control via optional wall plate
- VOX & Mute Functions: Paging priority and contact-closure muting for flexible operation
Technical Specifications
- Power Output: 200 W RMS (4 Ω/50 V/100 V)
- Frequency Response: 50 Hz–15 kHz
- Dimensions: 16.54″ W × 3.66″ H × 14.6″ D
- Weight: 26 lbs (11.6 kg)
- Front-Panel Controls: Bass & treble ±6 dB, master/input level, PHD test button
- Certifications: CE-listed, RoHS compliant
- Warranty: 36 months from date of purchase
What’s Included in the Box
- 1 × AtlasIED AA200PHD‑CE mixer amplifier (1U rackmount chassis)
- Detachable IEC power cord
- User manual and warranty documentation
