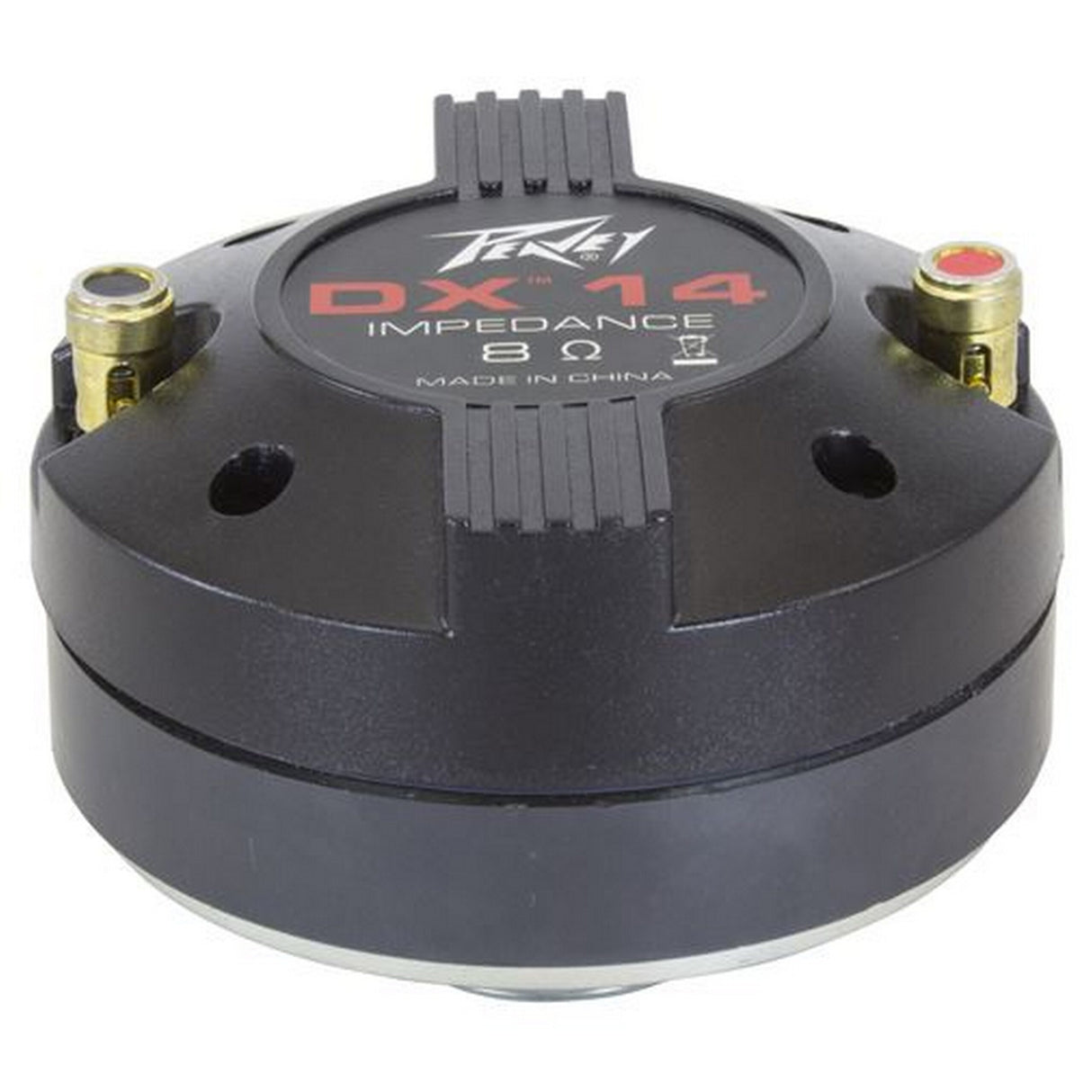

Peavey DX 14 High Frequency Driver
The Peavey DX 14 High Frequency Driver is a direct replacement driver for the Peavey DM 112 and DM 115 enclosures.
Technical Specifications
Voice Coil Diameter
1.35 / 34.3 mm
Throat Parameter
.962 / 24.4 mm
Nominal Impedance
8 Ohms
Minimum Impedance
6.7 Ohms
DC Resistance
6.2 Ohms
Power Capacity 2000 Hz to 20,000 Hz
140 W peak, 70 W program, 35 W continuous using pink noise band limited from 1000 Hz to 20 kHz (AES 2-1984)
Sensitivity
103 dB / 1W 1m On-axis on 90(deg) H x 40(deg) V horn
Nominal Efficiency
28%
Frequency Response
1.0 Hz to 20,000 Hz
Recommended Crossover
2000 Hz at 12 dB / Octave
Lowest Recommended Crossover
1500 Hz at 12 dB / Octave
Diaphragm
Titanium
Voice Coil Material
Copper Clad Aluminum Wire with a High temp Kapton bobbin
Dimensions
3.44 (87.3 mm) diameter x 2.44 (62 mm) depth
Horn Coupling Diameter
.962 (24.4 mm)
Horn Coupling Threads
Standard 1 3/8 - 18
Net Weight
2 lbs.
Shipping Weight
2 lbs. 4 oz.
