Peavey RX 22N Neo High Frequency Driver
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New

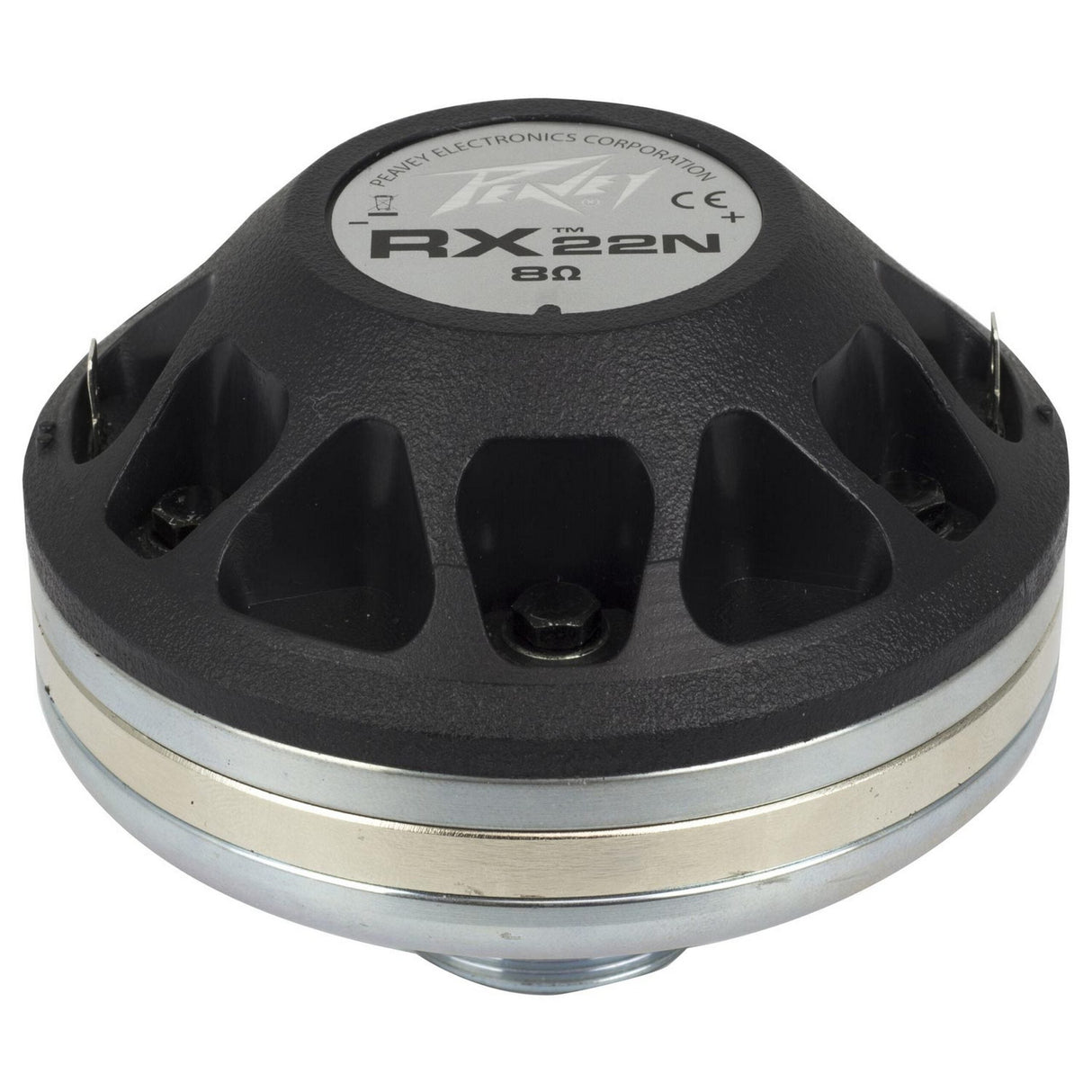

Peavey RX 22N Neo High Frequency Driver
RX 22N Neo HF Driver
Key Features
- 2”
Technical Specifications
Throat Parameter
0.875” / 22 mm
Nominal Impedance
8 Ohms
Minimum Impedance
5.2 Ohms
DC Resistance
5.1 Ohms
Power Capacity 1000 Hz to 20,000 Hz
280 W peak, 140 W program, 70 W continuous, using pink noise band limited from 1000 Hz to 20 kHz (AES 2-1984)
Sensitivity
111 dB / 1W 1m On-axis on 90º H x 45º V horn
Nominal Efficiency
30%
Frequency Response
500 Hz to 20,000 Hz
Recommended Crossover
1,200 Hz at 12 dB / Octave
Lowest Recommended Crossover
500 Hz at 12 dB / Octave
Diaphragm
Commercially pure titanium
Voice Coil Diameter
2.0” / 50.8 mm
Voice Coil Material
Edge-wound copper-clad aluminum ribbon with a high temp composite bobbin
Voice Coil Cooling
Ferrofluid
Flux Density
20,500 gauss (2T)
Dimensions
3.858” (98 mm) diameter x 3.01” (76.4 mm) depth
Horn Coupling Diameter
7/8” (22.2 mm)
Horn Coupling Threads
Standard 1 3/8” - 18”
Net Weight
2 lbs. 12 oz.
Shipping Weight
3 lbs. 11.5 oz.
Diaphragm Kit
03617300
Weight Packed
2.98 lb(1.35 kg)
Width Packed
4.5”(11.43 cm)
Height Packed
4.725”(12.0015 cm)
Depth Packed
3.55”(9.017 cm)
