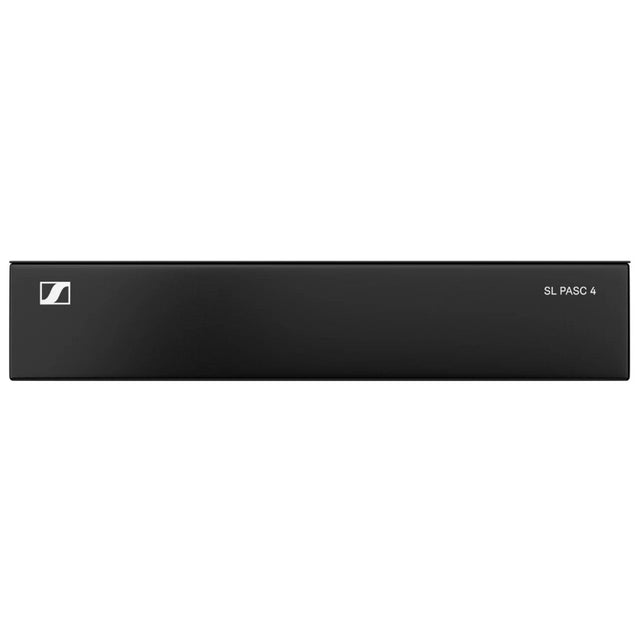

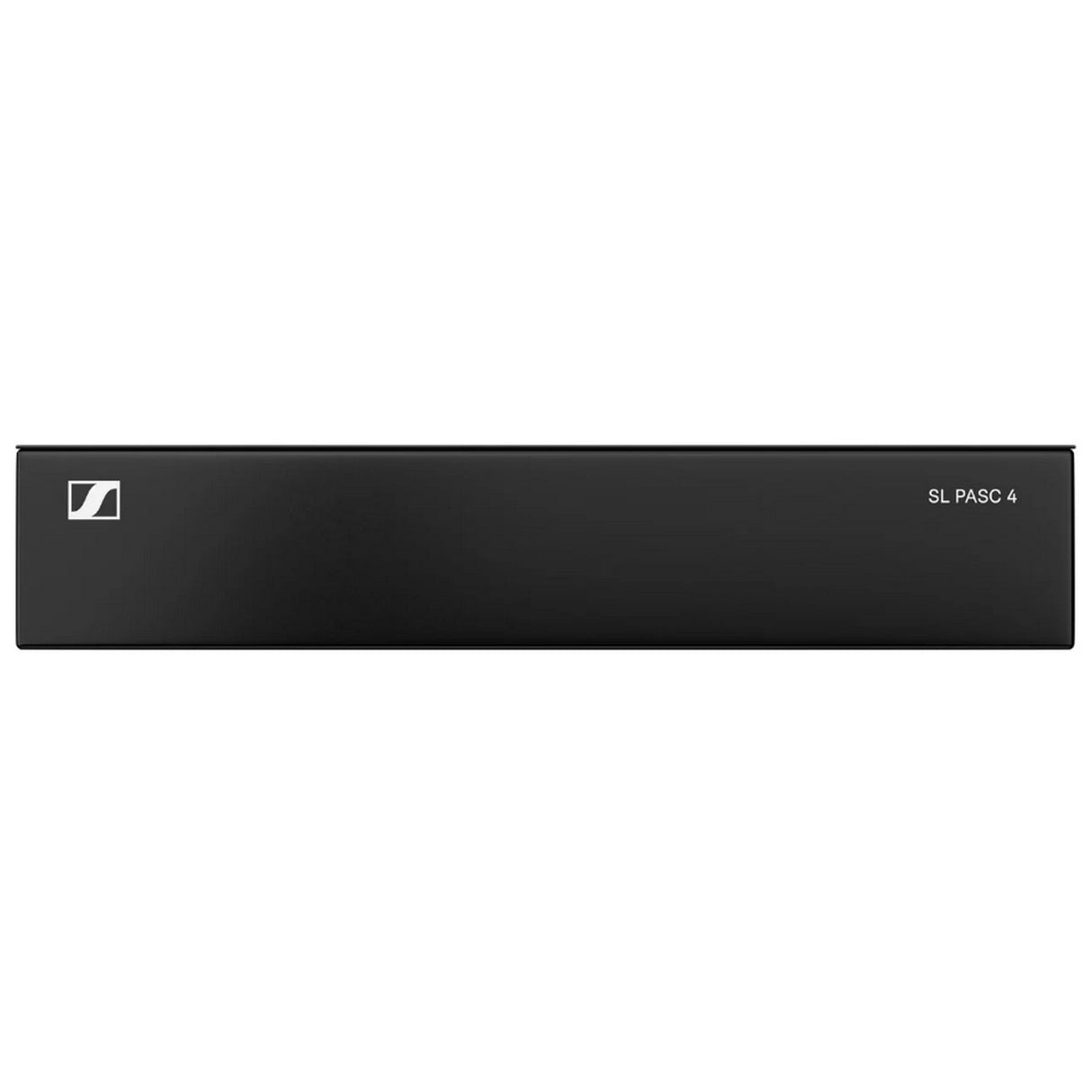

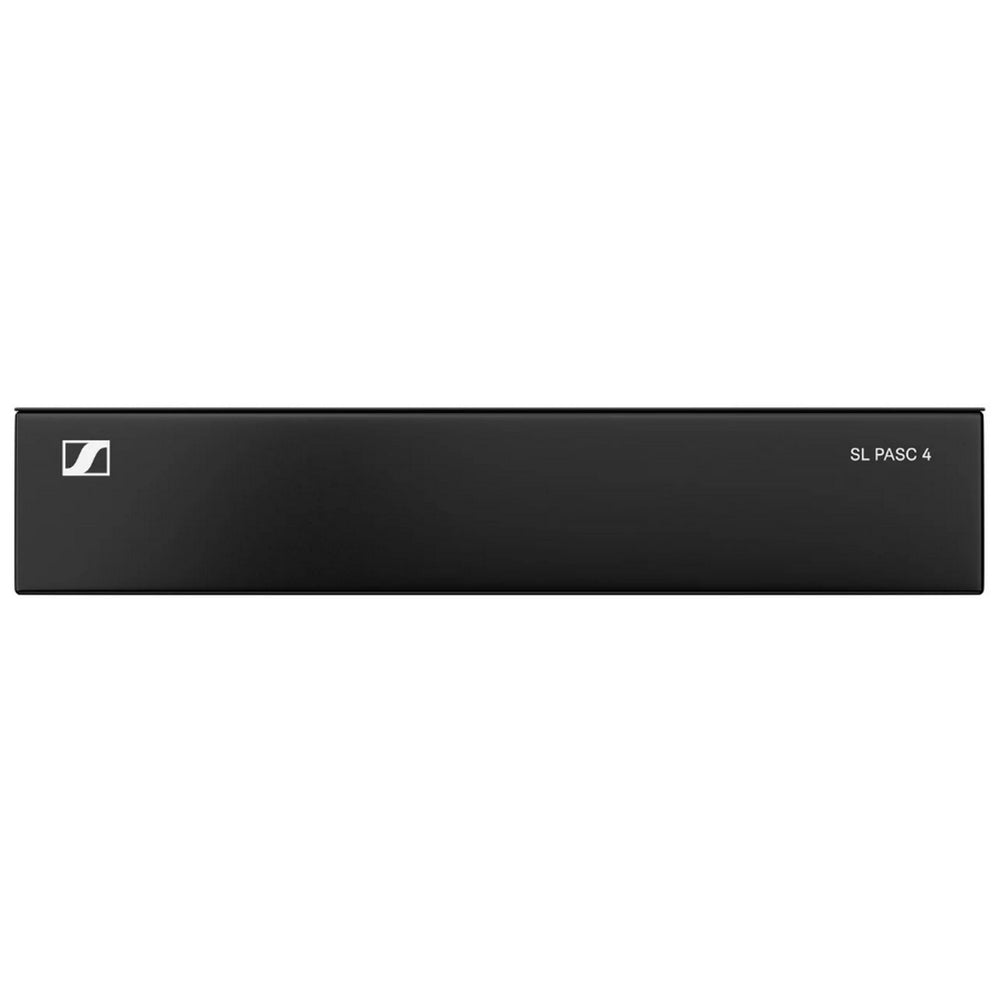

Sennheiser SL PASC 4 4-Way True Diversity Antenna Splitter/Combiner
The Sennheiser SL PASC 4 is an indispensable tool for any professional audio setup, specifically designed for use with the SpeechLine Digital Wireless microphone series. This versatile passive 4-way antenna splitter/combiner allows users to distribute antenna signals for up to four SpeechLine Digital Wireless links, significantly reducing the number of required antenna cables. By utilizing the remote AWM 2 or AWM 4 antennas, you can ensure optimal signal reception while maintaining a clutter-free environment. The supplied SMA-R cables make it easy to connect the rack receivers to the SL PASC 4, streamlining the entire setup process.
Ideal for live performances, lectures, or any large-scale event that demands flawless audio transmission, the Sennheiser SL PASC 4 enhances signal stability and reduces interference. Its robust and compact design, measuring 210 x 160 x 41 mm and weighing in at 663g, makes it a durable and portable option for any setting. With an operating temperature range from -40 to 85°C, this antenna splitter/combiner is built to withstand a variety of environmental conditions, ensuring reliable performance no matter where you are.
In addition to its practical design and impressive technical capabilities, the Sennheiser SL PASC 4 features 8 RF outputs for connecting up to 4 SL Rack Receiver DW units and 2 RF inputs for additional antennas. This allows for a high level of customization and flexibility in your audio setup, making it a valuable addition to any professional's toolkit.
Key Features
- Operates in the 1880 - 1930 MHz DECT range
- 8 RF outputs for connecting up to 4 SL Rack Receiver DW units
- 2 RF inputs to connect AWM 2 or AWM 4 antennas
- SMA-RP connectors for seamless connectivity
- Passive antenna combiner/splitter design
Specifications
- Dimensions: 210 x 160 x 41 mm
- Weight: 663g
- Attenuation: 14 dB typ.
- Operating temperature: -40 to 85°C
- Color: Black
- Frequency: 1880 - 1930 MHz
- Frequency band: DECT
- Antenna Connector: 10x RP-SMA (AC coupled)
- Input power: 1.5 W max
- Maximum number of connected receivers: 4
Package Contents
- 1 x SL PASC 4 unit
- 8 x SMA-RP cable (length 60 cm)
- Quickguide
- Safety guide
