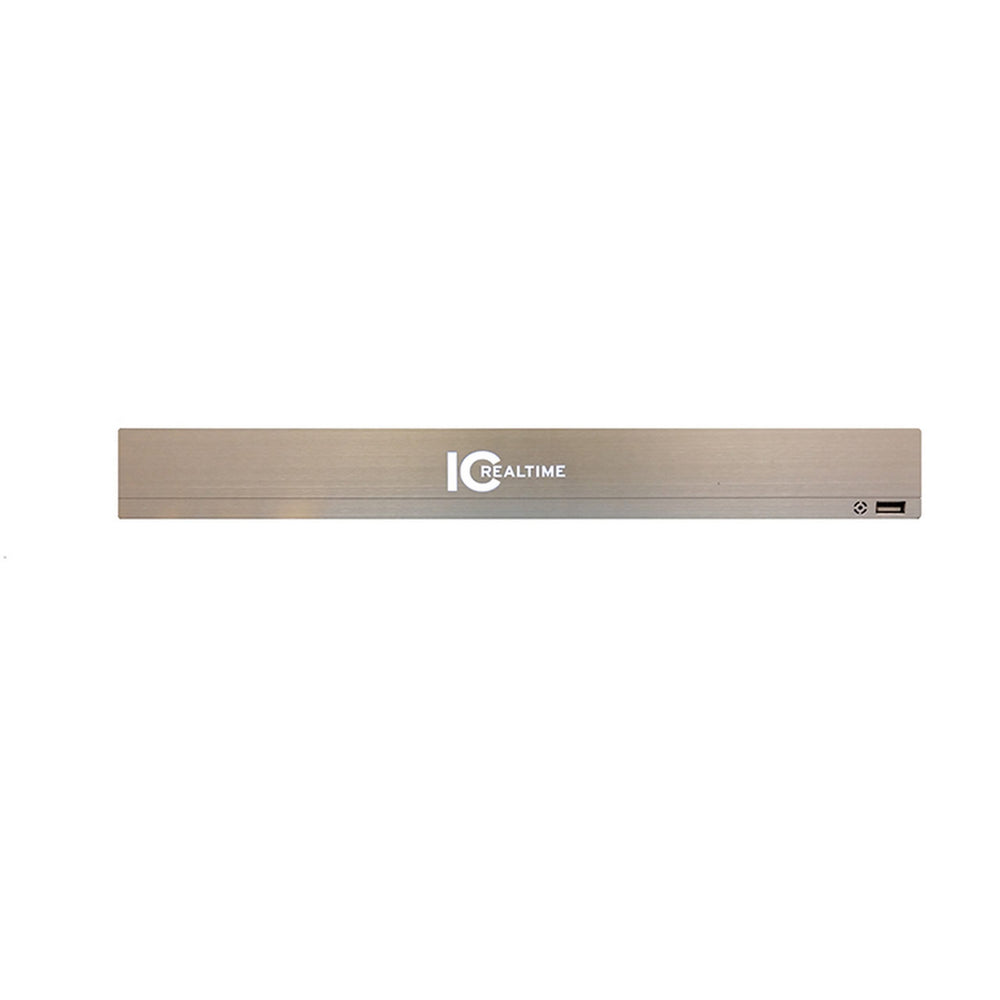

IC Realtime AVR-1404 4 Channel Coax and 4 IP 1U Shelf-Mount Multi-Signal AVR, 2TB Hard Drive
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
IC Realtime AVR-1404 4 Channel Coax and 4 IP 1U Shelf-Mount Multi-Signal AVR, 2TB Hard Drive
The IC Realtime AVR-1404 is a robust, versatile recorder that integrates seamlessly with both analog and IP camera systems. Engineered for optimal performance in mixed environments, the AVR-1404 leverages premier Pentabrid technology to support five different analog signals. This flexibility makes it an ideal solution for upgrading existing systems to higher resolutions without replacing older analog cameras. Capable of recording up to 960H resolution for analog cameras and up to 5MP for IP cameras, this recorder delivers crisp, clear footage every time.
The AVR-1404 is equipped with a single Mic Input and Speaker Output for bidirectional audio, enhancing communication and interaction through your security system. Despite its compact 1U desktop-style housing, this recorder offers substantial storage and operational capabilities with support for up to two internal HDDs. Thanks to H.264+ compression technology, it ensures high-quality image recording with minimal bandwidth usage. Designed with stability, performance, and reliability in mind, the AVR-1404 operates on an embedded Linux operating system, making it fully compatible with remote operation over standard Ethernet networks.
Key Features
- 4+2 Channels with up to 6MP resolution
- 24Mbps Total Bandwidth
- 1 RJ-45 Port (10/100M)
- Conformance with ONVIF 16.12 CGI
- Supports 1 HDD
- 2 USB Ports and Alarm Inputs
- Video Outputs: 1 HDMI / 1 VGA
- Compact Mini 1U Design for Desktop or Rack Shelf Installation
- Remote operation capabilities over standard Ethernet networks
Specifications
- Main Processor: Embedded Processor
- Operating System: Embedded LINUX
- Coaxial Input: 4 channel, BNC
- Coaxial formats: HD-AVS, AHD, HD-TVI, CVBS
- IP Camera Input: 4+2 Channel, each channel up to 5MP
- Interface: 1 HDMI, 1 VGA
- Resolution: HDMI - 2560-1440; VGA - 1920-1080
- Multi-screen Display: 1/4/6
- OSD: Camera title, Time, Video loss, Camera lock, Motion detection, Recording
- Video Detection and Alarm: Motion Detection, Video Loss, Camera Blank
- Playback: 1/4
- Search Mode: Time/Date, Alarm, MD, Exact Search
- Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play
- Backup Mode: USB Device / Network
- Internal HDD: 1 SATA Port, up to 8TB capacity for each HDD
- USB Ports: 2 USB 2.0
- RS485: 1 Port for PTZ Control
- Two-way Talk: 1 Mic In, 1 Mic Out, RCA
- Video Compression: H.264+/H.264
- Incoming Bandwidth: 24Mbps
- Record Rate: Main stream - 4MP/3MP (1~15fps); Sub stream - 960H (1~12fps)
- Network Interface: One RJ-45 Port (10/100 Mbps)
- Network Function: HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP
- Max. User Access: 128 users
- Mobile Device Support: iOS, Android
- 3rd Party Compatibility: ONVIF 2.4, CGI
- Power Supply: 12VDC / 4A
- Power Consumption: Less than 15W (Without HDD)
- Operating Conditions: -10 to +55 deg C, 0~90% RH
- Storage Conditions: -20 to +70 deg C, 0~90% RH
- Dimensions: 1U, 375mm x 287mm x 53mm (14.8" x 11.3" x 2.1")
- Weight: 2.35kg (5.2 lb) without HDD
Package Contents
- IC Realtime AVR-1404 4 Channel Coax and 4 IP 1U Shelf-Mount Multi-Signal AVR
- 2TB Hard Drive
