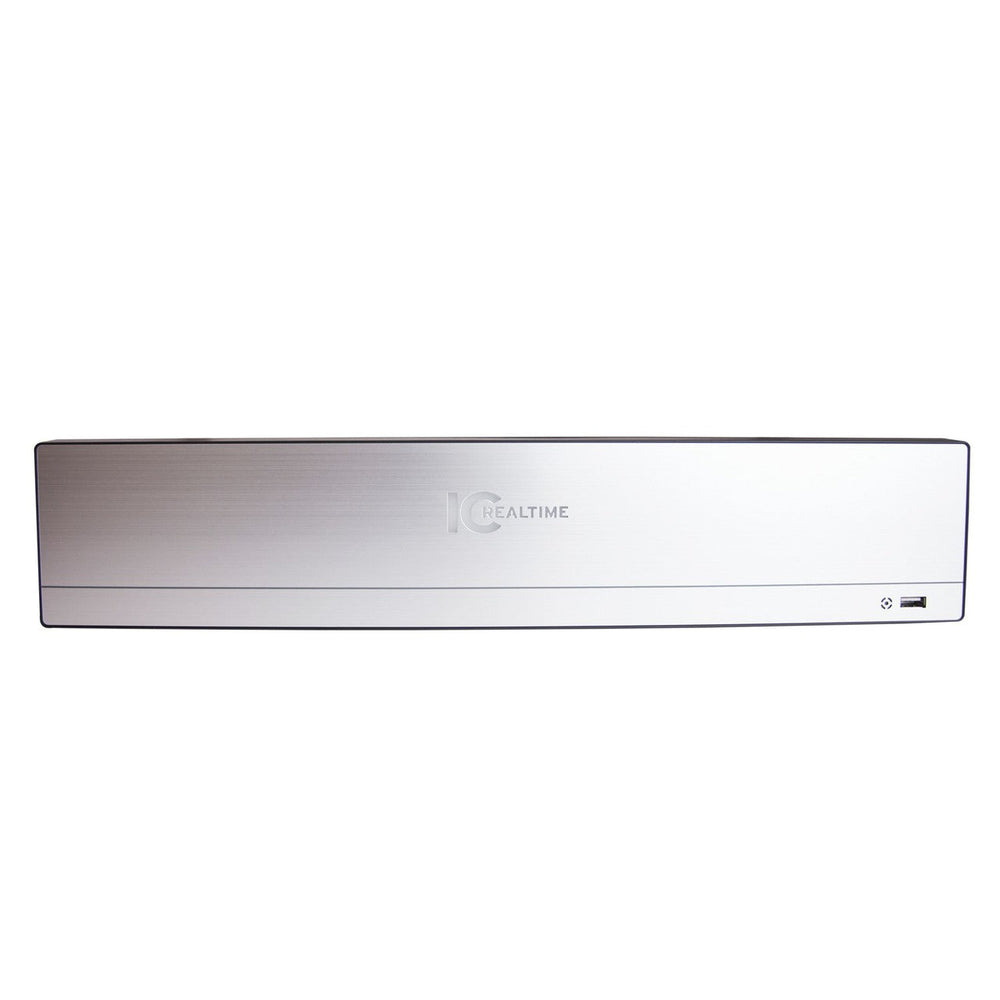

IC Realtime NVR-7516K 4K 16 Channel 2U NVR with 4TB Hard Drive

The IC Realtime NVR-7516K is a powerful 16-channel NVR designed to meet the demanding requirements of modern surveillance systems. Featuring up to 16 channels of 4K video recording and playback, this NVR enables high-definition monitoring with full 8MP resolution. With 16 built-in PoE ports, it simplifies the setup process by providing power directly to your IP cameras. The system is equipped with 8 SATA III ports, accommodating up to 48TB of storage to ensure all your footage is securely recorded. A gigabit Ethernet port allows for seamless data transmission, while HDMI and VGA outputs support up to 4K video display.

Ideal for both desktop and rack mount configurations, the NVR-7516K is engineered with a durable 2U form factor. The embedded quad-core processor and LINUX operating system ensure reliable performance. Advanced features like motion detection, video loss and tampering alerts, as well as comprehensive playback and backup options, make this NVR a robust solution for high-definition surveillance applications. Whether for a commercial or residential setup, the IC Realtime NVR-7516K offers an unmatched combination of performance, scalability, and ease of use.

Key Features

• 16 Channels with up to 8MP resolution
• 200Mbps total bandwidth
• 16 PoE ports (IEEE802.3af/at)
• 1 RJ-45 (10/100/1000Mbps) port
• ONVIF 2.4 CGI Conformant
• 8 HDD slots supporting up to 48TB
• 2 USB ports and multiple alarm interfaces
• 1 HDMI and 1 VGA output
• Quad-core embedded processor
• Embedded LINUX operating system

Specifications

• Main Processor: Quad-core embedded processor
• Operating System: Embedded LINUX
• Interfaces: 1 HDMI, 1 VGA
• Resolutions: 3840-2160, 1920-1080, 1280-1024, 1280-720, 1024-768
• Multi-screen Display: 1/4/8/9/16
• OSD: Camera title, Time, Video loss, Camera lock, Motion detection, Recording
• Trigger Events: Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
• Video Detection: Motion Detection, MD Zones: 396(22-18), Video Loss, Tampering
• Alarm Input: 16 Channel, Low Level Effective, Green Terminal Interface
• Relay Output: 4 Channel, NO/NC Programmable, Green Terminal Interface
• Playback: 1/4/8/16
• Search Mode: Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
• Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
• Backup Mode: USB Device/Network
• Internal HDD: 8 SATA III Ports, Up to 6 TB capacity for each HDD
• USB: 3 USB Ports (2 USB2.0, 1 USB3.0)
• RS232: 1 Port, for PC Communication and Keyboard
• RS485: 1 Port, for PTZ Control
• IP Camera Input: 16 Channel
• Two-way Talk: 1 Channel Input, 1 Channel Output, RCA
• Compression: H.265/H.264
• Resolution: 8Mp/6Mp/5MP/4MP/3MP/1080P/1.3MP/720P
• Record Rate: 200Mbps
• Bit Rate: 16Kbps ~ 20Mbps Per Channel
• Record Mode: Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), Stop
• Record Interval: 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
• Network Interface: 1 RJ-45 Port (10/100/1000Mbps)
• Ethernet Port: 1 Independent 1000Mbps Ethernet Port
• PoE: 16 ports (IEEE802.3af/at)
• Network Function: HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP
• Max. User Access: 128 users
• Smart Phone Support: iPhone, iPad, Android
• Interoperability: ONVIF 2.4, CGI Conformant
• Power Supply: AC100V ~ 240V, 50 ~ 60 Hz
• Power Consumption: NVR: <14.1W (Without HDD), PoE: Max 25.5W for single port, 150W in total
• Operating Conditions: -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
• Storage Conditions: -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
• Dimensions: 2U, 440mm-450.1mm-95mm (17.3" x 17.7" x 3.7")
• Net Weight: 5.4kg (11.9 lb) (without HDD)
• Gross Weight: 9.5kg (20.9 lb) (without HDD)

Package Contents

• 1 x IC Realtime NVR-7516K
• 1 x 4TB Hard Drive
• Power Supply
• Quick Start Guide
