Condition: New
Description

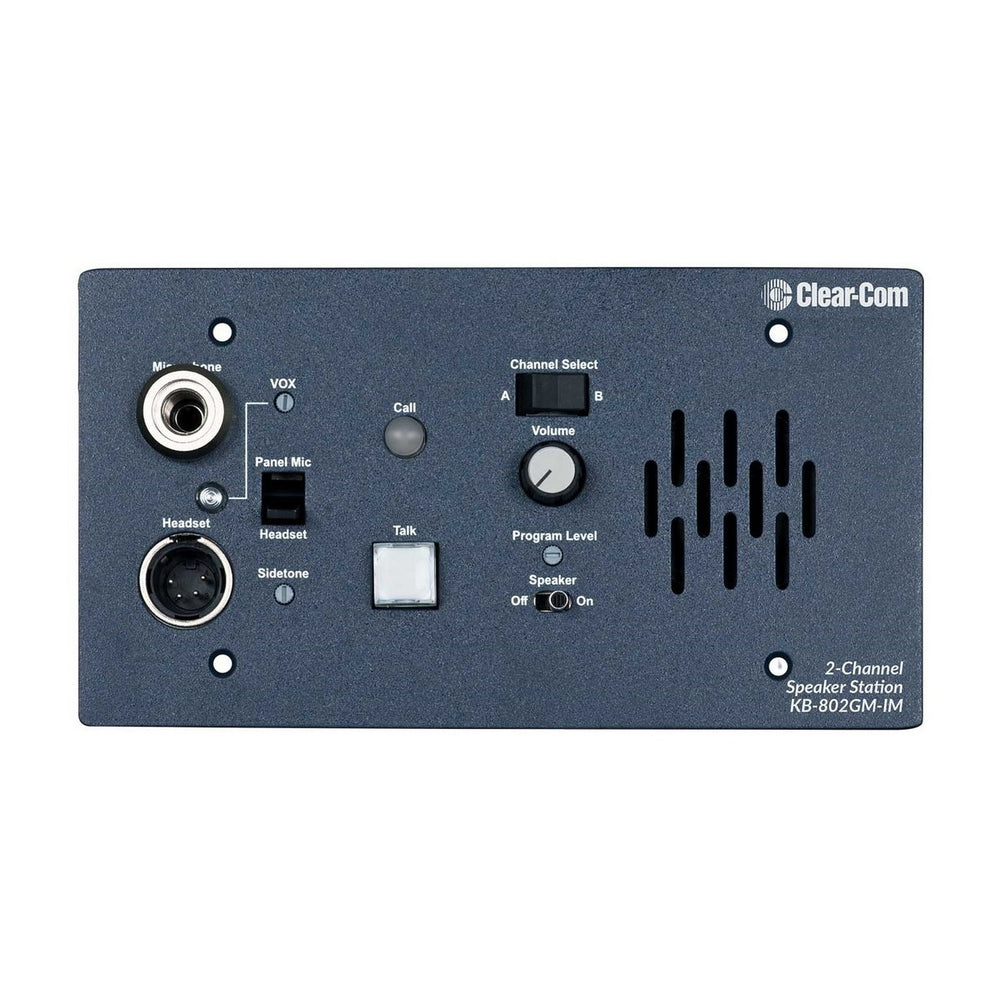

Clear-Com KB-802GM-IM 2 Channel Remote Speaker Station
Encore Marine certified and DNV-GL registered two-channel selectable flush-mount headset/speaker station, gooseneck microphone jack and VOX. Mounts in four-gang box, console, or V-Box accessory enclosure 21.6cm/8.25” X 11.4cm/4.5”. Includes a Four-pin male headset connector.
Key Features
- 2-Channel Remote Speaker Station with Gooseneck Mic Connector
- Selectable one- or two-channel communication
- IP-20 environmental rating
- Asbestos-free in accordance with SOLAS Regulation II-I/3-5.2
- Marine Certification compliant with DNVGL-CG-0339 (2016)
- Visual and audible call signaling with bright LED indicator
- Mic jack for gooseneck mic plus VOX circuitry
- Optional 4-wire daughter boards

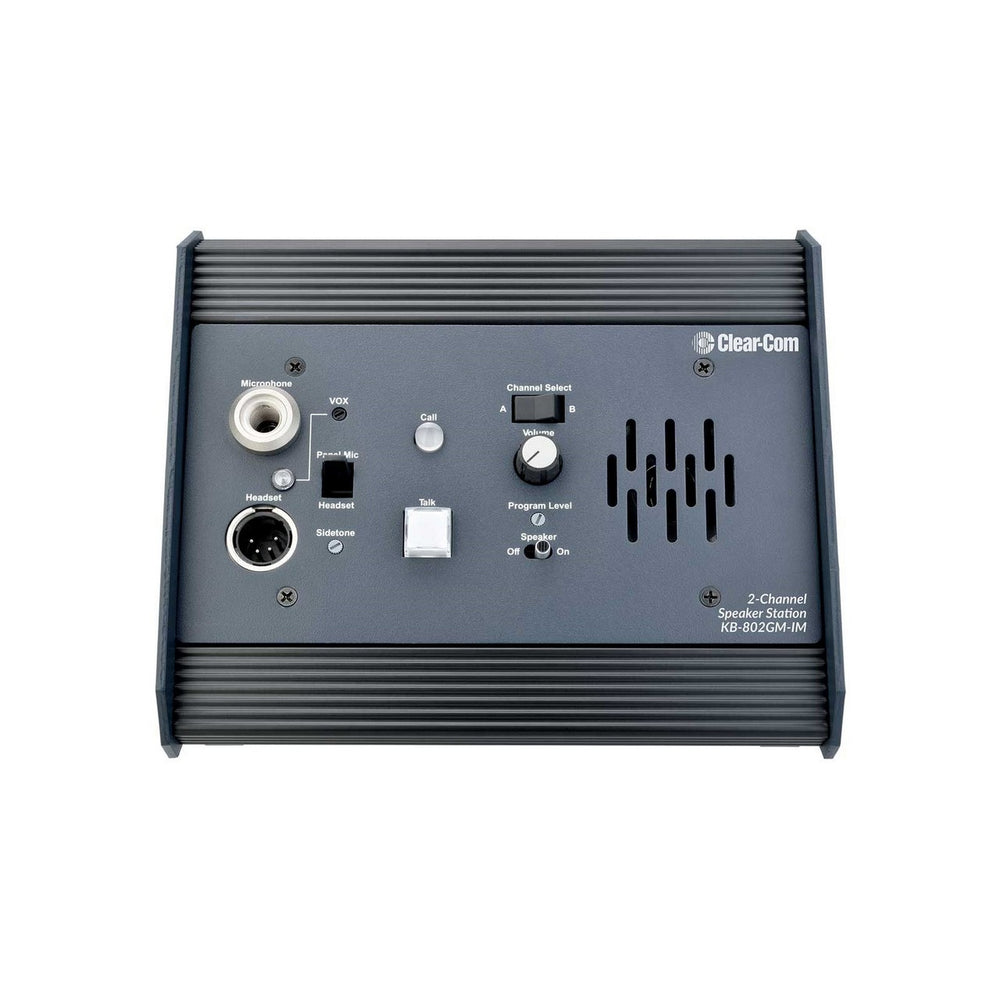

- Wall or console mount, or optional V-BOX for portable or desktop use
Technical Specifications
Panel Microphone Input
Input Type
Electret
Input Impedance
>=2K
Mic Limiter Threshold
-2dBu -3dB
Mic Limiter Range
>= 15dB
Headset Microphone Input
Input Type
Dynamic
Input Impedance
>= 1K
Mic Limiter Threshold
-2dBu - 3dB
Mic Limiter Range
>= 15dB
Program Line Input
Maximum Level before Clipping
>= 20dBu
Input Impedance
>= 5K
Headset Output
Load Impedance
>= 8
Output Impedance
<= 25
Output Limiter Threshold
+5dBu - 3dB
Maximum Output Level before Distortion
>= 17dBu
Dimensions
4.5 x 8.25 x 1.75 (HxWxD)
(114 x 210 x 44 mm)
Weight
1.1 lbs (0.50 Kg)
