Marshall Electronics V 4350 50mm F2.5 Miniature Glass Lens for Precision Imaging
Marshall Electronics V 4350 50mm F2.5 Miniature Glass Lens for Prec...

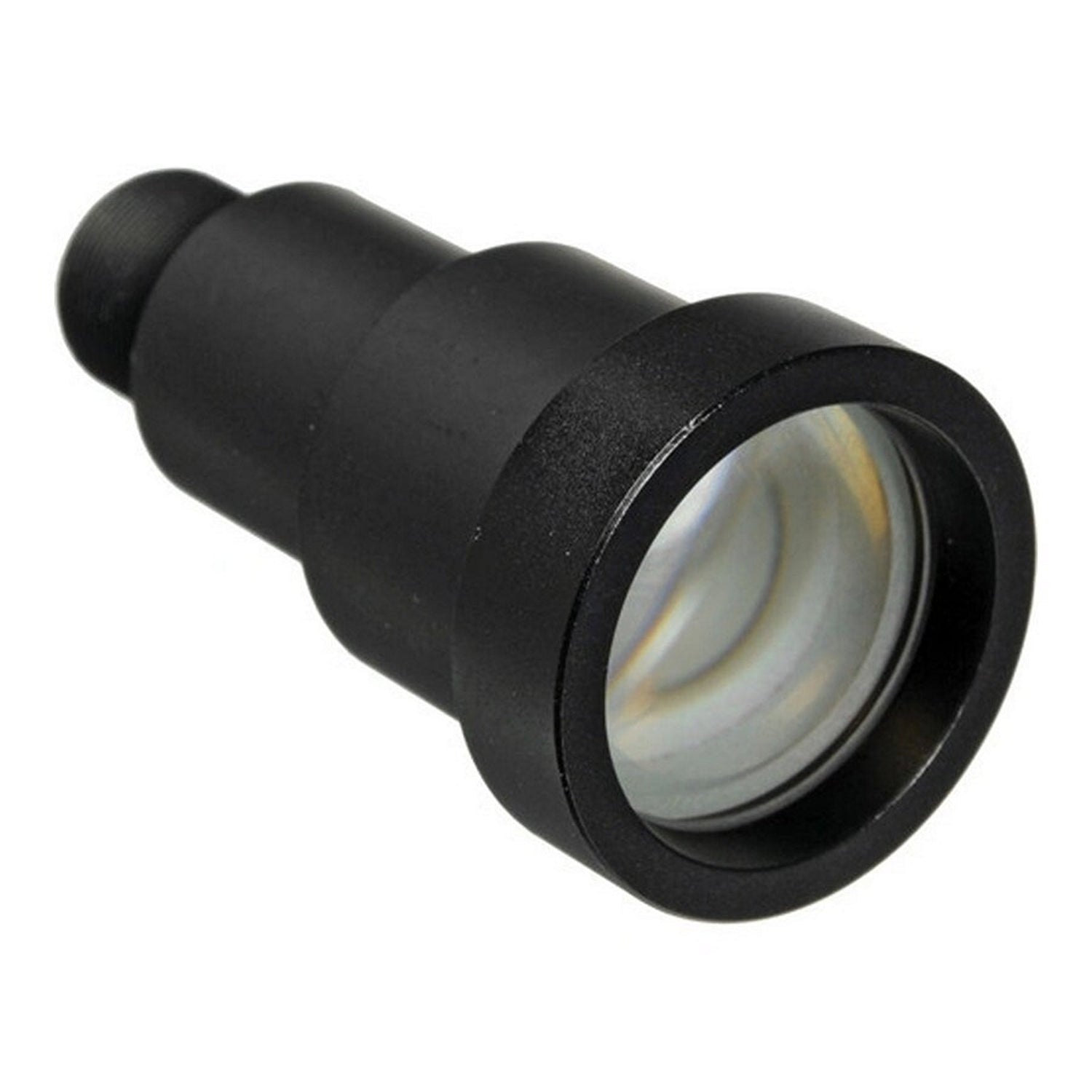

Marshall V-4350 50mm F2.5 Miniature Glass Lens
The Marshall V-4350 50mm F2.5 Miniature Glass Lens is a high-performance lens designed for precision imaging applications. With its compact design and robust construction, this lens is ideal for use with bullet-size and board cameras, making it a versatile choice for a wide range of professional and industrial imaging needs. The lens features a 50mm focal length and a fast F2.5 aperture, ensuring excellent light transmission and sharp image quality even in low-light conditions. Its compatibility with M12 x 0.5 thread mounts and optional lens holders (V-LH04 and V-LH08) makes it a flexible solution for OEM designs and custom setups.
Engineered with four optical elements, the V-4350 lens delivers superior optical performance and durability. It supports sensing areas of 1/3" and 1/2", providing adaptability for various camera sensors. The lens is lightweight at just 27.1g and features a minimum object distance of 40cm to infinity, making it suitable for both close-up and distant imaging applications. Whether you're designing a custom imaging system or upgrading an existing setup, the Marshall V-4350 lens offers exceptional quality and reliability.
Key Features
- Focal Length: 50.0mm
- Relative Aperture: F2.5
- Sensing Area: 1/3", 1/2"
- Back Focal Length: 33.9mm
- Number of Elements: 4
- Minimum Object Distance: 40cm to infinity
- Weight: 27.1g
- Thread Mount: M12 x 0.5
Technical Specifications
- Diameter (D1): ø20.6mm
- Diameter (D2): ø27.0mm
- Length: 52.8mm
- L1: 8mm
- L2: 16mm
- L4: 17.8mm
- L5: 11.0mm
- Total Length (LT): 56.9mm
What's in the Box
- Marshall V-4350 50mm F2.5 Miniature Glass Lens
