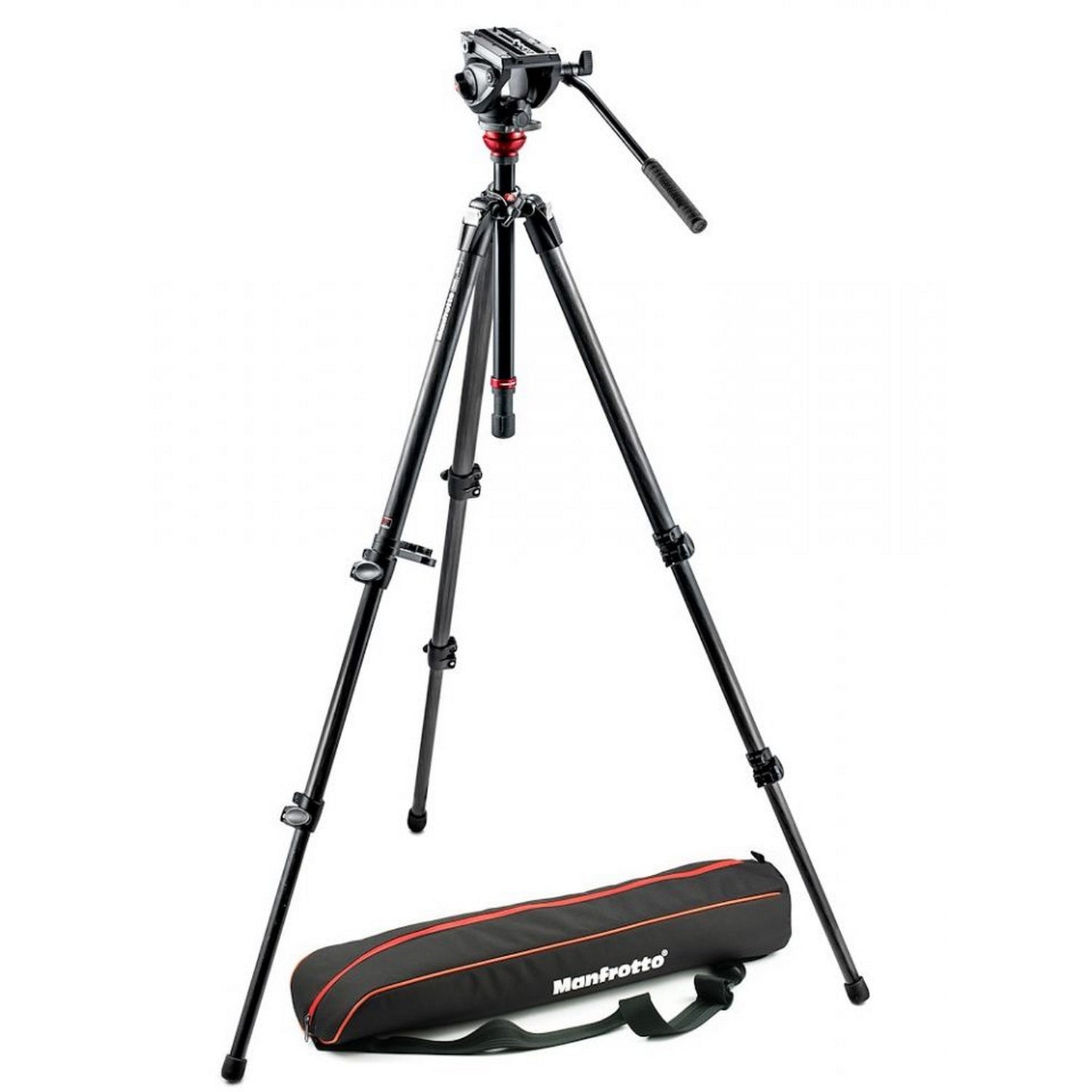

Manfrotto 500 Fluid Video Head and 755CX3 CF Single Leg Tripod
A precise, reliable head combined with a lightweight yet robust tripod to form the perfect package. The video head mounted in this system is the most compact in our successful Bridging Technology range. The 500 fluid video head with flat base includes a sliding plate for extra easy fast set-up and camera connection, itās compact enough to slot into your case with ease, while fluid cartridges creates the smooth pan and tilt movements. The side lock mechanism allows the camera and sliding plate to click quickly into the head from above, instead of needing to be aligned and slid in from the back. The head features a fixed counterbalance system of 2.4kg, and can support up to 5kg. A 3/8'' easy link thread connection gives you the freedom to connect gear like an external monitor in a jiffy, and the flat base is ideal for attaching a variety of supports.
Key Features
- Fixed Fluid Drag System on PAN and TILT movements
- 2.4kg pre-set counterbalance system on tilt movement
- Sliding plate for rapid camera connection and set up
- Standard 3/8'' easy link for external accessories
- Lightweight carbon leveling tripod for fast setup
Technical Specifications
Weight
9.26 lbs
Top Attachment
1/4 screw, 3/8 screw
Ball Flat
Flat
Safety Payload Weight
11.02 lbs
Counterbalance System
Fixed
Powered By (Batteries)
0
Base Diameter
2.36 in
Bubble Spirit Level (No.)
1
Counterbalance Weight
5.29 lbs
Center Of Gravity
2.17 in
Carrying Bag Included
110124
Center Column
rapid
Certifications
none
Closed Length
28.74 in
Color
Black
Easy Link
Yes
Front Tilt
-70Ā° / +90Ā°
Head Type
Video/Fluid Head
Leg Type
Single
Leg Angles
23Ā°, 47Ā°, 66Ā°, 89Ā°
Leg Lock Type
Flip Lock
Leg Sections
3
Legs Tube Diameter
0.8- 0.98- 1.15 in
Material
Carbon Fiber, Aluminum
Maximum Height
68.11 in
Maximum Height (With Center Column Down)
58.27 in
Maximum Working Temperature
140 Ā°F
Min Height
22.05 in
Minimum Working Temperature
-4 Ā°F
Pan Bar Included
Yes
Pan Drag
fluid cartridge with fixed drag
Panoramic Rotation
360 Ā°
Plate Type
500PLONG
Quick Release
Yes
Tilt Drag
fluid cartridge with fixed drag
Upper Disc Diameter
2.36 in
Accessory Compatibility
500HLV; 560BALLSH; 204SPK3; 204SCK3
