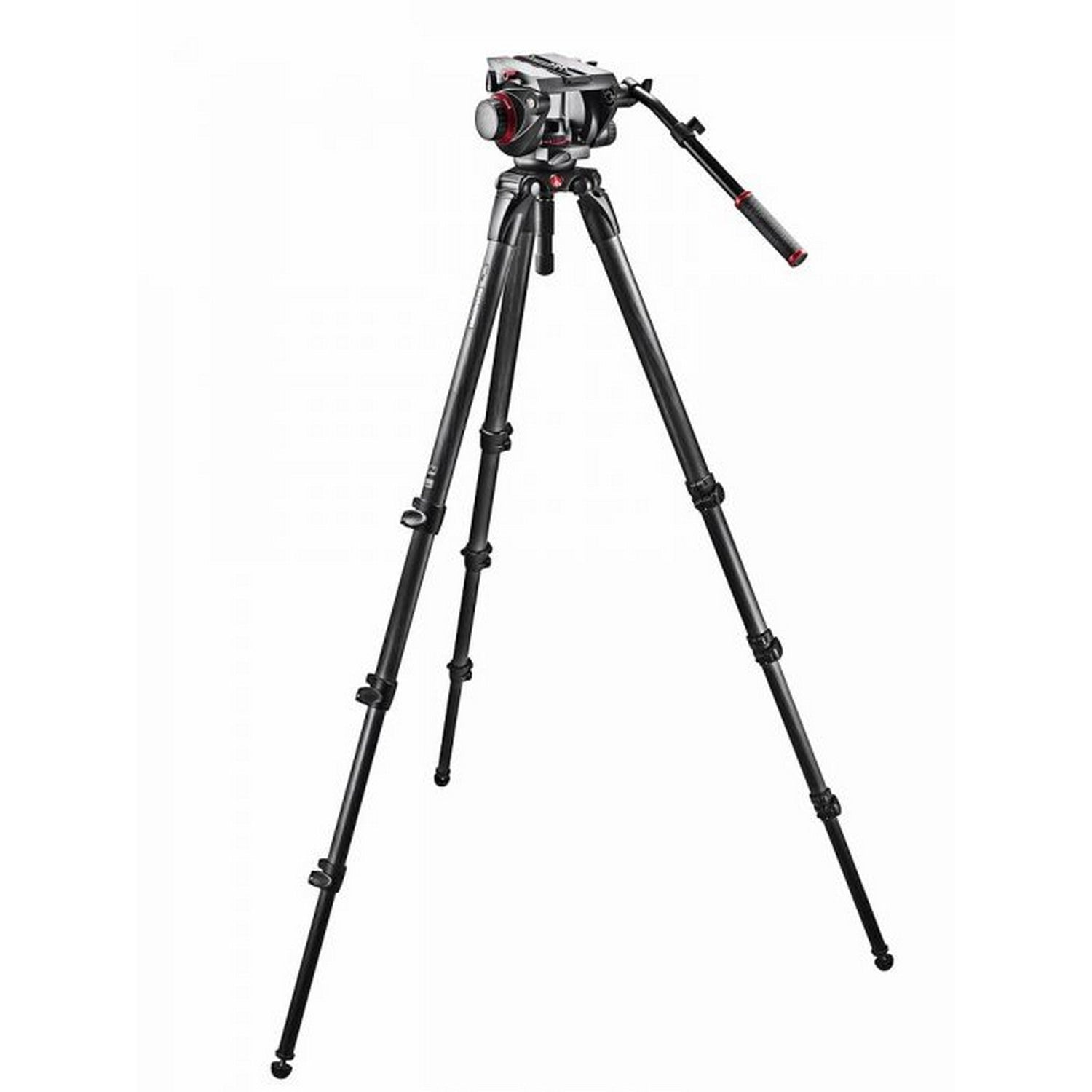

Manfrotto 509HD,536K 509 Fluid Video Head and 536 Carbon Fiber Single Leg Tripod
A lightweight, intuitive and versatile video system. It comes with the 509 fluid head with incorporated 100mm half ball, 536 carbon fibre single leg tripod, and the MB MBAG100PNHD tripod bag, giving you everything you need in one neat package. The Manfrotto 509 fluid video head features variable fluid drag system in both pan and tilt movements, which allows smooth shooting, a 4-step counterbalance system up to 12,8Kg at 55mm C.O.G or 8,5 kg at 125mm C.O.G. And a maximum payload of 13.5kg at 55mm C.O.G or 9Kg at 125mm C.O.G.7,5 Kg. Easy link 3/8'' thread connections allows an external monitor or other accessory equipment to be fitted. It also features the ABR (Advanced Balancing Recorder) for precision when fixing equipment, ensuring a perfect balancing position, saving time and making this operation much more efficient, accurate and fast. The 536 carbon fibre tripod has a 100mm bowl perfect in combination with the 509 head for fast levelling and precision. The tripod enables you to select an angle to suit you thanks to the leg angle selector. Together with the head you can move smoothly up and down, from 40,5cms to 217,5cms.
Key Features
- Variable fluid drag system on pan and tilt for smooth movements
- 4 step counterbalance system
- Set up quickly with intuitive sliding camera plate
- Inbuilt 100mm levelling half ball
- Carbon fibre single leg tripod
Technical Specifications
Weight
21.18 lbs
Top Attachment
1/4” screw, 3/8” screw
Ball Flat
100 Ball
Safety Payload Weight
29.76 lbs
Powered By (Batteries)
Lithium
Bubble Spirit Level (No.)
1
Counterbalance Weight
18.74 lbs
Center Of Gravity
4.92 in
Carrying Bag Included
MB MBAG100PNHD
Center Column
no center column
Certifications
WEEE; RoHS
Closed Length
34.25 in
Color
Black
Easy Link
Yes
Front Tilt
-60 / +90
Head Type
Video/Fluid Head
Leg Type
Single
Leg Angles
23, 50, 70
Leg Lock Type
Flip Lock
Leg Sections
4
Legs Tube Diameter
0.98- 1.15- 1.35- 1.54 in
Material
Aluminum, Carbon Fiber
Maximum Height
85.63 in
Maximum Working Temperature
140 F
Min Height
15.94 in
Minimum Working Temperature
-4 F
Pan Bar Included
Yes
Pan Drag
continuously adjustable from 0 to max level
Panoramic Rotation
360
Plate Type
509PLONG
Quick Release
Yes
Tilt Drag
continuously adjustable from 0 to max level
Accessory Compatibility
502HLV; 509HLV; 114; 127V; 127VS
