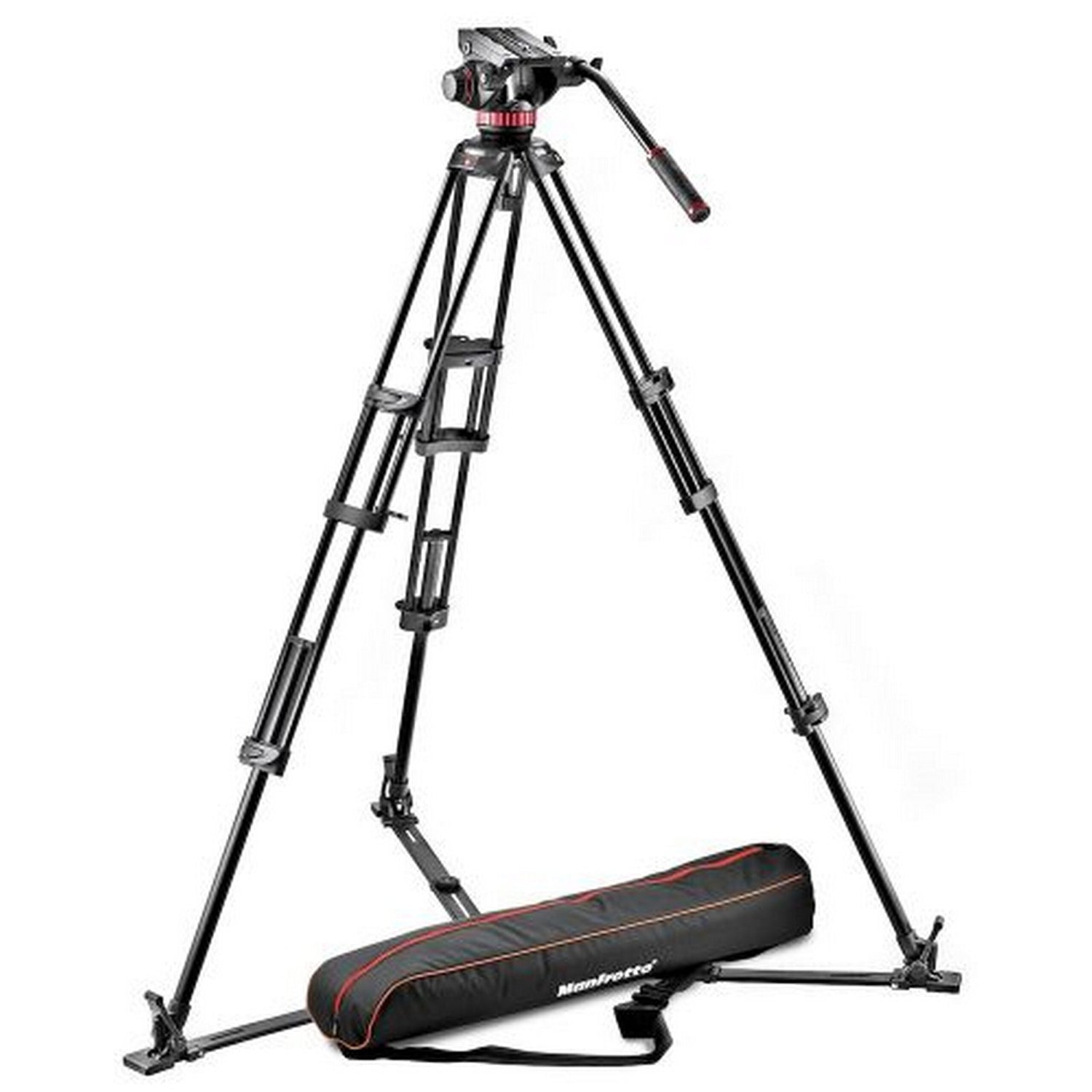

Manfrotto MVH502A,546GB-1 502 Fluid Video Head and 546GB Aluminum Twin Leg Tripod
The MVH502AH,546GB-1 Manfrotto video system features the 502 fluid video head with incorporated 75mm half ball, the 546GB professional aluminium twin leg tripod with ground spreader, and padded carry bag. The head features a variable fluid drag system in both pan and tilt movements and fixed counterbalance system of 4kg and can support up to 7kg. Easy link connectors gives you the freedom to connect gear like an external monitor in a jiffy. The 546GB aluminium twin leg tripod comes with a 75mm bowl for easy, effortless mounting, and the tripod can be used with various dollies so you can enjoy more shooting freedom. With the telescopic ground-level spreader, you can set your leg angles with even greater precision.
Key Features
- Variable Fluid Drag System on PAN and TILT movements
- 4kg pre-set counterbalance system on tilt movement
- Inbuilt -75mm levelling half ball
- Easy Link connectors attach accessories directly to video head
- Aluminium twin leg tripod with ground spreader
Technical Specifications
Weight
15.65 lbs
Top Attachment
1/4” screw, 3/8” screw
Ball Flat
75 Ball
Safety Payload Weight
15.43 lbs
Counterbalance System
Fixed
Powered By (Batteries)
0
Bubble Spirit Level (No.)
1
Counterbalance Weight
8.82 lbs
Center Of Gravity
2.17 in
Carrying Bag Included
110125
Center Column
no center column
Certifications
none
Closed Length
32.68 in
Color
Black
Easy Link
Yes
Front Tilt
-80 / +90
Head Type
Video/Fluid Head
Leg Type
Twin
Leg Lock Type
Flip Lock
Leg Sections
3
Legs Tube Diameter
0.63- 0.98 in
Material
Aluminum
Maximum Height
66.14 in
Maximum Working Temperature
140 F
Min Height
17.32 in
Minimum Working Temperature
-4 F
Pan Bar Included
Yes
Pan Drag
continuously adjustable from 0 to max level
Panoramic Rotation
360
Plate Type
504PLONG
Quick Release
Yes
Spreader
low level - variable arm length
Tilt Drag
continuously adjustable from 0 to max level
Accessory Compatibility
MVAPANBARM; MVAPANBARL; 502HLV; 509HLV; 114MV; 181B; 537SPRB; 565
